Videocast · PTZ cameras
Videocast VC1100 4K PTZ
4K PTZ camera from Videocast. The title says 25X NDI. The key specifications also list 10X, 12X and 20X zoom variants, and mark NDI as optional.
| Name on the listing | The title says VC1100 25X NDI 4K PTZ Camera. The introduction says 4K 25X NDI. |
|---|---|
| Sensor and zoom | Sony 1/2.8-inch CMOS, 8.29 megapixels. Key specifications: 10X, 12X, 20X and 25X optical variants. Technical list: 25X optical and 10X digital. A zoom graphic says 25X and labels example frames 3X, 5X and 25X. |

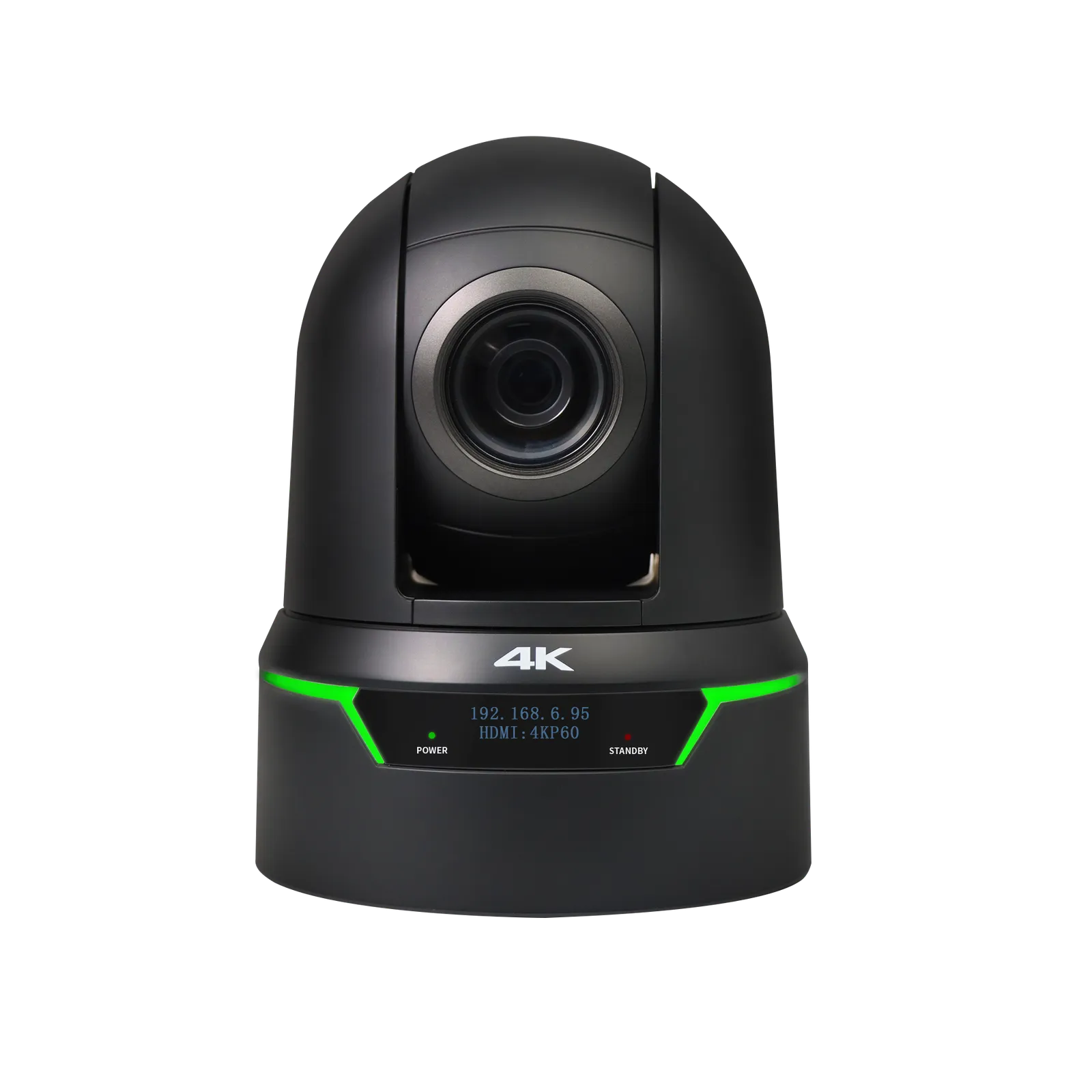

| Resolution | Key specifications: 4K, 3840×2160 at 30 fps. The technical list says 4K, 3840×2160, and does not state a frame rate. Both front The unit includes HDMI:4KP60. |

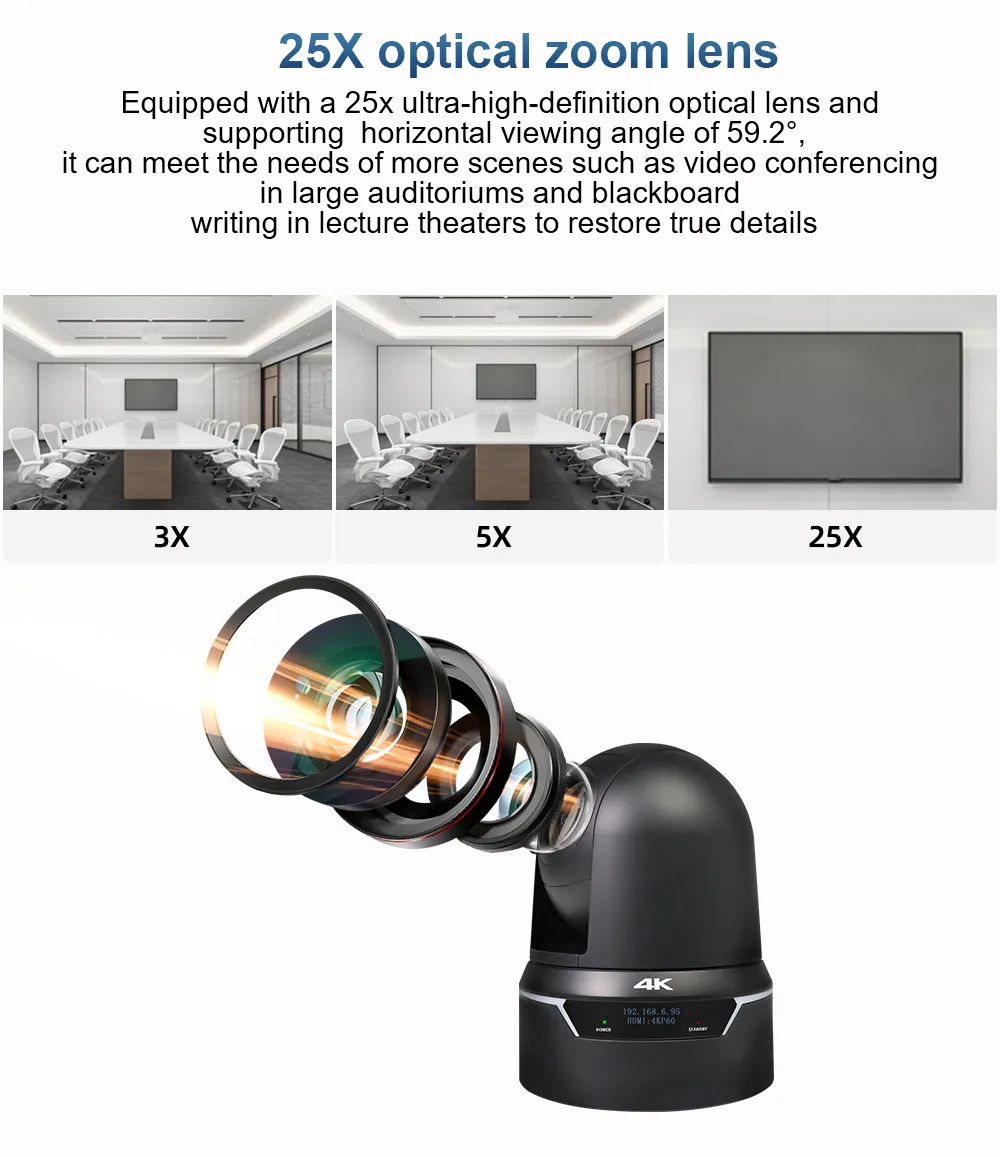

| Lens and field of view | Technical list: f=4.8–120 mm, F1.6–F3.5, and 60.7° wide to 3.36° tele. The zoom graphic also shows a 59.2° horizontal angle. |
| Outputs | Key specifications: HDMI, USB 3.0, SDI and IP. Technical list: HDMI, 3G-SDI, NDI and IP. The technical list does not include USB. |
| NDI and control | The title includes NDI. Key specifications mark NDI as optional, with VISCA, Pelco P/D and ONVIF. The technical output list names NDI without optional. Control in the technical list is RS232, RS485, IP and an IR remote. The gallery has no rear-port photo. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC1100 is a 4K PTZ camera. The listing name includes VC1100 25X NDI 4K PTZ Camera. The introduction says 4K 25X NDI. The key specifications list a Sony 1/2.8-inch CMOS sensor, 8.29 megapixels, 4K at 3840×2160 and 30 fps, and optical zoom variants of 10X, 12X, 20X and 25X. Outputs in that list are HDMI, USB 3.0, SDI and IP. Protocols are VISCA, Pelco P/D, ONVIF and NDI, with NDI marked optional. The technical list says 25X optical zoom, 10X digital zoom, a lens of f=4.8–120 mm, F1.6–F3.5, a field of view from 60.7° to 3.36°, outputs of HDMI, 3G-SDI, NDI and IP, a 3.5 mm line input, RS232, RS485, IP and an IR remote, DC 12V, 24W, 160×160×180 mm and 1.5 kg. It does not mention USB or PoE, and it does not mark NDI as optional. The key specifications say pan ±168°, weight about 2 kg, and matte black, with wall, ceiling or tripod mounting. The technical list says pan ±170°. Tilt is −30° to +90° in both lists. Presets are described only as multiple, with no count. Front The unit includes HDMI:4KP60. A zoom graphic says 25X and a 59.2° horizontal angle. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power, size and mounting | Both lists say DC 12V. The technical list adds 24W, 160×160×180 mm and 1.5 kg, and does not mention PoE. Key specifications: about 2 kg, matte black, and wall, ceiling or tripod mounting. |
|---|
Other details
| Name on the listing | The title says VC1100 25X NDI 4K PTZ Camera. The introduction says 4K 25X NDI. |
|---|---|
| Sensor and zoom | Sony 1/2.8-inch CMOS, 8.29 megapixels. Key specifications: 10X, 12X, 20X and 25X optical variants. Technical list: 25X optical and 10X digital. A zoom graphic says 25X and labels example frames 3X, 5X and 25X. |
| Resolution | Key specifications: 4K, 3840×2160 at 30 fps. The technical list says 4K, 3840×2160, and does not state a frame rate. Both front The unit includes HDMI:4KP60. |
| Lens and field of view | Technical list: f=4.8–120 mm, F1.6–F3.5, and 60.7° wide to 3.36° tele. The zoom graphic also shows a 59.2° horizontal angle. |
| Outputs | Key specifications: HDMI, USB 3.0, SDI and IP. Technical list: HDMI, 3G-SDI, NDI and IP. The technical list does not include USB. |
| NDI and control | The title includes NDI. Key specifications mark NDI as optional, with VISCA, Pelco P/D and ONVIF. The technical output list names NDI without optional. Control in the technical list is RS232, RS485, IP and an IR remote. The gallery has no rear-port photo. |
| Pan, tilt and presets | Key specifications: pan ±168°. Technical list: pan ±170°. Tilt is −30° to +90° in both lists. Presets are described as multiple, with no count. |
| Image | Key specifications: 0.1 lux, auto or manual focus, auto, manual or preset white balance, and digital noise reduction. The technical list does not repeat the 0.1 lux figure. |
| product information | One graphic labels Tele-medicine. The written applications list also includes healthcare training. Crozsi does not claim a medical-device certification. The front includes red or green accent lighting on a black body. The written finish is matte black. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is the VC1100 a 25X camera?
The title says 25X. The key specifications list 10X, 12X, 20X and 25X optical variants. The technical list says 25X optical and 10X digital. We will confirm the lens on your quote.
Does the page say NDI is included?
The title includes NDI. The key specifications mark NDI as optional. The technical output list names NDI and does not say optional. The same technical list omits the USB output named in the key specifications.
Is the VC1100 4K at 30 fps or 60 fps?
The key specifications say 3840×2160 at 30 fps. The technical list does not state a frame rate. Both front The unit includes HDMI:4KP60.
How do I get pricing and availability for the VC1100?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
