Videocast VC1000 4K PTZ
4K PTZ camera with 25X optical zoom, from Videocast. The title says VC1000. The introduction says VC-1000. The key specifications say 4K at 30 fps, and the technical list says HDMI 4K at 60 fps.
| Name on the listing | The title says VC1000. The introduction says VC-1000. |
|---|---|
| Sensor and zoom | Key specifications: Sony 1/2.8-inch CMOS, 8.29 megapixels, and 25X optical zoom. Technical list: 8.50 megapixels, 8.29 effective, and 25X. A zoom graphic says 25X and labels example frames 3X, 5X and 25X. |

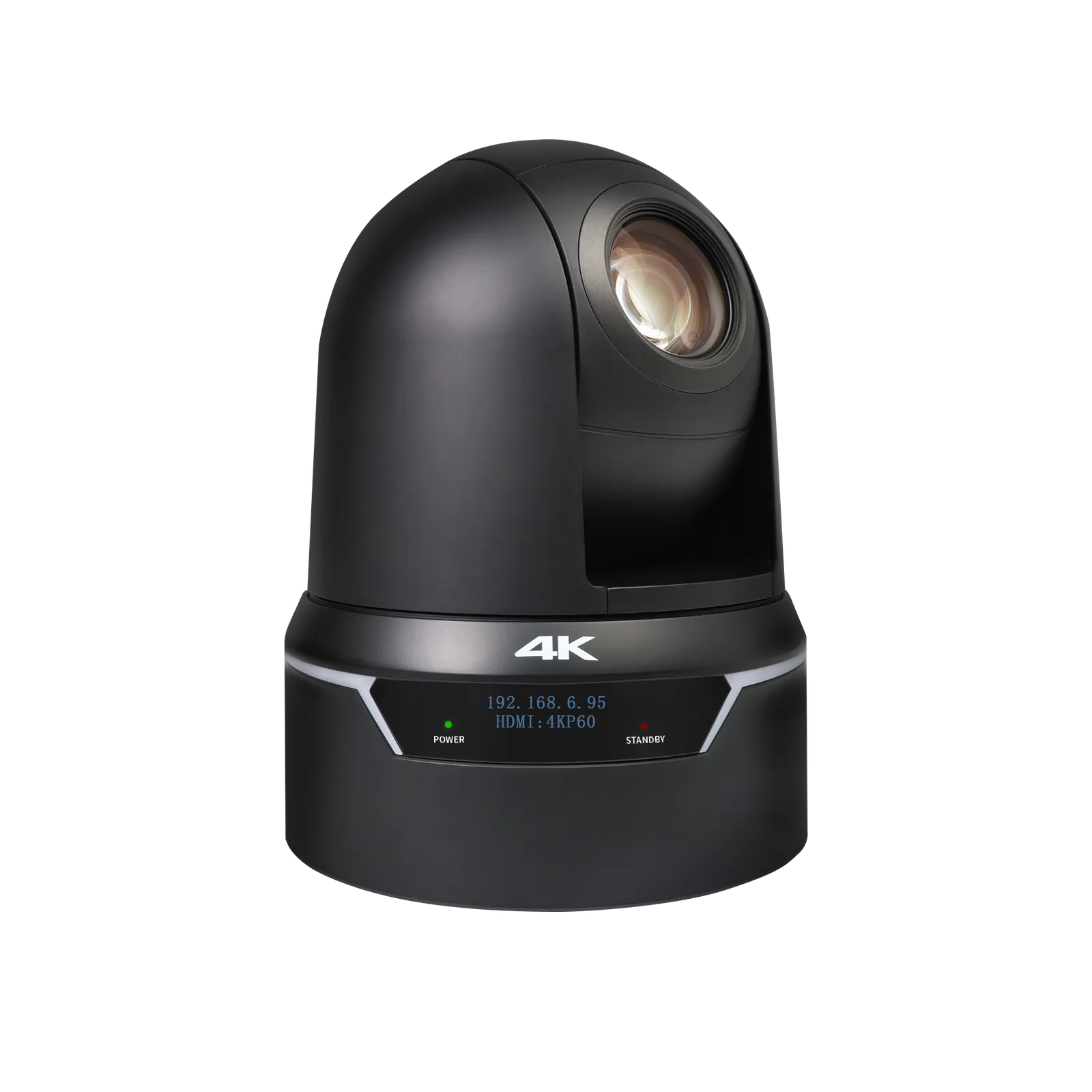

| Resolution | Key specifications: 4K, 3840×2160 at 30 fps. Technical list: HDMI 4K at 60 fps, 1080i60 and 720p60; 12G-SDI at 4K60; 3G-SDI at 1080p60, 1080i60 and 720p60. Front The unit includes HDMI:4KP60. An outputs graphic says HDMI, USB 3.0, SDI and IP can output 4K60 at the same time. |

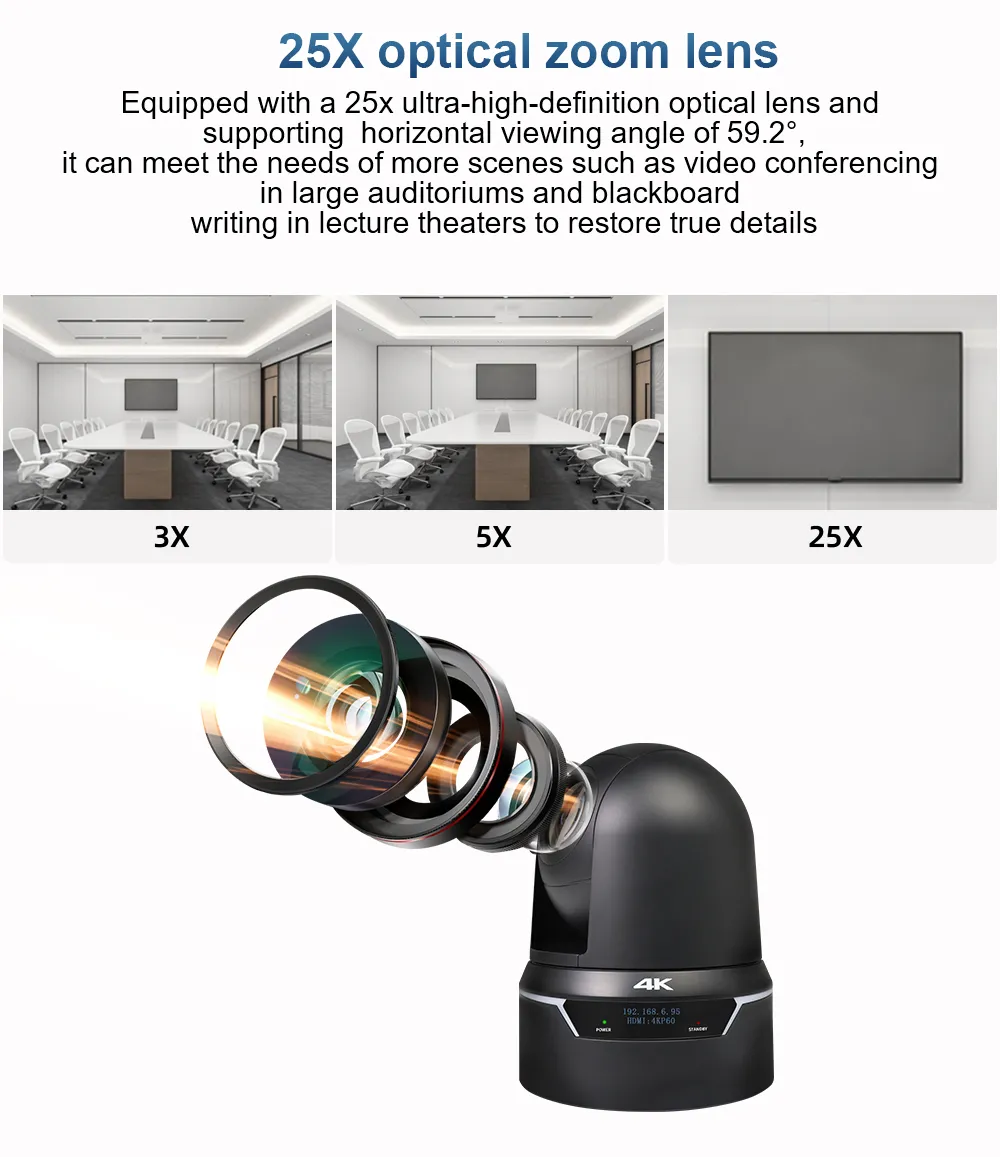

| Lens | Technical list: f=7.1–171.95 mm, F1.61–F5.19. The zoom graphic also shows a 59.2° horizontal angle. The written lists do not state a field of view. |

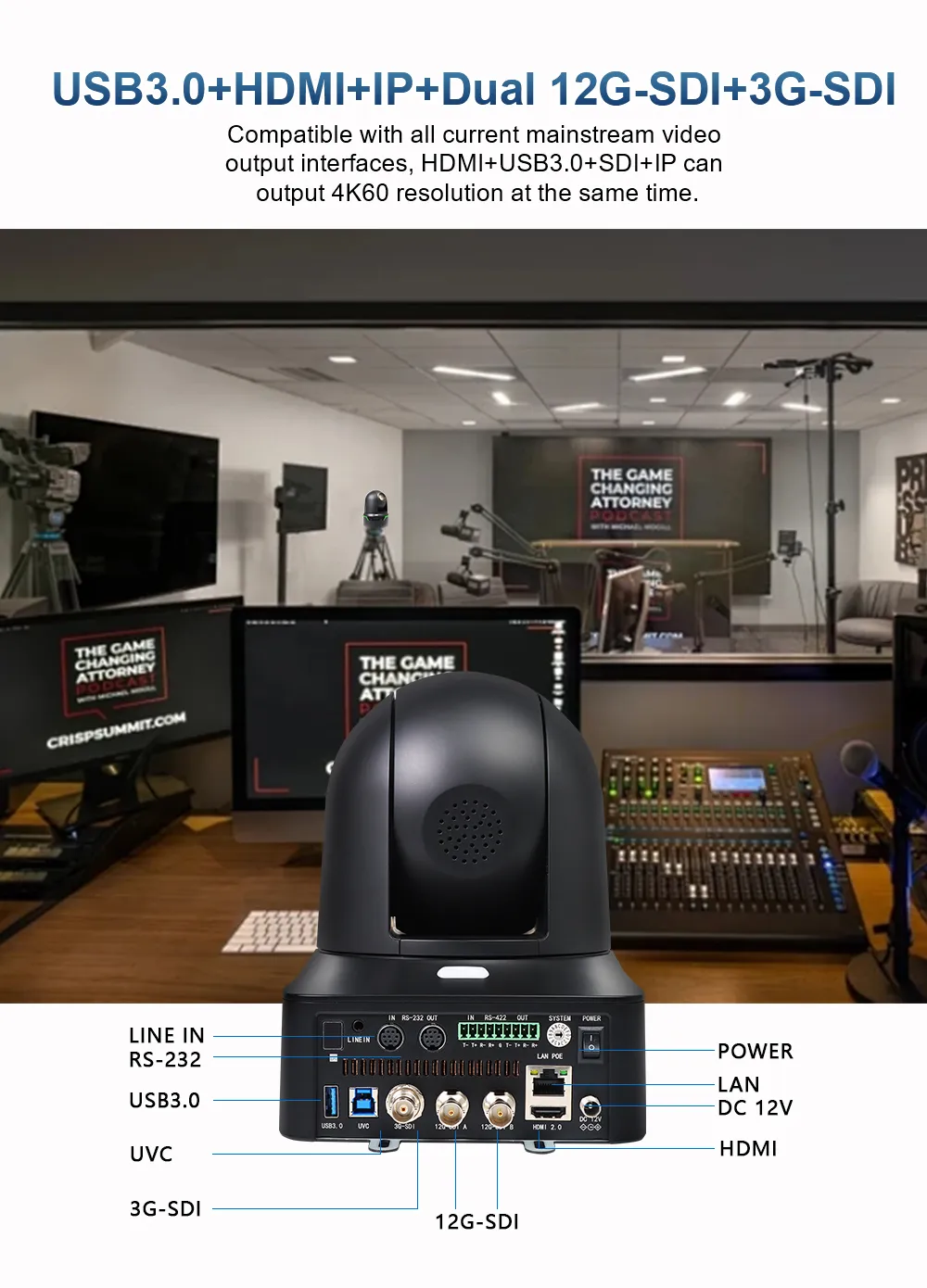

| Outputs | Key specifications: HDMI, USB 3.0 and LAN. They do not include SDI. The technical resolution list names HDMI, 12G-SDI and 3G-SDI. The rear diagram labels line in, RS-232, USB 3.0, UVC, 3G-SDI, 12G-SDI, HDMI, LAN and DC 12V. Its headline says Dual 12G-SDI and 3G-SDI. |
| NDI and control | Key specifications: VISCA, Pelco P/D, ONVIF and NDI, with NDI optional. Technical LAN list: RTSP, RTMP, RTMPS, SRT, ONVIF, VISCA over IP, and optional NDI|HX2 and NDI|HX3. Manufacturer guidance names NDI without optional. Manufacturer guidance says preset positions and does not give a count. The accessory list includes an RS-232C cable and an IR remote. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

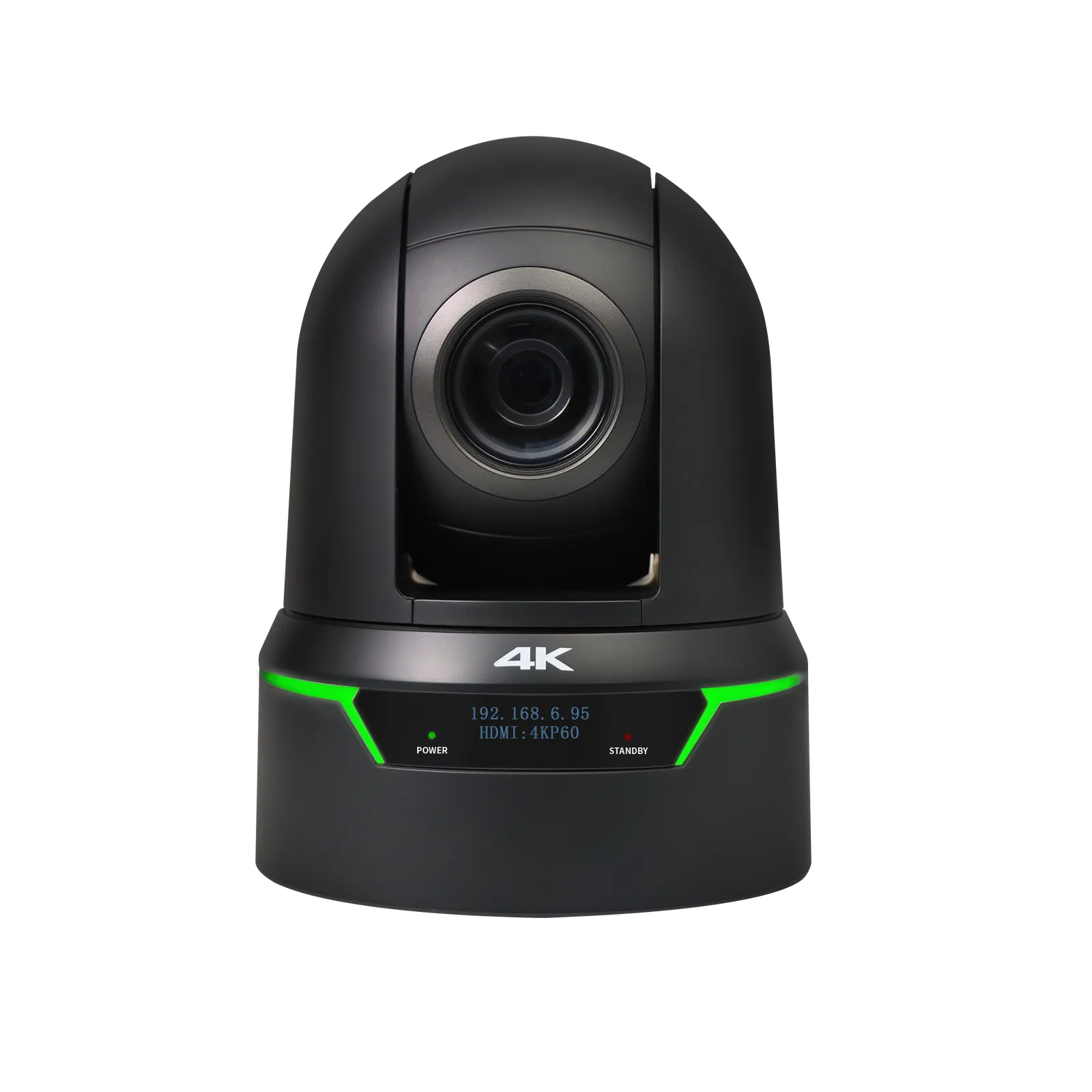

The Videocast VC1000 is a 4K PTZ camera. The listing name includes VC1000. The introduction says VC-1000. The key specifications list a Sony 1/2.8-inch CMOS sensor, 8.29 megapixels, 4K at 3840×2160 and 30 fps, 25X optical zoom, HDMI, USB 3.0 and LAN, VISCA, Pelco P/D, ONVIF and optional NDI, pan ±170°, tilt −30° to +90°, and 0.1 lux. The technical list says 8.50 megapixels with 8.29 effective, a lens of f=7.1–171.95 mm at F1.61–F5.19, and HDMI at 4K60, 1080i60 and 720p60. It lists 12G-SDI at 4K60 and 3G-SDI at 1080p60. It also lists H.264 and H.265, Windows, macOS, Linux and Android, and LAN protocols including RTSP, RTMP, RTMPS, SRT, ONVIF and VISCA over IP. NDI|HX2 and NDI|HX3 are both marked optional there. Size is 158×193×208 mm and weight is 2.0 kg. The power interface is IEC 60130-10 Type A. The accessory list includes a DC 12V adapter, an IR remote, a USB 3.0 cable, an RS-232C cable, a ceiling bracket and an optional wall bracket. The introduction mentions image stabilisation. A FAQ answer says intelligent tracking support and does not include a tracking mode. Front The unit includes HDMI:4KP60. A zoom graphic says 25X and a 59.2° horizontal angle. An outputs graphic is headed Dual 12G-SDI and 3G-SDI, and the diagram labels 12G-SDI and 3G-SDI separately. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power, size and accessories | Technical list: 158×193×208 mm, 2.0 kg, and power interface IEC 60130-10 Type A. Accessories: DC 12V adapter, IR remote, manual, USB 3.0 cable, RS-232C cable, ceiling bracket, and an optional wall bracket. The page does not mention PoE. The rear diagram labels DC 12V. |
|---|
Other details
| Name on the listing | The title says VC1000. The introduction says VC-1000. |
|---|---|
| Sensor and zoom | Key specifications: Sony 1/2.8-inch CMOS, 8.29 megapixels, and 25X optical zoom. Technical list: 8.50 megapixels, 8.29 effective, and 25X. A zoom graphic says 25X and labels example frames 3X, 5X and 25X. |
| Resolution | Key specifications: 4K, 3840×2160 at 30 fps. Technical list: HDMI 4K at 60 fps, 1080i60 and 720p60; 12G-SDI at 4K60; 3G-SDI at 1080p60, 1080i60 and 720p60. Front The unit includes HDMI:4KP60. An outputs graphic says HDMI, USB 3.0, SDI and IP can output 4K60 at the same time. |
| Lens | Technical list: f=7.1–171.95 mm, F1.61–F5.19. The zoom graphic also shows a 59.2° horizontal angle. The written lists do not state a field of view. |
| Outputs | Key specifications: HDMI, USB 3.0 and LAN. They do not include SDI. The technical resolution list names HDMI, 12G-SDI and 3G-SDI. The rear diagram labels line in, RS-232, USB 3.0, UVC, 3G-SDI, 12G-SDI, HDMI, LAN and DC 12V. Its headline says Dual 12G-SDI and 3G-SDI. |
| NDI and control | Key specifications: VISCA, Pelco P/D, ONVIF and NDI, with NDI optional. Technical LAN list: RTSP, RTMP, RTMPS, SRT, ONVIF, VISCA over IP, and optional NDI|HX2 and NDI|HX3. Manufacturer guidance names NDI without optional. Manufacturer guidance says preset positions and does not give a count. The accessory list includes an RS-232C cable and an IR remote. |
| Movement and image | Key specifications: pan ±170°, tilt −30° to +90°, and 0.1 lux. The introduction mentions image stabilisation. Focus is auto or manual. White balance includes auto, indoor, outdoor, keying and auto tracking. Manufacturer guidance says intelligent tracking support and does not include a tracking mode. |
| Compression and systems | H.264 and H.265. Windows 7 and later, macOS, Linux and Android. |
| product information | One graphic names conferencing software, including Zoom, Cisco Webex, Skype and Microsoft Lync. Another graphic labels Tele-medicine. The written applications list does not include healthcare, and Crozsi does not claim a medical-device certification. The front includes red, green or white accent lighting on a black body. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is the VC1000 the same name as the VC-1000?
The listing name includes VC1000. The introduction says VC-1000. We will confirm the name on the unit on your quote.
Is the VC1000 4K at 30 fps or 60 fps?
The key specifications say 3840×2160 at 30 fps on HDMI, USB and LAN. The technical list says HDMI and 12G-SDI at 4K60, and 3G-SDI at 1080p60. Front The unit includes HDMI:4KP60, and an outputs graphic says 4K60 on HDMI, USB, SDI and IP at the same time.
Does the page say NDI and tracking are included?
The key specifications mark NDI as optional. The technical list marks NDI|HX2 and NDI|HX3 as optional. Manufacturer guidance names NDI without optional. Manufacturer guidance says intelligent tracking support and does not include a tracking mode. Auto tracking also appears as a white-balance mode.
How do I get pricing and availability for the VC1000?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
