Videocast · PTZ cameras
Videocast VC110 4K PTZ
PTZ camera from Videocast. The title says VC 110 and 4K. The same page also says VC 100, and the technical list says SDI and HDMI at 1080p60. The VC1100 is a separate listing.
| Name on the listing | The title and technical model line say VC 110. A later paragraph and the summary say VC 100. The housing marks VIDEOCAST and does not include either code. The VC1100 is a separate listing. |
|---|---|
| Resolution and sensor | Key specifications: 4K, 3840×2160 at 30 fps. Technical list: SDI and HDMI at 1080p60, Sony 1/2.8-inch CMOS, 3.50 megapixels and 2.07 effective. Product information also shows 1080P. Some lens rings show HD. One box graphic also shows 4K Ultra HD on the lens. |
| Zoom | Key specifications: 20X optical zoom. The graphic also shows 20X. |
| Tracking | Key specifications: AI auto tracking with single, multi, zone and audio modes, and voice tracking. The summary also says AI auto-tracking. |
| Pan, tilt and presets | Key specifications: pan 336°, tilt 120°, and up to 255 presets. The graphic also shows pan 355° and tilt from −30° to +90°. |

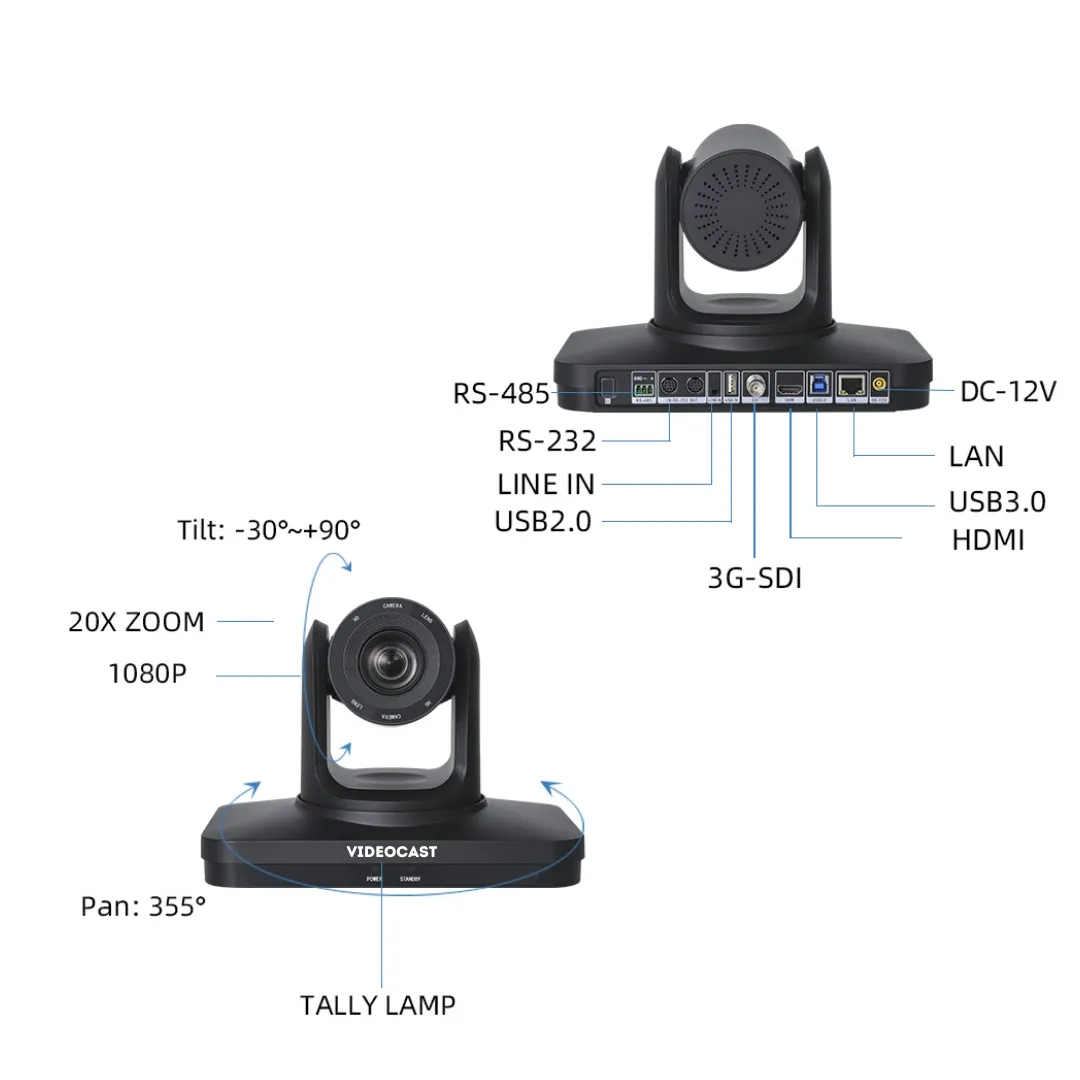

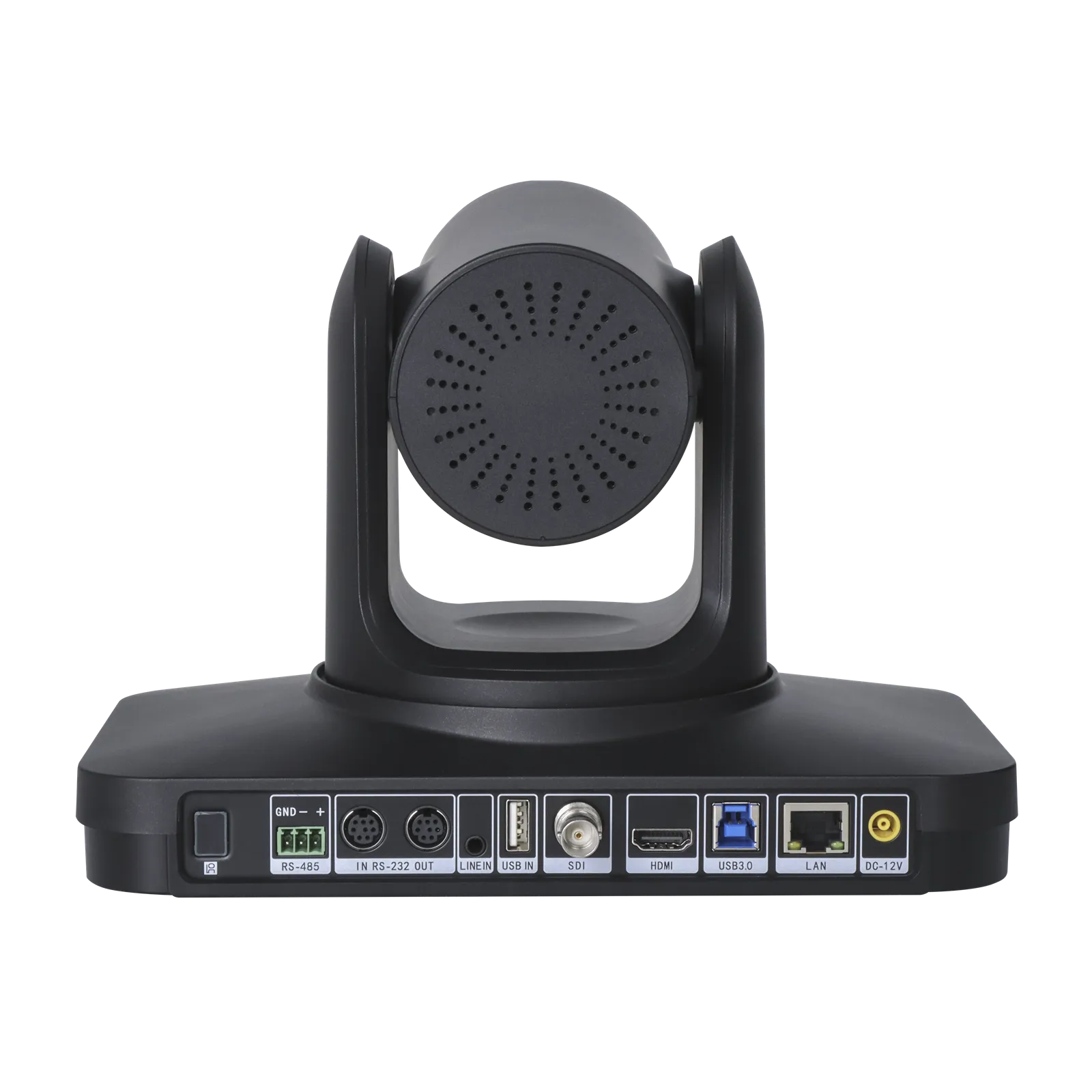

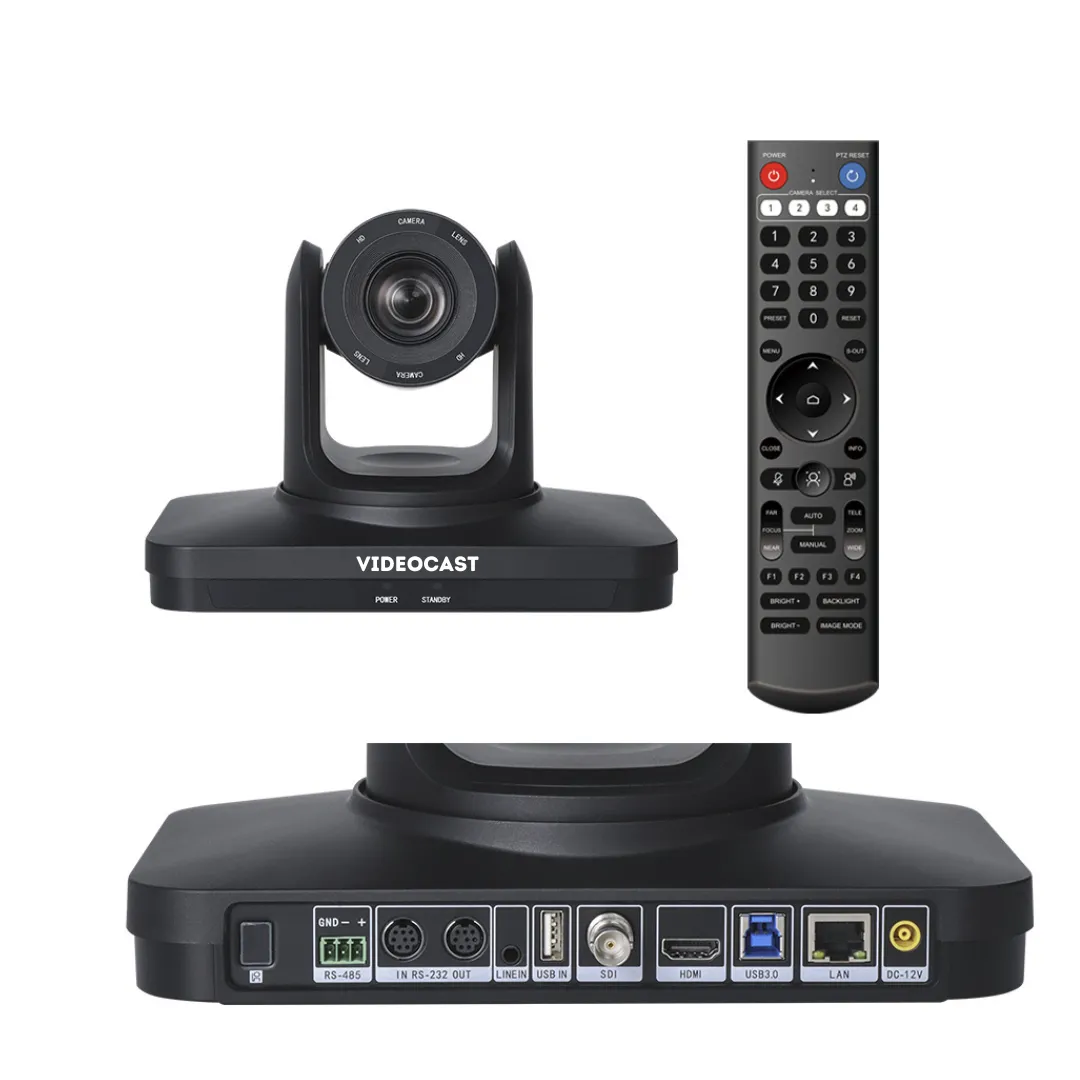

| Outputs and ports | The technical resolution line names SDI and HDMI. The Rear connections include RS-485, RS-232 in, RS-232 out, line in, USB in, SDI, HDMI, USB 3.0, LAN and DC 12V. The key specifications do not include those ports. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC110 is a PTZ camera. The listing name includes VC 110 and 4K. The introduction says VC 110. A later paragraph and the summary say VC 100. The technical list says the model is VC 110. The key specifications list 4K at 3840×2160 and 30 fps, 20X optical zoom, AI auto tracking with single, multi, zone and audio modes, voice tracking, pan 336°, tilt 120°, up to 255 presets, and 0.1 lux. The technical list instead says SDI and HDMI at 1080p60, a Sony 1/2.8-inch CMOS sensor, 3.50 megapixels with 2.07 effective, auto or manual focus, and a manufacturer 3-year warranty. Product information also shows 20X zoom, 1080P, pan 355°, and tilt from −30° to +90°. The Rear connections include RS-485, RS-232 in and out, line in, USB in, SDI, HDMI, USB 3.0, LAN and DC 12V. The key specifications do not include those ports. The unit includes VIDEOCAST. Some lens rings show HD. One box graphic also shows 4K Ultra HD on the lens. The VC1100 and the VC1000 are separate listings. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Outputs and ports | The technical resolution line names SDI and HDMI. The Rear connections include RS-485, RS-232 in, RS-232 out, line in, USB in, SDI, HDMI, USB 3.0, LAN and DC 12V. The key specifications do not include those ports. |
|---|
Dimensions & power
| Power | The Rear connections include DC 12V. The written lists do not state power. The page does not mention PoE. |
|---|
Other details
| Name on the listing | The title and technical model line say VC 110. A later paragraph and the summary say VC 100. The housing marks VIDEOCAST and does not include either code. The VC1100 is a separate listing. |
|---|---|
| Resolution and sensor | Key specifications: 4K, 3840×2160 at 30 fps. Technical list: SDI and HDMI at 1080p60, Sony 1/2.8-inch CMOS, 3.50 megapixels and 2.07 effective. Product information also shows 1080P. Some lens rings show HD. One box graphic also shows 4K Ultra HD on the lens. |
| Zoom | Key specifications: 20X optical zoom. The graphic also shows 20X. |
| Tracking | Key specifications: AI auto tracking with single, multi, zone and audio modes, and voice tracking. The summary also says AI auto-tracking. |
| Pan, tilt and presets | Key specifications: pan 336°, tilt 120°, and up to 255 presets. The graphic also shows pan 355° and tilt from −30° to +90°. |
| Image | Key specifications: 0.1 lux and advanced ISP image processing. Technical list: auto or manual focus. |
| Warranty on The manufacturer listing | The technical list and Manufacturer guidance say a manufacturer 3-year warranty. Crozsi confirms manufacturer coverage on the quote. |

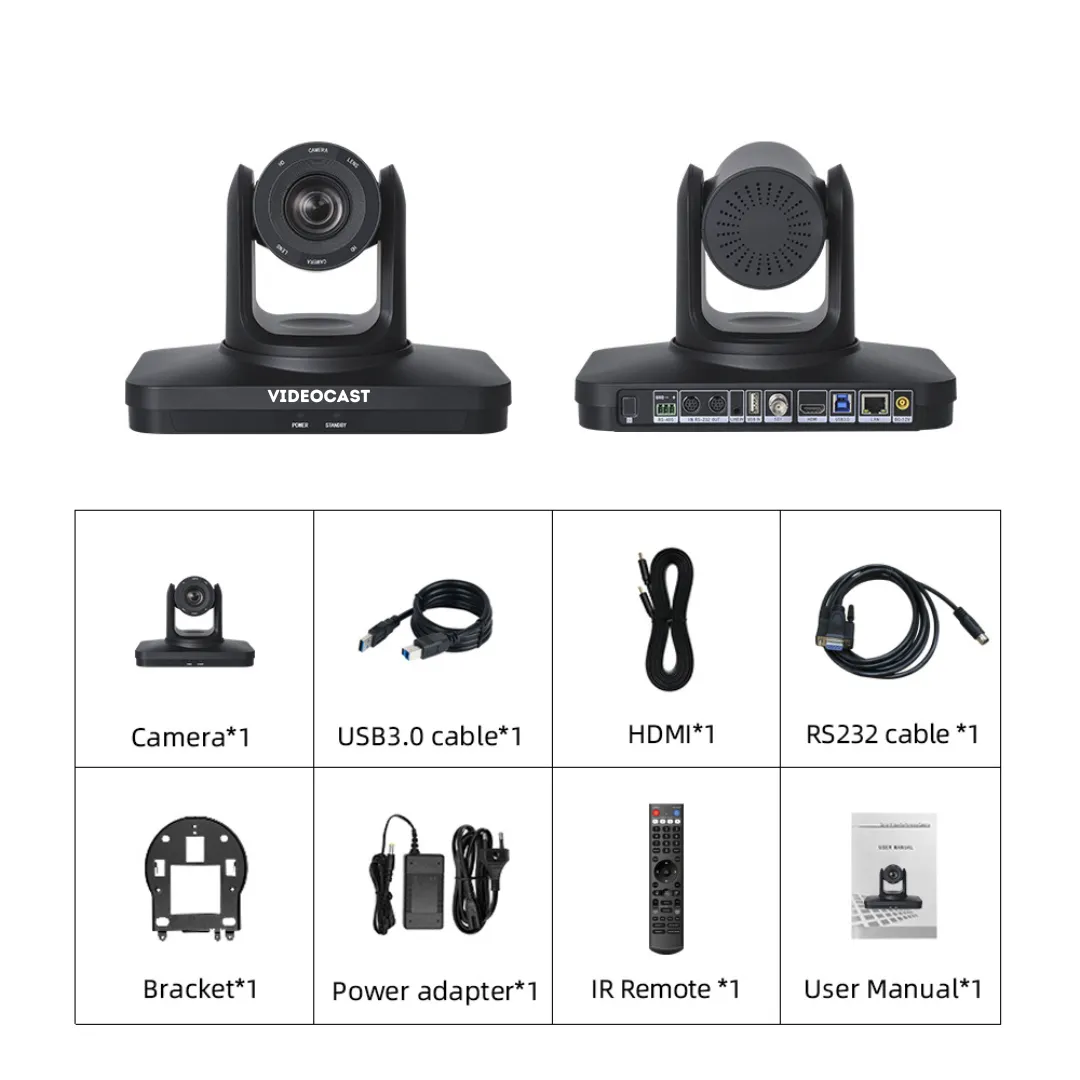

| Box graphic | Camera, USB 3.0 cable, HDMI cable, RS-232 cable, one bracket, power adapter, IR remote and a manual. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is this the VC110, the VC 110 or the VC 100?
The title and the technical model line say VC 110. A later paragraph and the summary say VC 100. The photos do not include the model code. The VC1100 is a different camera. We will confirm the name on the unit on your quote.
Is the VC110 a 4K camera or a 1080p camera?
The title and the key specifications say 4K at 3840×2160 and 30 fps. The technical list says SDI and HDMI at 1080p60, with 3.50 megapixels and 2.07 effective. Product information also shows 1080P. We will confirm the output on your quote.
What pan and tilt figures does the page show?
The key specifications say pan 336° and tilt 120°. Product information also shows pan 355° and tilt from −30° to +90°.
How do I get pricing and availability for the VC110?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
