Videocast VC90 20X 4K PTZ
4K PTZ camera with a 20X optical zoom for teaching, streaming, meetings and production. Share whether you need AI tracking — we will confirm it on your quote.
| Weight | 1200 g |
|---|---|
| Sensor | Sony STARVIS 1/2.8-inch CMOS |
| Resolution | 8.29 megapixel. Product information also shows 4K30FPS. |
| Zoom | 20X optical |

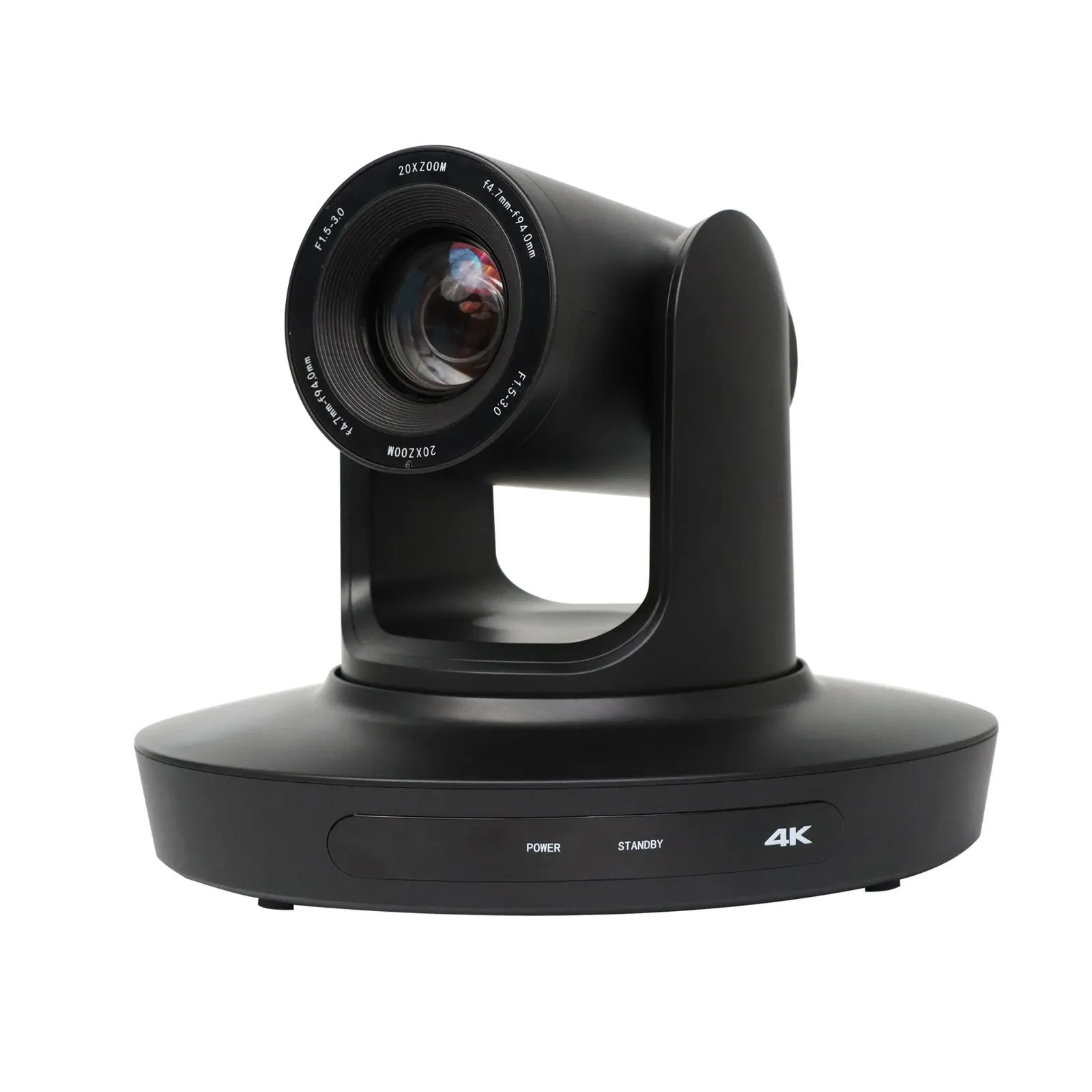

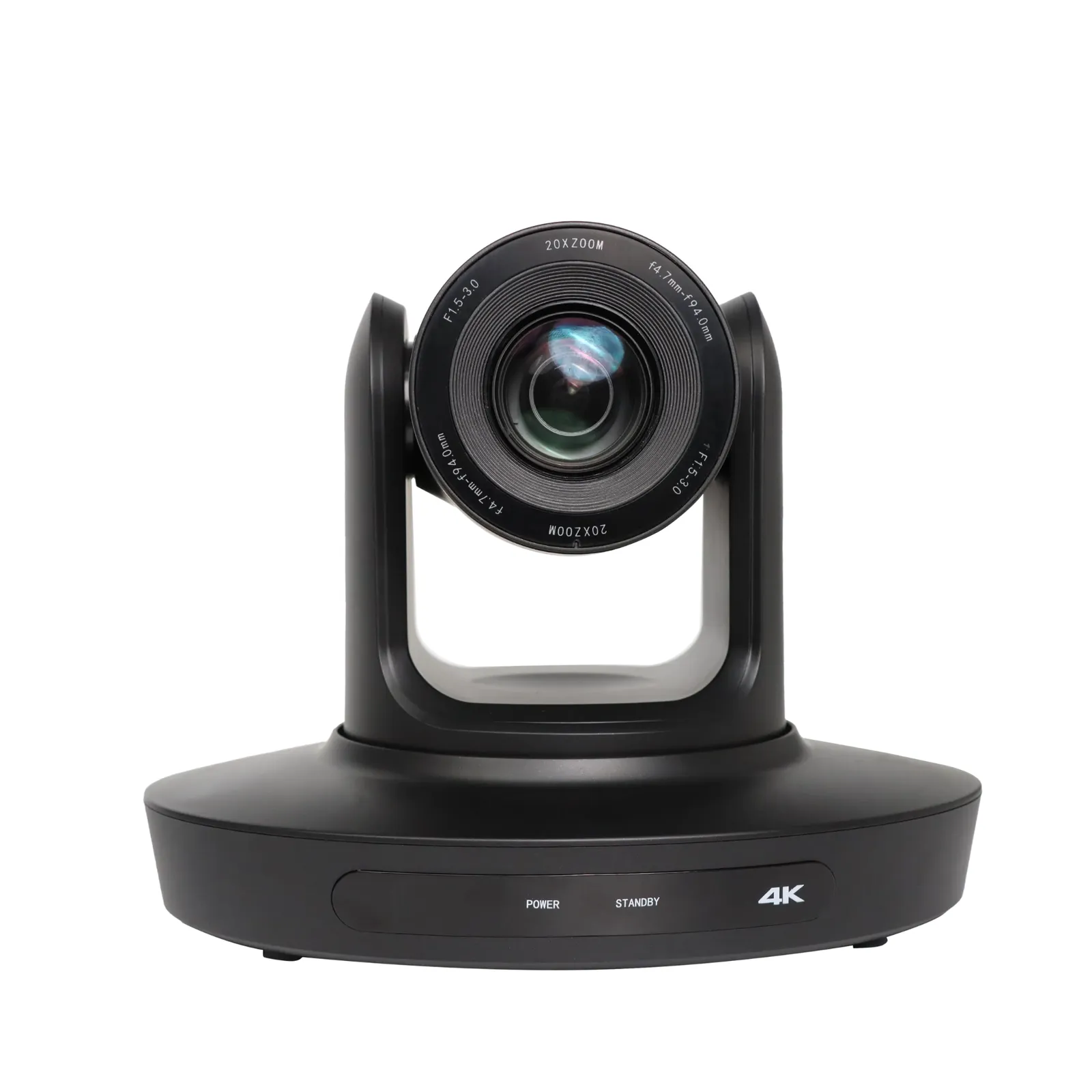

| Lens | Published specifications: 5.2–104 mm. Lens ring on product imagery: f=4.7 mm–94.0 mm and F1.6–3.0. We will confirm the lens on your quote. |
| Viewing angle | 58.7° to 3.2° |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The VC90 is a 4K PTZ camera for teaching, YouTube production, live streaming and meetings. Published specifications include a Sony STARVIS 1/2.8-inch CMOS sensor, 8.29 megapixels, 20X optical zoom, viewing angle 58.7° to 3.2°, 0.1 lux, pan 355°, tilt −30° to +90°, auto and manual focus, up to 255 presets, DC 12V (max 9.5 W), weight 1200 g and a black housing. Video connections include HDMI, USB 3.0 and RS-232C, with LAN, line in and RS-485 also available on the rear panel. AI tracking is confirmed against the configuration you need — the VC90A and the VC90 and M1N bundle list AI tracking explicitly. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.

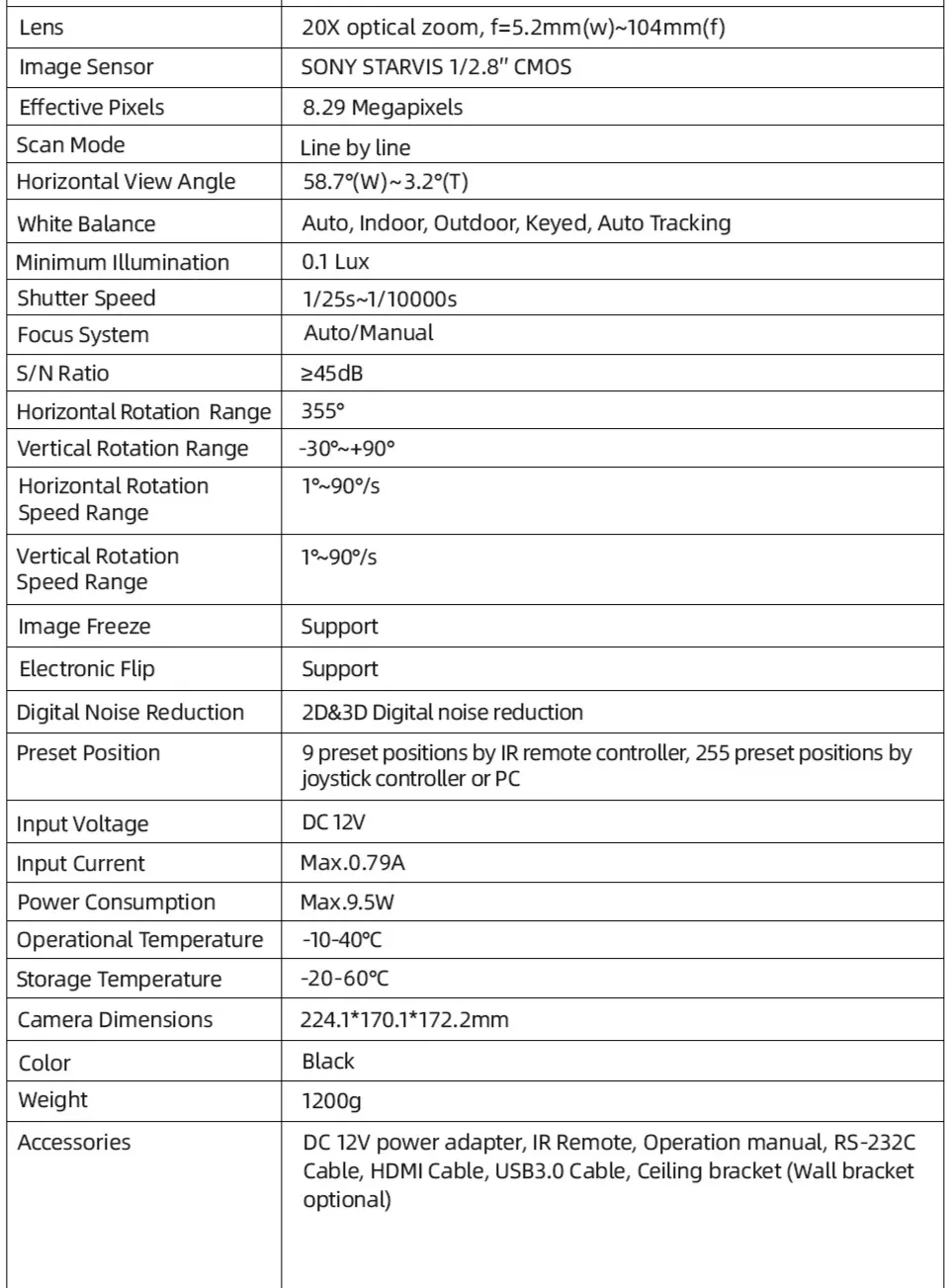

Technical specifications
Published specifications for this model.
Dimensions & power
| Power | DC 12V, maximum 9.5 W. Product information also lists max input current 0.79 A. |
|---|---|
| Dimensions | 224.1 × 170.1 × 172.2 mm |
| Weight | 1200 g |
Other details
| Sensor | Sony STARVIS 1/2.8-inch CMOS |
|---|---|
| Resolution | 8.29 megapixel. Product information also shows 4K30FPS. |
| Zoom | 20X optical |
| Lens | Published specifications: 5.2–104 mm. Lens ring on product imagery: f=4.7 mm–94.0 mm and F1.6–3.0. We will confirm the lens on your quote. |
| Viewing angle | 58.7° to 3.2° |
| Minimum illumination | 0.1 lux |
| Pan | 355° horizontal, 1°–90°/s |
| Tilt | −30° to +90°. Product information also lists vertical speed 1°–90°/s. |
| Focus | Auto and manual |
| Noise reduction | 2D and 3D digital noise reduction |
| Presets | Up to 255. Product information also lists 9 presets by IR remote and 255 by joystick or PC. |
| AI tracking | Some listing URLs mention AI tracking. Published specifications do not include AI tracking or auto framing. The VC90A page lists AI tracking for that model. |

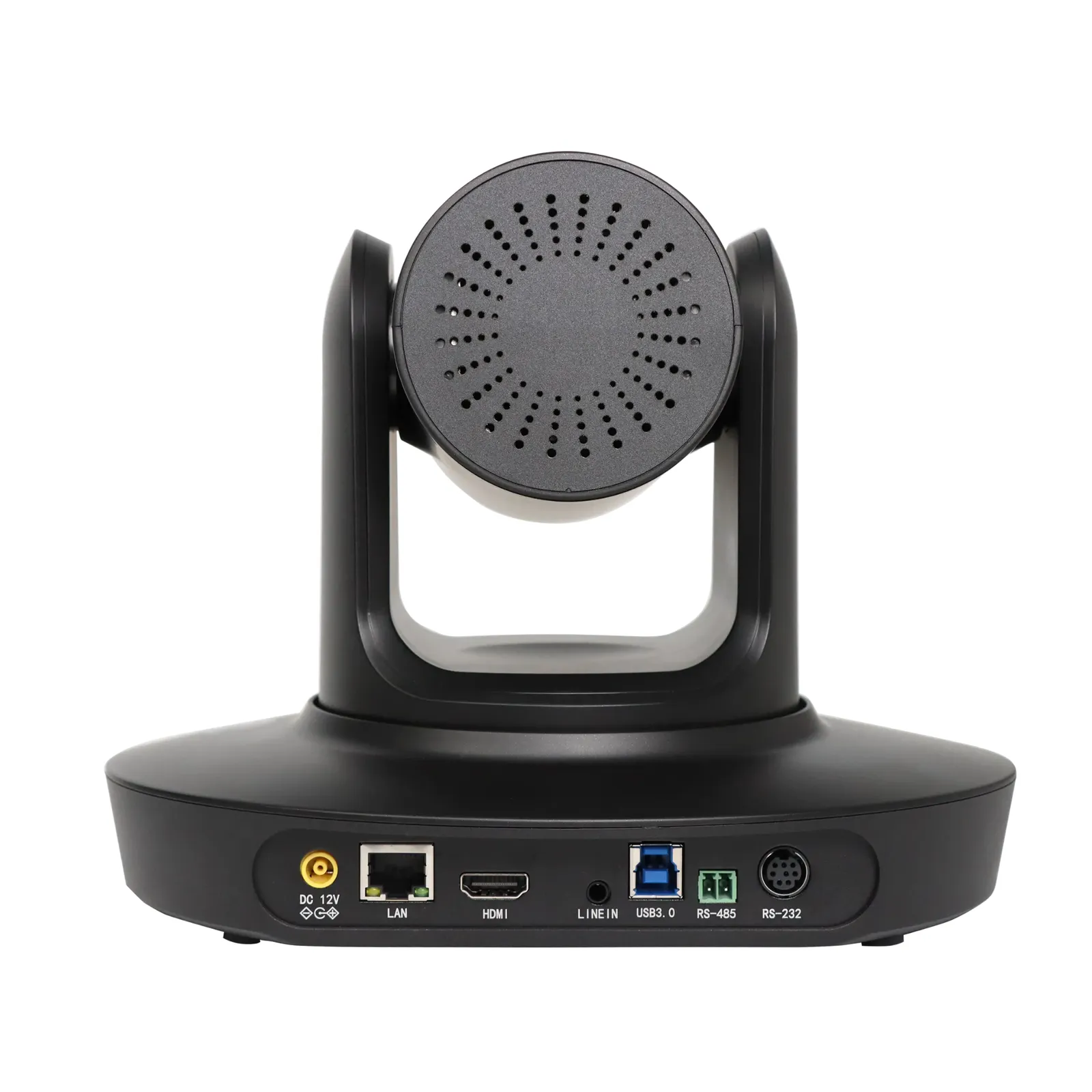

| Connectivity | Published specifications: HDMI, USB 3.0 and RS-232C. Rear connections include DC 12V, LAN, line in and RS-485. |
| Colour | Black |

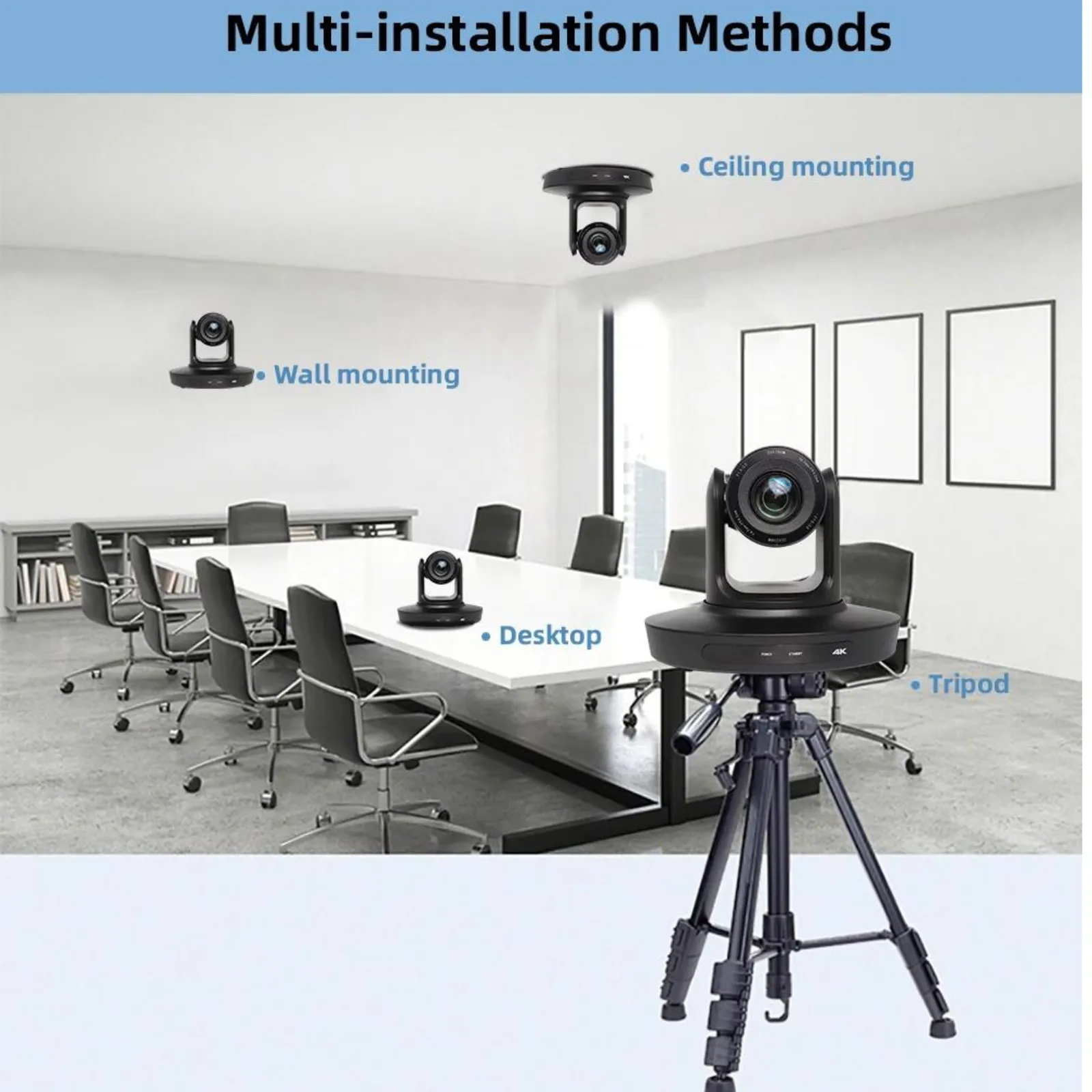

| Pack contents | Camera, USB 3.0 cable, HDMI cable, RS-232 cable, bracket, power adapter, IR remote and user manual. Product information also lists a ceiling bracket as standard and a wall bracket as optional. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Does this VC90 page list AI tracking?
Some listing URLs mention AI tracking. Published specifications do not include AI tracking or auto framing. The VC90A page lists AI tracking for that model. The VC90 and M1N bundle page names AI auto-tracking for the camera in that bundle. We will confirm the feature on your quote.
What zoom and lens does the VC90 publish?
Published specifications list a 20X optical zoom, a 5.2–104 mm lens and a viewing angle from 58.7° to 3.2°. The lens ring shows f=4.7 mm–94.0 mm and F1.6–3.0.
Which outputs does the VC90 list?
Published specifications list HDMI, USB 3.0 and RS-232C. Rear connections also include LAN, line in and RS-485. We will confirm ports you need on your quote.
How do I get pricing and availability for the VC90?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
