Videocast · PTZ cameras

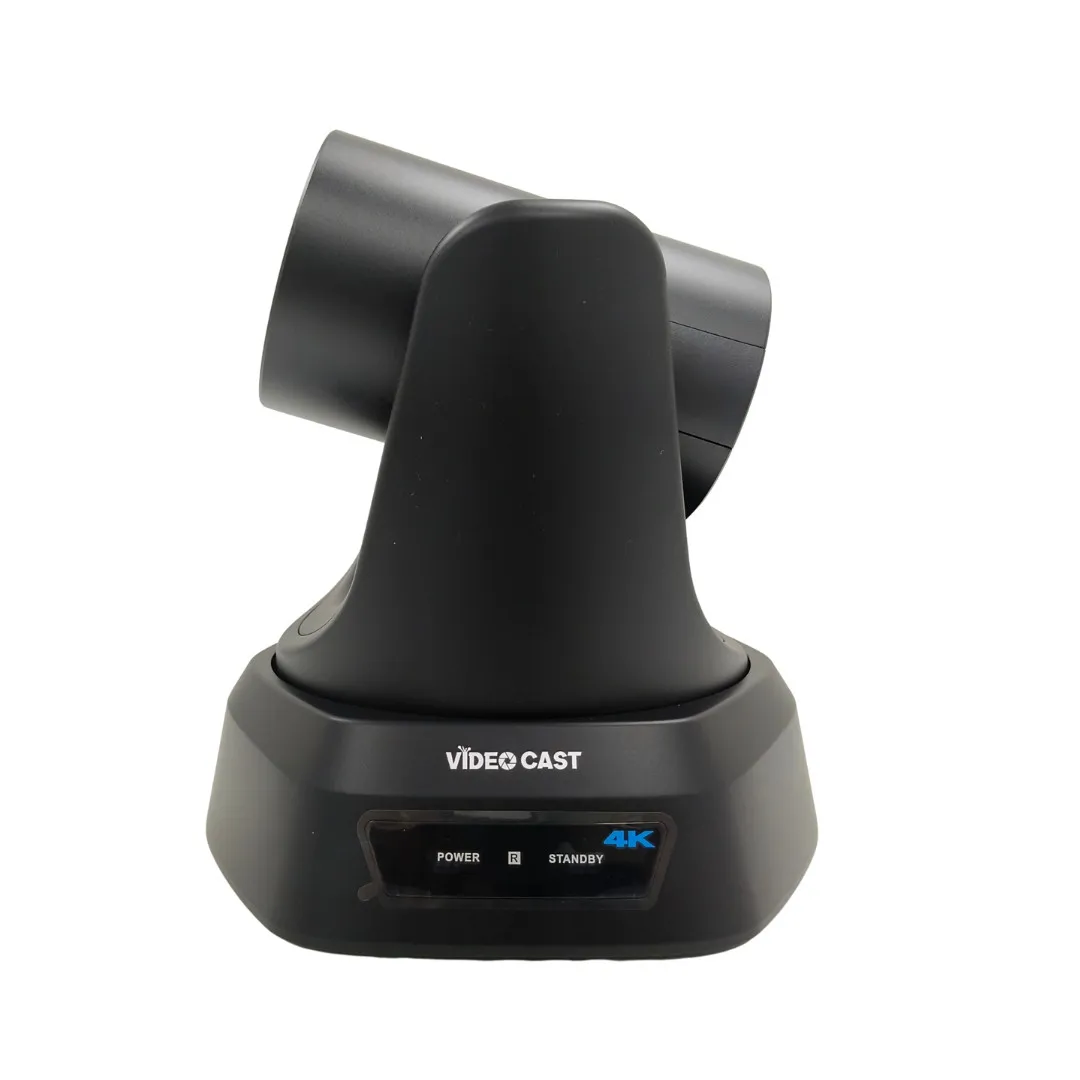

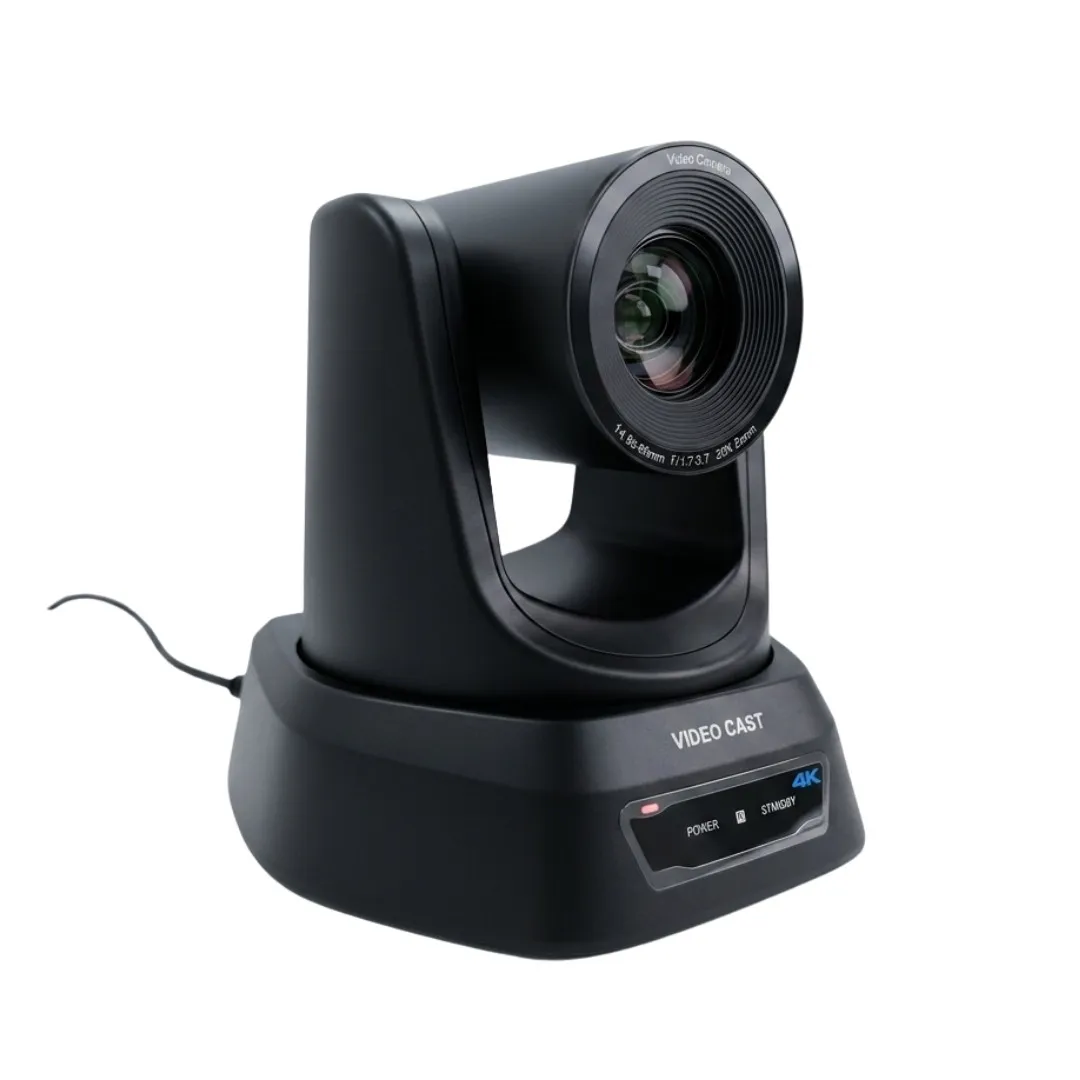

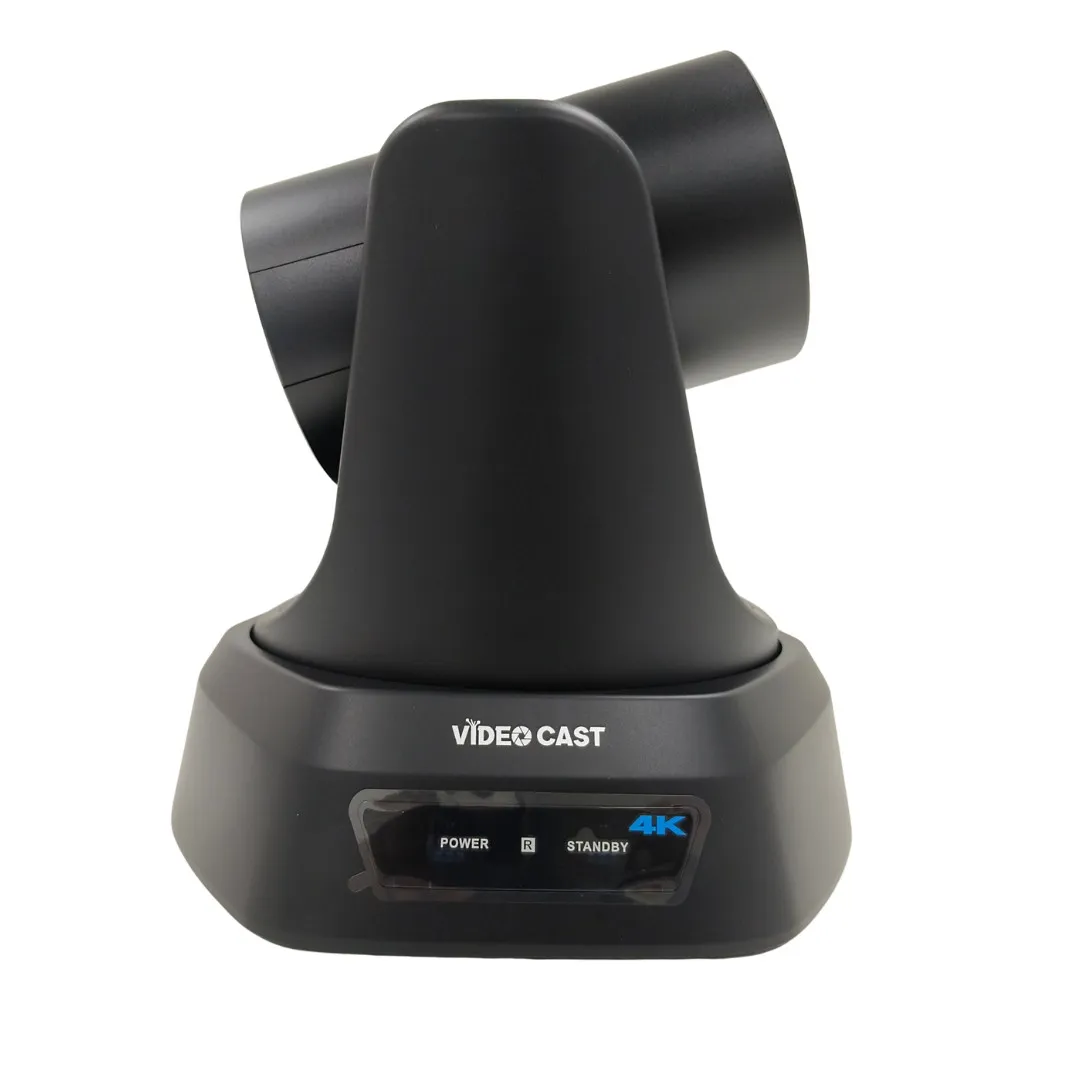

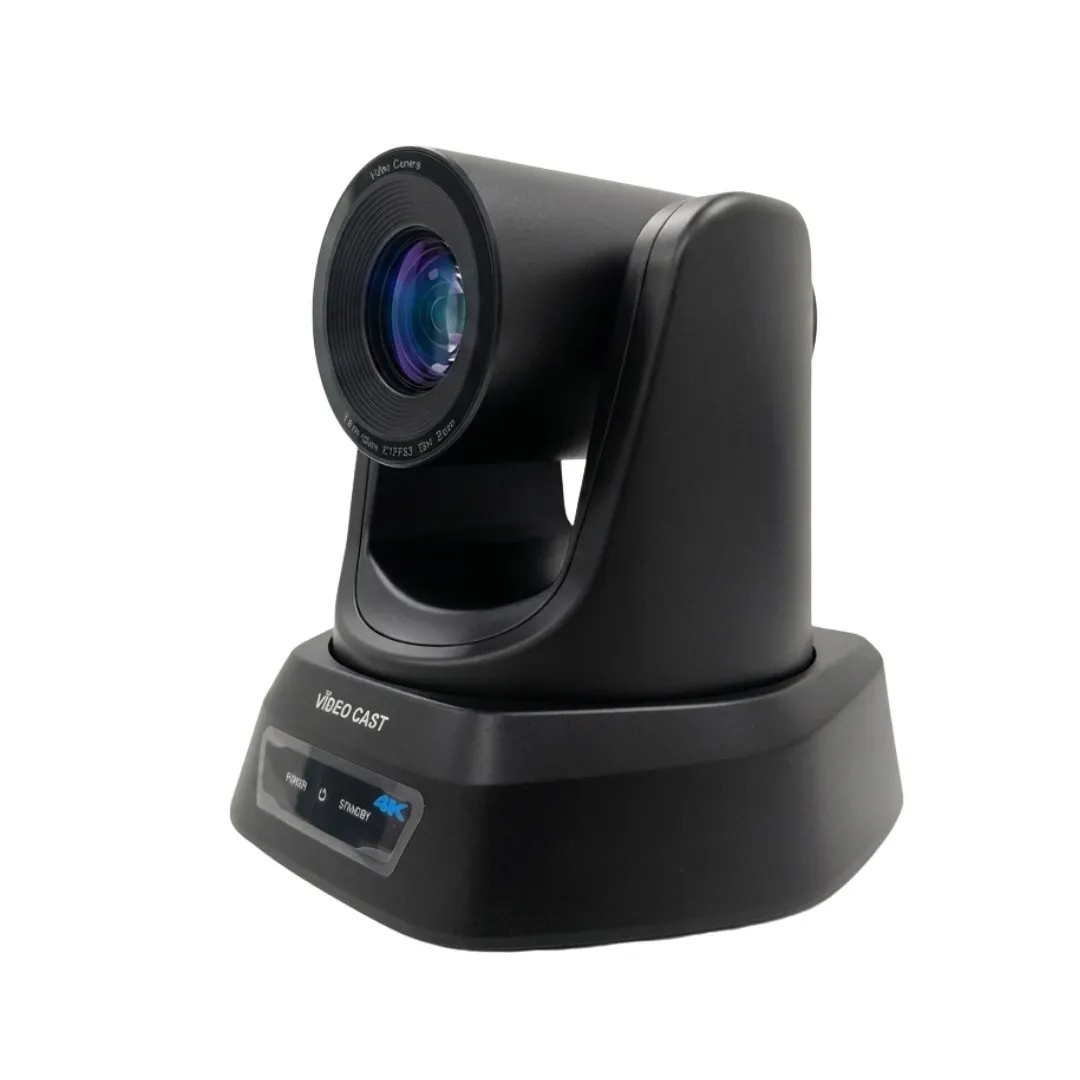

Videocast VC80 20X 4K PTZ
4K PTZ camera with 20X optical zoom and AI presenter tracking, from Videocast for streaming, meetings, education and broadcast.
| Weight | 1.5 kg net |
|---|---|
| Sensor | Sony 1/2.8-inch CMOS |
| Effective pixels | 8.29 MP |
| Resolution | Up to 4K UHD, 3840×2160 at 30 fps |
| Optical zoom | 20X |
| Digital zoom | 8X |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC80 is a 4K PTZ camera for live streaming, video conferencing, education and broadcast production. The published specification is a Sony 1/2.8-inch CMOS sensor, 8.29 megapixels, 20X optical zoom, AI auto framing and presenter tracking, and HDMI, USB 3.0 and RJ45 outputs. NDI|HX2 is listed as optional. PoE is listed as IEEE 802.3af, and the power supply is also listed as DC 12V. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| USB | UVC, listed for plug-and-play with conferencing platforms |
|---|---|
| PoE | IEEE 802.3af |
Dimensions & power
| Power | DC 12V, 24 W maximum. PoE is also listed. |
|---|---|
| Dimensions | 171 × 163 × 173 mm |
| Weight | 1.5 kg net |
Other details
| Sensor | Sony 1/2.8-inch CMOS |
|---|---|
| Effective pixels | 8.29 MP |
| Resolution | Up to 4K UHD, 3840×2160 at 30 fps |
| Optical zoom | 20X |
| Digital zoom | 8X |
| Lens | specifications may also list f=4.95–99 mm. The lens ring on the official photo reads f4.95–88 mm, F1.7–F3.7, 20X zoom. |
| Compression | H.264, H.265, MJPEG and YUY2 |
| AI features | Auto framing and presenter tracking |
| Video outputs | HDMI, USB 3.0 and RJ45 |
| Streaming protocols | RTSP, RTMP, ONVIF, SRT, and NDI|HX2 listed as optional |
| Pan | 350° |
| Tilt | 180° |
| Presets | Up to 255 |
| Control | RS232, RS485, USB and RJ45 |

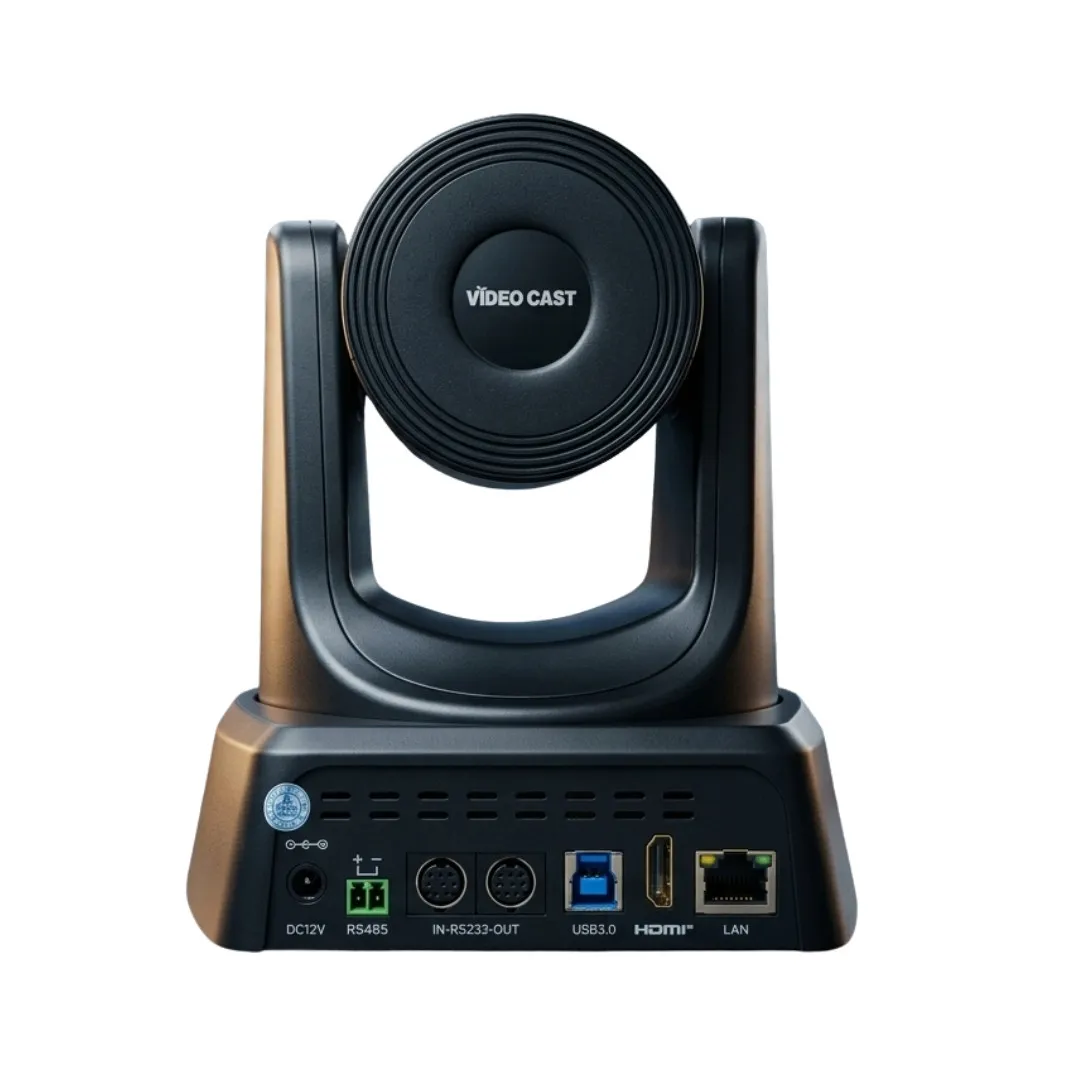

| Rear panel | Ports include DC 12V, RS485, RS232 in and out, USB 3.0, HDMI and LAN |
| Noise reduction | 2D and 3D |
| Streams | Dual stream, main and sub-stream |
| Operating systems | Windows, macOS, Linux and Android |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Does the VC80 include AI tracking?
Yes. the manufacturer listing lists AI auto framing and presenter tracking.
Is NDI included on the VC80?
Specifications mark NDI|HX2 as optional. We will confirm whether your quote includes it.
How is the VC80 powered?
The page lists both IEEE 802.3af PoE and a DC 12V supply, with power consumption up to 24 W. Confirm which method the installation will use.
How do I get pricing and availability for the VC80?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
