Videocast VC-TX871Pro Wireless HDMI
5 GHz wireless HDMI system from Videocast for cameras and live production. The manufacturer listing lists a line-of-sight range of up to 500 m.
| Model on the page | VC-TX871Pro. An official box graphic titles the manual VU2079Pro and for Pocket 3. We will confirm marking on your quoted unit. |
|---|---|
| Range | Up to 1640 ft / 500 m, stated as line-of-sight. product information also shows 1640 ft and 500 m with the words no barrier. |
| Latency | The key features show 0.05 seconds or less. specifications may also list about 60 ms. We will confirm figure on your quote. |
| Wireless | 5 GHz |
| Resolution | 1080p at 60 Hz and 720p. Unit screens in the unit includes 1920×1080P and 60Hz. |

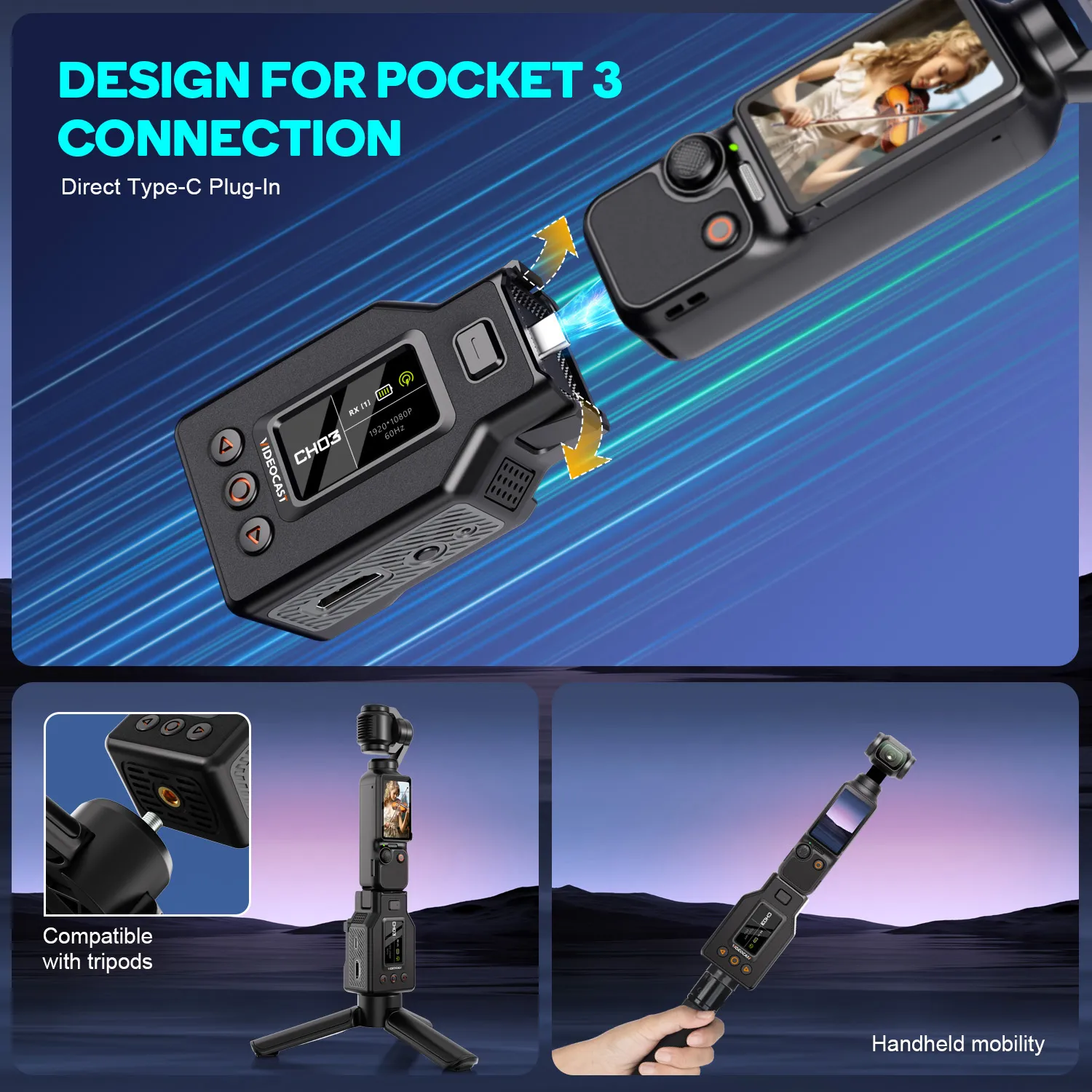

| Video input | HDMI and UVC. Product information also shows a direct Type-C plug into a Pocket 3. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC-TX871Pro is a wireless HDMI video transmission system for live production, streaming and camera workflows. The published specification is a 5 GHz link, a line-of-sight range of up to 500 m (1640 ft), HDMI and UVC input, HDMI output on the receiver, HDMI loop-out, 1080p60 and 720p, and embedded HDMI audio. One transmitter is listed for up to five receivers. The key features show latency of 0.05 seconds or less, while specifications may also list about 60 ms, so the quote confirms the figure. The page names cameras, DJI Pocket 3 and UVC workflows. The gimbal camera in the product imagery is not part of this listing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Wireless | 5 GHz |
|---|---|

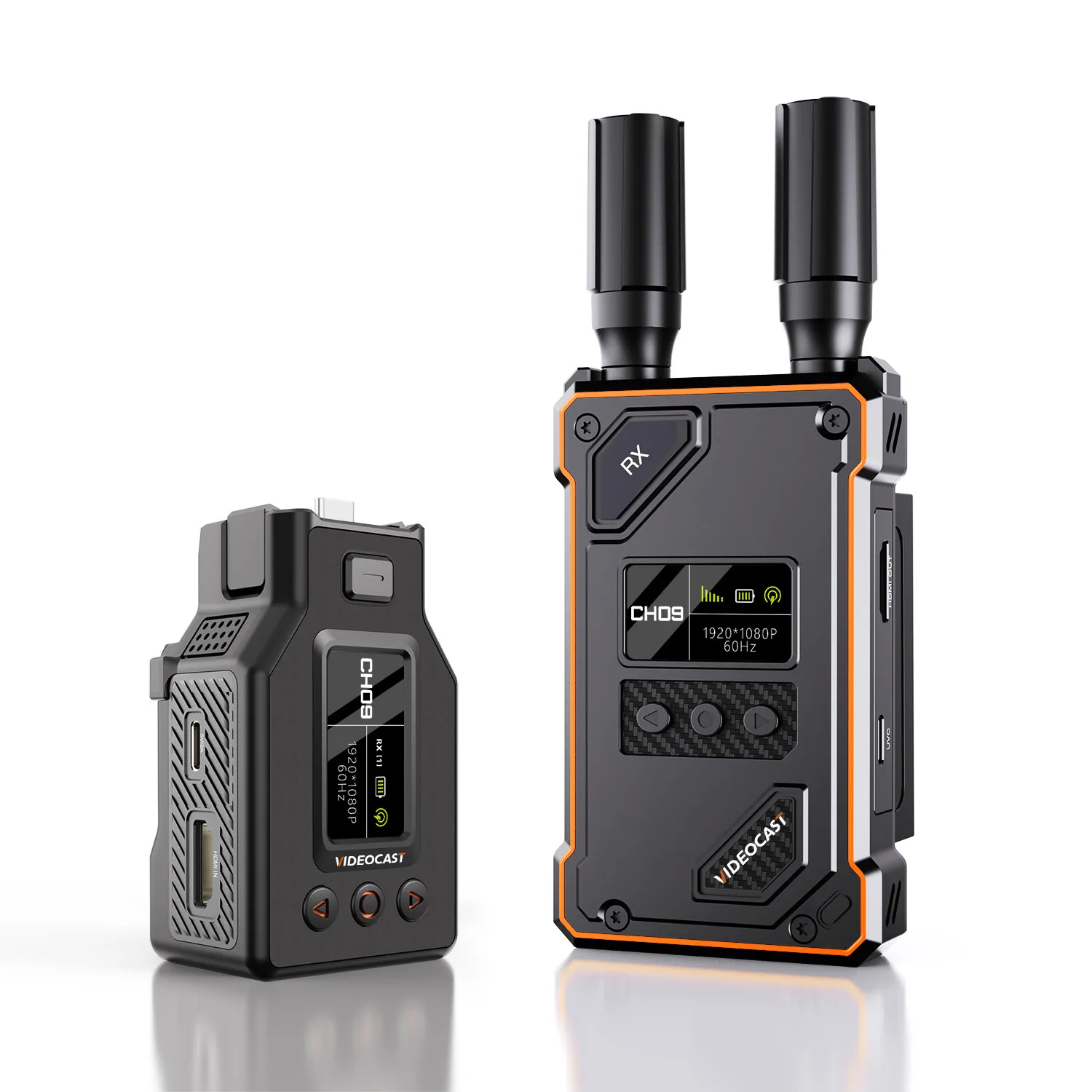

| Ports on the product imagery | Transmitter marked with HDMI in and loop-out. Receiver marked RX, with HDMI out and UVC. Both screens show CH03. |
Dimensions & power

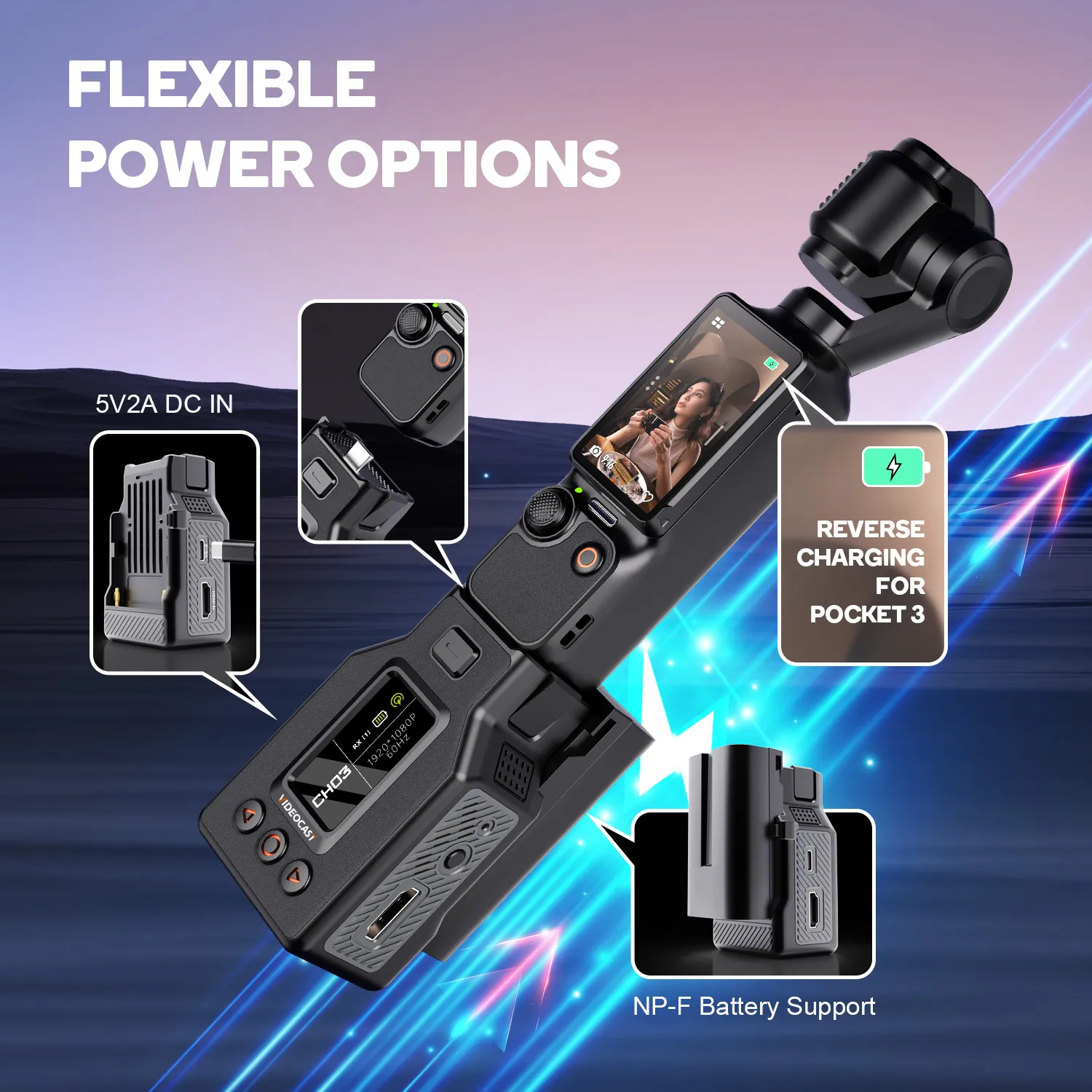

| Power | The key features list USB Type-C 5V/2A and an NP-F battery. specifications may also list DC 9–16V, USB-C 5V and NP-F, at about 4 W. The box graphic shows two 5V/2A adapters and does not include a battery. |
|---|
Other details
| Model on the page | VC-TX871Pro. An official box graphic titles the manual VU2079Pro and for Pocket 3. We will confirm marking on your quoted unit. |
|---|---|
| Range | Up to 1640 ft / 500 m, stated as line-of-sight. product information also shows 1640 ft and 500 m with the words no barrier. |
| Latency | The key features show 0.05 seconds or less. specifications may also list about 60 ms. We will confirm figure on your quote. |

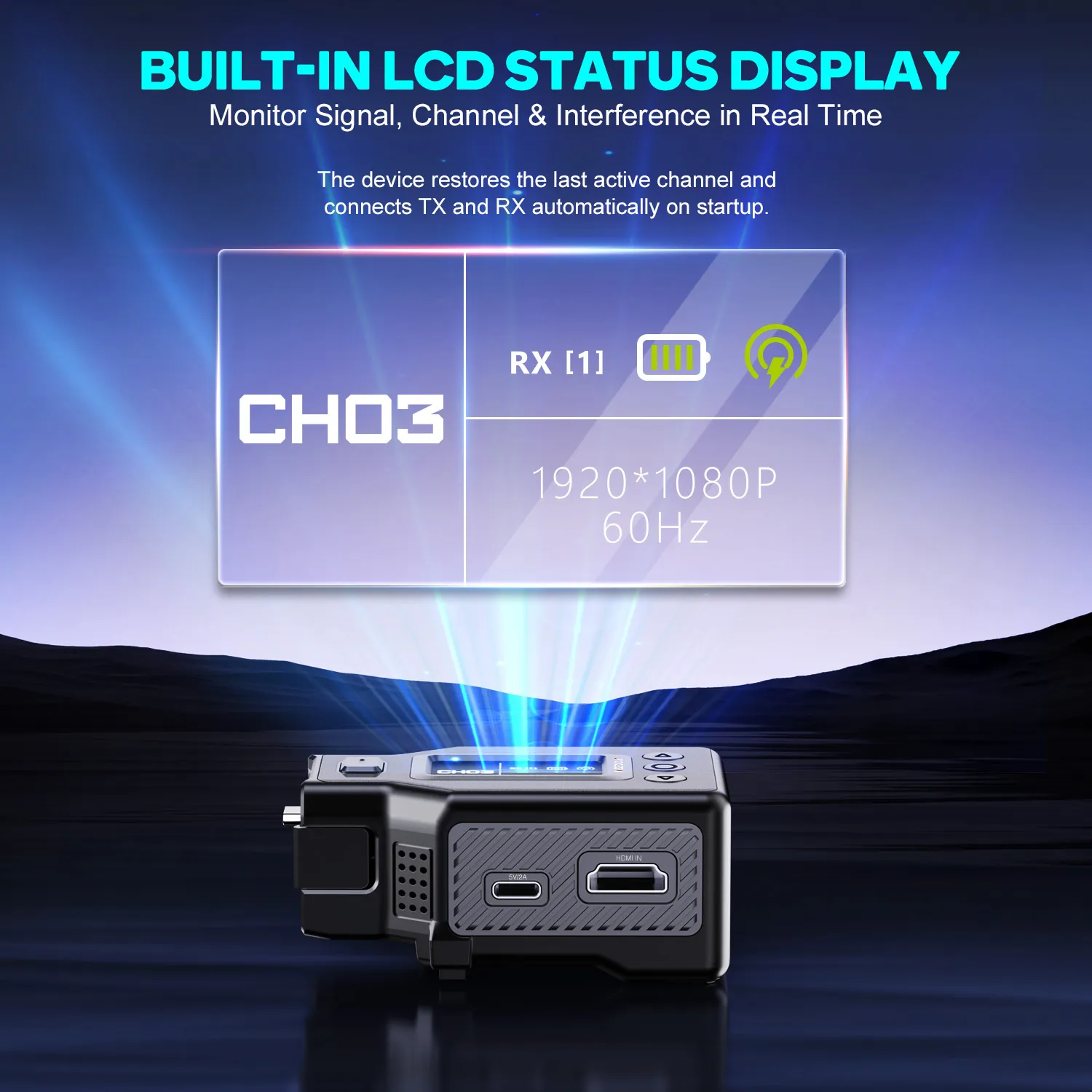

| Resolution | 1080p at 60 Hz and 720p. Unit screens in the unit includes 1920×1080P and 60Hz. |
| Video input | HDMI and UVC. Product information also shows a direct Type-C plug into a Pocket 3. |

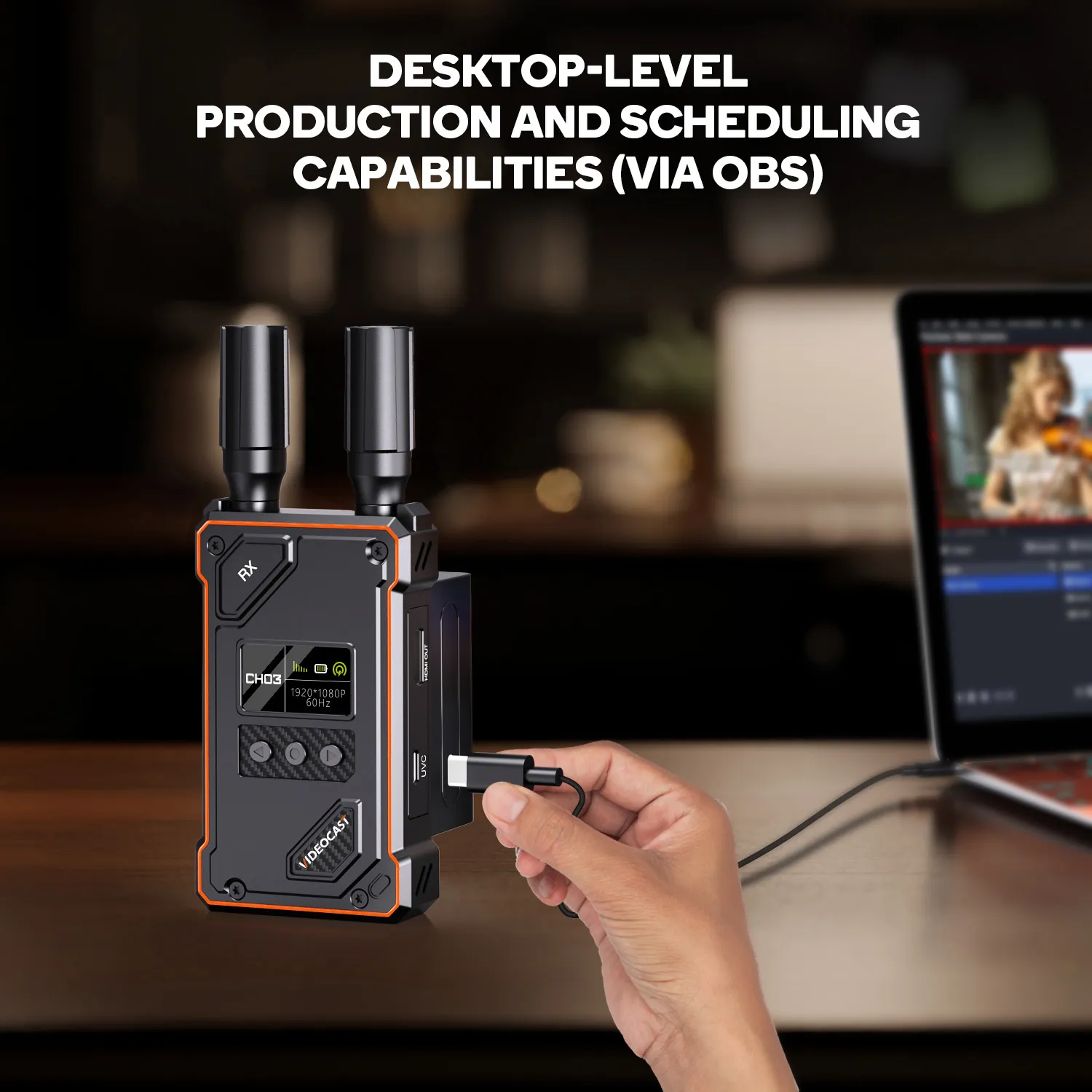

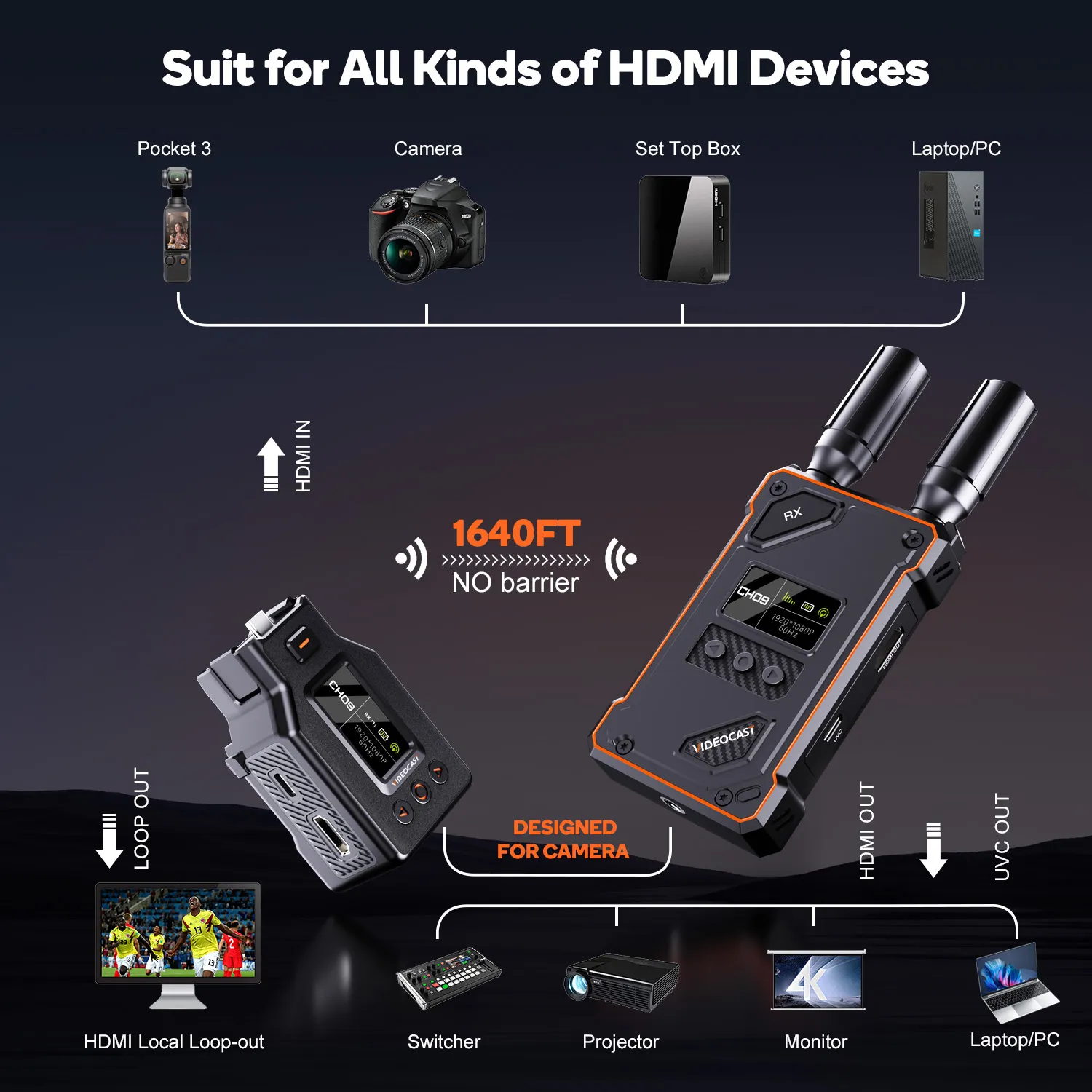

| Video output | HDMI on the receiver, plus HDMI loop-out. The key features also list UVC as an output, and an official diagram labels UVC OUT on the receiver. |
| Audio | Embedded HDMI audio, PCM, two channels |
| Receivers | One transmitter to up to five receivers. The official box graphic shows one transmitter and one receiver. |
| Channels | Product information also shows manual selection labelled CH01 to CH20. |
| Operating temperature | 0°C to 50°C |

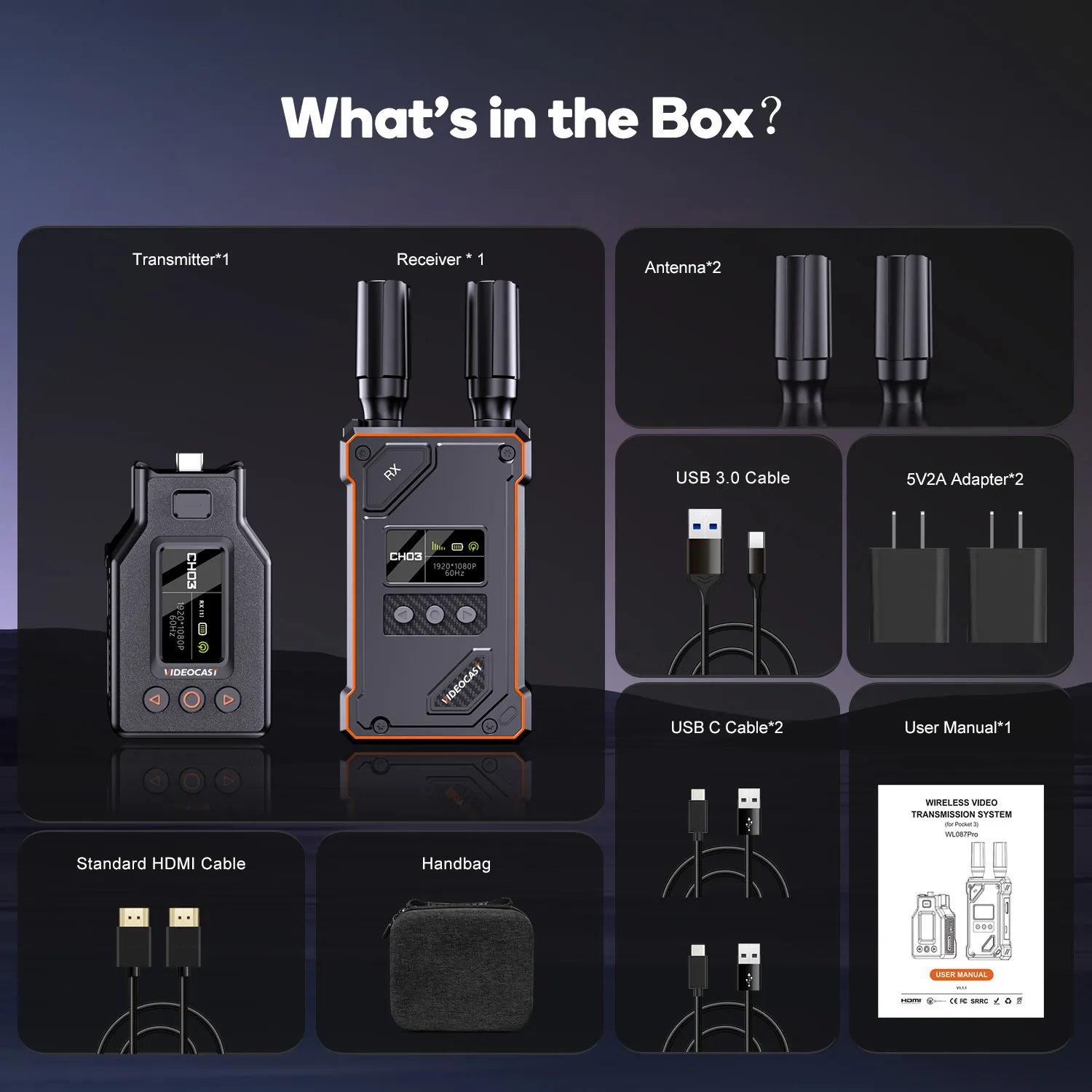

| Official box graphic | One transmitter, one receiver, two antennas, a USB 3.0 cable, two 5V/2A adapters, two USB-C cables, one HDMI cable, a carry case and a user manual. The camera, tripod and extra receivers are not in that graphic. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
What latency does The manufacturer listing show?
The key features say 0.05 seconds or less. Specifications say about 60 ms. Those are not the same figure. We will confirm which one applies on your quote.
Does the VC-TX871Pro include a DJI Pocket 3?

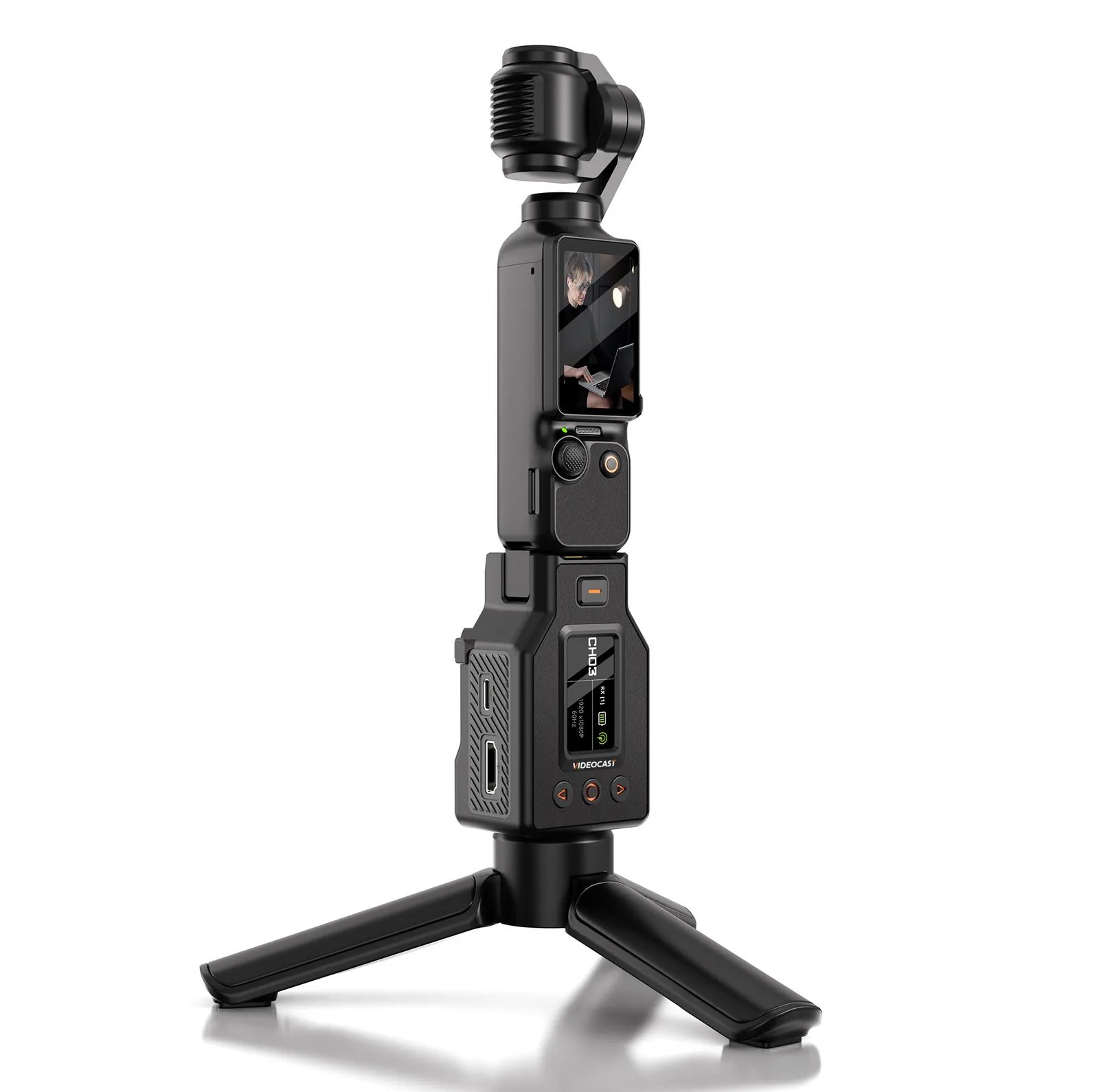

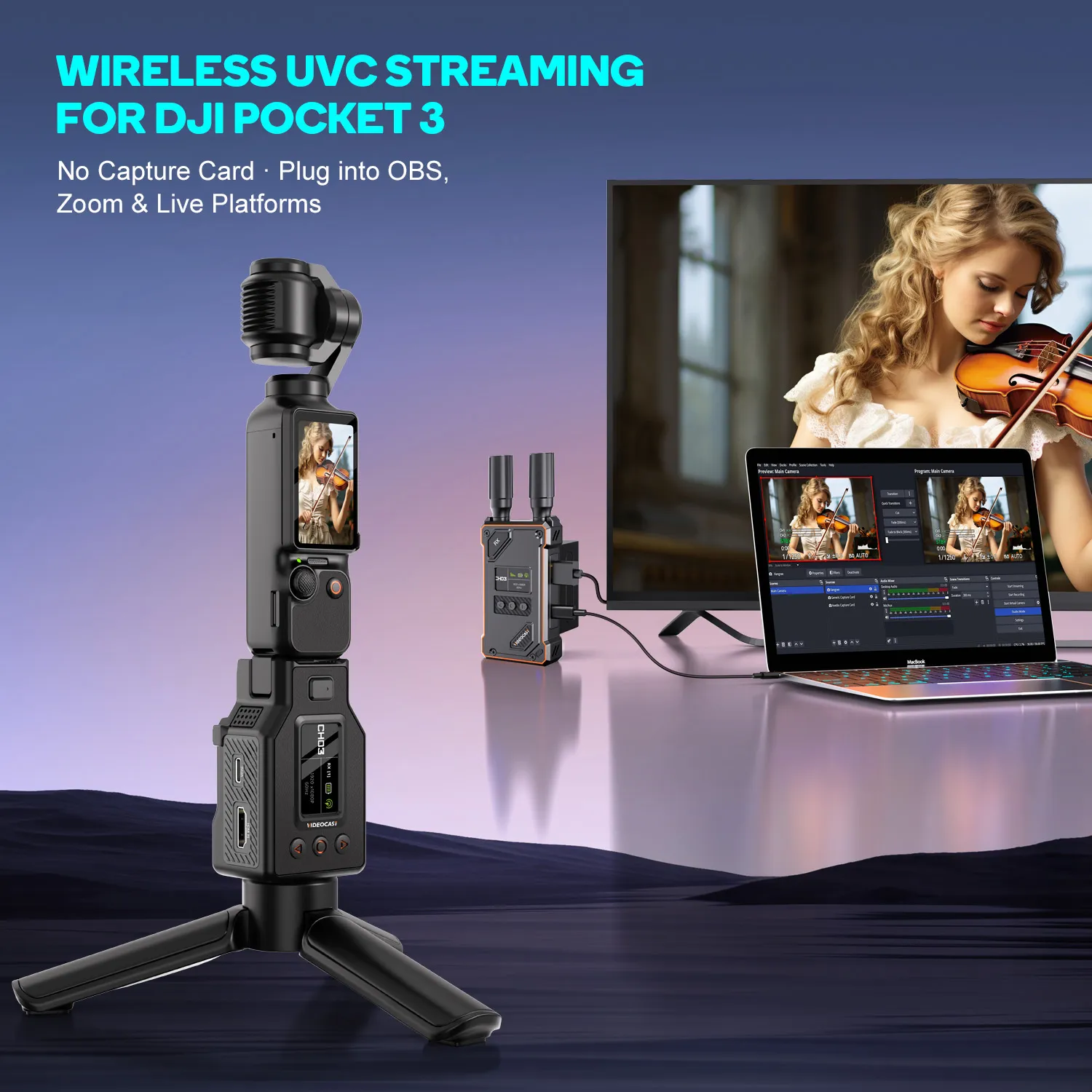

No. The manufacturer listing names cameras, DJI Pocket 3 and UVC workflows, and Product information says the transmitter can plug into a Pocket 3 by Type-C. The camera in the photos is not part of this listing.
How many receivers come with it?
The page says one transmitter can connect to up to five receivers. The official box graphic shows one transmitter and one receiver, plus cables, two antennas and two 5V/2A adapters.
How do I get pricing and availability for the VC-TX871Pro?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
