Videocast VC-TX831 Wireless HDMI
Wireless HDMI system from Videocast, with a 7-inch screen on the receiver and a stated range of up to 400 m.
| Name on the listing | VC-TX831. The listing name includes VC–TX831. One FAQ question names WL083P; the answer is about the VC-TX831. |
|---|---|
| Wireless | Published details and FAQ say 5 GHz. Product information also shows 2.4G+5GHz dual-band, and a separate icon row also shows 5GHz. |
| Range | The introduction says up to 400 m line-of-sight. The features say up to 400 metres in open spaces. Manufacturer guidance lists 400 metres (1,312 feet) in open, line-of-sight environments. Product information also shows 1312FT/400METERS. |
| Latency | 0.05 seconds. Manufacturer guidance lists near-zero latency of 0.05 seconds. Product information also shows 50 ms. |
| Video | 1080p at 60 Hz. HDMI input, loop-out and output are listed. The transmitter includes HDMI and a 3.5 mm IN jack. The receiver includes HDMI OUT, HDMI IN and AUDIO OUT. |

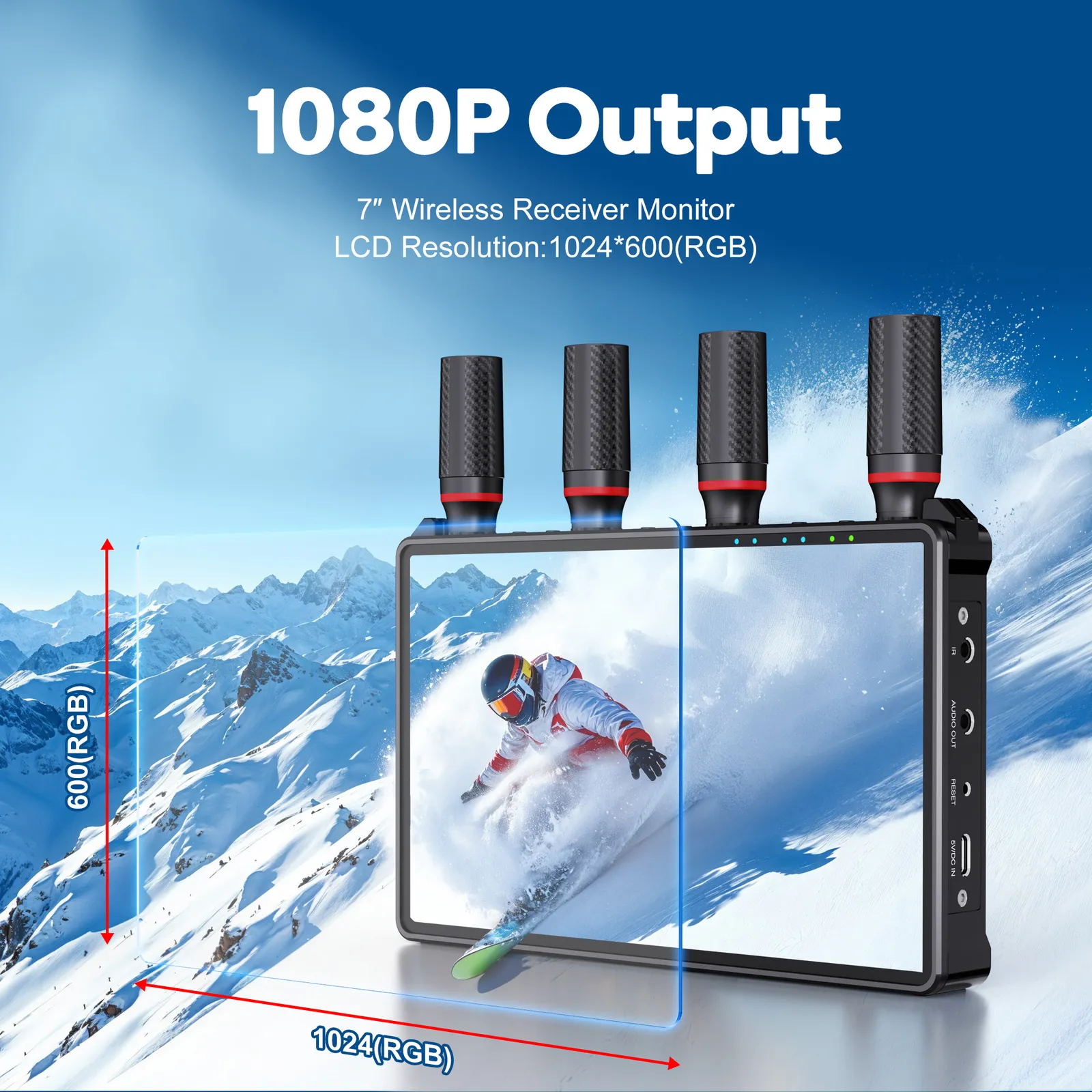

| Receiver screen | 7-inch LCD, 1024×600 RGB. The video signal is listed separately as 1080p. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC-TX831 is a wireless HDMI transmitter and receiver. The receiver has a built-in 7-inch LCD at 1024×600, and the video signal is listed as 1080p at 60 Hz with a latency of 0.05 seconds. The introduction says the range is up to 400 m line-of-sight. The features say up to 400 m in open spaces on 5 GHz, and Manufacturer guidance lists 400 m (1,312 ft) in open, line-of-sight conditions. One transmitter can support up to five receivers. Published details include one receiver and four antennas for that receiver. The packing list also includes six antennas, two 5V 2A adapters and no NP-F battery. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Wireless | Published details and FAQ say 5 GHz. Product information also shows 2.4G+5GHz dual-band, and a separate icon row also shows 5GHz. |
|---|
Dimensions & power

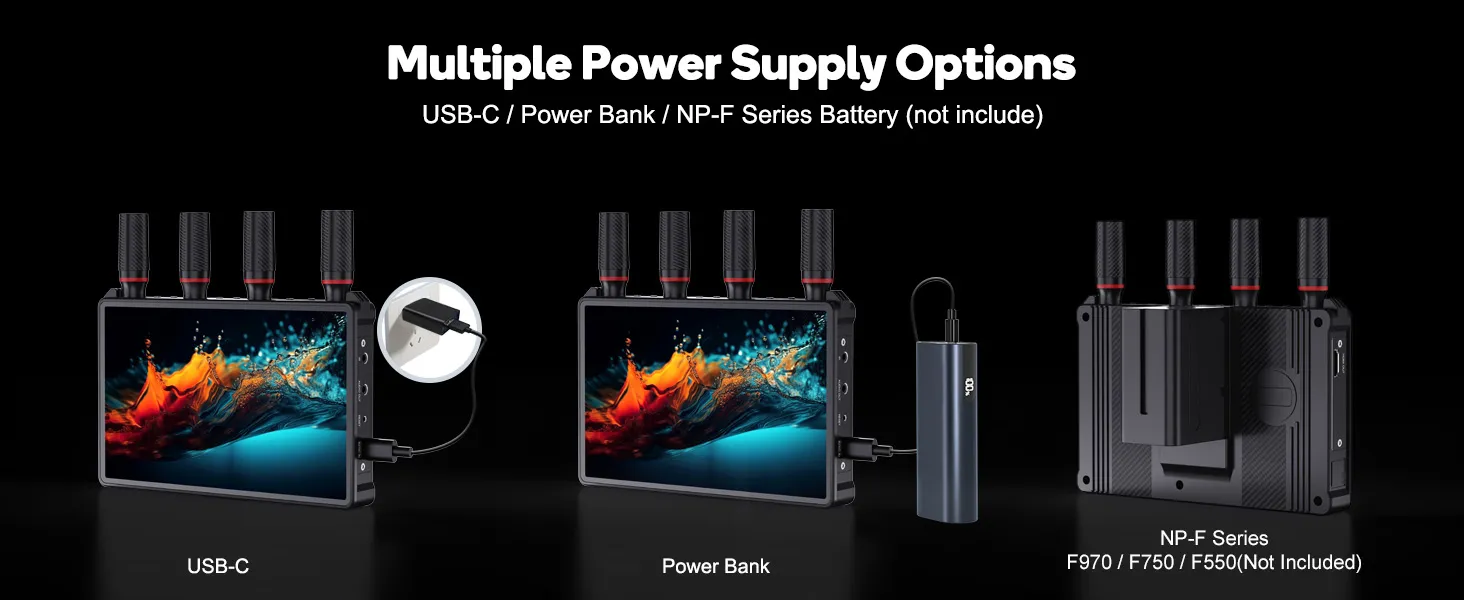

| Power | The features list NP-F970, F750 and F550 batteries, with up to 13 hours depending on the model. Product information says USB-C, a power bank or an NP-F battery, and that the battery is not included. The packing graphic shows two 5V 2A adapters. |
|---|
Other details
| Name on the listing | VC-TX831. The listing name includes VC–TX831. One FAQ question names WL083P; the answer is about the VC-TX831. |
|---|---|
| Range | The introduction says up to 400 m line-of-sight. The features say up to 400 metres in open spaces. Manufacturer guidance lists 400 metres (1,312 feet) in open, line-of-sight environments. Product information also shows 1312FT/400METERS. |
| Latency | 0.05 seconds. Manufacturer guidance lists near-zero latency of 0.05 seconds. Product information also shows 50 ms. |
| Video | 1080p at 60 Hz. HDMI input, loop-out and output are listed. The transmitter includes HDMI and a 3.5 mm IN jack. The receiver includes HDMI OUT, HDMI IN and AUDIO OUT. |
| Receiver screen | 7-inch LCD, 1024×600 RGB. The video signal is listed separately as 1080p. |

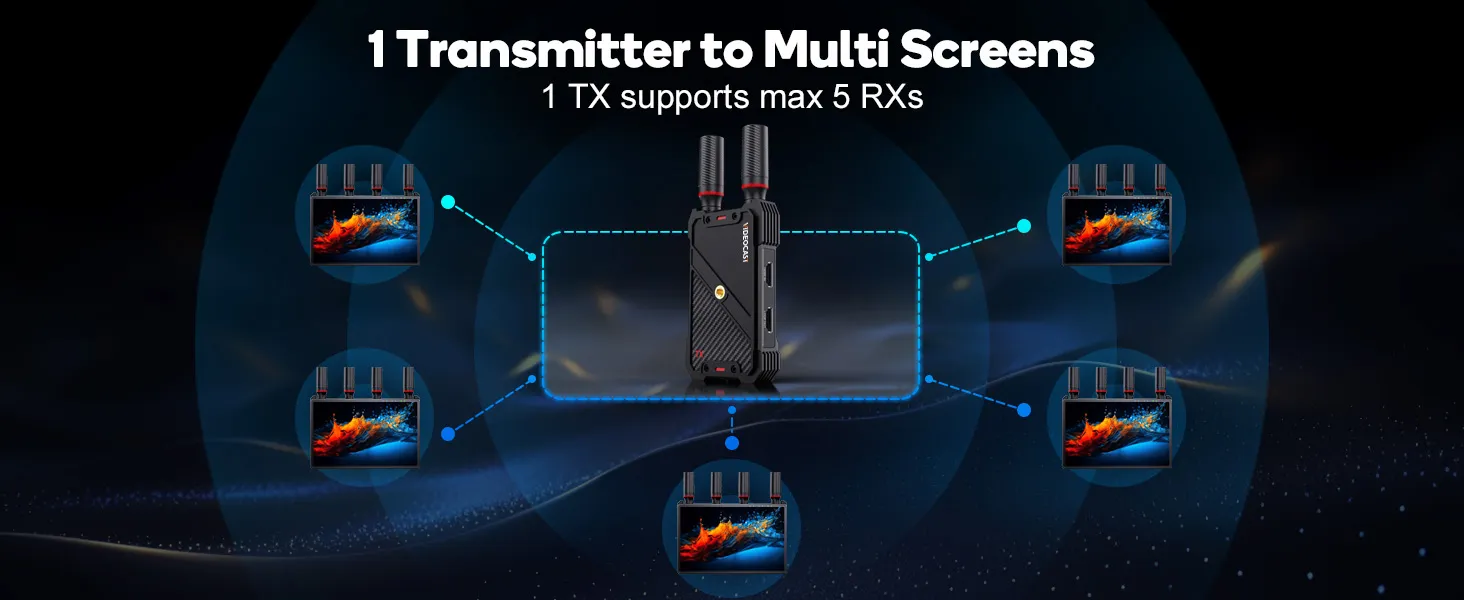

| Receivers | One transmitter supports up to five receivers. Published details and the packing graphic each show one receiver. |
| Audio | Two channels, with a 3.5 mm interface on the transmitter and the receiver. |
| Infrared | IR control from the receiver, 30 kHz to 60 kHz. The packing graphic shows two infrared cables. |

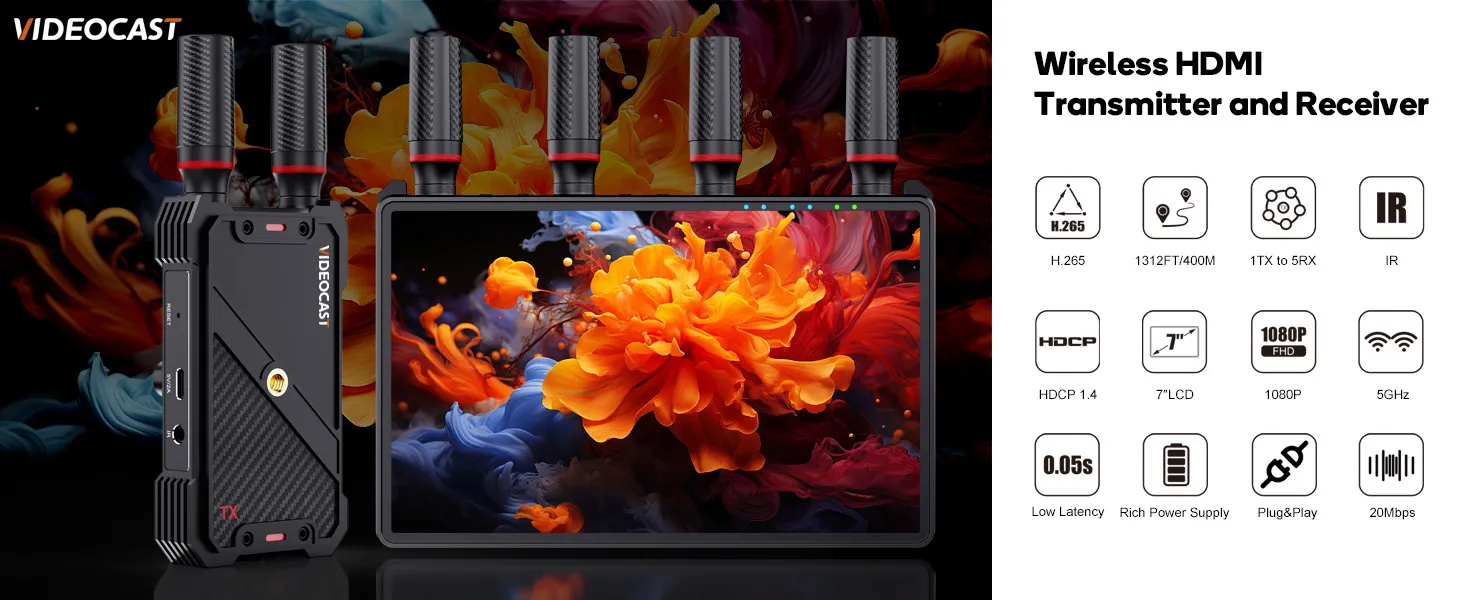

| Official icon graphic | also shows H.265, HDCP 1.4, 20 Mbps and plug-and-play. Those figures are not in Published details. |
| Written box list | One transmitter, one receiver with the 7-inch screen, four antennas for the receiver, power cables and accessories, and a user manual. |

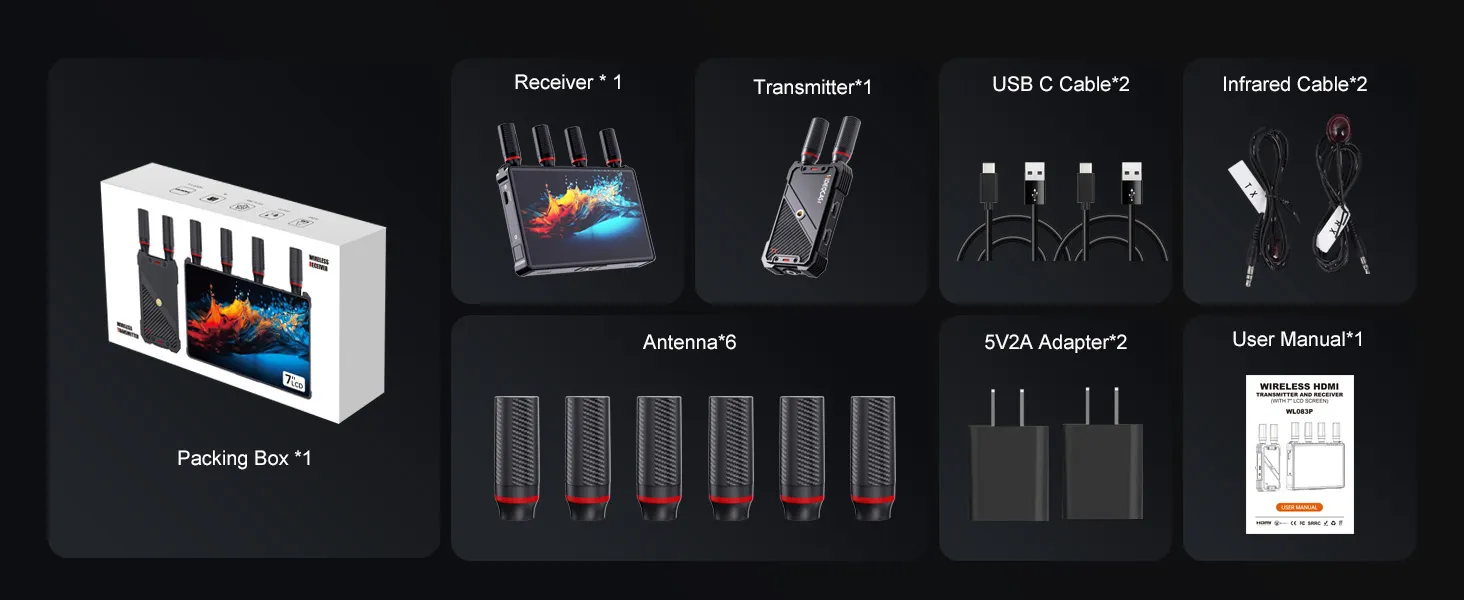

| Official packing graphic | One transmitter, one receiver, six antennas, two USB-C cables, two infrared cables, two 5V 2A adapters and a user manual. The unit includes two antennas on the transmitter and four on the receiver. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
How far does The manufacturer listing say it transmits?
The introduction says up to 400 m line-of-sight. The features say up to 400 m in open spaces on 5 GHz. Manufacturer guidance lists 400 m (1,312 ft) in open, line-of-sight conditions. Share the real distance and what sits between the units.
Does the VC-TX831 include batteries?
The features list NP-F970, F750 and F550 batteries and a runtime of up to 13 hours depending on the model. Product information says the NP-F battery is not included. The packing graphic shows two 5V 2A adapters and no battery.
How many antennas and receivers are supplied?
Published details say four antennas for the receiver. The packing list includes six antennas, and includes two on the transmitter and four on the receiver. One transmitter can work with up to five receivers, and the box shows one receiver.
How do I get pricing and availability for the VC-TX831?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
