Videocast · Wireless video
Videocast VC-TX870 Wireless HDMI
Wireless HDMI transmitter and receiver from Videocast for live streaming, events and production monitoring.
| Range | Up to 1500 ft / 450 m, as published |
|---|---|
| Latency | 0.05 seconds or less |
| Resolution | 1920×1080 at 60 Hz, HDMI input and output |
| HDMI | HDMI 1.3 / HDCP 1.4, with HDMI loop-out |
| Wireless | Dual-band 2.4 GHz and 5 GHz, IEEE 802.11 a/b/g/n/ac |
| Video | H.265 decoding, 20 Mbps bitrate |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

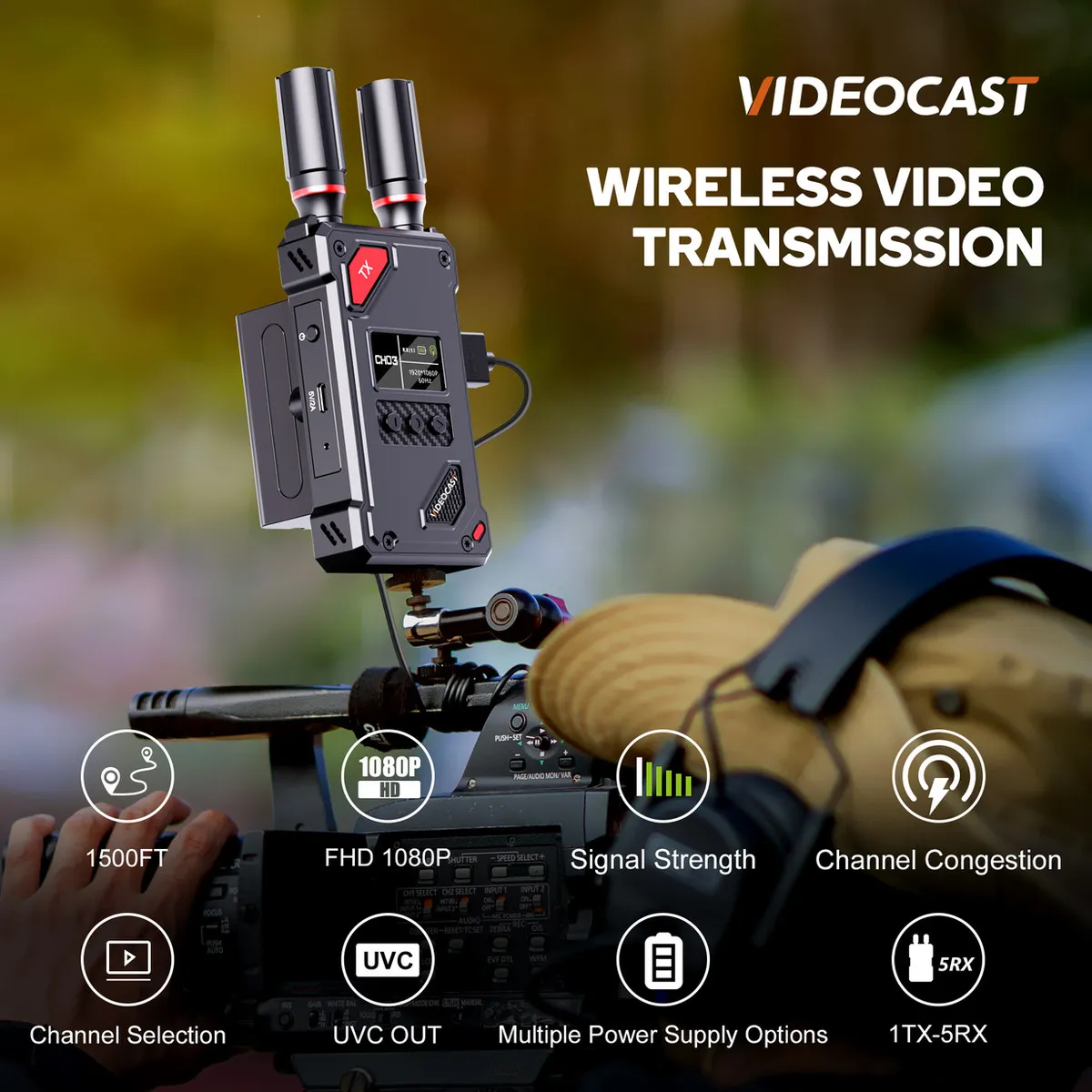

The Videocast VC-TX870 is a wireless HDMI video transmission system for live streaming, production, worship, outdoor filming, conferencing and events. The published specification is Full HD 1920×1080 at 60 Hz, latency of 0.05 seconds or less, a range of up to 1500 ft (450 m), dual-band 2.4 GHz and 5 GHz wireless, HDMI loop-out, and a UVC USB output. One transmitter is listed for up to five receivers. Power is listed as USB Type-C 5V/2A or an NP-F battery. The official power graphic says the NP-F battery is not included. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Wireless | Dual-band 2.4 GHz and 5 GHz, IEEE 802.11 a/b/g/n/ac |
|---|---|
| USB output | UVC, for a computer without an extra capture device |
Dimensions & power

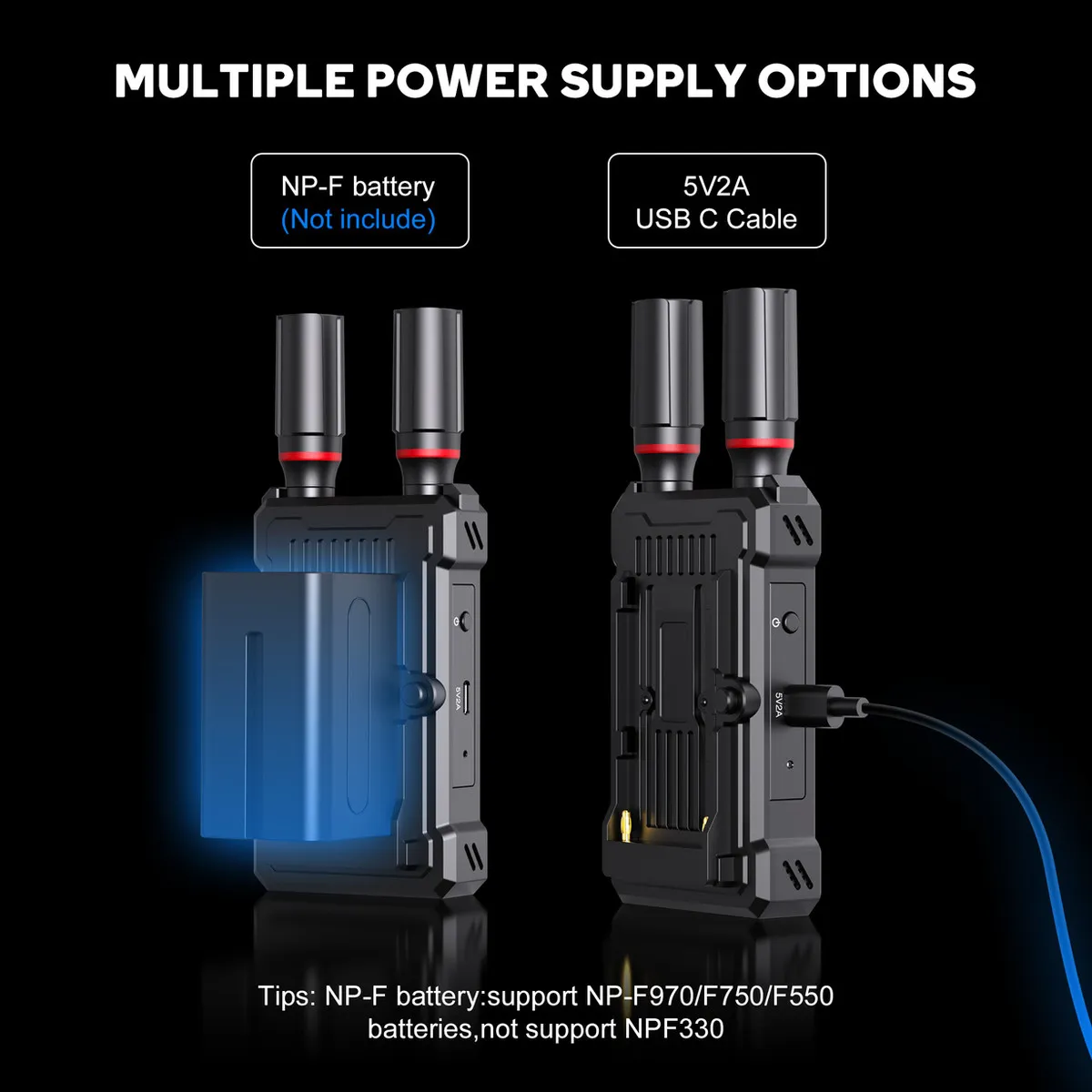

| Power | USB Type-C 5V/2A or NP-F battery. The product information says the battery is not included, lists NP-F970, NP-F750 and NP-F550, and says NPF330 is not supported. |
|---|
Other details
| Range | Up to 1500 ft / 450 m, as published |
|---|---|
| Latency | 0.05 seconds or less |

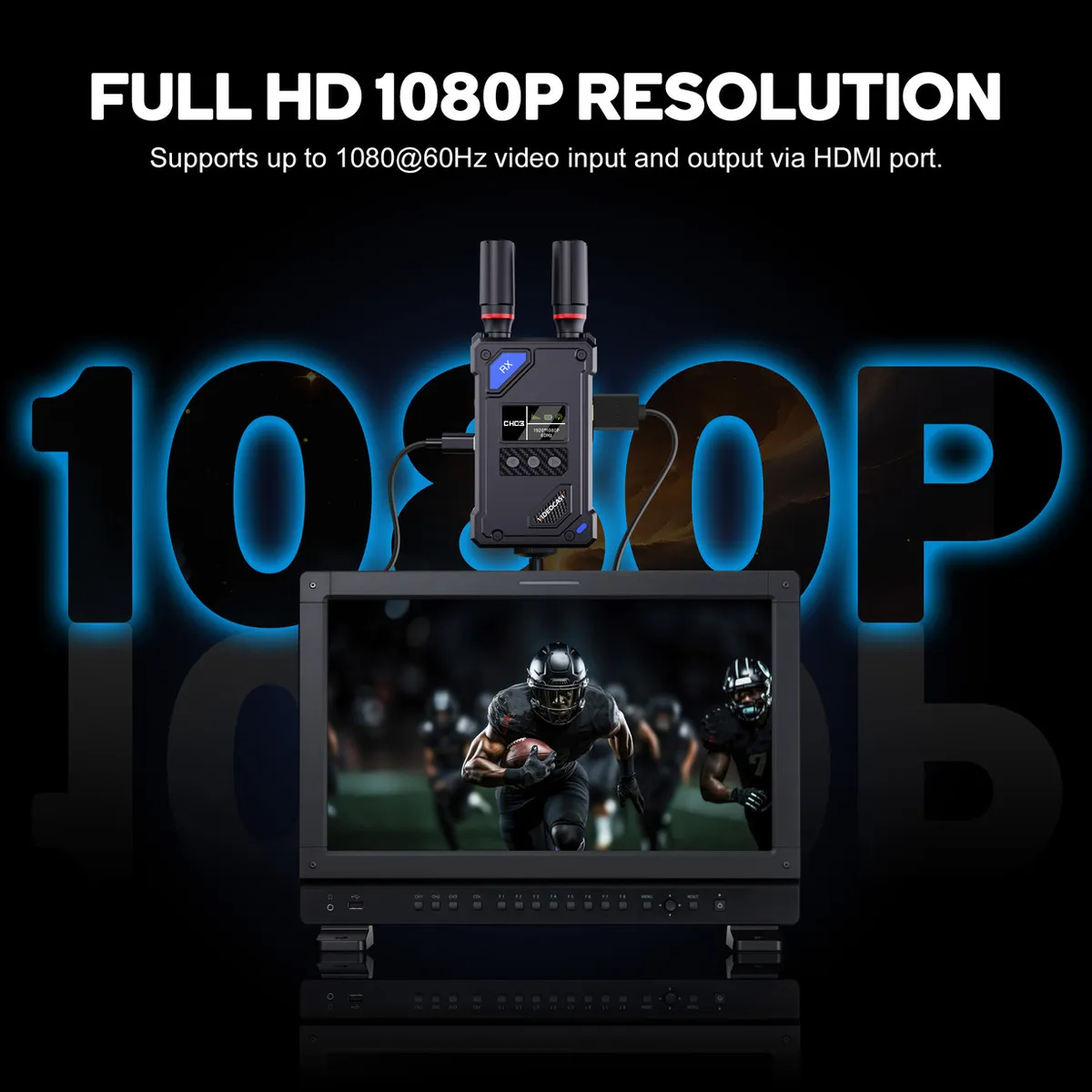

| Resolution | 1920×1080 at 60 Hz, HDMI input and output |
| HDMI | HDMI 1.3 / HDCP 1.4, with HDMI loop-out |
| Video | H.265 decoding, 20 Mbps bitrate |
| Receivers | One transmitter to up to five receivers |

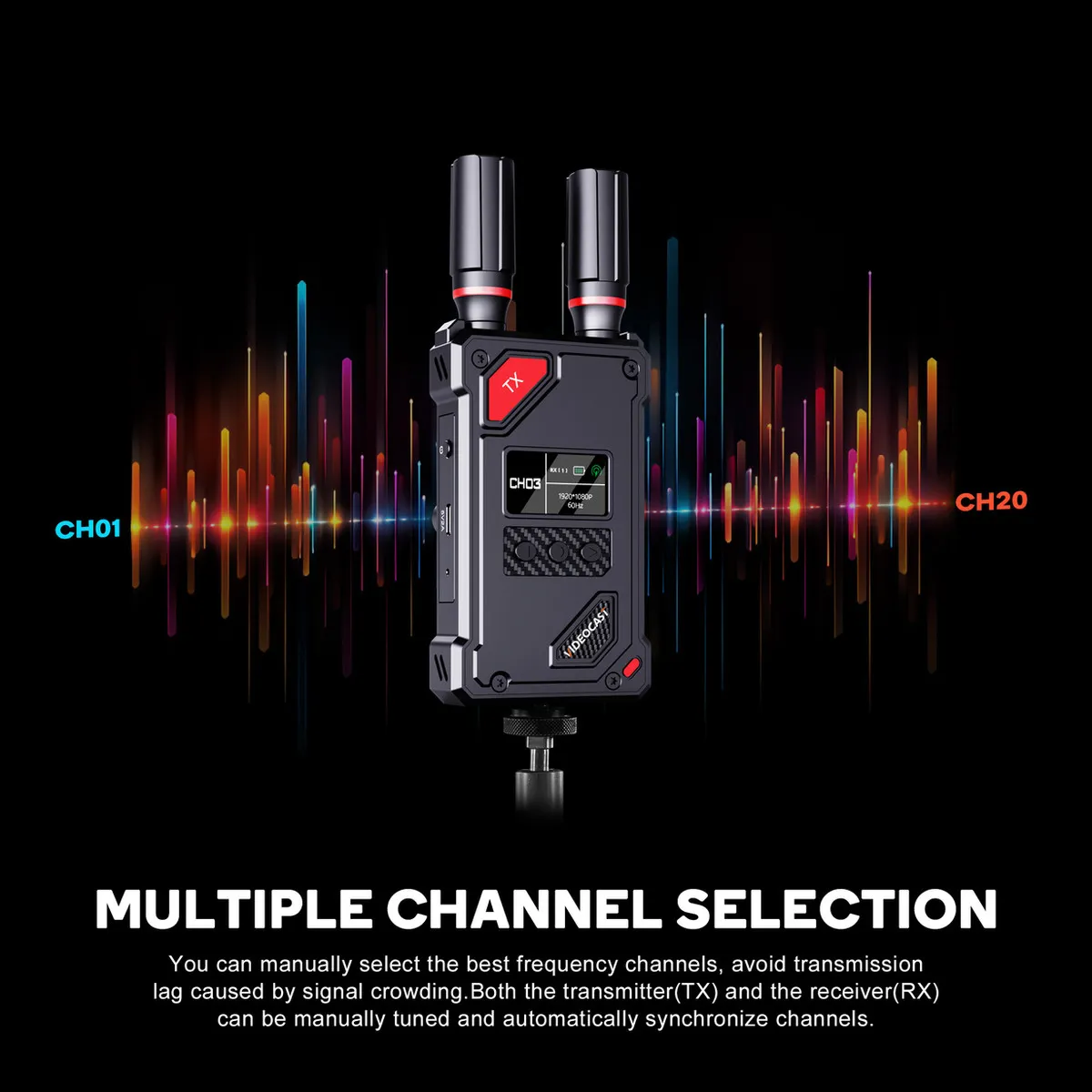

| Channels | An official product graphic shows manual selection labelled CH01 to CH20, with the transmitter and receiver able to tune and synchronise channels. |
| Operating temperature | −20°C to 50°C |
| Unit labels on the official photo | Transmitter marked TX with a 5V2A port. Receiver marked RX with HDMI OUT and UVC. Both screens show CH03, 1920×1080P and 60Hz. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Can the VC-TX870 feed OBS, vMix or a meeting app?
The UVC USB output works with OBS Studio, vMix, Zoom, Microsoft Teams, YouTube Live and Facebook Live without an extra capture device.
How many receivers can one VC-TX870 transmitter use?
The manufacturer listing says one transmitter can connect to up to five receivers at the same time.
Is an NP-F battery included?
The specification lists USB Type-C 5V/2A or an NP-F battery. The official power graphic says the NP-F battery is not included, and that NP-F970, NP-F750 and NP-F550 are supported while NPF330 is not.
How do I get pricing and availability for the VC-TX870?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
