Videocast VC-TX500 Pro Wireless HDMI
5G wireless HDMI transmitter and receiver from Videocast, with HDMI loop-out, dual HDMI outputs on the receiver and a stated range of up to 500 m.
| Wireless | The page calls it 5G wireless transmission on the 5G frequency band, with a 40 MHz channel and OFDM. It does not mention a SIM or a mobile data plan. |
|---|---|
| Range | Up to 500 metres / 1640 feet in open environments. Manufacturer guidance lists same distance in open, line-of-sight environments. |
| Latency | 0.06 seconds. Manufacturer guidance lists approximately 0.06 seconds. |
| Resolution | 4K30, 4K25, 1080p60, 1080p50, 1080p30 and 720p. The FAQ lists up to 4K30 and does not repeat 4K25. |

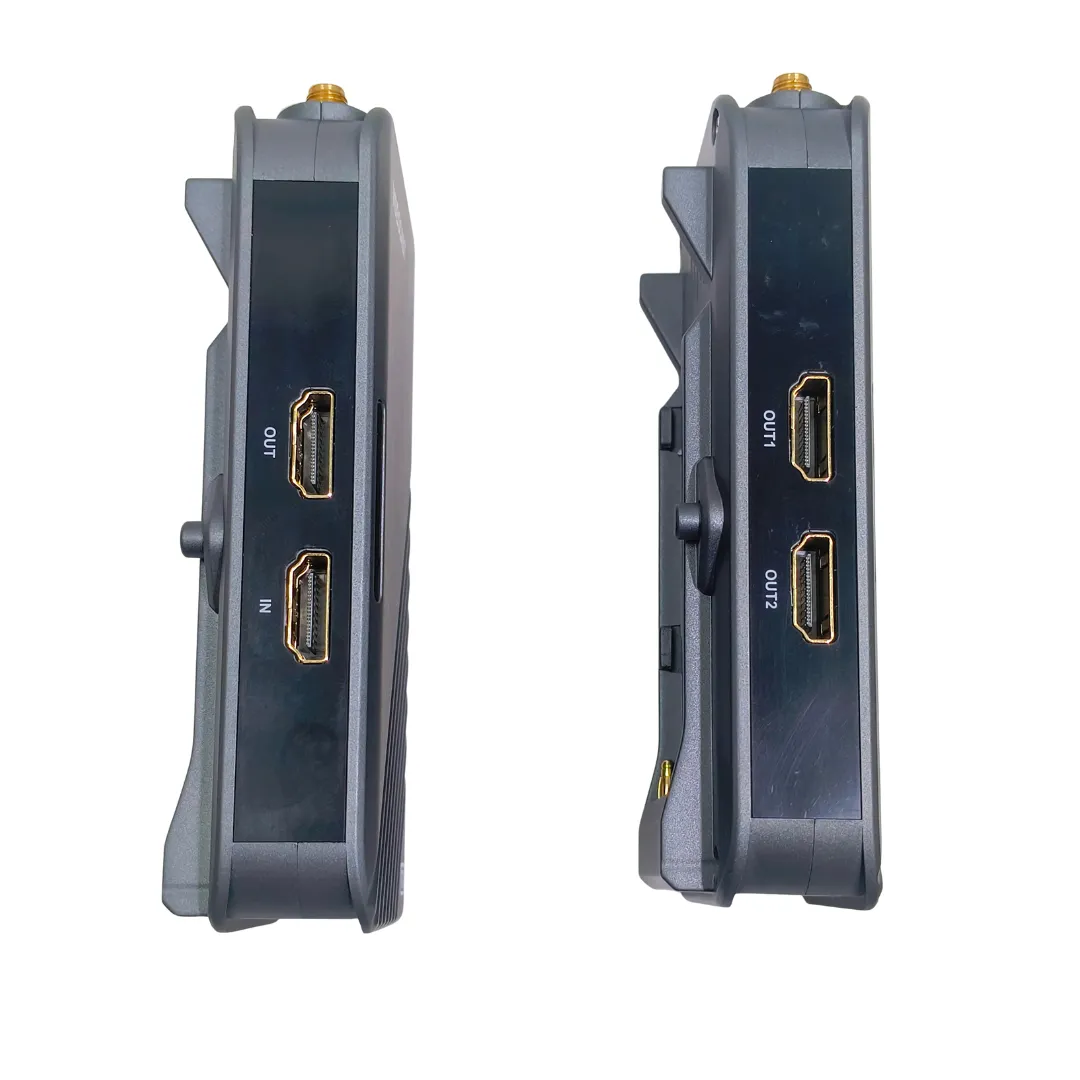

| Transmitter video | HDMI input with HDMI loop-out. The side includes the transmitter ports IN and OUT. |
| Receiver video | Two HDMI outputs. The side includes them OUT1 and OUT2. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC-TX500 Pro is a wireless HDMI transmitter and receiver. The page calls the link 5G, on the 5G frequency band, with a 40 MHz channel and OFDM. It publishes a latency of 0.06 seconds, HDMI input with loop-out on the transmitter, and two HDMI outputs on the receiver. Resolutions listed are 4K30, 4K25, 1080p60, 1080p50, 1080p30 and 720p. The range is up to 500 metres (1640 feet) in open environments, and the FAQ adds line-of-sight. Power is listed as DC 9–16V, Type-C 5V or an NP-F battery. The unit includes one transmitter, one receiver, four antennas and USB leads, and does not include a battery. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Wireless | The page calls it 5G wireless transmission on the 5G frequency band, with a 40 MHz channel and OFDM. It does not mention a SIM or a mobile data plan. |
|---|
Dimensions & power

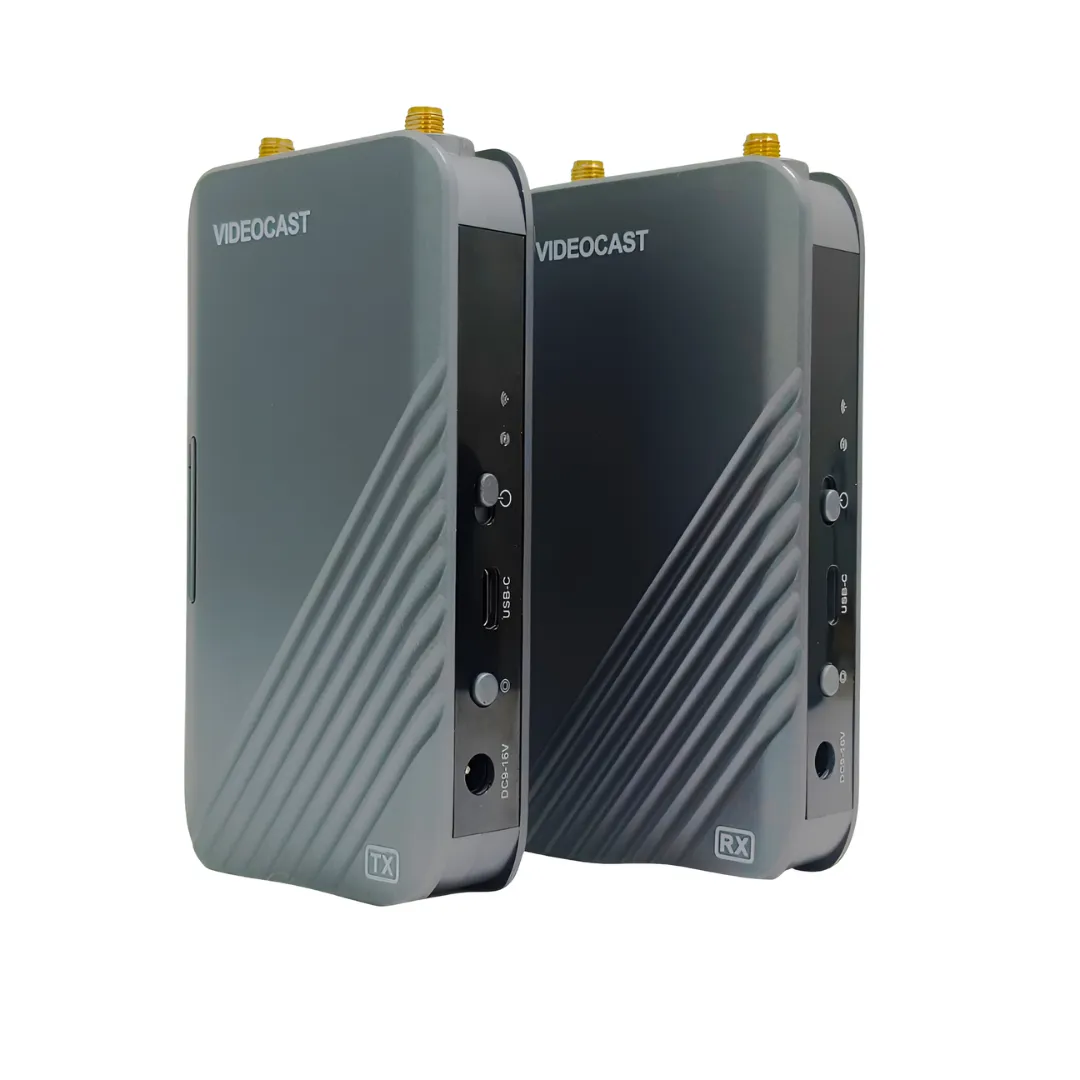

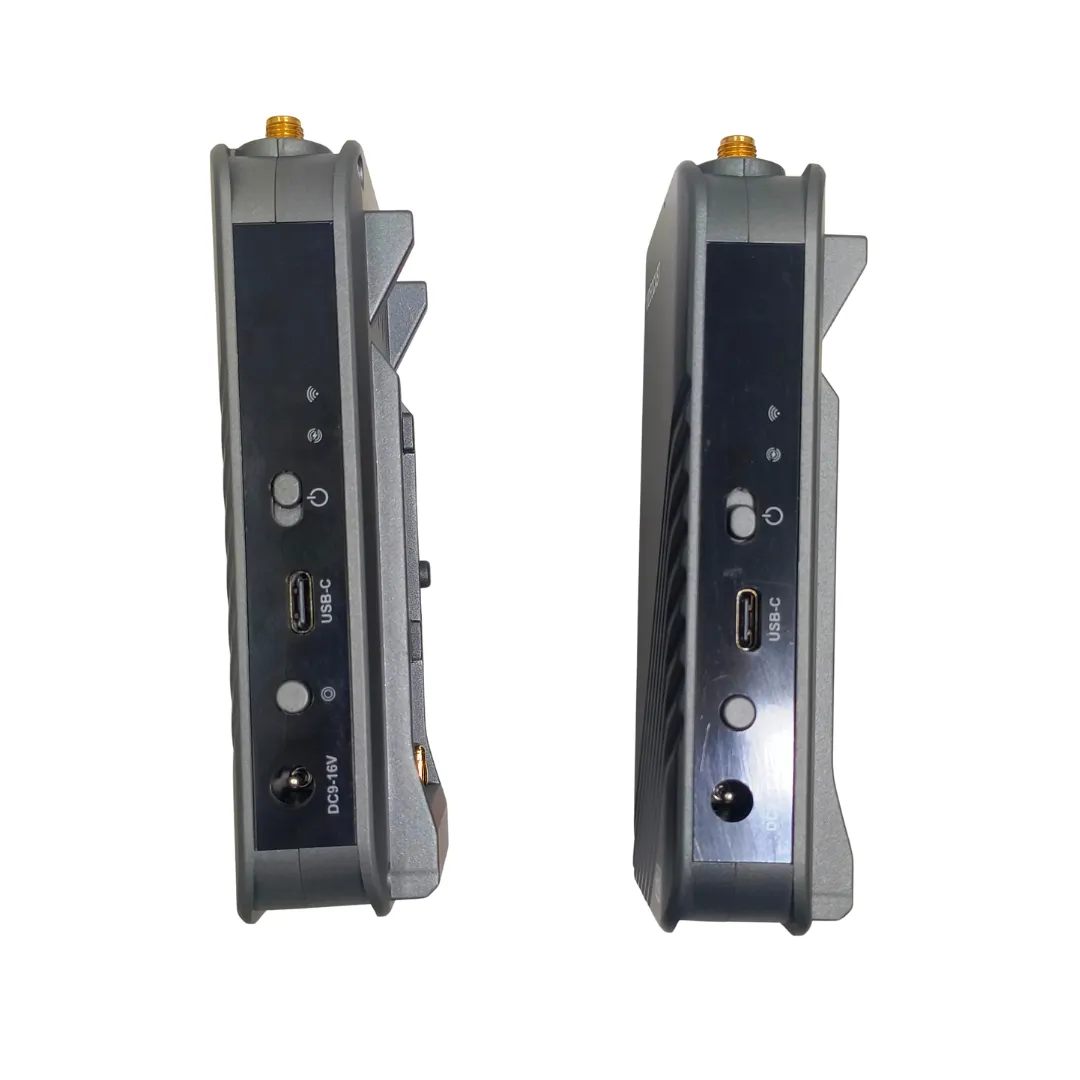

| Power | DC 9–16V, Type-C 5V, or an NP-F battery. The introduction also shows NPF. The transmitter side includes USB-C and DC9-16V. About 4 W on the transmitter and 4 W on the receiver. |
|---|
Other details
| Range | Up to 500 metres / 1640 feet in open environments. Manufacturer guidance lists same distance in open, line-of-sight environments. |
|---|---|
| Latency | 0.06 seconds. Manufacturer guidance lists approximately 0.06 seconds. |
| Resolution | 4K30, 4K25, 1080p60, 1080p50, 1080p30 and 720p. The FAQ lists up to 4K30 and does not repeat 4K25. |
| Transmitter video | HDMI input with HDMI loop-out. The side includes the transmitter ports IN and OUT. |
| Receiver video | Two HDMI outputs. The side includes them OUT1 and OUT2. |
| Audio | PCM, two channels, embedded in HDMI |
| Size | 67 × 32 × 120 mm. The page does not include a weight. |
| Temperature | Operating 0°C to 50°C. Storage −40°C to 70°C. |

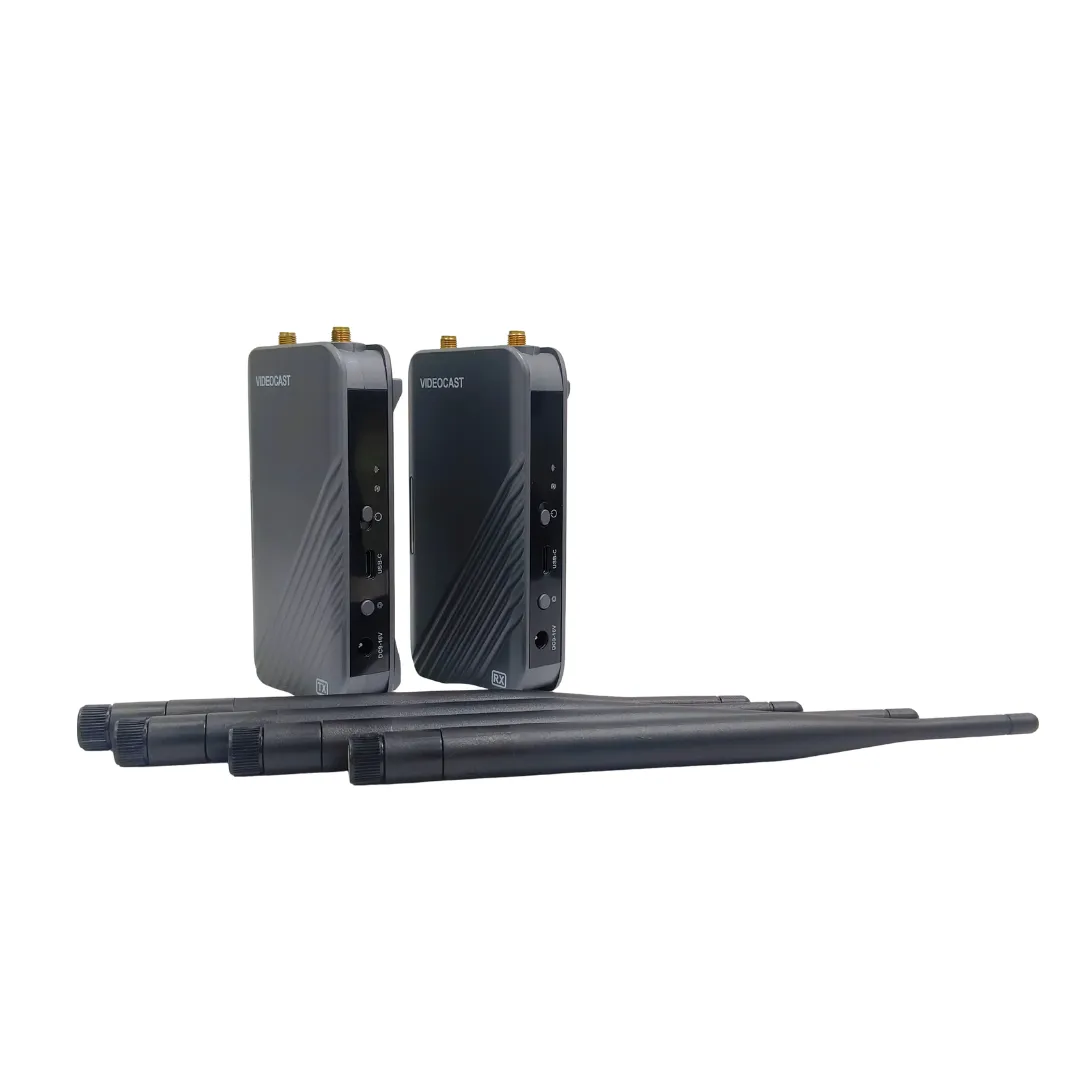

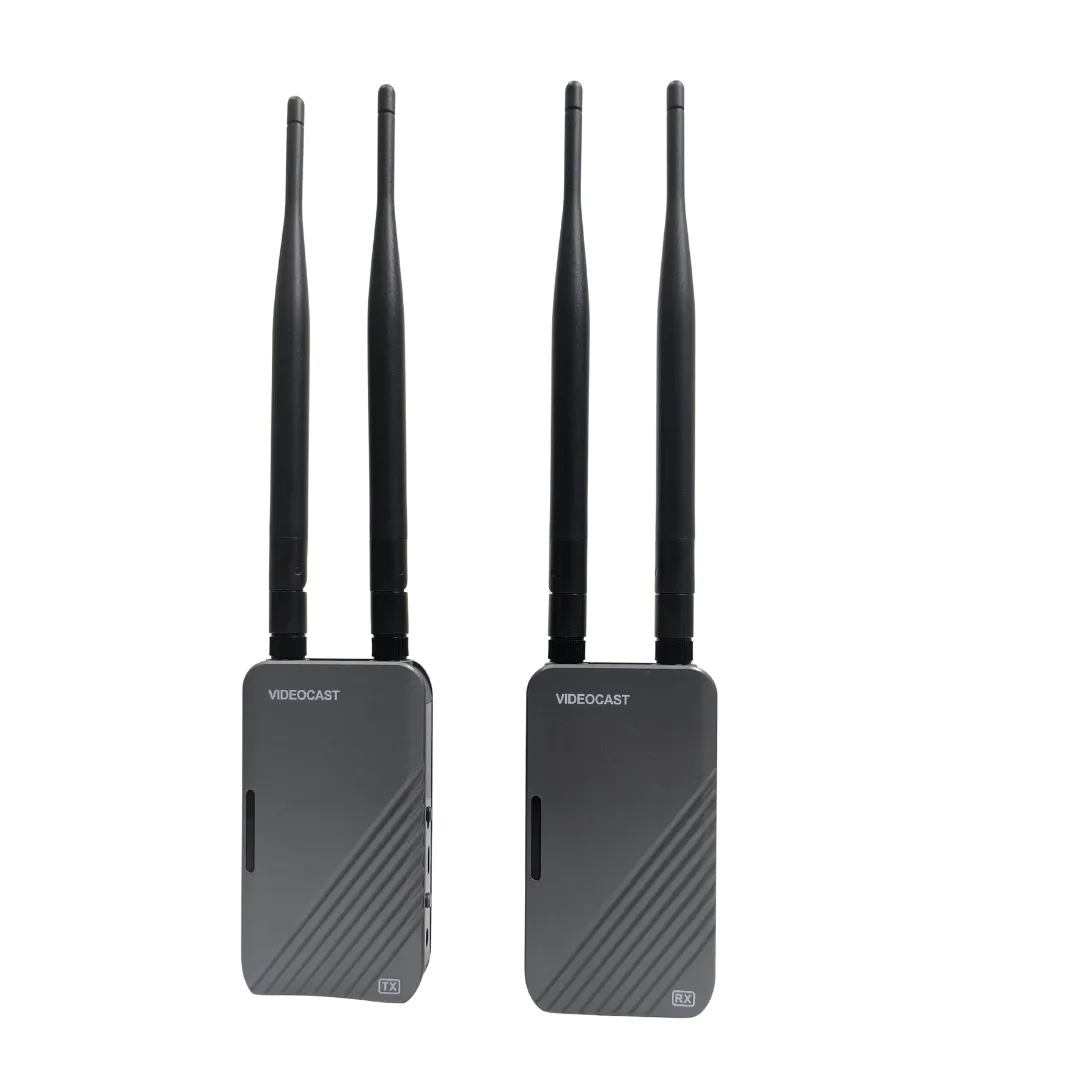

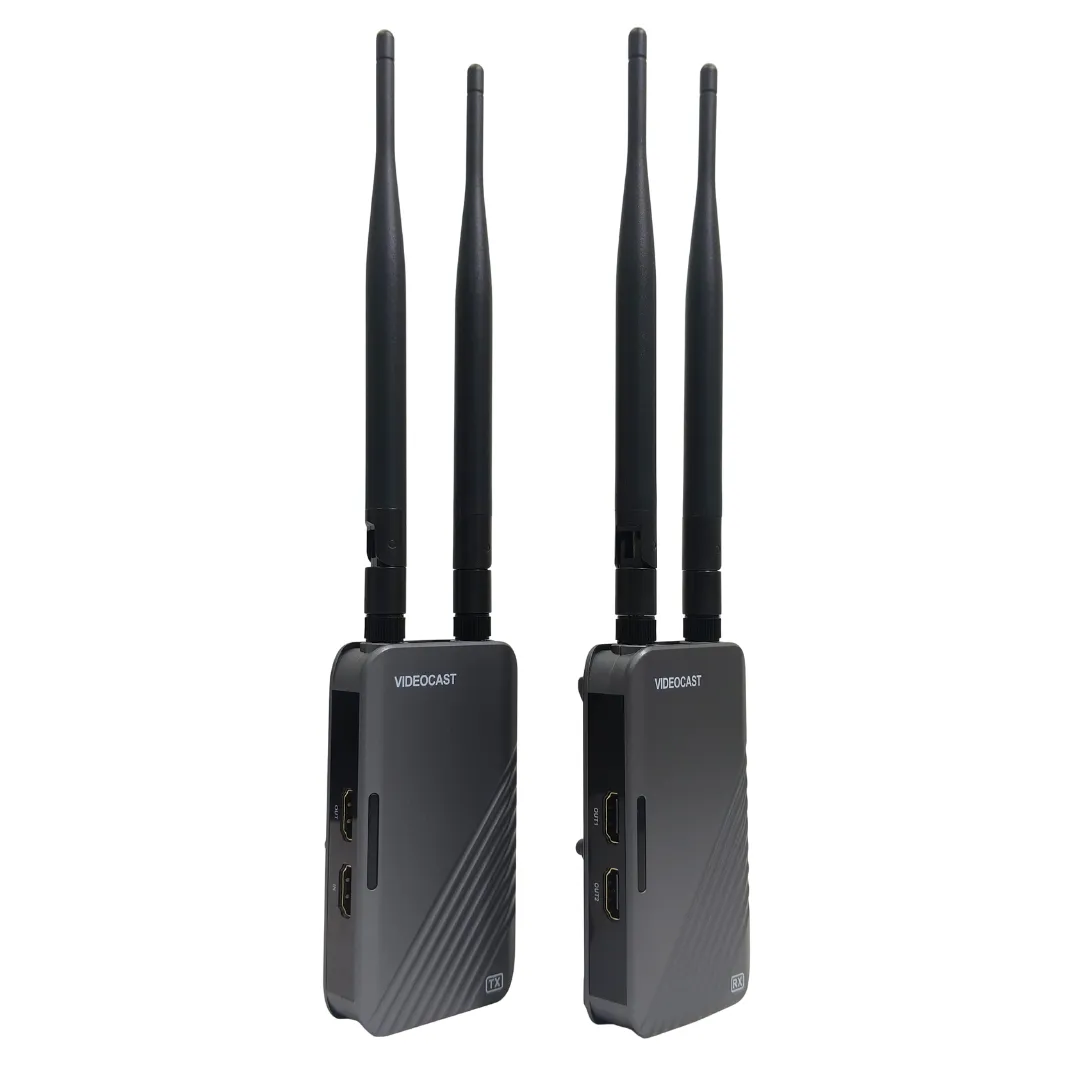

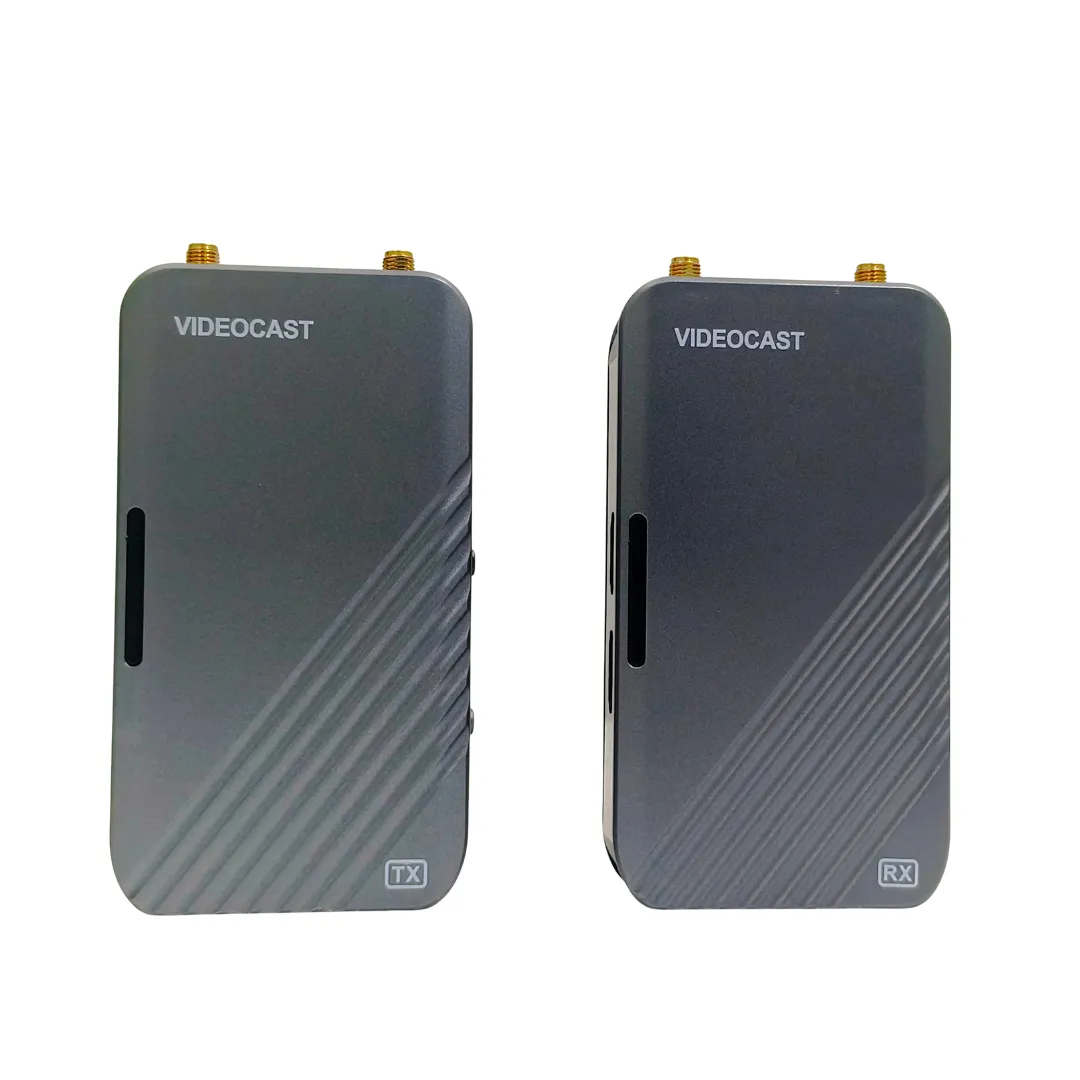

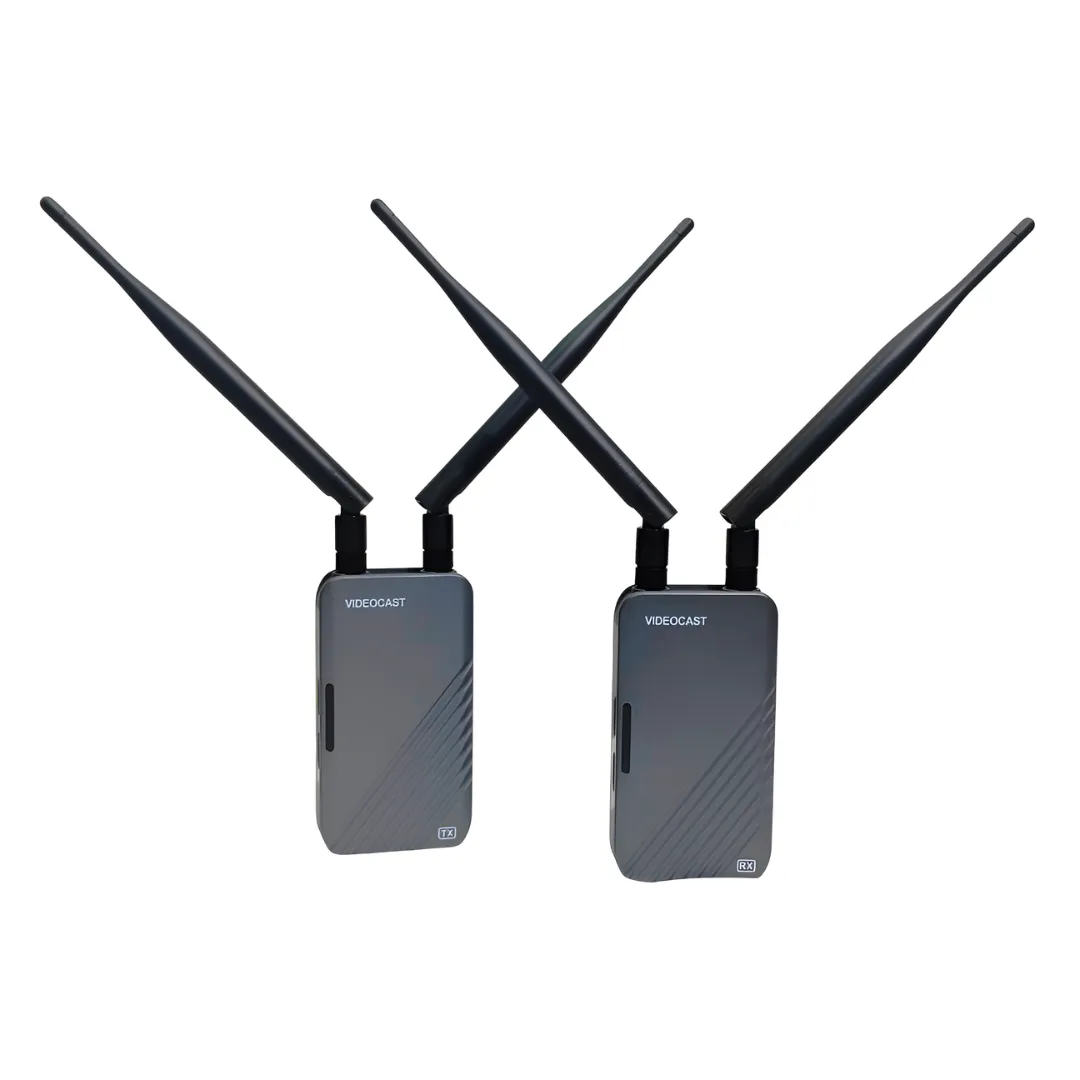

| Units in the product imagery | One transmitter marked TX and one receiver marked RX, each with two antenna sockets. |

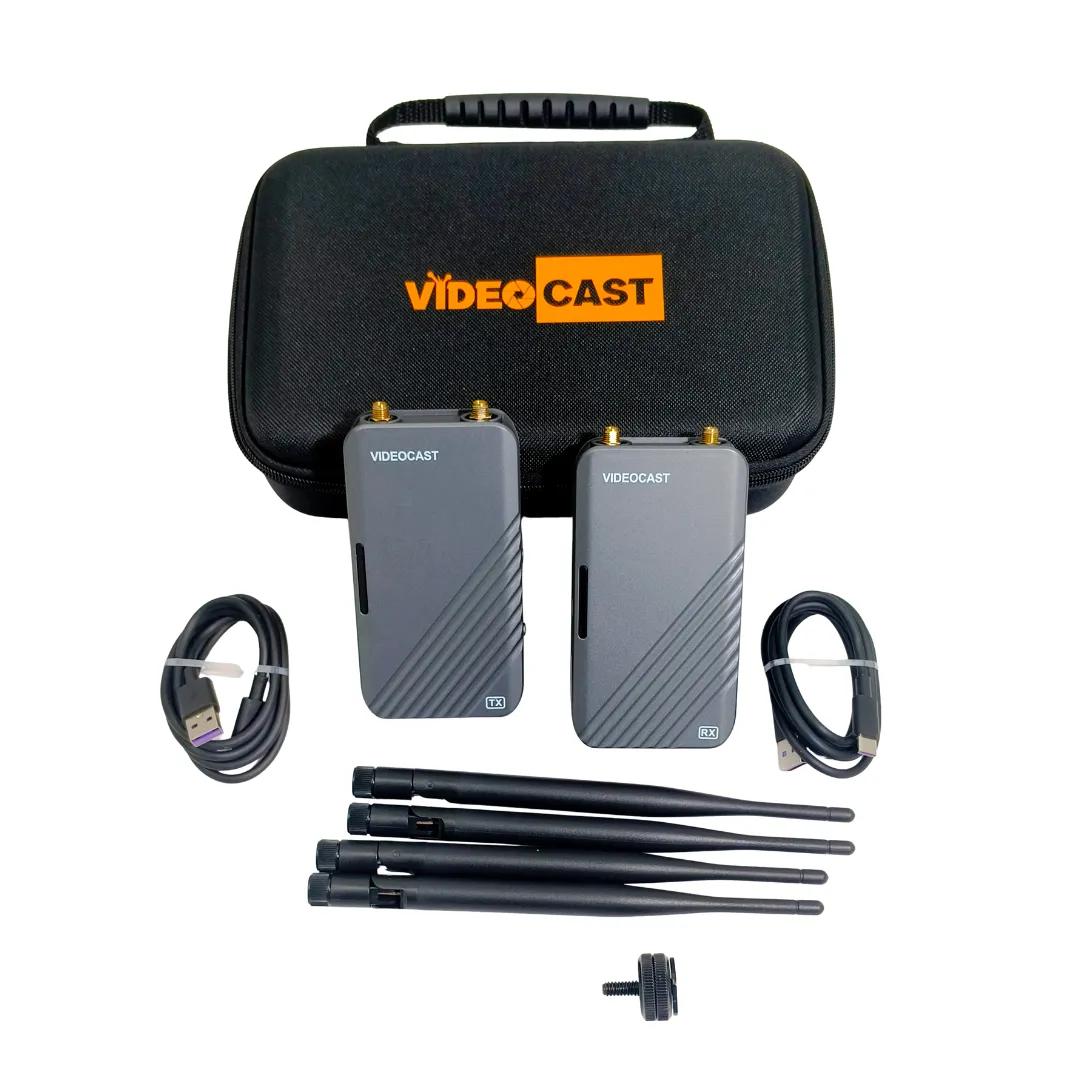

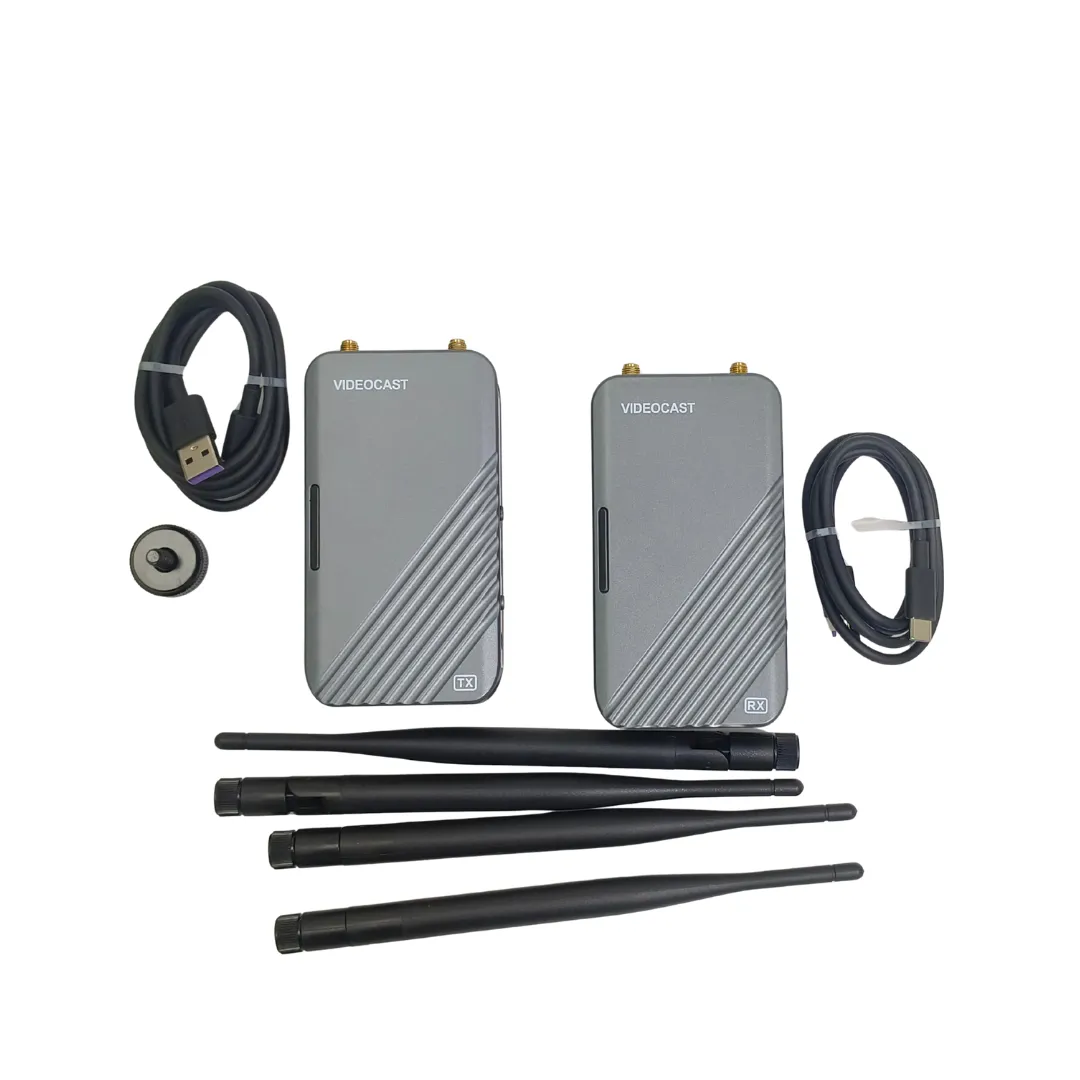

| Kit photos | One transmitter, one receiver, four antennas, two USB cables and a shoe mount. One view shows a carry case. The photos do not include an NP-F battery or a mains adapter. Published details do not list the box contents. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
How far does The manufacturer listing say it transmits?
The features say up to 500 metres (1640 feet) in open environments. Manufacturer guidance lists same distance in open, line-of-sight environments. Share the real distance and what sits between the units.
Does the VC-TX500 Pro include an NP-F battery?
The page lists DC 9–16V, Type-C 5V and an NP-F battery as power options. The unit includes USB cables and does not include a battery or a mains adapter. We will confirm what is supplied on your quote.
Is the 5G link a mobile data connection?
The page describes a 5G wireless video link with OFDM and a 40 MHz channel. It does not mention a SIM or a mobile data plan.
How do I get pricing and availability for the VC-TX500 Pro?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
