Videocast VC-TX400 Pro Wireless HDMI and SDI
Wireless HDMI and 3G-SDI transmitter and receiver from Videocast, with a stated range of up to 1000 ft.
| Name on the listing | VC–TX400 PRO. Manufacturer guidance also shows VC-TX400 PRO. The product images are named VS400 Pro. |
|---|---|
| Video | The features list 4K at 30p, 4K at 25p and 1080p at 60 as video input. Manufacturer guidance lists system transmits 4K at 30 fps, 4K at 25 fps and 1080p at 60 fps. A parameters graphic lists 4K25 and 4K30 on HDMI, plus 1080p, 1080i and 720p. The same graphic lists SDI at 1080p, 1080i and 720p. |
| Latency | 0.06 seconds. The features show 0.06S. Product information also lists 0.06s. |
| Range | The introduction and features say up to 1000 ft. Manufacturer guidance lists up to 1000 ft (300 m), line-of-sight. Product information also lists 300 m / 985 ft in open conditions. |
| Wireless | Published details say 5G frequency transmission and 9 frequency channels. Manufacturer guidance lists 9 selectable 5 GHz channels, so more than one system can run in the same place. Product information also lists 9 5G frequency bands, a 40M channel bandwidth and OFDM. |
| Transmitter video | HDMI input, HDMI loop-out and 3G-SDI input. The unit includes HDMI IN, HDMI OUT and SDI IN. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC-TX400 Pro is a wireless HDMI and 3G-SDI transmitter and receiver. The listing name includes VC–TX400 PRO. The product images are named VS400 Pro. The written range is up to 1000 ft. Manufacturer guidance lists 1000 ft (300 m) line-of-sight. Product information also lists 300 m / 985 ft in open conditions. Latency is listed as 0.06 seconds. The transmitter has HDMI input, HDMI loop-out and 3G-SDI input. The receiver has two HDMI outputs and a 3G-SDI output. The features call 4K an input, at 4K30, 4K25 and 1080p60. Manufacturer guidance calls that 4K transmission. Product information lists 4K on HDMI and 1080p or 720p on SDI. Published details calls the link 5G with 9 channels. Manufacturer guidance lists 9 selectable 5 GHz channels. Power is listed as an NPF battery and USB Type-C at 5V. Product information also includes DC 9–16V. The kit includes one transmitter, one receiver and four antennas. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Wireless | Published details say 5G frequency transmission and 9 frequency channels. Manufacturer guidance lists 9 selectable 5 GHz channels, so more than one system can run in the same place. Product information also lists 9 5G frequency bands, a 40M channel bandwidth and OFDM. |
|---|---|

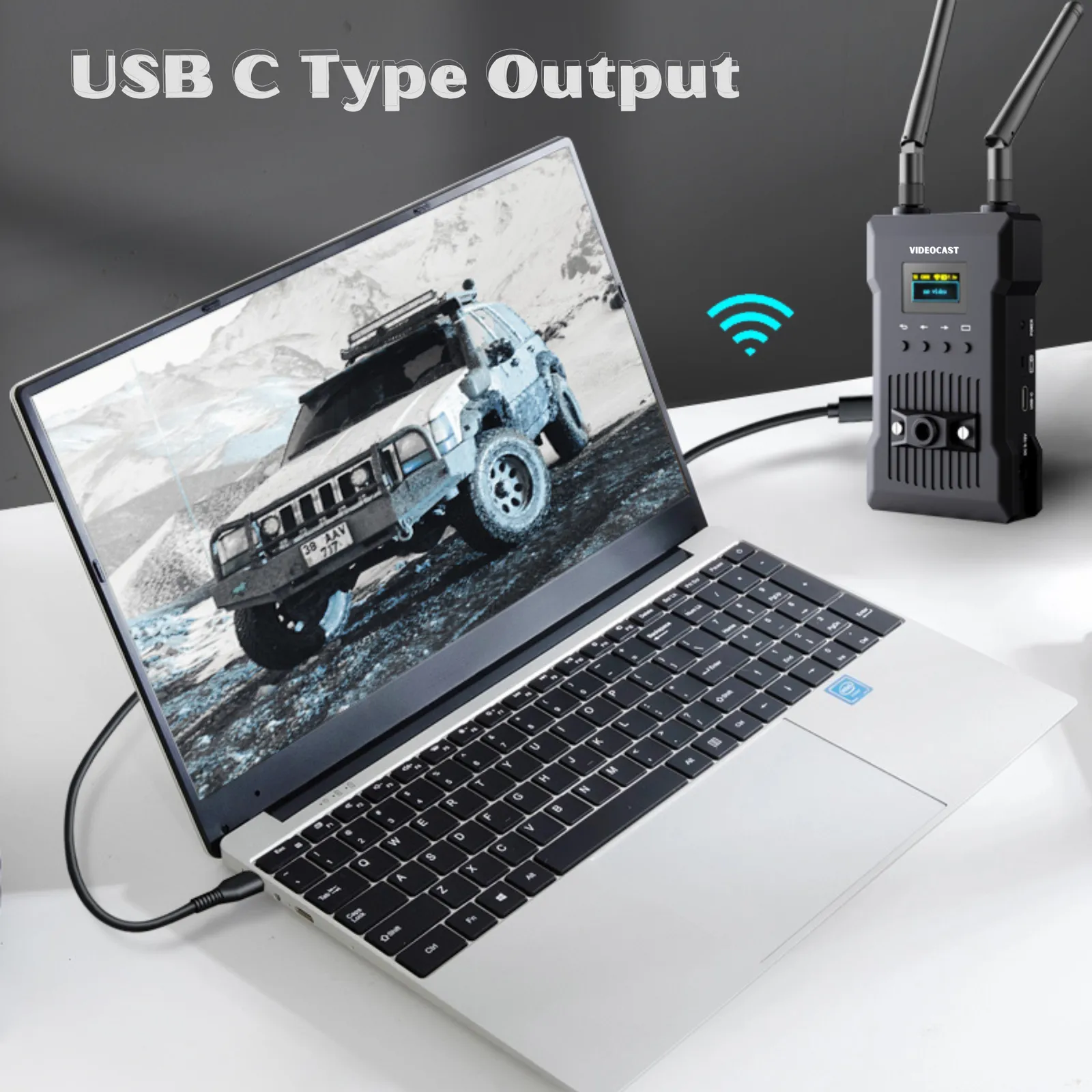

| USB-C on Product information | One graphic is titled USB-C Type Output and shows a cable from the unit to a laptop. Published details list Type-C as power. |
Dimensions & power

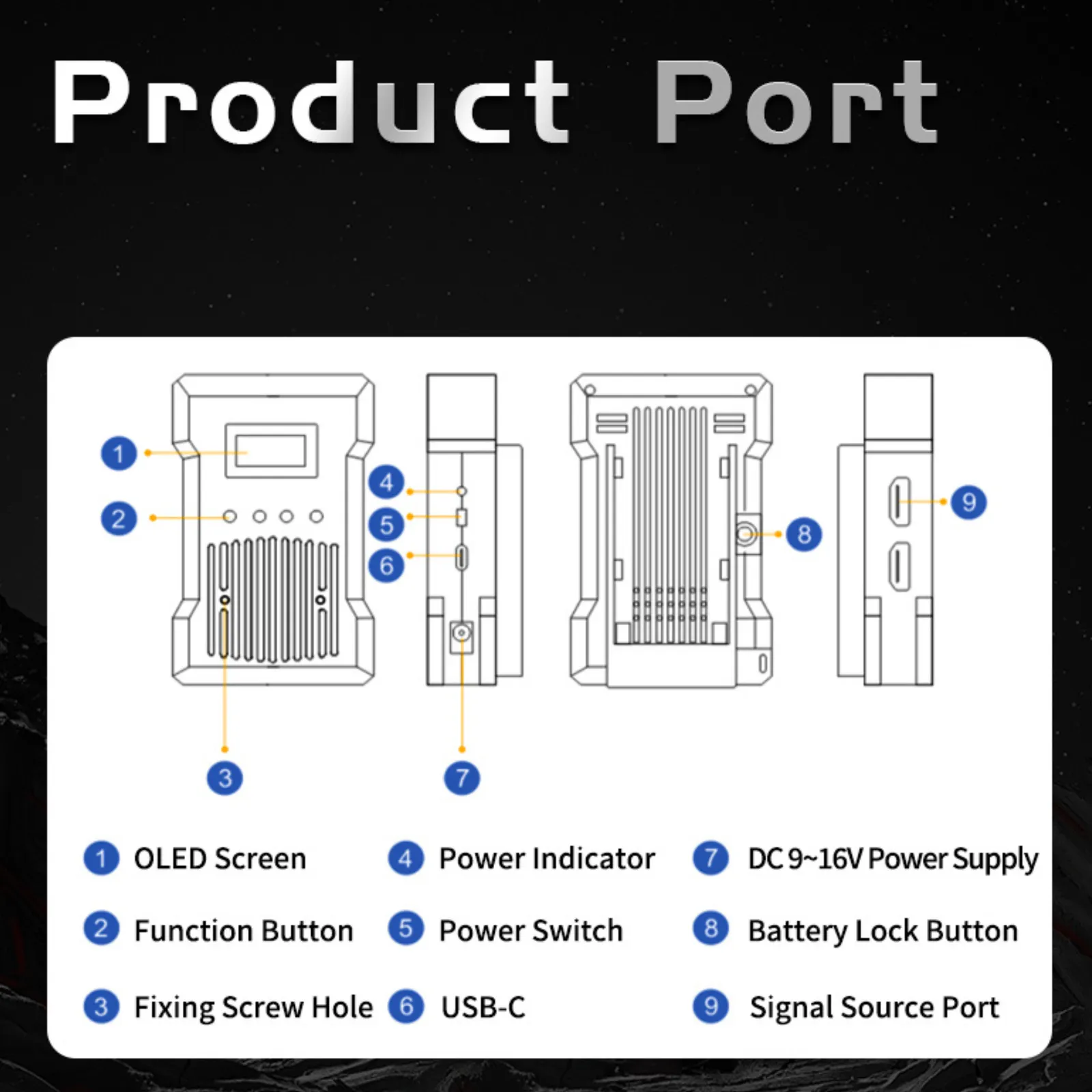

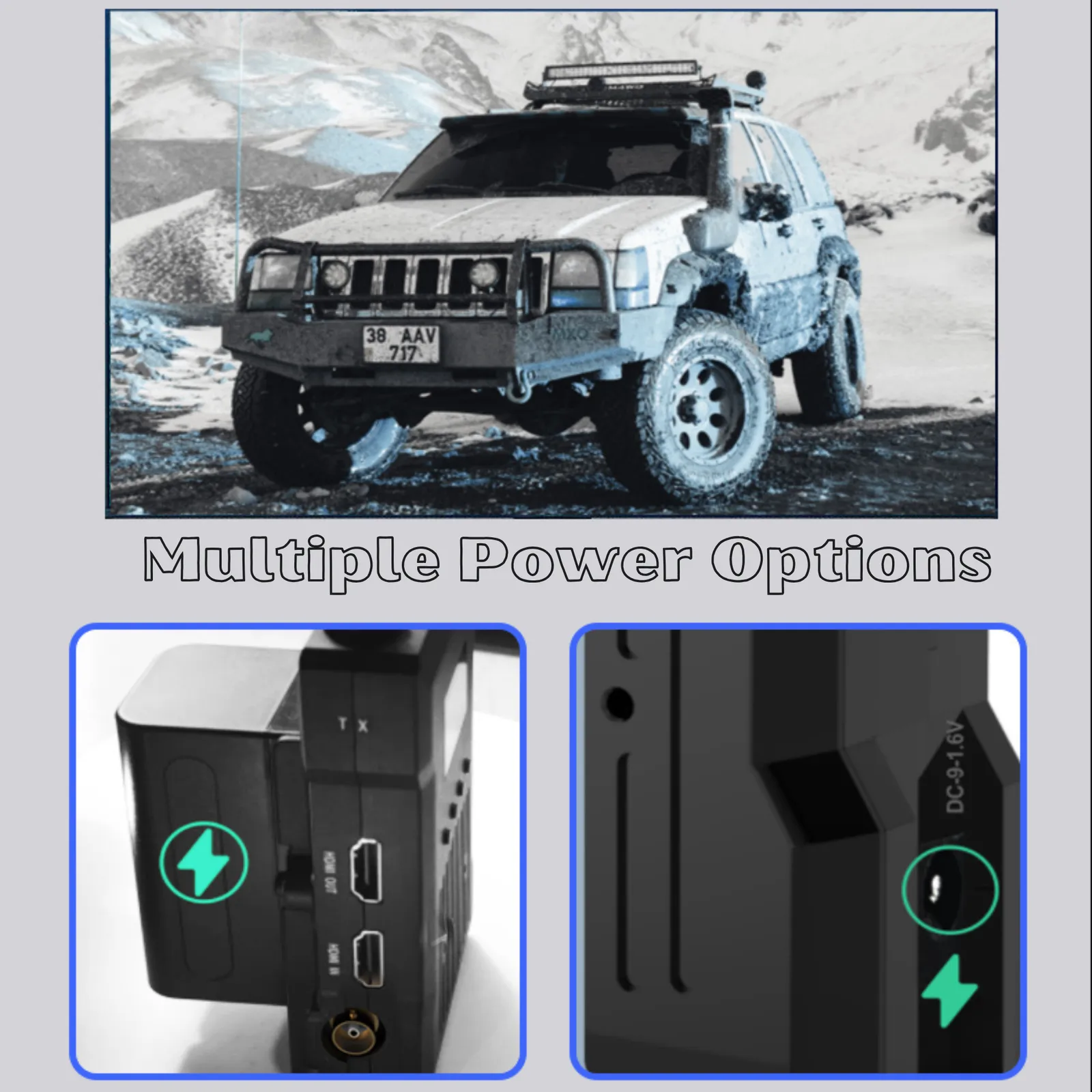

| Power | Published details say an NPF battery and a 5V Type-C supply. Manufacturer guidance Sony NPF batteries and USB Type-C power. A graphic labels DC 9–16V on the housing, a battery plate, and USB-C. The parameters graphic also shows DC 9–16V and Type-C 5V, and about 4 W for the transmitter and 4 W for the receiver. |
|---|
Other details
| Name on the listing | VC–TX400 PRO. Manufacturer guidance also shows VC-TX400 PRO. The product images are named VS400 Pro. |
|---|---|
| Video | The features list 4K at 30p, 4K at 25p and 1080p at 60 as video input. Manufacturer guidance lists system transmits 4K at 30 fps, 4K at 25 fps and 1080p at 60 fps. A parameters graphic lists 4K25 and 4K30 on HDMI, plus 1080p, 1080i and 720p. The same graphic lists SDI at 1080p, 1080i and 720p. |
| Latency | 0.06 seconds. The features show 0.06S. Product information also lists 0.06s. |
| Range | The introduction and features say up to 1000 ft. Manufacturer guidance lists up to 1000 ft (300 m), line-of-sight. Product information also lists 300 m / 985 ft in open conditions. |
| Transmitter video | HDMI input, HDMI loop-out and 3G-SDI input. The unit includes HDMI IN, HDMI OUT and SDI IN. |
| Receiver video | Two HDMI outputs and one 3G-SDI output. The unit includes HDMI OUT1, HDMI OUT2 and SDI OUT. |
| Audio | PCM, two channels. Product information also lists PCM dual-channel. |

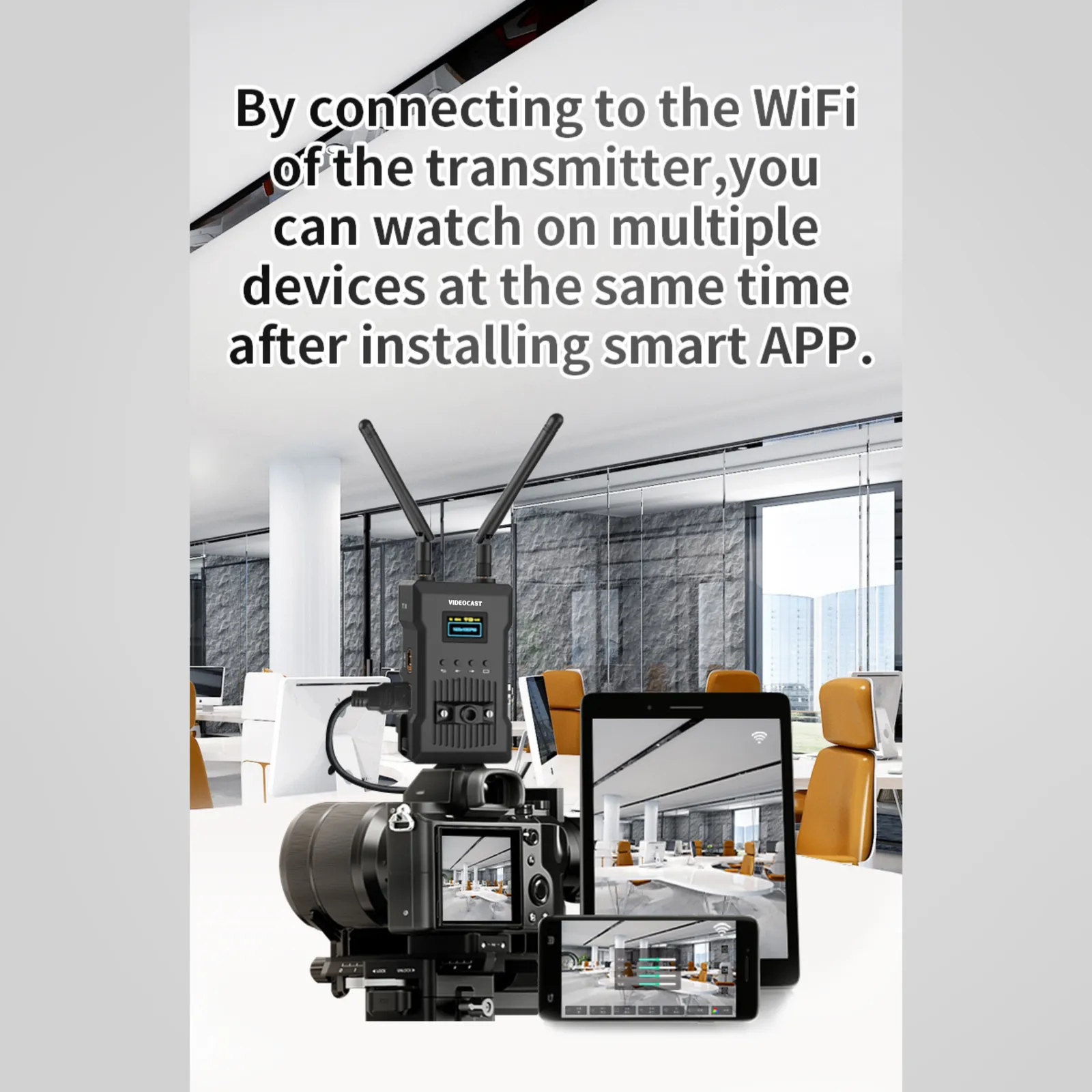

| Setup | Published details say plug-and-play, with no software or configuration. Product information says you connect to the transmitter Wi-Fi and install a smart app to watch on more than one device. |

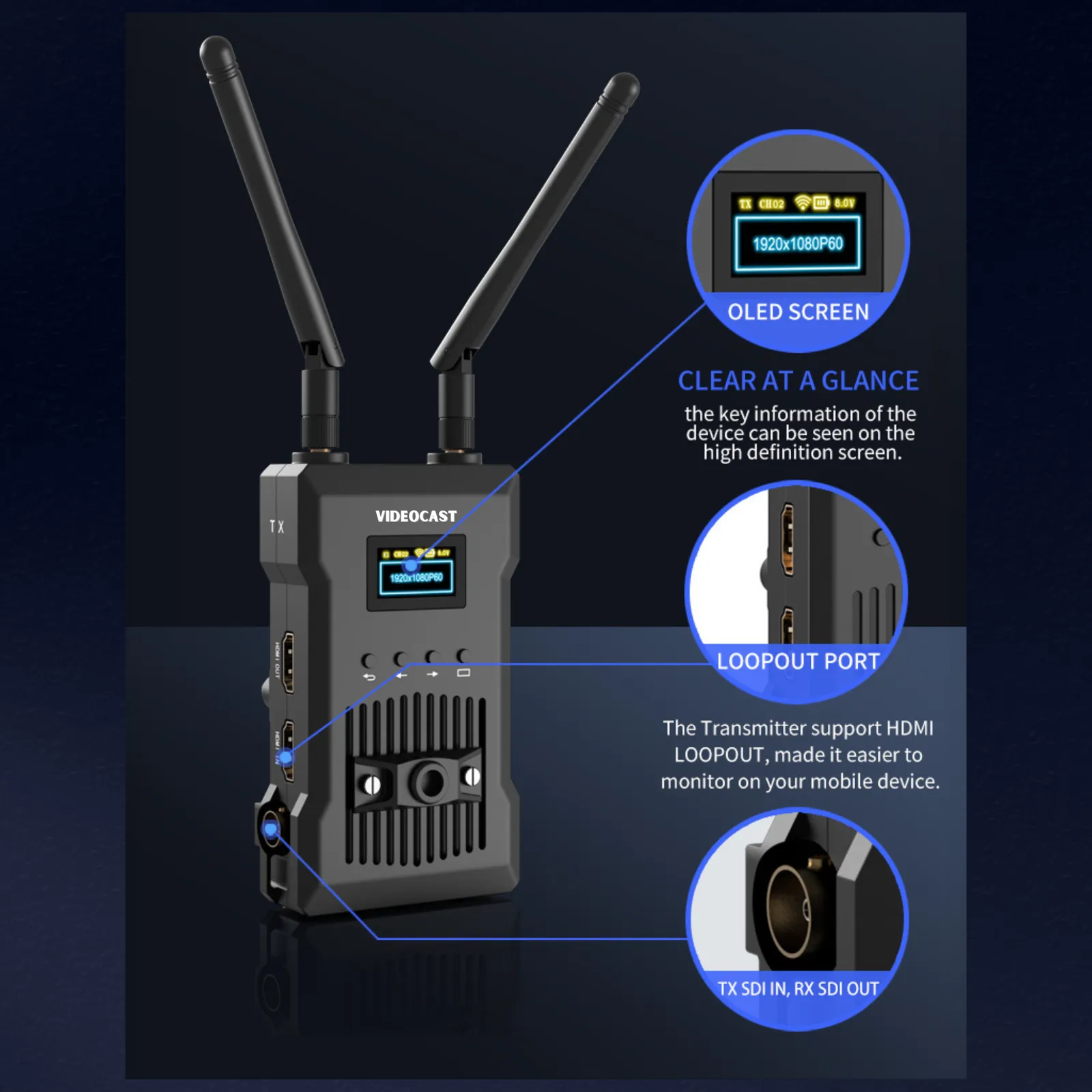

| Screen on the product imagery | An OLED screen. The unit includes 1920x1080P60. One close-up also shows CH02 and 6.0V. Published details do not mention a screen. |

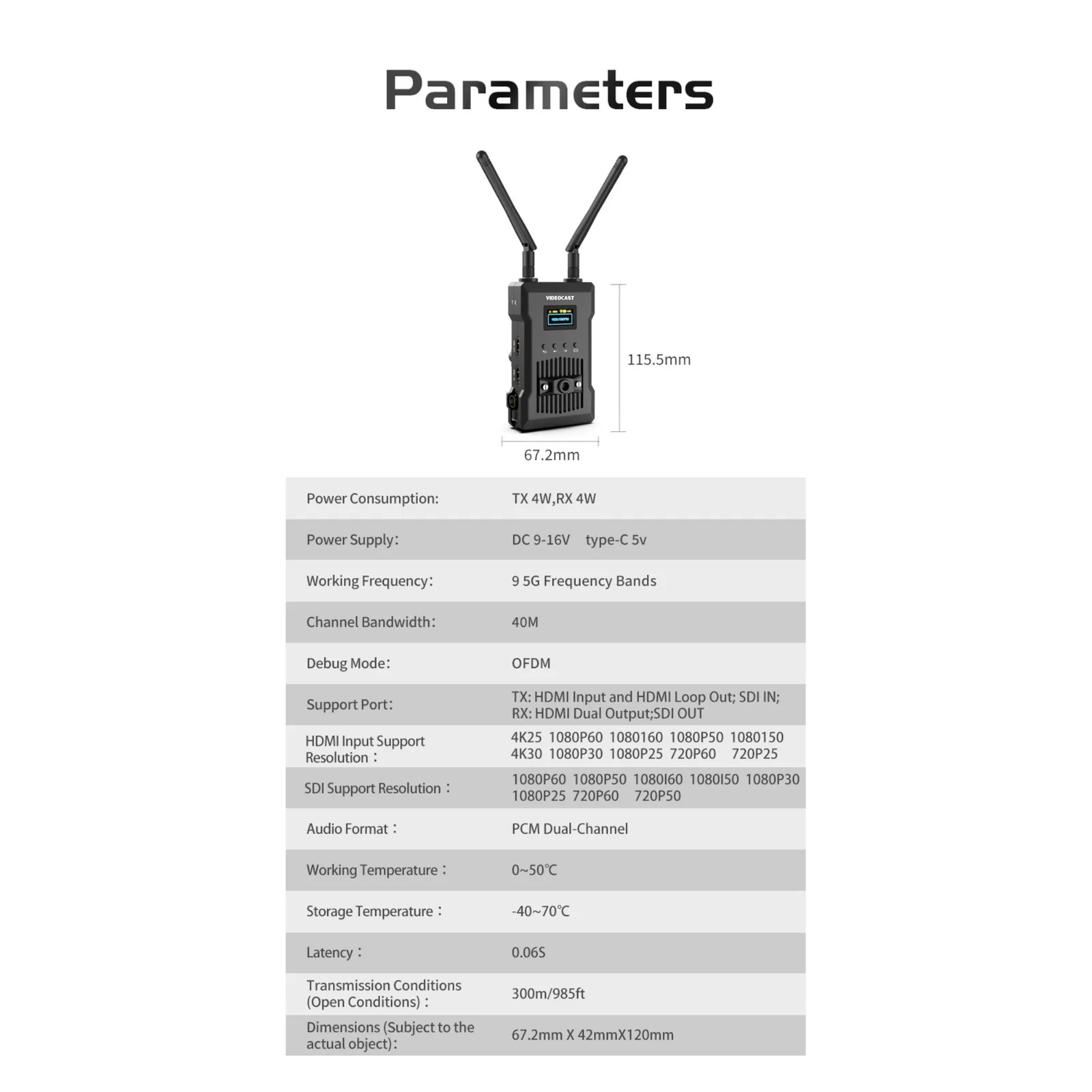

| Size on the parameters graphic | The drawing marks 67.2 mm across and 115.5 mm tall. The table also shows 67.2 mm × 42 mm × 120 mm. Published details has no size. |
| Temperature on the parameters graphic | Working 0–50°C. Storage −40–70°C. Published details has no temperature. |

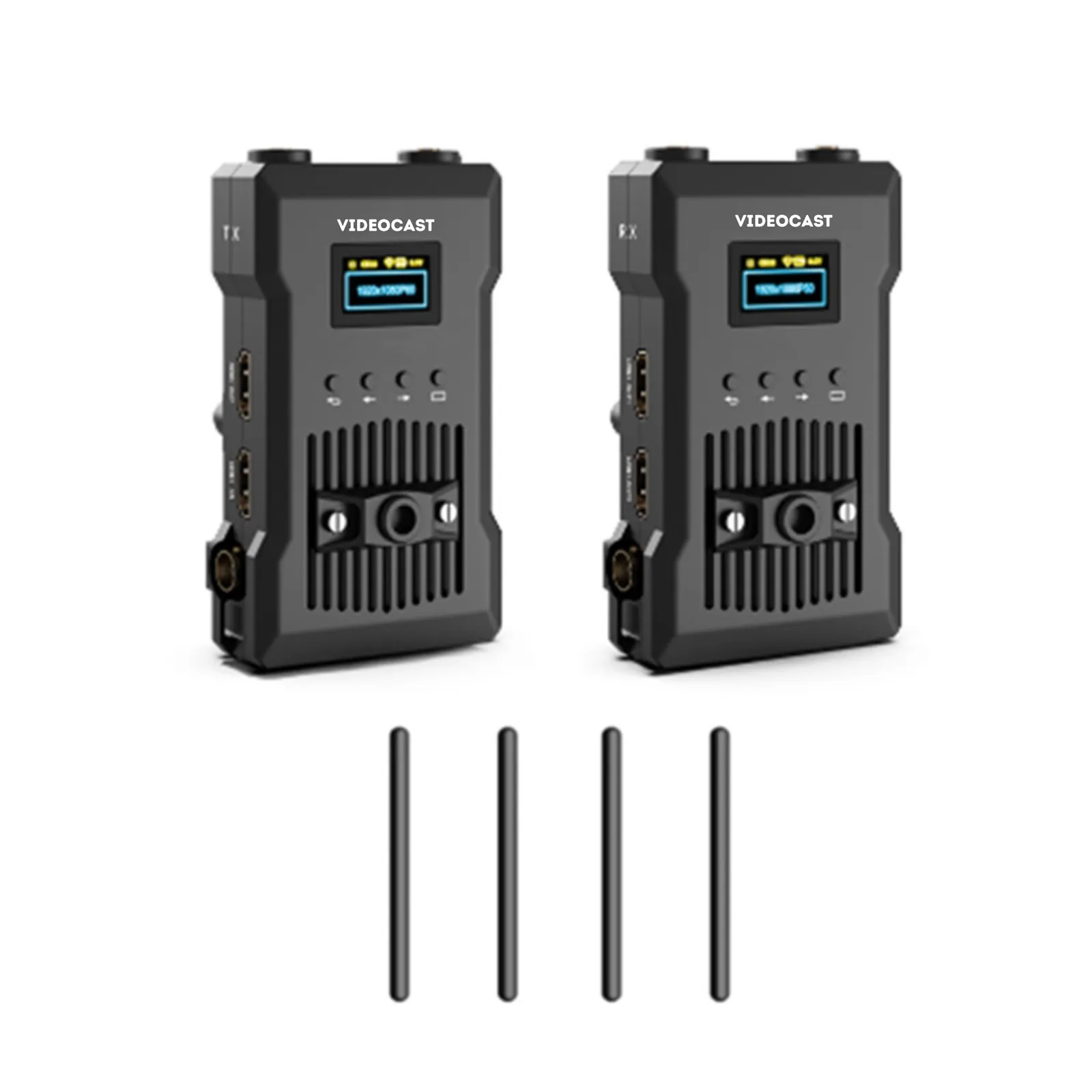

| Kit photo | One transmitter, one receiver and four antennas. The photo does not include a battery or a mains adapter. Published details do not list the box contents. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
How far does The manufacturer listing say the VC-TX400 Pro transmits?
The features say up to 1000 ft. Manufacturer guidance lists 1000 ft (300 m) line-of-sight. Product information also lists 300 m / 985 ft in open conditions. Share the real distance and what sits between the units.
Does The manufacturer listing say 4K goes over SDI?
The features list 4K as a video input. Manufacturer guidance lists system transmits 4K. A parameters graphic lists 4K on HDMI and lists SDI at 1080p, 1080i and 720p. We will confirm the source format on your quote.
How is the VC-TX400 Pro powered?
Published details say an NPF battery and USB Type-C at 5V. Product information also includes a DC 9–16V input and a battery plate. The kit photo does not include a battery or a mains adapter.
How do I get pricing and availability for the VC-TX400 Pro?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
