Videocast VC-TX300 Pro Wireless HDMI
Wireless HDMI transmitter and receiver from Videocast, with HDMI loop-out, dual HDMI outputs and a stated range of up to 1000 ft.
| Name on the listing | VC–TX300 PRO. The introduction also shows VC-TX300 PRO, and then names VH400Pro in the same paragraph. The product images are named VC-TX300 Pro. |
|---|---|
| Video | The features list 4K HDMI input and HDMI loop-out on the transmitter. Manufacturer guidance lists system supports 4K at 30 fps, 4K at 25 fps and 1080p at 60 fps. A parameters graphic lists HDMI input at 4K25, 4K30, 1080p, 1080i and 720p. |
| Latency | 0.06 seconds. The features show 0.06S. Manufacturer guidance also shows 0.06-second. Product information also lists 0.06S. |
| Range | The introduction and features say up to 1000 ft. Manufacturer guidance lists up to 1000 ft (300 m), line-of-sight. Product information also lists 300 m / 985 ft in open conditions. |
| Wireless | Published details say a 5G frequency band. Product information also lists 9 5G frequency bands, a 40M channel bandwidth and OFDM. Product information is titled 5G technology. |

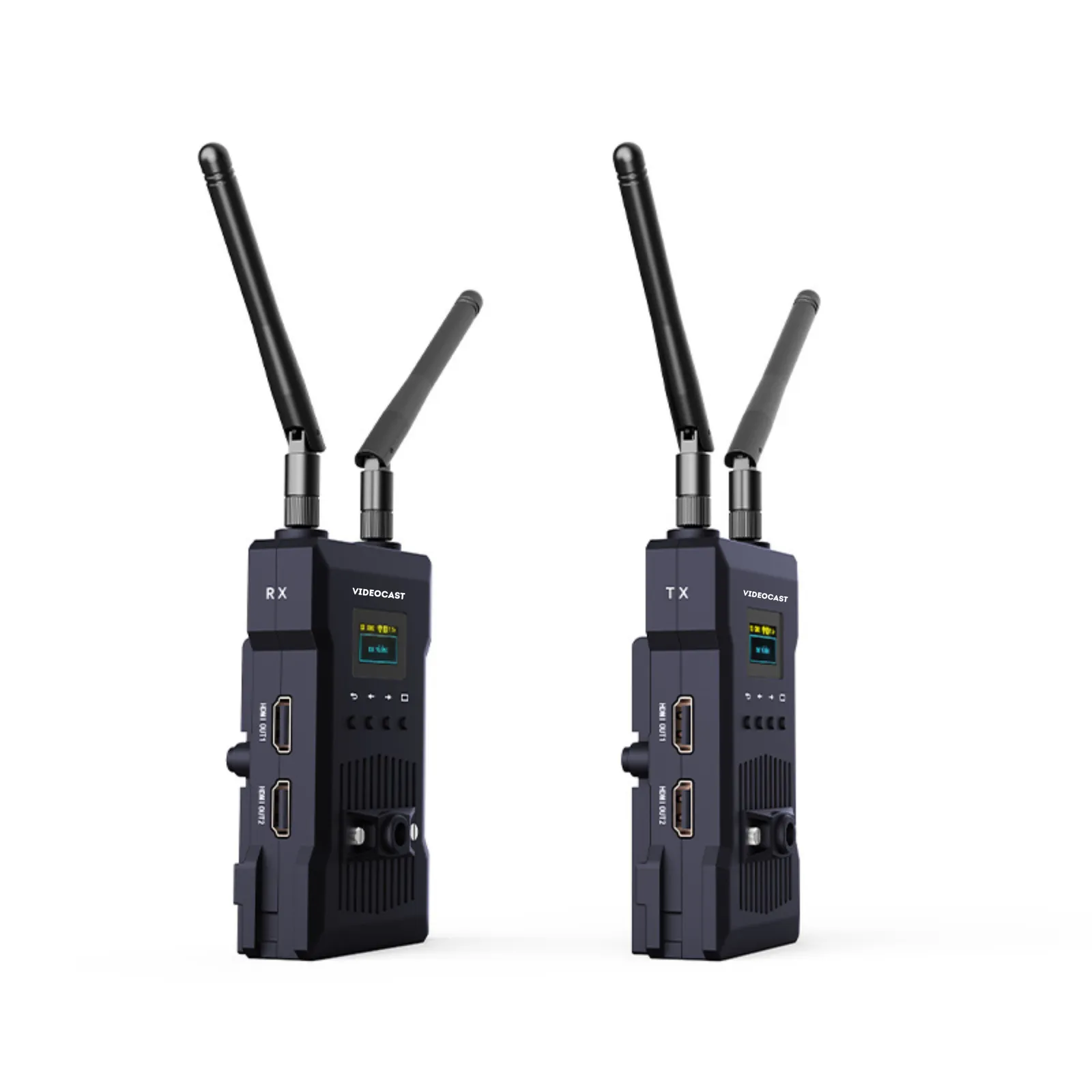

| Transmitter video | Published details and the parameters graphic say HDMI input and HDMI loop-out. Some units show HDMI IN and HDMI OUT. One view shows HDMI OUT1 and HDMI OUT2 on the unit marked TX. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

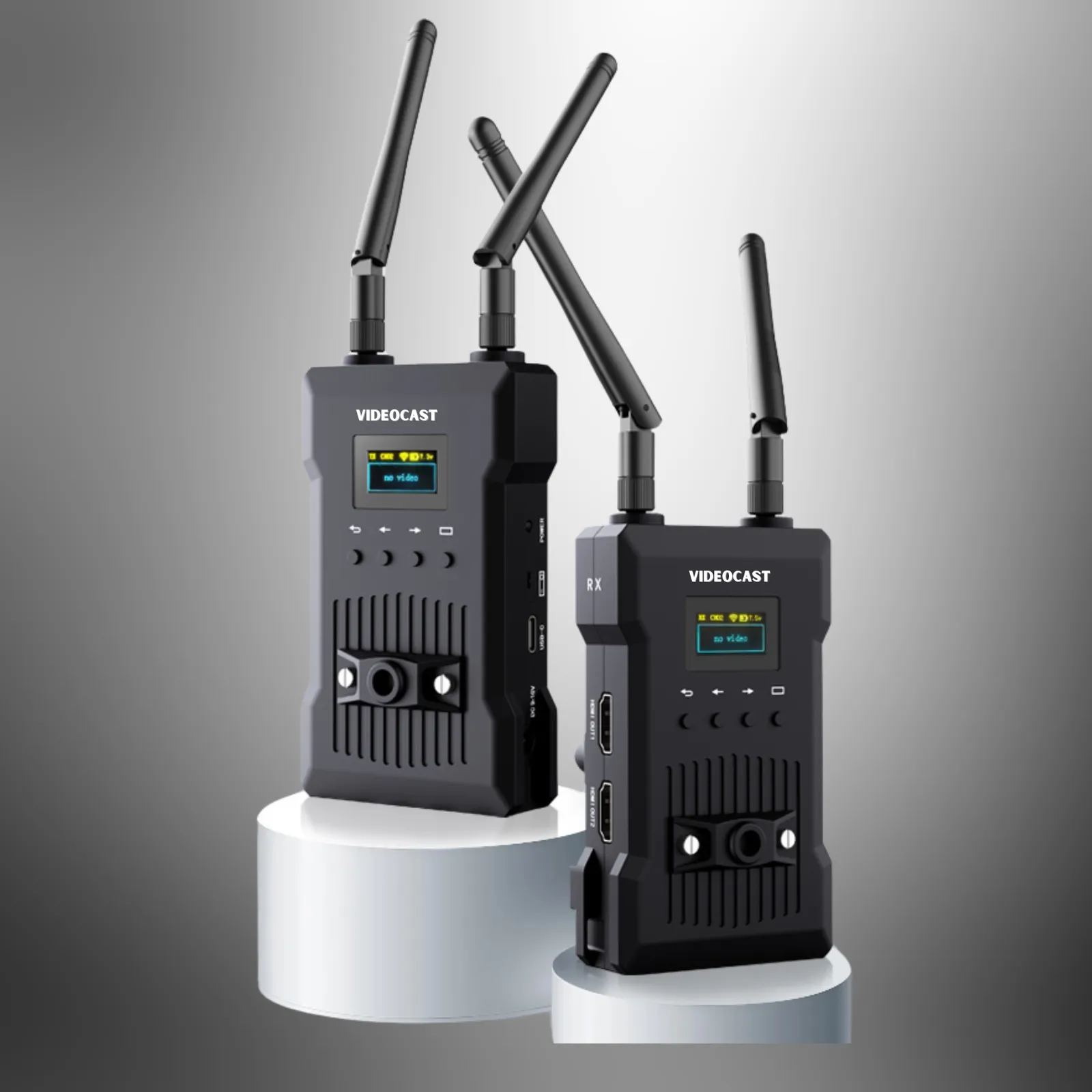

The Videocast VC-TX300 Pro is a wireless HDMI transmitter and receiver. The listing name includes VC–TX300 PRO. The same introduction also names VH400Pro. The written range is up to 1000 ft. Manufacturer guidance lists 1000 ft (300 m) line-of-sight. Product information also lists 300 m / 985 ft in open conditions. Latency is listed as 0.06 seconds. The transmitter is described with 4K HDMI input and HDMI loop-out. The receiver has two HDMI outputs. The FAQ lists 4K at 30 fps, 4K at 25 fps and 1080p at 60 fps. Published details calls the link a 5G frequency band. Product information also lists 9 5G frequency bands. Power is listed as an NPF battery or USB Type-C at 5V. Product information also includes DC 9–16V. A packing graphic shows one transmitter, one receiver, four antennas and a manual, with no battery. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Wireless | Published details say a 5G frequency band. Product information also lists 9 5G frequency bands, a 40M channel bandwidth and OFDM. Product information is titled 5G technology. |
|---|---|

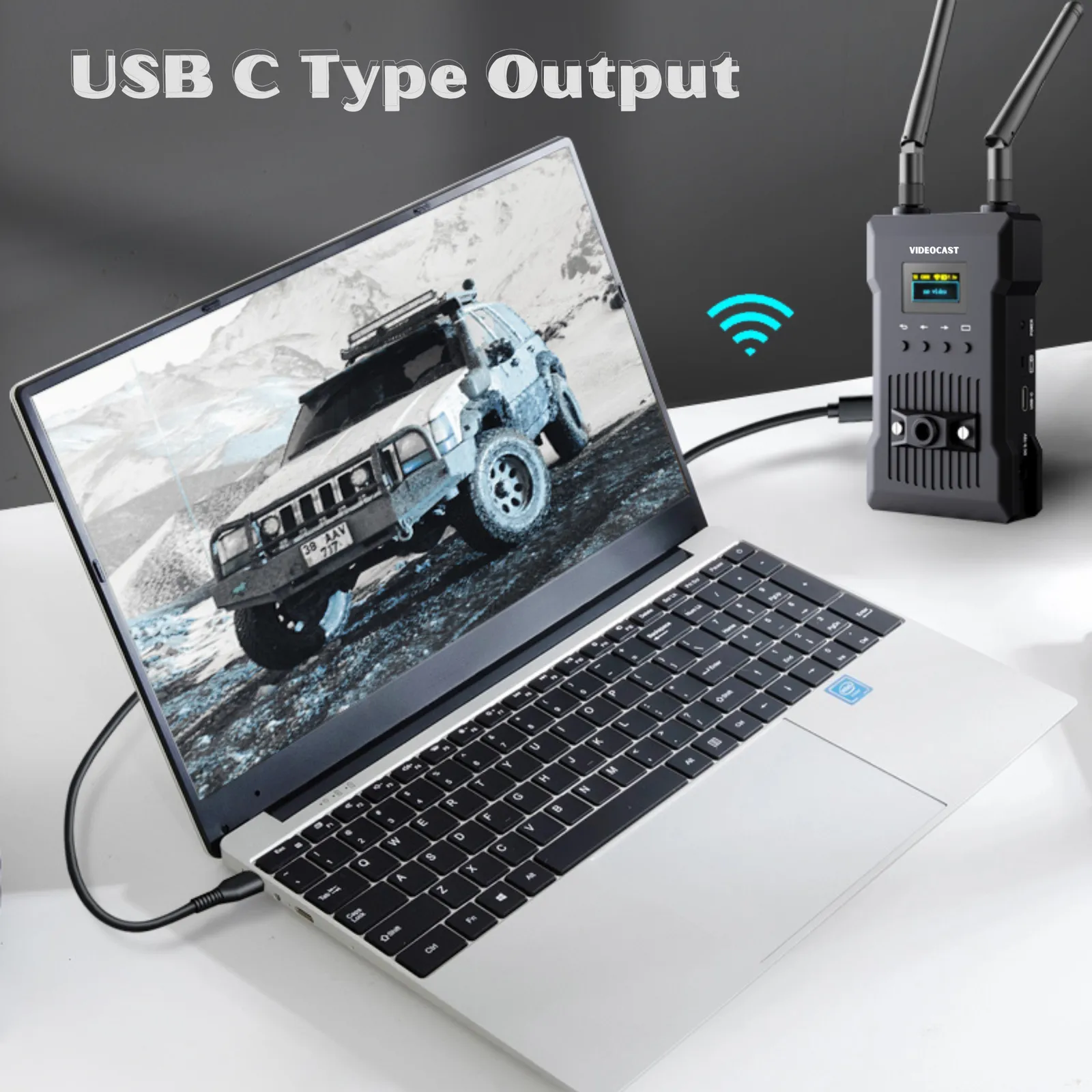

| USB-C on Product information | One graphic is titled USB-C Type Output and shows a cable from the unit to a laptop. Published details list Type-C as power. |
Dimensions & power

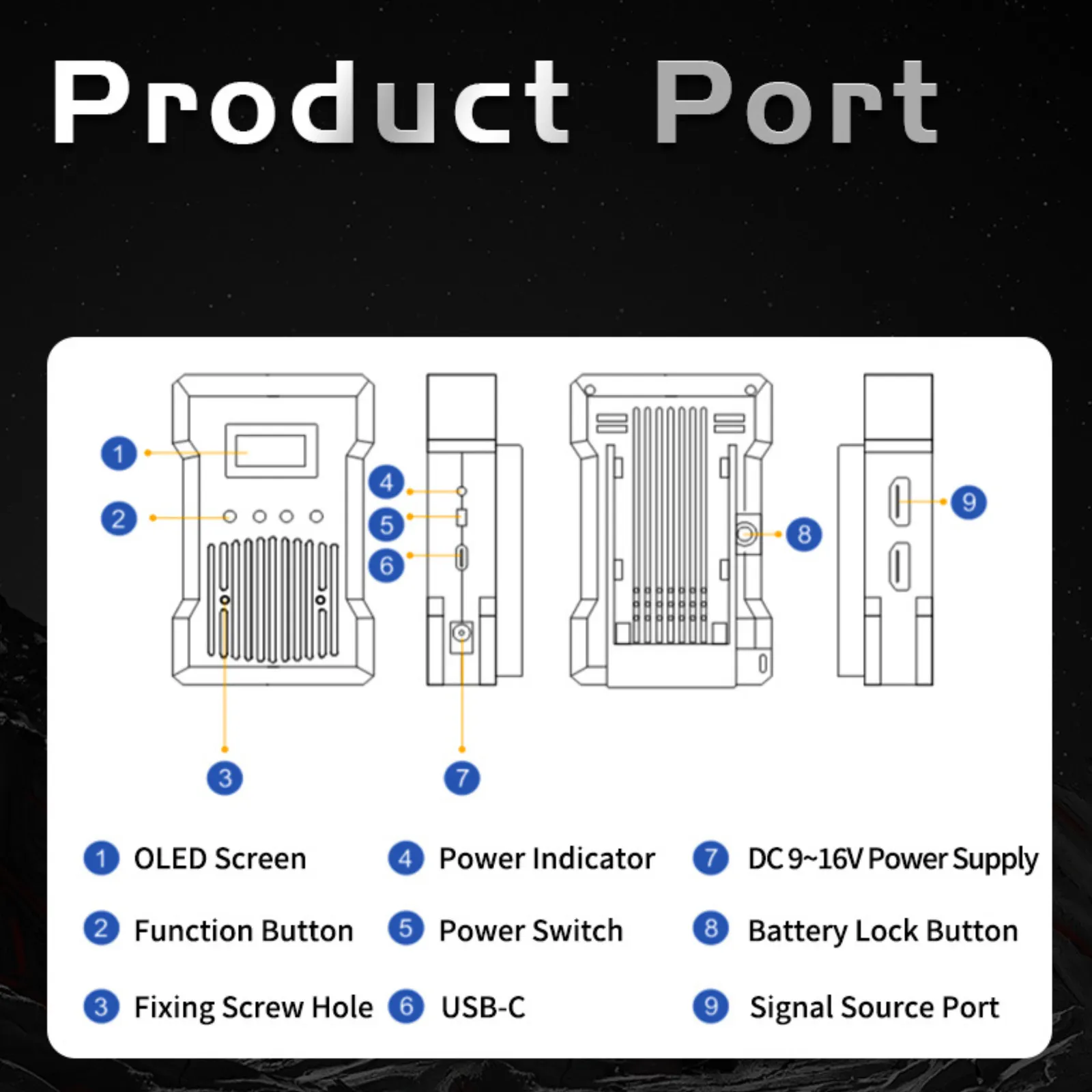

| Power | Published details say an NPF battery or a 5V Type-C supply. Manufacturer guidance NP-F batteries or USB Type-C. A graphic labels DC 9–16V on the housing, a battery plate, and USB-C. The parameters graphic also shows DC 9–16V and Type-C 5V, and about 4 W for the transmitter and 4 W for the receiver. |
|---|
Other details
| Name on the listing | VC–TX300 PRO. The introduction also shows VC-TX300 PRO, and then names VH400Pro in the same paragraph. The product images are named VC-TX300 Pro. |
|---|---|
| Video | The features list 4K HDMI input and HDMI loop-out on the transmitter. Manufacturer guidance lists system supports 4K at 30 fps, 4K at 25 fps and 1080p at 60 fps. A parameters graphic lists HDMI input at 4K25, 4K30, 1080p, 1080i and 720p. |
| Latency | 0.06 seconds. The features show 0.06S. Manufacturer guidance also shows 0.06-second. Product information also lists 0.06S. |
| Range | The introduction and features say up to 1000 ft. Manufacturer guidance lists up to 1000 ft (300 m), line-of-sight. Product information also lists 300 m / 985 ft in open conditions. |
| Transmitter video | Published details and the parameters graphic say HDMI input and HDMI loop-out. Some units show HDMI IN and HDMI OUT. One view shows HDMI OUT1 and HDMI OUT2 on the unit marked TX. |

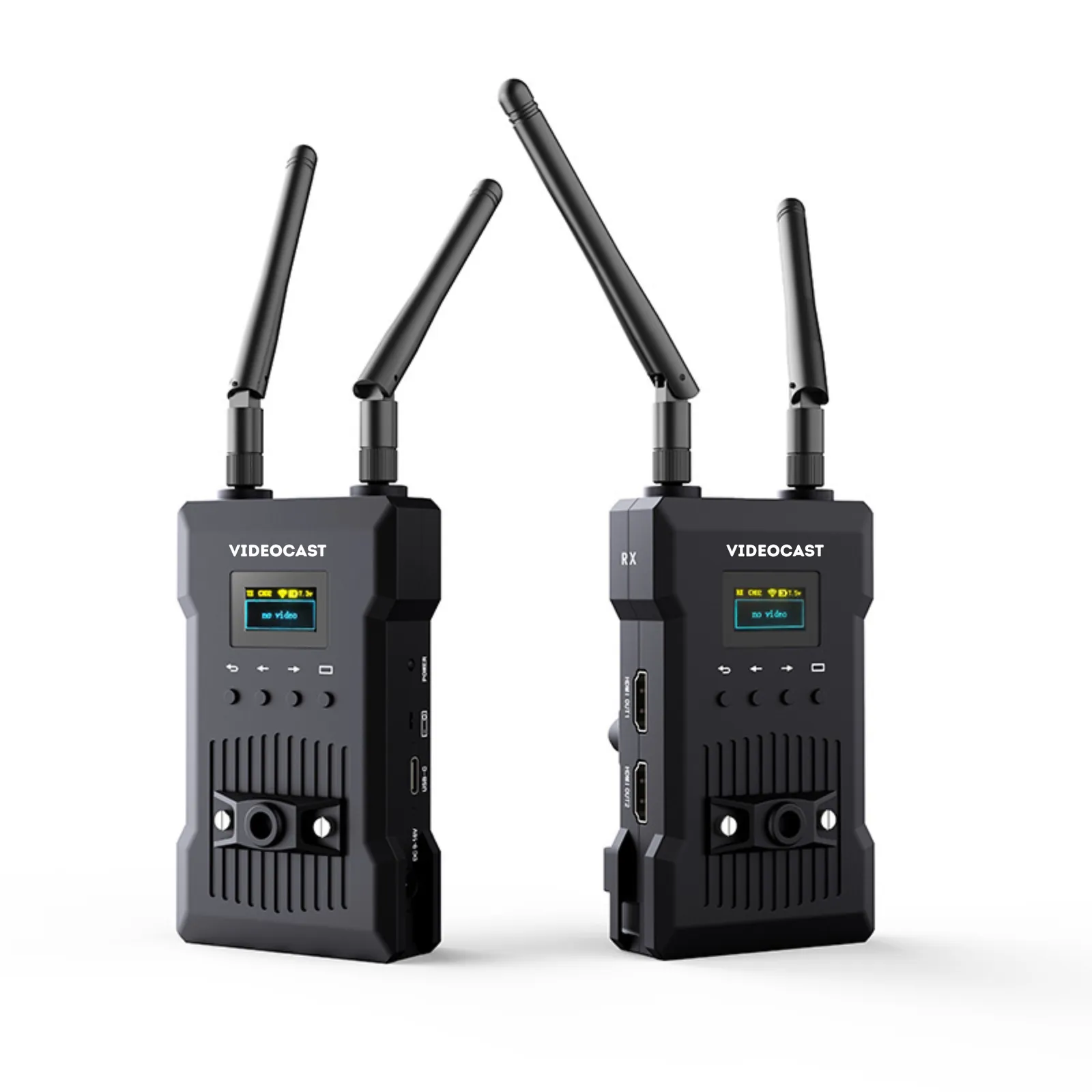

| Receiver video | Two HDMI outputs. The unit includes HDMI OUT1 and HDMI OUT2. |
| Audio | PCM, two channels. Product information also lists PCM dual-channel. |
| App on Product information | One graphic says you connect to the transmitter Wi-Fi and install a smart app to watch on more than one device. Published details do not mention an app or Wi-Fi. |

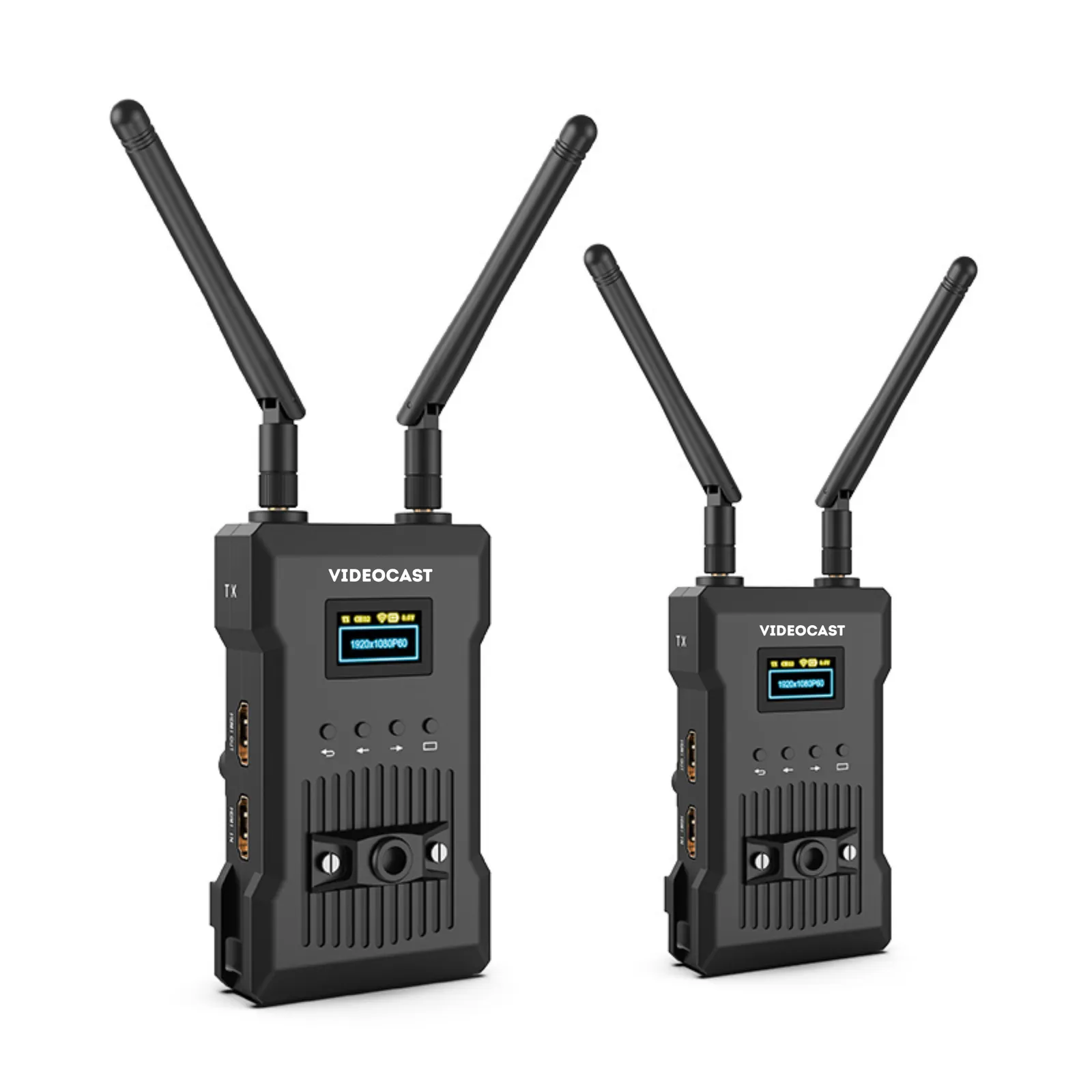

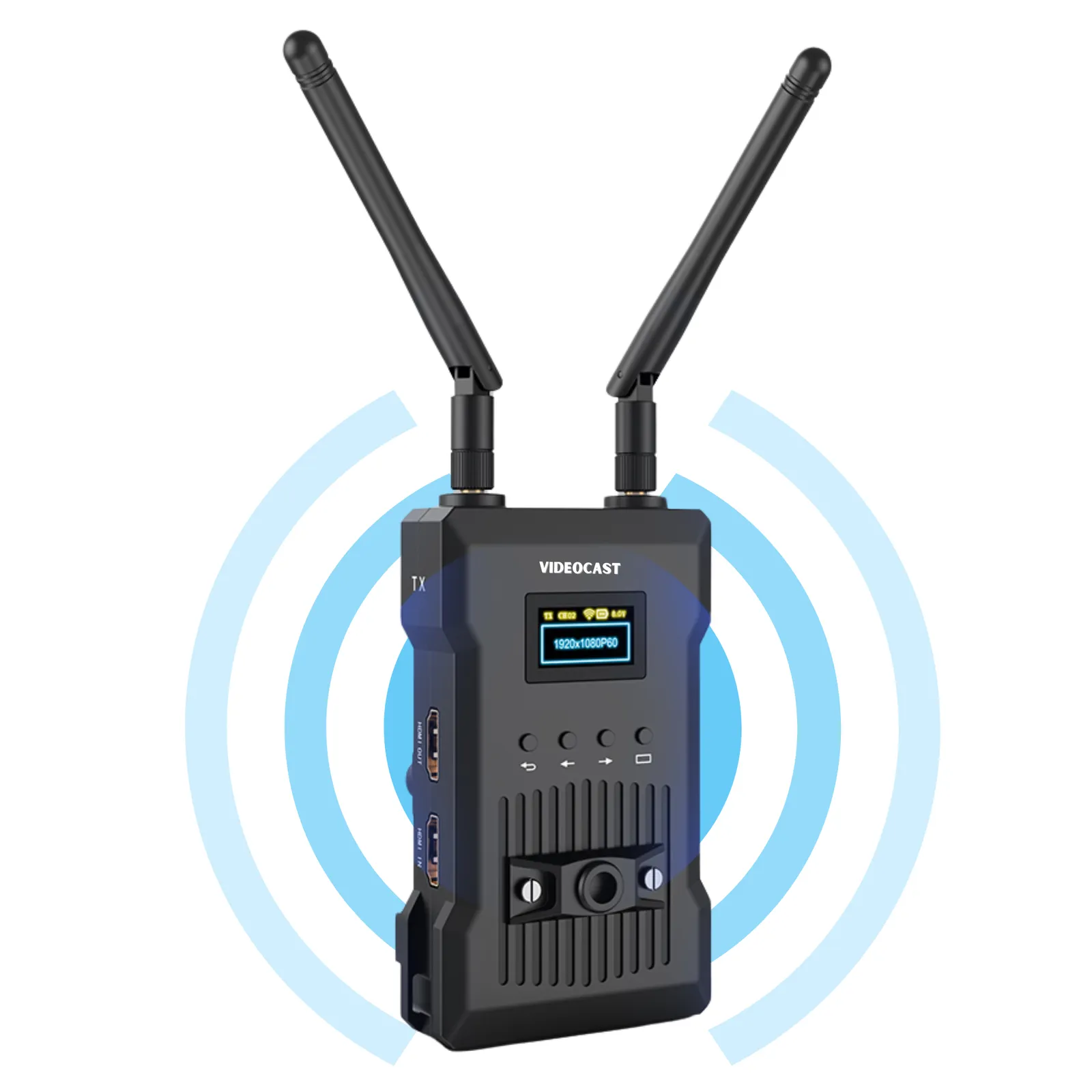

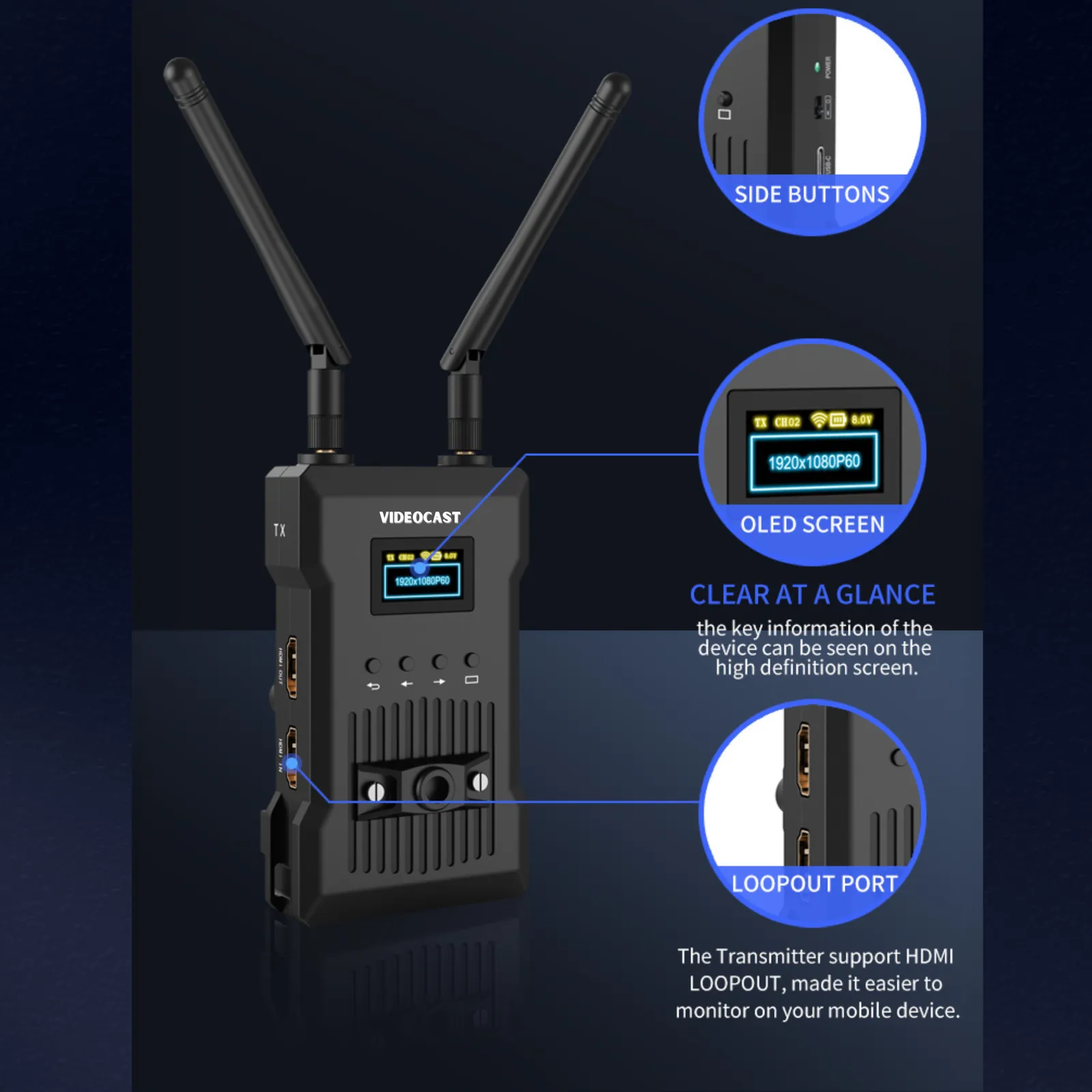

| Screen on the product imagery | An OLED screen. The unit includes 1920x1080P60. One close-up also shows CH02 and 6.0V. Published details do not mention a screen. |

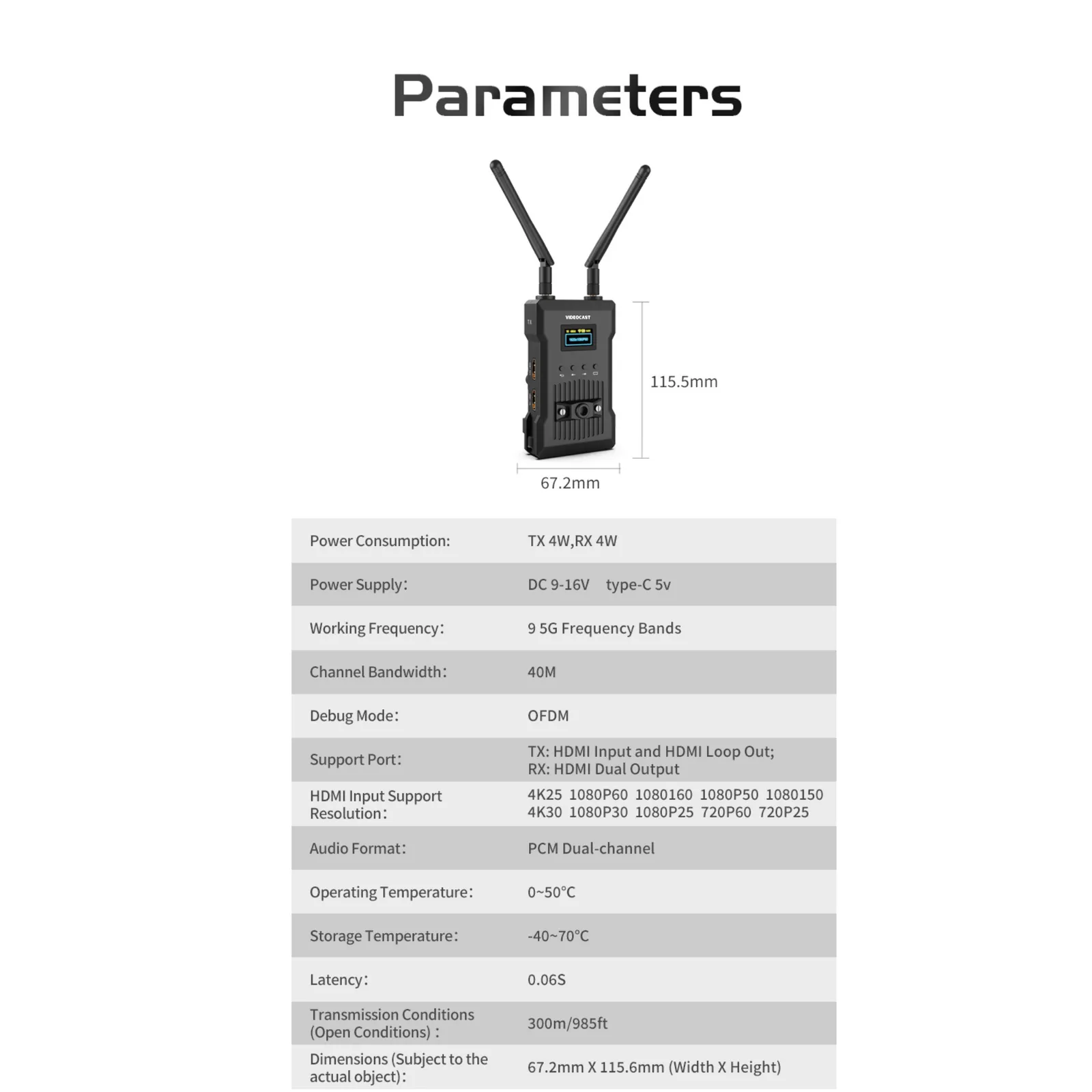

| Size on the parameters graphic | The drawing marks 67.2 mm across and 115.5 mm tall. The table also shows 67.2 mm × 115.6 mm, width by height. Published details has no size. |
| Temperature on the parameters graphic | Operating 0–50°C. Storage −40–70°C. Published details has no temperature. |
| Warranty on the FAQ | Manufacturer guidance manufacturer warranty support is available. It does not state a term. |
| Packing graphic | One transmitter, one receiver, four antennas and a user manual. The graphic does not include a battery or a mains adapter. Published details do not list the box contents. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is this the VC-TX300 Pro or the VH400Pro?
The page title and the FAQ use VC-TX300 PRO. One sentence in the introduction names VH400Pro. We will confirm the model name on your quote.
How far does The manufacturer listing say the VC-TX300 Pro transmits?
The features say up to 1000 ft. Manufacturer guidance lists 1000 ft (300 m) line-of-sight. Product information also lists 300 m / 985 ft in open conditions. Share the real distance and what sits between the units.
How is the VC-TX300 Pro powered?
Published details say an NPF battery or USB Type-C at 5V. Product information also includes a DC 9–16V input and a battery plate. The packing graphic does not include a battery or a mains adapter.
How do I get pricing and availability for the VC-TX300 Pro?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
