ClickShare USB-C Extension over CAT kit
Transmitter and receiver kit that extends USB-C from a ClickShare Hub over a CAT cable.
| Weight | Transmitter 333 g. Receiver 315 g. |
|---|---|
| Use | Extends USB 2.0 and DisplayPort between a ClickShare Hub and its Control Panel, or between a Hub and a laptop. |
| Works with | Control Panel link: ClickShare Hub Core and Hub Pro. Wired laptop sharing: Hub Core, Hub Pro and CX-50 Gen2. |
| Resolution | Control Panel: up to 1080p at 60 Hz. Laptop sharing: up to 4K at 30 Hz. |
| Cable length | Control Panel: up to 60 m on CAT 5e or 6, up to 70 m on CAT 6a or 7. Laptop: up to 35 m on CAT 5e or 6, up to 40 m on CAT 6a or 7. |
| Connections | Transmitter: USB-C for DisplayPort (up to 4K at 30 Hz) and USB 2.0, a second USB-C for an external power adapter, and RJ45 for the HDBaseT link. Receiver: USB-C for DisplayPort and USB 2.0, and RJ45 for the same link. The RJ45 ports are not Ethernet. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
Check the fit before you choose

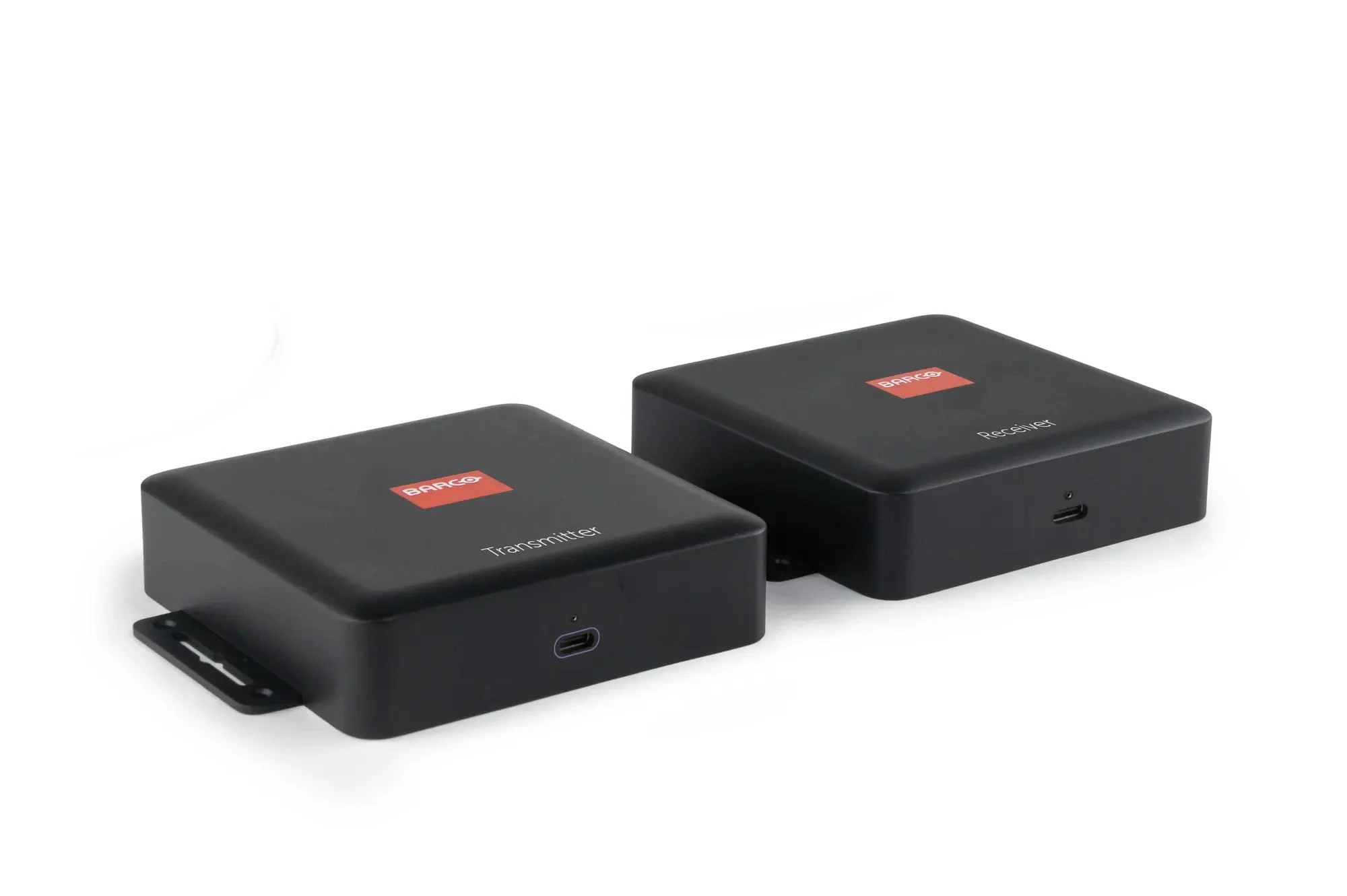

The ClickShare USB-C Extension over CAT kit is a transmitter and receiver pair. It carries USB 2.0 and DisplayPort over a CAT 5e or better cable, so a ClickShare Hub can sit further from its Control Panel or from a laptop. The CAT cable is not in the box. The RJ45 ports are for that link, not for the room network.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
Equipping more than one room with ClickShare? Post the rollout as a requirement. Meeting rooms →
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
1-year standard manufacturer warranty. Usually ships in 5-7 business days · confirmed on your quote
Technical specifications
Published specifications for this model.
Performance & capacity
| Connections | Transmitter: USB-C for DisplayPort (up to 4K at 30 Hz) and USB 2.0, a second USB-C for an external power adapter, and RJ45 for the HDBaseT link. Receiver: USB-C for DisplayPort and USB 2.0, and RJ45 for the same link. The RJ45 ports are not Ethernet. |
|---|---|
| Laptop connection | USB 2.0 or 3.0, USB-C DisplayPort alt mode, and USB-C power delivery when charging. |
Dimensions & power
| Power | With a Control Panel, both boxes are powered by Hub Core or Hub Pro. With a laptop, the transmitter is powered by the laptop and the receiver by the Hub. An external USB-C adapter above 100 W on the transmitter can charge the laptop. |
|---|---|
| Power draw | With a Control Panel: transmitter about 19.9 W, receiver about 4.6 W. With a laptop: transmitter about 4.6 W, receiver about 5.6 W. |
| Dimensions | 122 × 152 × 34 mm (H × W × D) |
| Weight | Transmitter 333 g. Receiver 315 g. |
Other details
| Use | Extends USB 2.0 and DisplayPort between a ClickShare Hub and its Control Panel, or between a Hub and a laptop. |
|---|---|
| Works with | Control Panel link: ClickShare Hub Core and Hub Pro. Wired laptop sharing: Hub Core, Hub Pro and CX-50 Gen2. |
| Resolution | Control Panel: up to 1080p at 60 Hz. Laptop sharing: up to 4K at 30 Hz. |
| Cable length | Control Panel: up to 60 m on CAT 5e or 6, up to 70 m on CAT 6a or 7. Laptop: up to 35 m on CAT 5e or 6, up to 40 m on CAT 6a or 7. |
| Mounting | Mounting holes for a desk, ceiling or wall |
| Operating conditions | 0°C to 40°C. Humidity up to 85%, non-condensing. |
| In the box | Transmitter, receiver, two 1.2 m USB-C cables and screws. The CAT cable is not included. |
| Warranty | 1 year standard |
Warranty & support
1-year standard manufacturer warranty.
Delivery & fulfilment
Usually ships in 5-7 business days · confirmed on your quote Delivery charges, when they apply, are on the quote.
Downloads
Frequently asked questions
Is the network cable included?
No. The box has the transmitter, the receiver, two 1.2 m USB-C cables and screws. You supply the CAT 5e, 6, 6a or 7 cable between the two boxes.
Will it charge a laptop?
Only with an extra USB-C power adapter above 100 W on the transmitter. Without that adapter, the Hub powers the extender and the laptop powers the transmitter.
