Barco · Wireless conferencing
ClickShare CX-50 Gen2
Wireless conferencing for high-impact rooms and boardrooms, with two displays and a wired roomdock.
| Weight | 900 g |
|---|---|
| Meeting room | High-impact rooms and boardrooms |
| Video output | HDMI 3840×2160 at 60 Hz, HDMI 2.1. USB-C source 3840×2160 at 60 Hz, DisplayPort alternate mode. |
| Video input | USB-C 3840×2160 at 30 Hz, DisplayPort alternate mode |
| ClickShare Buttons | 2 |
| ClickShare App | Desktop and mobile |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
Check the fit before you choose
ClickShare CX-50 Gen2 connects a laptop to the room camera, microphones, speakers and displays so a meeting can start from the laptop. Barco positions it for high-impact rooms and boardrooms. People and content can sit side by side on two displays, and the unit can switch automatically between a room system and bring-your-own-device. A wired roomdock is there for 4K sharing as well as the wireless connection.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
Equipping more than one room with ClickShare? Post the rollout as a requirement. Meeting rooms →
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
1-year standard manufacturer warranty. Barco lists 5 years of coverage after the unit is registered with SmartCare. Usually ships in 5-7 business days · confirmed on your quote
Technical specifications
Published specifications for this model.
Performance & capacity

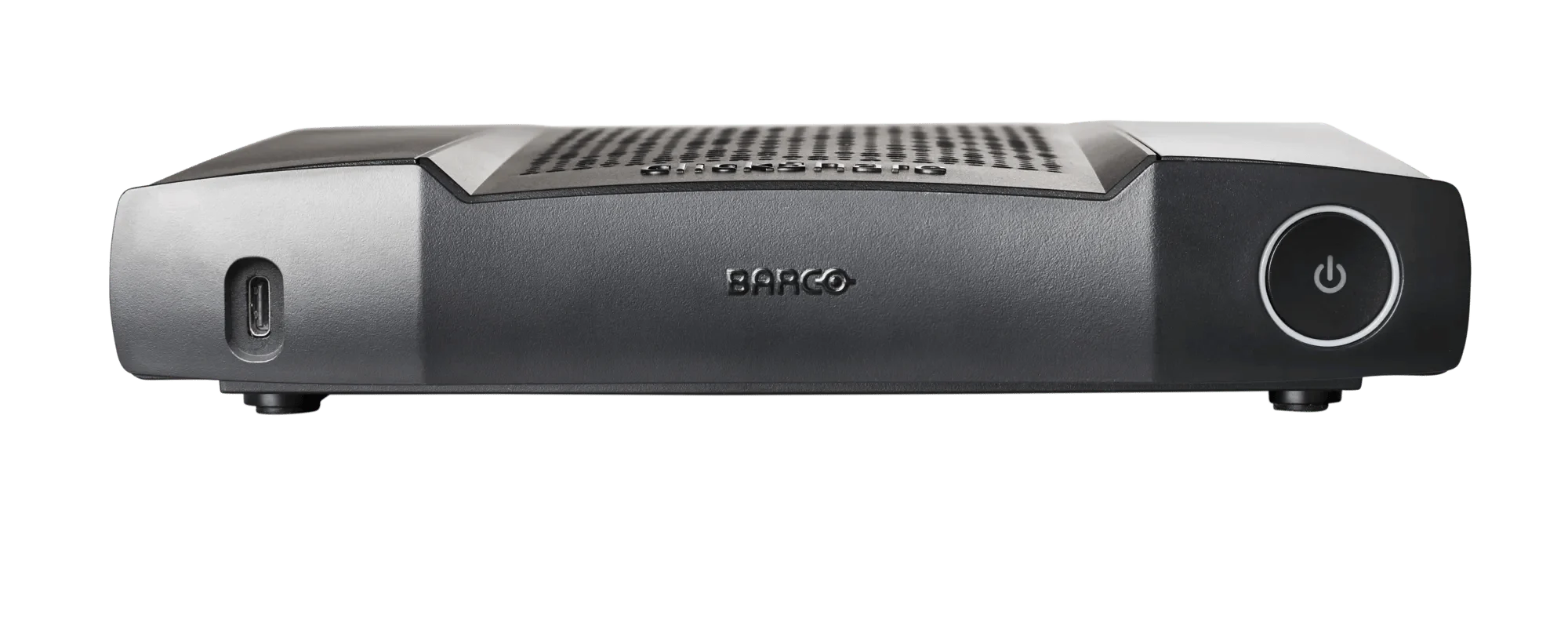

| Connections | Back: 1× USB-C (USB 3.0, DisplayPort output, power sink) and 2× USB-A 3.0. Front: 1× USB-C (USB 3.0, DisplayPort input). 3.5 mm analogue audio out. |
|---|
Interfaces & connectivity
| Wireless conferencing | Via the ClickShare App or Button |
|---|---|
| Wireless | IEEE 802.11 a/g/n/ac and Bluetooth. 2.4 GHz and 5 GHz. Dual Wi-Fi. |
Dimensions & power
| Power | Up to 50 W in use. Networked standby under 8 W. Deep standby under 0.5 W. Mains power. |
|---|---|
| Dimensions | 39 × 200 × 202 mm (H × W × D) |
| Weight | 900 g |
Other details
| Meeting room | High-impact rooms and boardrooms |
|---|---|
| Video output | HDMI 3840×2160 at 60 Hz, HDMI 2.1. USB-C source 3840×2160 at 60 Hz, DisplayPort alternate mode. |
| Video input | USB-C 3840×2160 at 30 Hz, DisplayPort alternate mode |
| ClickShare Buttons | 2 |
| ClickShare App | Desktop and mobile |
| Sources on screen | 2 |
| Interactivity | Touchback, annotation and blackboarding |
| Room modes | Automatic switch between a room system and bring-your-own-device |
| Native sharing | AirPlay, Google Cast, Miracast |
| Laptop requirements | Windows 10 and later, or macOS 11 and later. ClickShare App: Android 11 and later, or iOS 14 and later. For Teams or Zoom, Barco lists 8 GB RAM. Minimum: Intel Core i3 or AMD Ryzen 5 on Windows, or Intel Core i3 or Apple M1 on Mac. Recommended: Intel Core i5 or Ultra 5 or AMD Ryzen 7 on Windows, or Apple M3 on Mac. |
| Range | Up to 30 m (100 ft) between Button and base unit |
| Network | LAN and Wi-Fi. 1× Ethernet, 2.5 Gbit. |
| Audio output | USB, HDMI and 3.5 mm jack |
| Noise | Max 25 dBA from 0–30°C; max 30 dBA from 30–40°C |
| Operating conditions | 0°C to 40°C (max 35°C at 3,000 m). Humidity 0–85% non-condensing. |
| Security | Kensington lock. WPA2-PSK. 802.1X. ANSSI CSPN. FCC/CE. |
| Local view | High quality |
| Management | Yes, including XMS Cloud |
| Eco label | Barco A++ |
| Warranty | 1 year standard. 5 years of coverage after SmartCare registration. |
Warranty & support
1-year standard manufacturer warranty. Barco lists 5 years of coverage after the unit is registered with SmartCare.
Delivery & fulfilment
Usually ships in 5-7 business days · confirmed on your quote Delivery charges, when they apply, are on the quote.
Downloads
Frequently asked questions
How is CX-50 Gen2 different from CX-30?
CX-50 Gen2 is for high-impact rooms and boardrooms. It drives two displays, outputs 4K at 60 Hz over HDMI 2.1, uses a 2.5 Gbit network port, and switches automatically between a room system and bring-your-own-device. CX-30 is the medium-room model with one 4K HDMI output at 30 Hz.
Does the meeting run on the CX-50?
The laptop runs the video meeting. CX-50 Gen2 connects that laptop to the room camera, microphones, speakers and displays, and it can also sit inside a Microsoft Teams Room or Zoom Room.
