Videocast · PTZ cameras

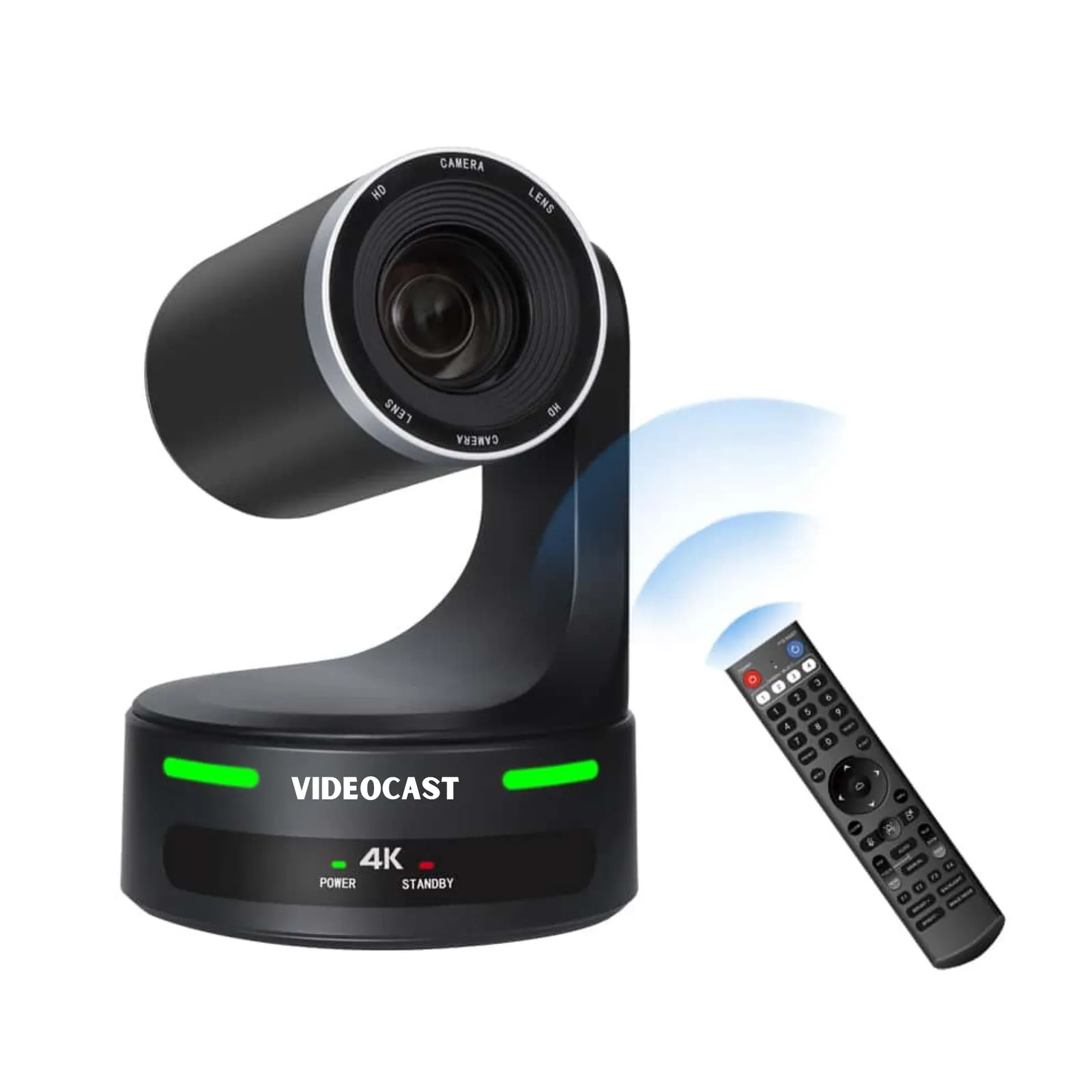

Videocast VC201 4K PTZ
4K PTZ camera with 20X optical zoom, HDMI, 3G-SDI, USB and LAN, from Videocast for conferencing and live production.
| Sensor | Sony 1/2.8-inch progressive CMOS, 8.50 MP. Product information also shows 8.5 megapixels. |
|---|---|
| Resolution | 4K, 3840×2160 at 30 fps |
| Zoom | 20X optical and 16X digital |
| Video outputs | HDMI, 3G-SDI, USB 3.0 and LAN. The technical list adds that PoE on LAN is optional. |
| Compression | H.265, H.264, MJPG and YUY2 |
| Network protocols | ONVIF, RTSP, RTMP, RTMPS and SRT. The features list NDI|HX2 as optional. The technical list also shows NDI|HX2 without optional. The kit includes NDI|HX. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC201 is a 4K PTZ camera for live streaming, conferencing, teaching, worship and broadcast. The published specification is a Sony 1/2.8-inch progressive CMOS sensor, 8.50 megapixels, 4K at 3840×2160 and 30 fps, 20X optical zoom and 16X digital zoom. Outputs are HDMI, 3G-SDI, USB 3.0 and LAN. The features list NDI|HX2 as optional. The technical list also shows NDI|HX2 without optional, and The kit includes NDI|HX. Pan is ±170° in the written list and 355° on Product information. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power | The features say DC 12V and PoE supported. The technical list says PoE on LAN is optional. The rear panel includes DC 12V and does not include PoE. |
|---|
Other details
| Sensor | Sony 1/2.8-inch progressive CMOS, 8.50 MP. Product information also shows 8.5 megapixels. |
|---|---|
| Resolution | 4K, 3840×2160 at 30 fps |
| Zoom | 20X optical and 16X digital |
| Video outputs | HDMI, 3G-SDI, USB 3.0 and LAN. The technical list adds that PoE on LAN is optional. |
| Compression | H.265, H.264, MJPG and YUY2 |
| Network protocols | ONVIF, RTSP, RTMP, RTMPS and SRT. The features list NDI|HX2 as optional. The technical list also shows NDI|HX2 without optional. The kit includes NDI|HX. |
| Control | VISCA, VISCA over IP and Pelco P/D. The features also list IR pass-through. The rear panel includes RS-232 in, RS-232 out and a DIP switch. A parameters graphic labels RS-232, RS-422 and RS-485. |
| Low light | 2D and 3D noise reduction. The technical list also shows a signal-to-noise ratio above 55 dB. |
| Focus | Auto and manual |
| White balance | Auto, manual and presets |
| Pan | The written list says ±170°. Product information says 355°, and another graphic says 355° rotation. |
| Tilt | −30° to +90° |
| Tally | The features list a tally indicator. The unit includes green tally lamps. |
| Presets on Product information | 255. Published details do not state a preset count. |
| Mounting | Wall, ceiling and desktop. The unit includes a tripod. |

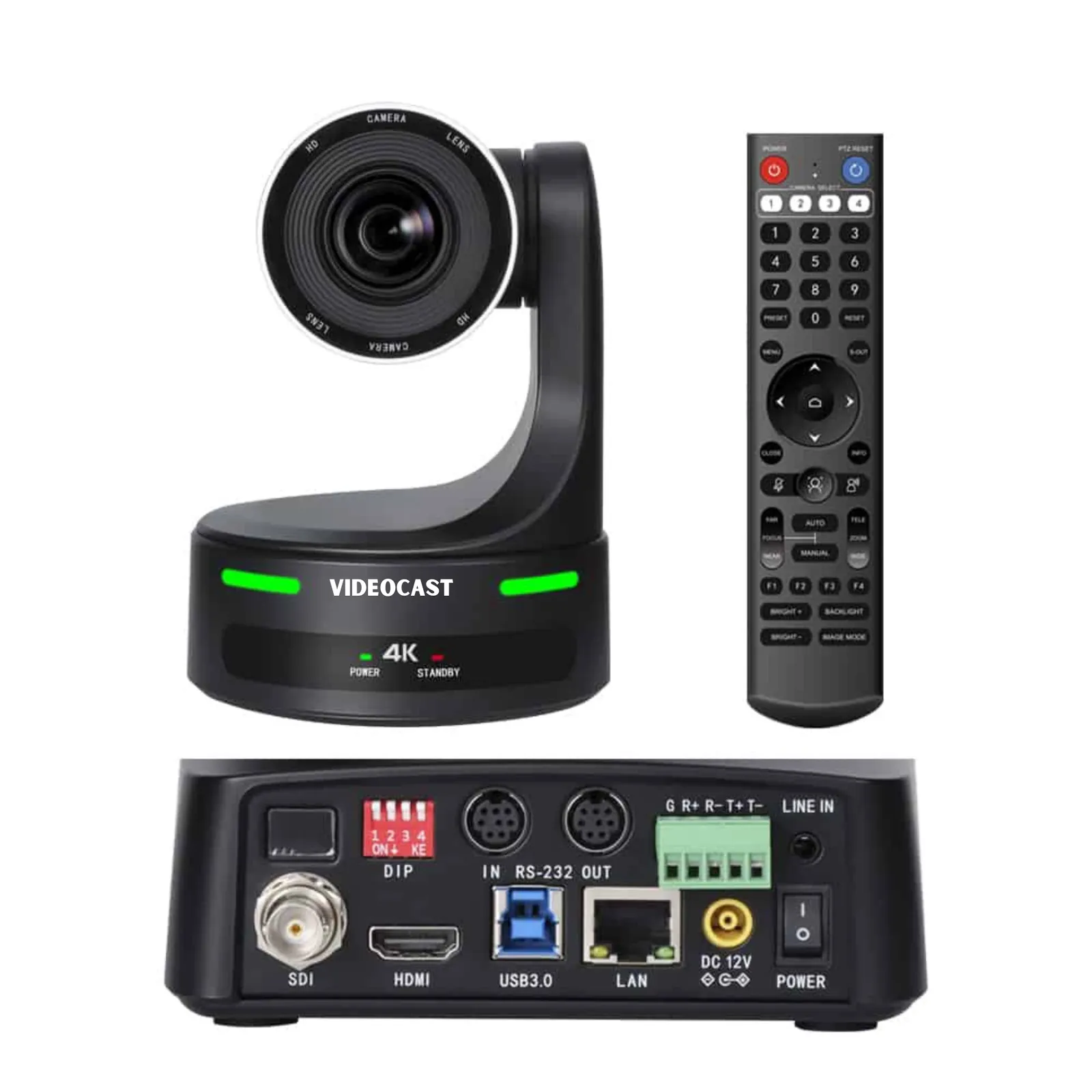

| Rear panel | SDI, HDMI, USB 3.0, LAN, line in, DC 12V, power switch, RS-232 in, RS-232 out, a DIP switch and a screw terminal. |
| Lens ring on the product imagery | also shows HD. Published details say 4K. |
| Software on Product information | The graphic says the camera works with software including Zoom, Skype, Lync, Cisco, Webex, Google Hangouts, GoToMeeting, Lifesize, Vidyo, Broadsoft, Fastmeeting and join.me. Published details do not include those applications. |
| Colour | Black |

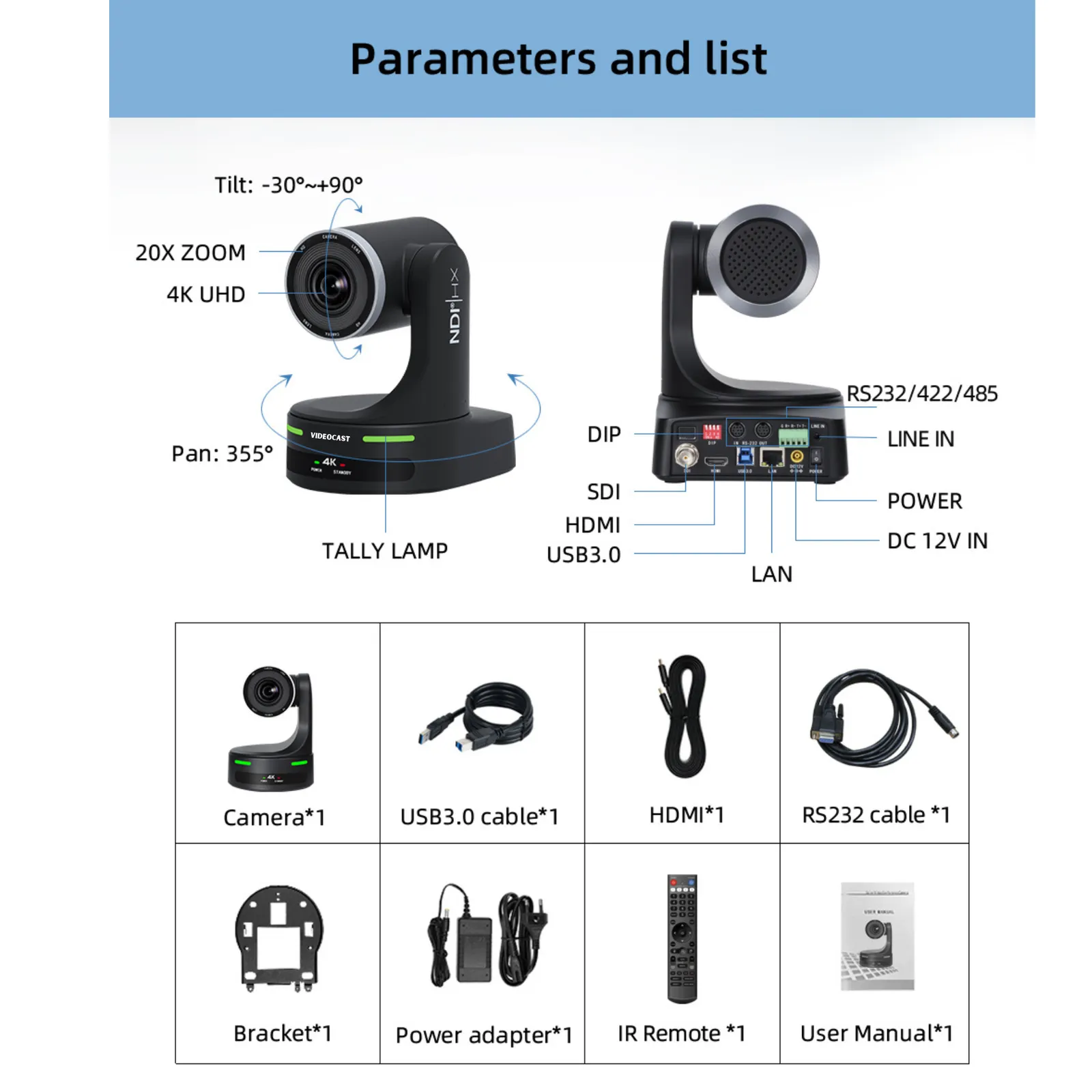

| Packing graphic | Camera, USB 3.0 cable, HDMI cable, RS-232 cable, bracket, power adapter, IR remote and user manual. Published details do not list the box contents. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Does the VC201 include NDI?
The features list NDI|HX2 as optional. The technical list also shows NDI|HX2 without optional, and Manufacturer guidance lists camera supports NDI|HX2. The kit includes NDI|HX. We will confirm the NDI variant on your quote.
How far does The manufacturer listing say the VC201 pans?
The written list says ±170°. Product information says 355°. Those are not the same figure. We will confirm the movement on your quote.
How is the VC201 powered?
The features say DC 12V and PoE supported. The technical list says PoE on LAN is optional. The rear panel includes DC 12V and does not include PoE. A packing graphic includes a power adapter.
How do I get pricing and availability for the VC201?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
