Videocast VC200 4K PTZ
4K PTZ camera from Videocast. The title says VC 200 and 20X. The introduction says VC200. The key features list 10X, 12X and 20X optical zoom. The VC201 is a separate listing.
| Power, colour and weight | Technical list: DC 12V. The rear panel includes DC 12V. The page does not mention PoE. Key features: black, and about 2 kg. No dimensions are stated. |
|---|---|

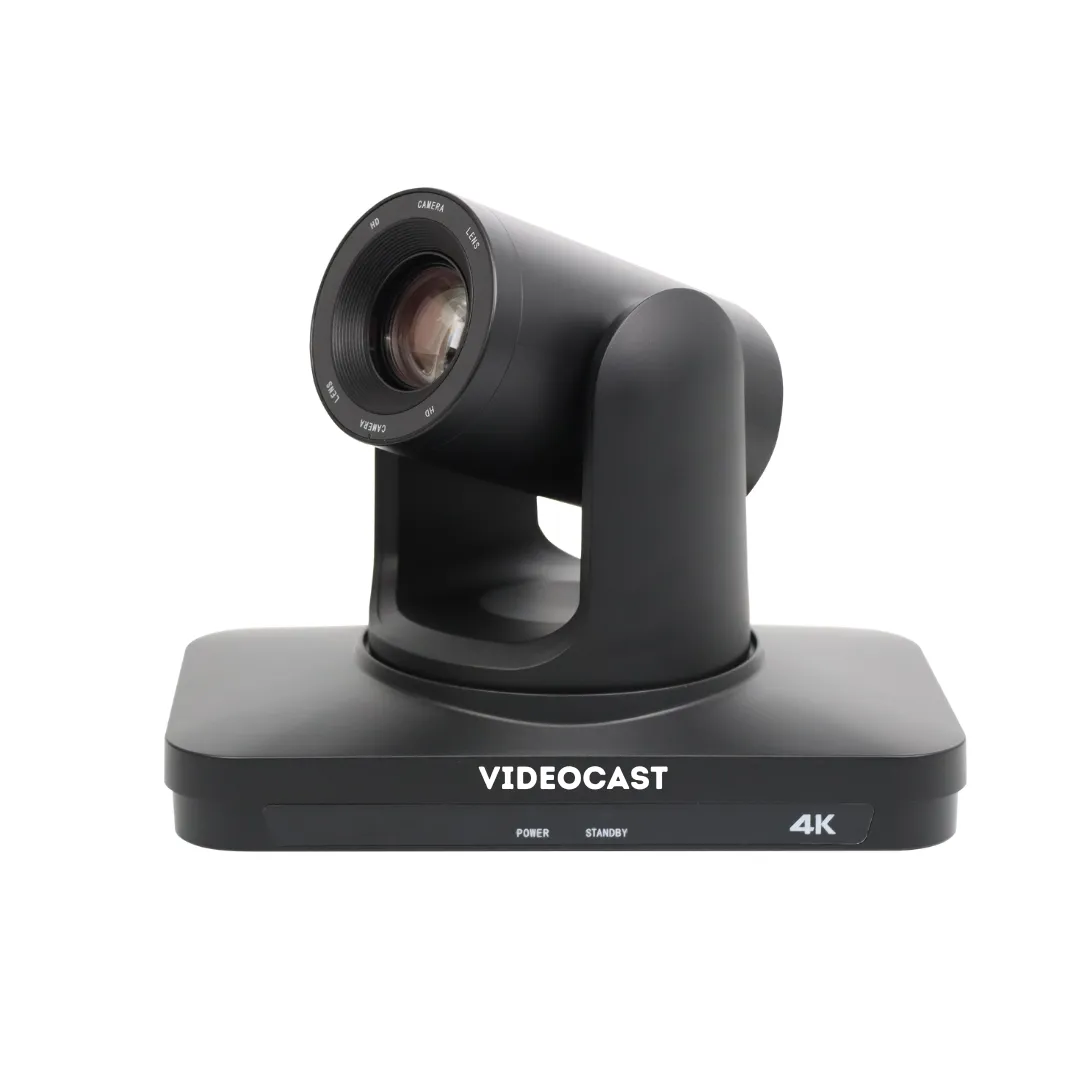

| Name on the listing | The title says VC 200. The introduction says VC200. The summary says VC 200. The housing marks VIDEOCAST and does not include the model code. The VC201 is a separate listing. |
| Sensor and zoom | Sony 1/2.8-inch CMOS, 8.29 megapixels. Key features: 10X, 12X and 20X optical. The title, the summary and Manufacturer guidance say 20X. |
| Resolution | Key features: 4K, 3840×2160 at 30 fps. The base of the camera also shows 4K. The lens ring also shows HD. The page does not state a 60 fps output. |

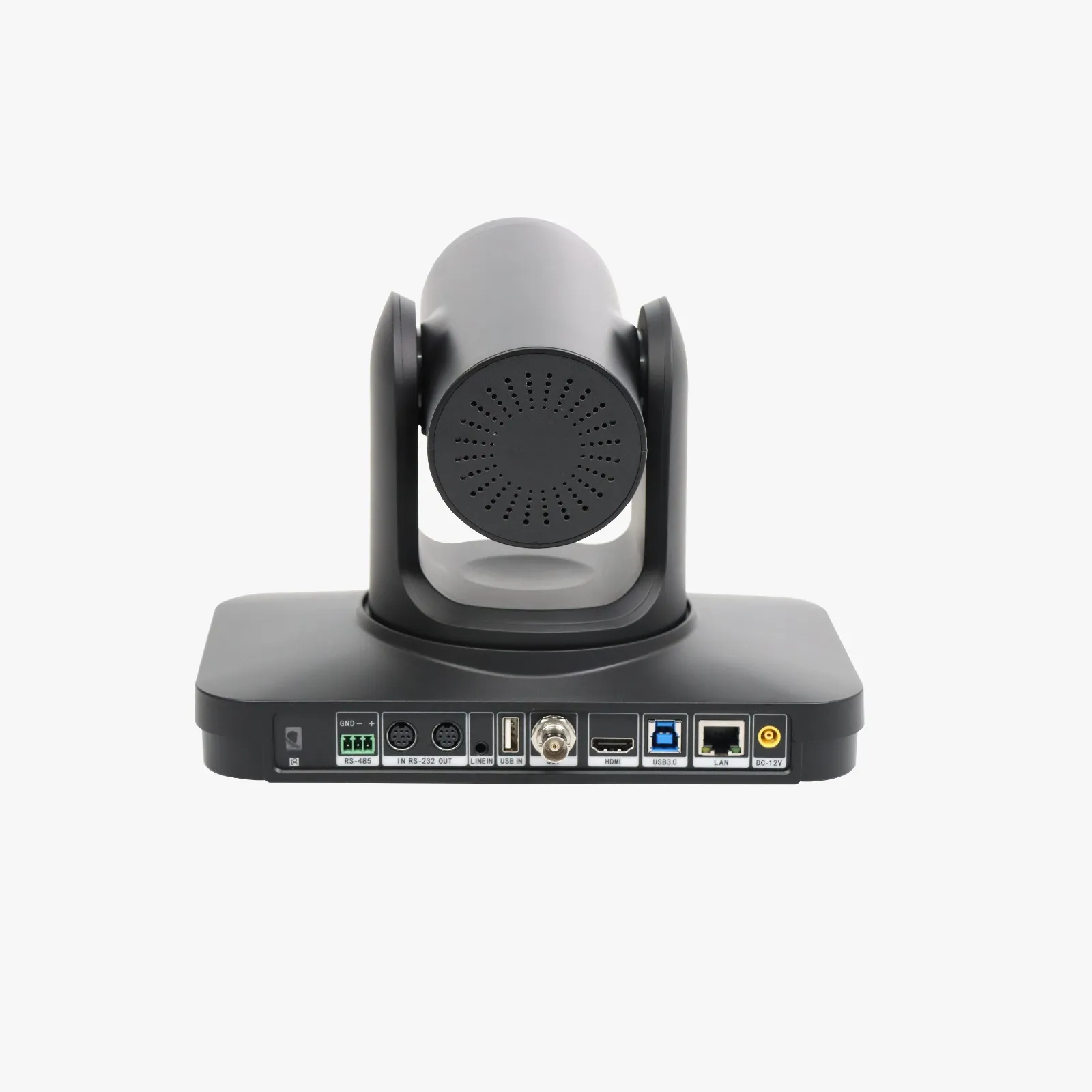

| Outputs | Key features: HDMI, USB 3.0 and IP. The rear panel includes RS-485, RS-232 in, RS-232 out, line in, USB in, an unlabelled BNC connector, HDMI, USB 3.0, LAN and DC 12V. It shows a round grille. Published details do not describe those extra ports or a speaker. |
| NDI and tracking | Key features mark NDI as optional, with VISCA, Pelco P/D and ONVIF. The technical list says intelligent automatic subject tracking. The summary and Manufacturer guidance call it AI auto-tracking. Presets are supported, with no count. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC200 is a 4K PTZ camera. The listing name includes VC 200. The introduction says VC200, and the summary says VC 200. The key features list a Sony 1/2.8-inch CMOS sensor, 8.29 megapixels, 4K at 3840×2160 and 30 fps, optical zoom of 10X, 12X and 20X, HDMI, USB 3.0 and IP, VISCA, Pelco P/D, ONVIF and optional NDI, black, and about 2 kg. The technical list says intelligent automatic subject tracking, auto or manual focus, auto, manual or preset white balance, 0.1 lux, pan ±168°, tilt −30° to +90°, and DC 12V. Presets are supported, with no count. The summary and one FAQ instead say 20X and AI auto-tracking. The unit includes VIDEOCAST and 4K, and does not include VC200. The lens ring also shows HD. The rear panel includes RS-485, RS-232 in and out, line in, USB in, an unlabelled BNC connector, HDMI, USB 3.0, LAN and DC 12V. The written output list does not include RS-232, RS-485 or a BNC connector. A box graphic lists a camera, a USB 3.0 cable, an HDMI cable, an RS-232 cable, one bracket, a power adapter, an IR remote and a manual. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power, colour and weight | Technical list: DC 12V. The rear panel includes DC 12V. The page does not mention PoE. Key features: black, and about 2 kg. No dimensions are stated. |
|---|
Other details
| Name on the listing | The title says VC 200. The introduction says VC200. The summary says VC 200. The housing marks VIDEOCAST and does not include the model code. The VC201 is a separate listing. |
|---|---|
| Sensor and zoom | Sony 1/2.8-inch CMOS, 8.29 megapixels. Key features: 10X, 12X and 20X optical. The title, the summary and Manufacturer guidance say 20X. |
| Resolution | Key features: 4K, 3840×2160 at 30 fps. The base of the camera also shows 4K. The lens ring also shows HD. The page does not state a 60 fps output. |
| Outputs | Key features: HDMI, USB 3.0 and IP. The rear panel includes RS-485, RS-232 in, RS-232 out, line in, USB in, an unlabelled BNC connector, HDMI, USB 3.0, LAN and DC 12V. It shows a round grille. Published details do not describe those extra ports or a speaker. |
| NDI and tracking | Key features mark NDI as optional, with VISCA, Pelco P/D and ONVIF. The technical list says intelligent automatic subject tracking. The summary and Manufacturer guidance call it AI auto-tracking. Presets are supported, with no count. |
| Movement | Technical list: pan ±168°, tilt −30° to +90°. The key features do not repeat the pan and tilt figures. |
| Image | 0.1 lux. Focus is auto or manual. White balance is auto, manual or preset. |

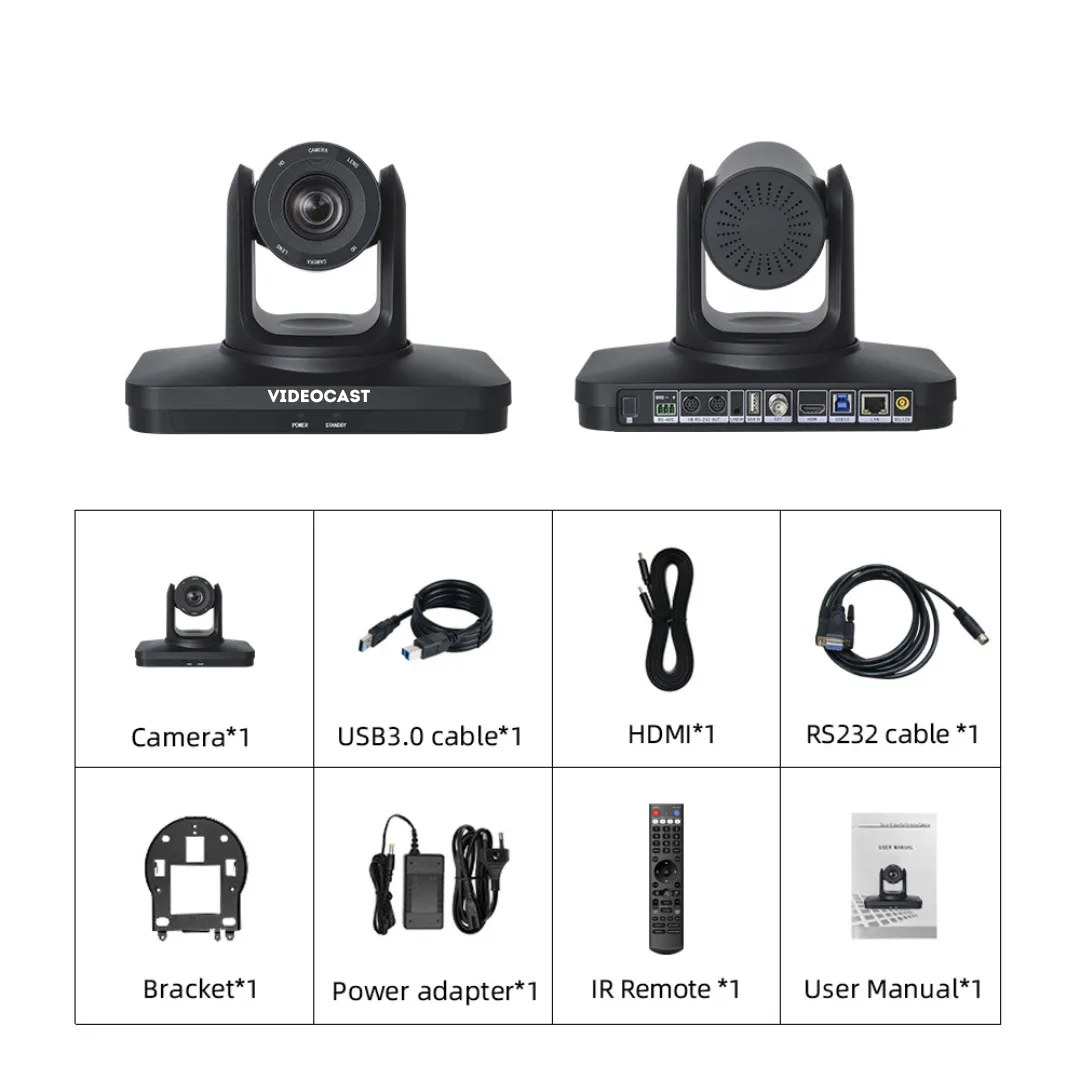

| Box graphic | Camera, USB 3.0 cable, HDMI cable, RS-232 cable, one bracket, power adapter, IR remote and a manual. The graphic does not say whether the bracket is for a wall, a ceiling or a tripod. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is this the VC200 or the VC 200, and is it the VC201?
The title says VC 200. The introduction says VC200. The housing does not print either form. The VC201 is a different camera, with its own listing.
Is the zoom 20X?
The title, the summary and Manufacturer guidance say 20X. The key features list 10X, 12X and 20X optical zoom. We will confirm the lens on your quote.
Does the listing include SDI or RS-232?
No. The written outputs are HDMI, USB 3.0 and IP, with NDI optional. The rear panel includes RS-232, RS-485 and an unlabelled BNC connector, and a box graphic includes an RS-232 cable.
How do I get pricing and availability for the VC200?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
