Videocast · PTZ cameras
Videocast VC-101 20X HD PTZ
20X HD PTZ camera from Videocast as VC-101. Published specifications list 1080p60/50 and 2.07 megapixels. Distinct from the VC-C101 PTZ controller.
| Weight | 1050 g |
|---|---|
| Sensor | Sony 1/2.8-inch progressive CMOS |
| Effective pixels | 2.07 megapixels |
| Resolution | Published specifications: 1080p60/50. The intro paragraph also says 4K PTZ, alongside the HD title and the 1080p line. The lens ring also shows HD CAMERA LENS. |
| Optical zoom | 20X |
| Wide angle | 72.5° |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

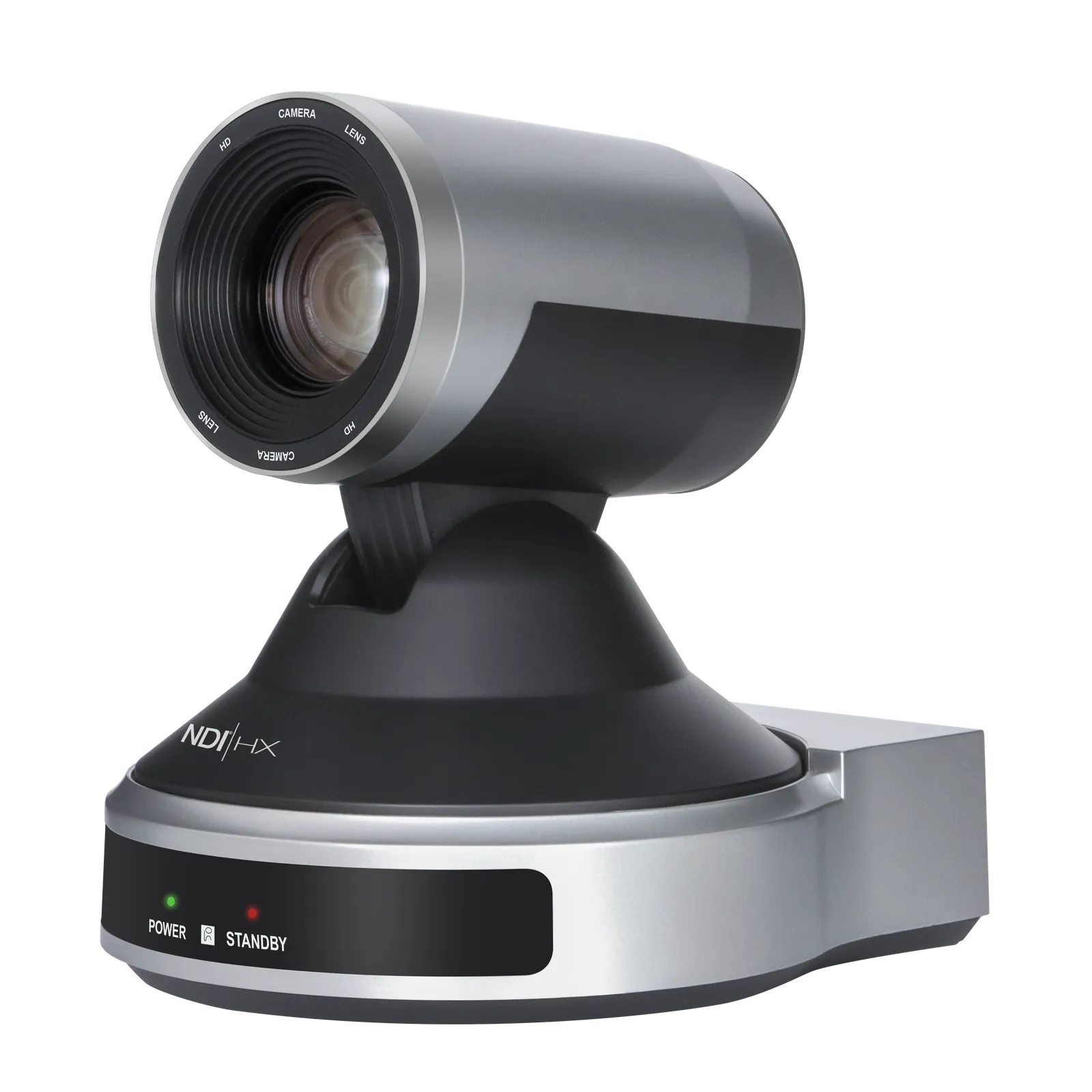

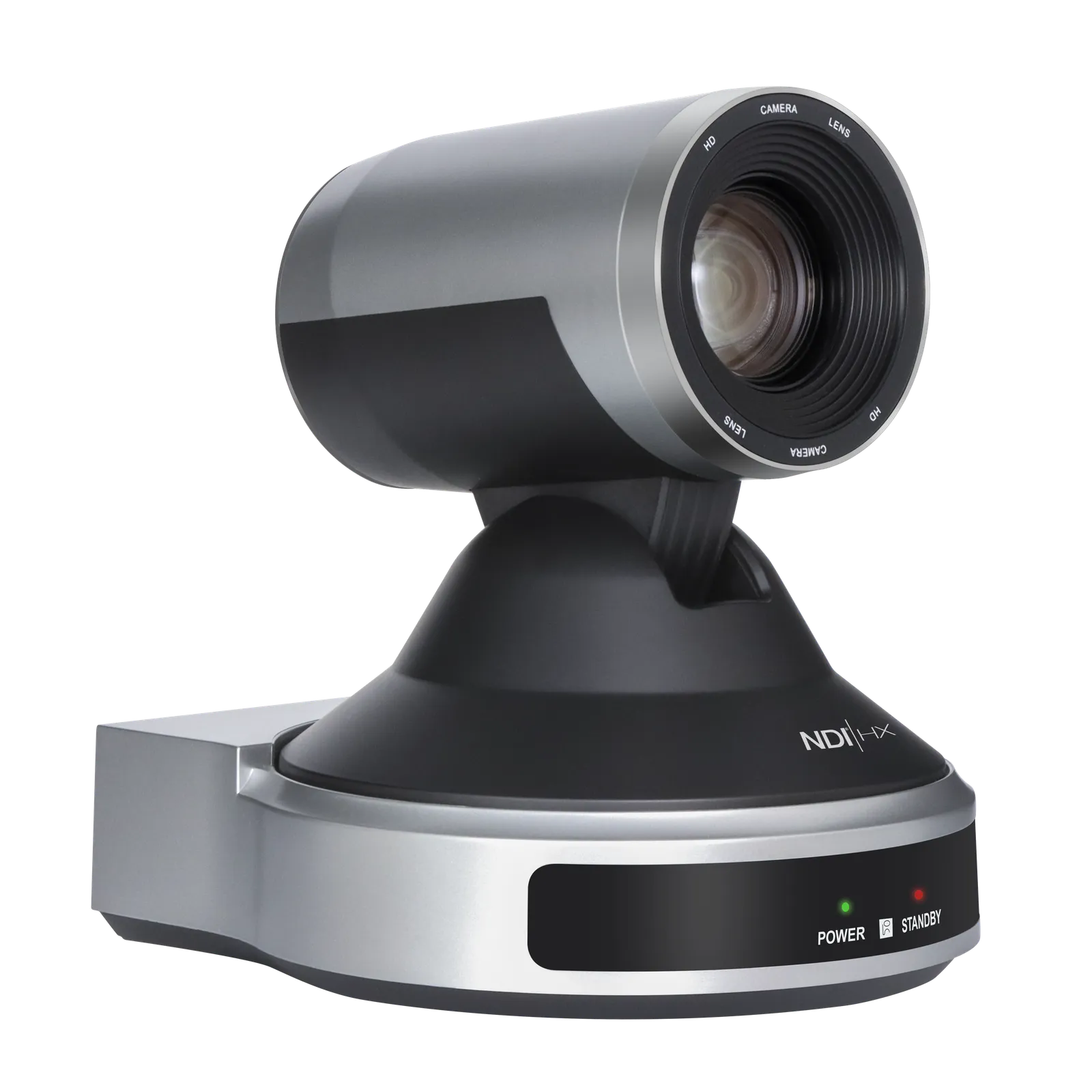

The Videocast VC-101 is listed as the 20X HD VC-101 PTZ Video Camera. Published specifications name Brand VIDEOCAST and Model VC-101. The published specifications are a 20X optical zoom, Sony 1/2.8-inch progressive CMOS sensor, 2.07 megapixels, resolution 1080p60/50, wide angle 72.5°, pan 355° at up to 80°/s, tilt 30° to +30° at up to 60°/s, auto and manual focus, protocols RTMP, RTSP, TCP/IP, HTTP, ONVIF and NDI|HX, video outputs HDMI, SDI, IP with PoE optional, NDI|HX and USB 3.0, power 12V DC (10.8–13.0V DC), and a 1 year warranty. Published specifications list pan 355° up to 80°/s, tilt −30° to +30° up to 60°/s, IP streaming, the same network protocols, NDI|HX enabled, USB 3.0, DC 12V adapter, weight 1050 g, and accessories of a DC 12V power adapter, IR remote, operation manual, HDMI cable, USB cable and ceiling bracket. Published specifications tilt line also shows 30° to +30°, while the Published specifications show −30° to +30°. The intro paragraph calls the camera a 4K PTZ camera, while the title, Published specifications resolution and the lens ring show HD. The unit includes a silver and black housing with HD CAMERA LENS on the lens ring and an NDI|HX mark on the base. The rear panel includes SDI, a green terminal block, HDMI, USB 3.0, line in, LAN, RS-232 IN and OUT, DC 12V and a POWER switch. Manufacturer guidance says a 3-year warranty, alongside the Published specifications 1 year line. Manufacturer guidance also says AI-enhanced imaging; the Published specifications do not include AI tracking. This is a different model from the VC-C101 PTZ camera controller. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power | 12V DC (10.8–13.0V DC). Published specifications: DC 12V adapter. |
|---|---|
| Weight | 1050 g |
Other details
| Sensor | Sony 1/2.8-inch progressive CMOS |
|---|---|
| Effective pixels | 2.07 megapixels |
| Resolution | Published specifications: 1080p60/50. The intro paragraph also says 4K PTZ, alongside the HD title and the 1080p line. The lens ring also shows HD CAMERA LENS. |
| Optical zoom | 20X |
| Wide angle | 72.5° |
| Pan | 355°, max speed 80°/s |
| Tilt | Published specifications: 30° to +30°, max 60°/s. Published specifications: −30° to +30°, up to 60°/s. We will confirm the tilt range on your quote. |
| Focus | Auto and manual |

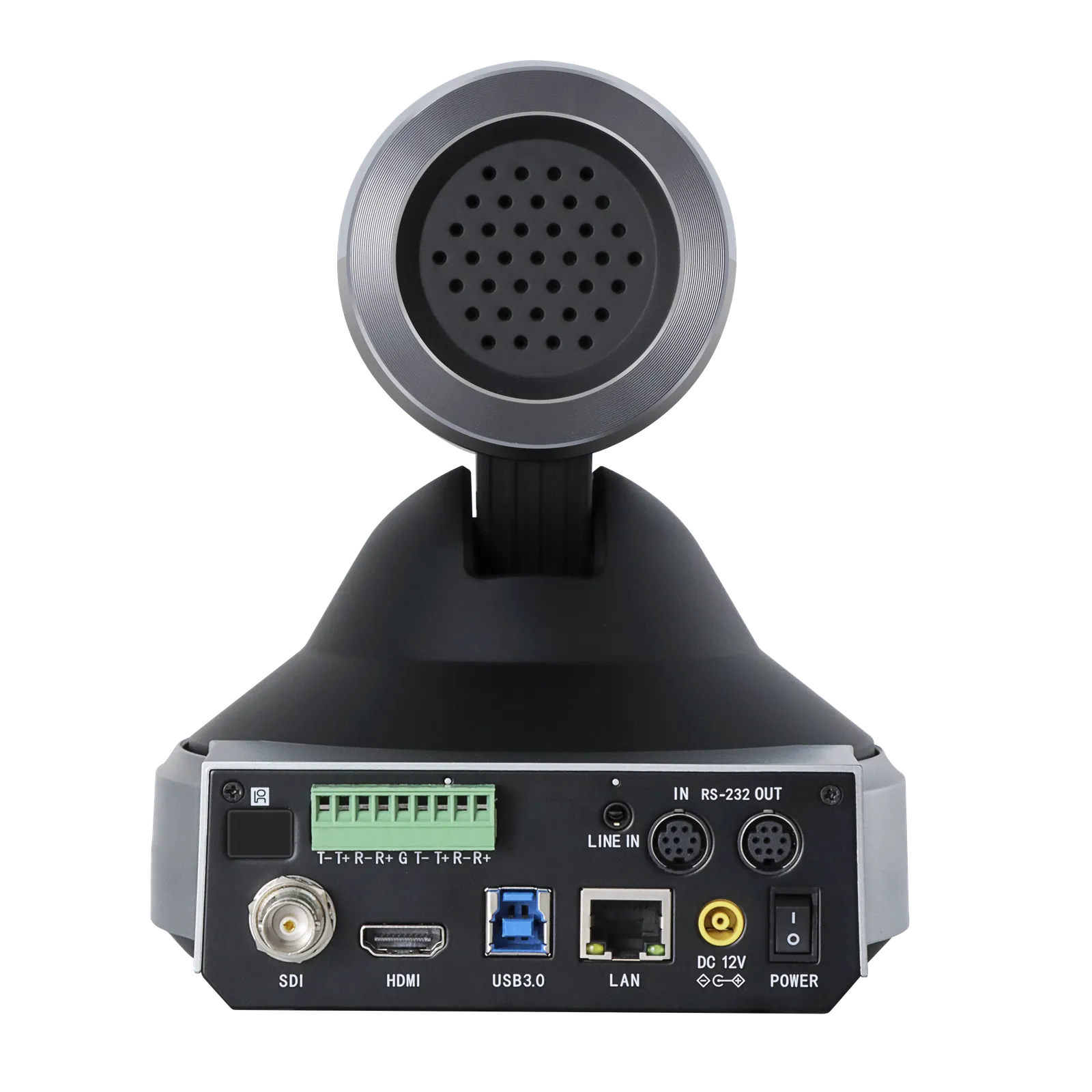

| Video outputs | Published specifications: HDMI, SDI, IP (PoE optional), NDI|HX and USB 3.0. Rear photo: SDI, HDMI, USB 3.0, line in, LAN, RS-232 IN/OUT, DC 12V and POWER switch. |
| Protocols | RTMP, RTSP, TCP/IP, HTTP, ONVIF and NDI|HX |
| NDI | Published specifications: NDI|HX. The unit includes NDI|HX. |

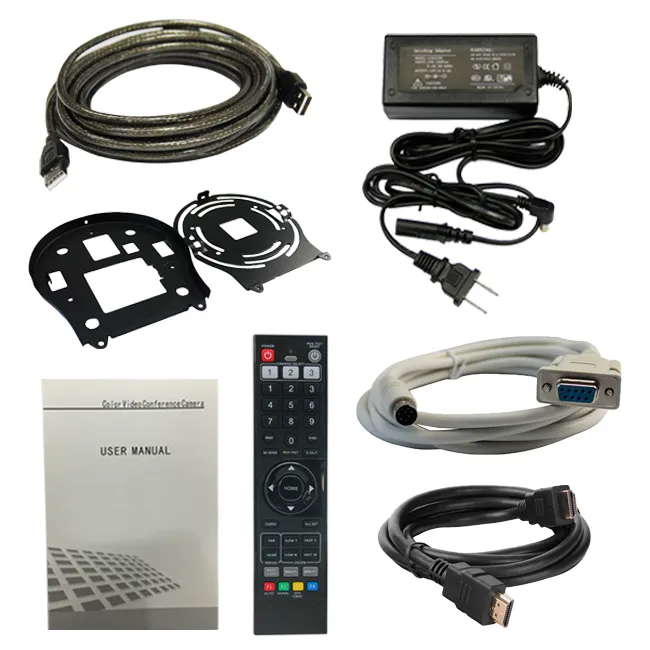

| Accessories on the page | DC 12V power adapter, IR remote, operation manual, HDMI cable, USB cable and ceiling bracket. |
| Warranty on the page | Published specifications: 1 year. Manufacturer guidance: 3-year warranty. Crozsi confirms warranty on the quote. |
| Distinct from | Not the VC-C101 PTZ camera controller on a different manufacturer listing. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is the VC-101 4K or HD?
The title and Published specifications say HD, with resolution 1080p60/50 and 2.07 megapixels. The intro paragraph also says 4K PTZ. The lens ring also shows HD CAMERA LENS. We will confirm the resolution on your quote.
Does the VC-101 include NDI|HX?
Published specifications say NDI|HX. The unit includes NDI|HX on the base.
Is this the same as the VC-C101?
No. This listing is the VC-101 PTZ camera. The VC-C101 is a listed PTZ camera controller on a different manufacturer listing.
What warranty does the page publish?
Published specifications say 1 year. Manufacturer guidance says a 3-year warranty. Crozsi confirms warranty on the quote.
How do I get pricing and availability for the VC-101?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
