Videocast VC-100 20X HD PTZ Camera
HD PTZ camera for conferences, teaching and live events. Full HD 1080p, HDMI/SDI/USB/IP outputs, and zoom confirmed on your quote. Distinct from the VC-101, VC1000 and VC110.
| Weight | 1050 g |
|---|---|
| Sensor | Sony 1/2.8-inch progressive CMOS, 2.07 megapixels |
| Resolution | 1080p60/50 |
| Optical zoom | Listed as 20X; some units show 12X on the lens. We will confirm the zoom on your quote. |
| Wide angle | 72.5° |
| Pan | 355°, max speed 80°/s |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The VC-100 is a Full HD PTZ camera for video conferencing, teaching, worship and events. It uses a Sony 1/2.8-inch CMOS sensor (2.07 megapixels), 1080p60/50, about 72.5° wide angle, pan 355°, tilt around ±30°, auto or manual focus, and DC 12V power at about 1050 g. Connections typically include HDMI, SDI, USB 3.0, LAN (PoE optional), line in and RS-232. Optical zoom is listed as 20X; some units show 12X on the lens ring — we confirm the zoom on your quote. NDI|HX and streaming protocols (RTMP, RTSP, SRT and related) are confirmed with the configuration you need. Accessories usually include a power adapter, IR remote, HDMI and USB cables, ceiling bracket and manual. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power | 12V DC (about 10.8–13.0V DC) |
|---|---|
| Weight | 1050 g |
Other details
| Sensor | Sony 1/2.8-inch progressive CMOS, 2.07 megapixels |
|---|---|
| Resolution | 1080p60/50 |
| Optical zoom | Listed as 20X; some units show 12X on the lens. We will confirm the zoom on your quote. |
| Wide angle | 72.5° |
| Pan | 355°, max speed 80°/s |
| Tilt | About −30° to +30°, max 60°/s. We will confirm the exact tilt range on your quote. |
| Focus | Auto and manual |

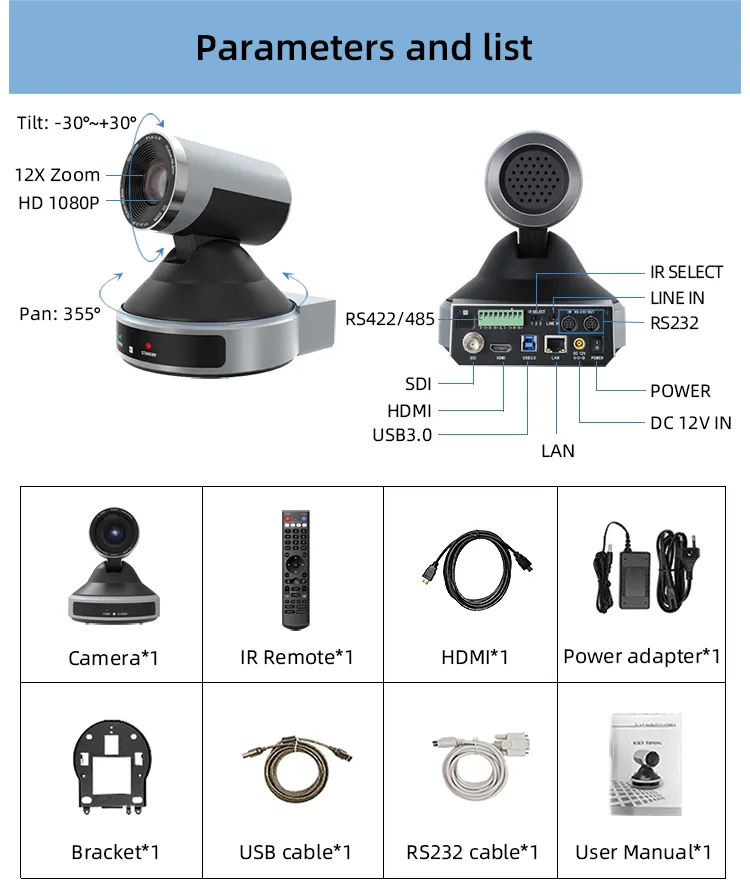

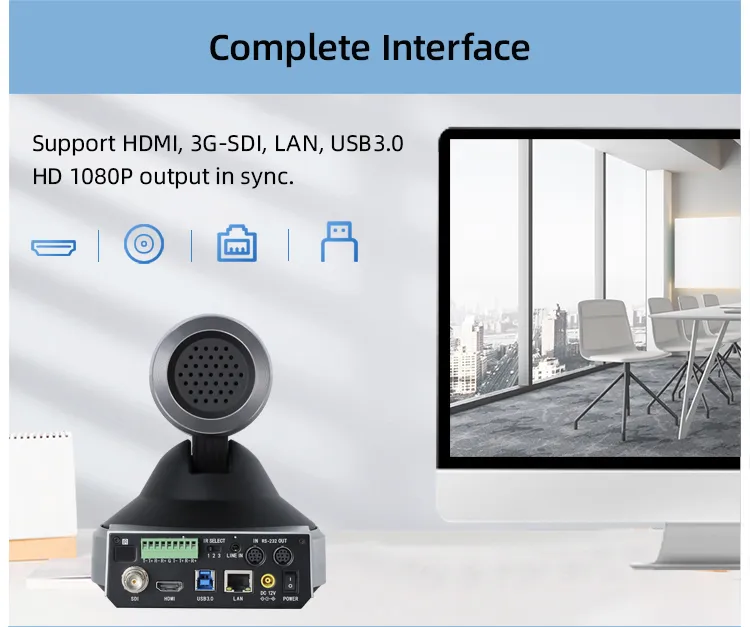

| Video outputs | HDMI, SDI, USB 3.0 and IP (PoE optional). Rear panel also includes line in, LAN and RS-232. |
| Protocols | May include RTMP, RTSP, SRT, TCP/IP, HTTP and ONVIF. We will confirm protocols on your quote. |
| NDI | May be available as NDI|HX. We will confirm whether your quote includes NDI. |
| Colour | Black and silver housing |
| Accessories | Power adapter, IR remote, operation manual, HDMI cable, USB cable and ceiling bracket. An RS-232 cable may also be included. |
| Warranty | Manufacturer coverage is confirmed on your quote (listings mention 1 year or 3 years). |
| Distinct from | Not the VC-101 HD PTZ, not the VC1000 4K PTZ, and not the VC110. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is the zoom 20X or 12X?
Listings say 20X optical zoom; some units show 12X on the lens ring. We will confirm the zoom on your quote.
Does the VC-100 include NDI|HX?
NDI|HX may be available. We will confirm whether your quote includes NDI.
Is this the same as the VC-101 or the VC1000?
No. This is the VC-100 HD PTZ. The VC-101 is a separate HD PTZ. The VC1000 is a separate 4K PTZ.
What warranty applies?
Manufacturer coverage is confirmed on your quote. Listings mention either 1 year or 3 years.
How do I get pricing and availability for the VC-100?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
