Videocast · PTZ controllers

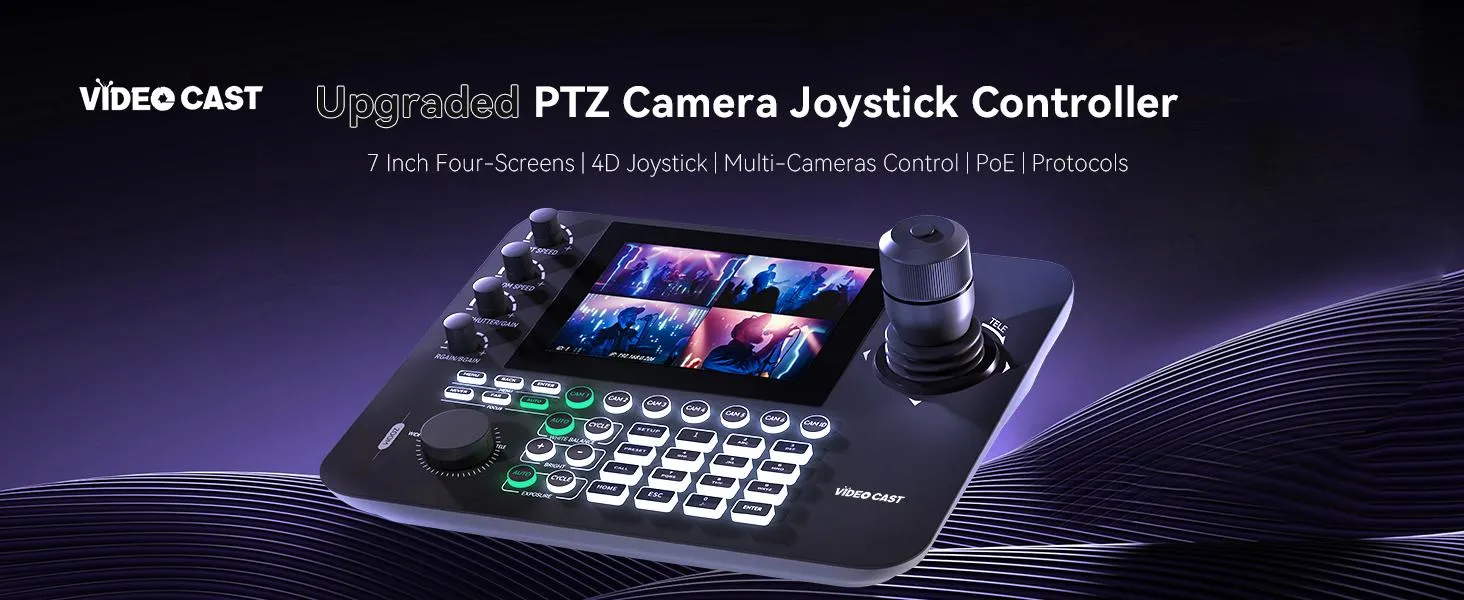

Videocast VC52N NDI PTZ Controller
7-channel NDI PTZ camera controller from Videocast as VC52N. Tech specs list a 7-inch TFT LCD, 4D joystick, PoE and control of up to 256 cameras. Distinct from the VC52 Pro and the VC-C101.
| Size and weight | 297 × 210 × 140 mm, 1.38 kg. Packed size 380 × 270 × 170 mm, gross weight 1.8 kg. |
|---|---|
| Model on the page | Tech table: VC52N. An official rear sticker also shows VC-7CH-NDI-POE. |
| Display | Best Features, Features and tech table: 7-inch TFT LCD, 600×1024, 1-split / 4-split. 1-channel resolution 1920×1080 @ 30fps. Manufacturer guidance says a 3-inch colour LCD, alongside the 7-inch lines. |
| Joystick | 4D precision joystick. Features also name a zoom rocker and joystick zoom ring. |
| Cameras controlled | Manufacturer guidance: shortcut control for up to 7 PTZ cameras. Features: up to 7 quick CamID switches. Tech table: maximum equipment 256, camera control up to 256. |
| Protocols | VISCA, VISCA over IP, PELCO-P, PELCO-D, ONVIF and NDI. Manufacturer guidance also names VISCA TCP. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC52N is listed as the Multifunctional VC52N NDI 7 Channel PTZ Camera Controller. The tech specs table also shows Model No. VC52N. An official rear sticker on a product The unit includes Model VC-7CH-NDI-POE. Best Features and Features list a 7-inch 4-split LCD screen, 4D precision joystick, AI tracking and auto framing shortcut control, camera cruise route, protocols VISCA, VISCA over IP, PELCO-P, PELCO-D, ONVIF and NDI, PoE, up to 7 quick CamID switches, H.264 and H.265 decoding, 6 programmable function buttons, and support for up to 256 camera devices. The tech specs also list chip SSD202D, system Linux, maximum equipment 256, maximum resolution 1080P, 1-channel resolution 1920×1080 at 30 fps, display 7-inch TFT LCD at 600×1024, split screen 1-split / 4-split, RS-422 reserved, RS-232 development port, Ethernet RJ45, PoE supported, power DC 12V-2A / PoE, product size 297×210×140 mm and product weight 1.38 kg. Manufacturer guidance says shortcut control for up to 7 PTZ cameras. Manufacturer guidance says up to 255 preset positions. Manufacturer guidance says a 3-inch colour LCD, alongside the 7-inch display in Best Features, Features and the tech table. Manufacturer guidance says up to 8 channels of external tally. Features say RS-232, RS-422 and RS-485 connections, while the tech table marks RS-422 as Reserved and RS-232 as Development Port. product imagery of this unit show a large built-in LCD with four-split monitoring, CAM 1–CAM 7 keys, a 4D joystick and a rear panel with RS-232, RS-422, Ethernet, DC 12V and a power switch. This is a different model from the VC52 Pro controller and not the VC-C101 controller. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power

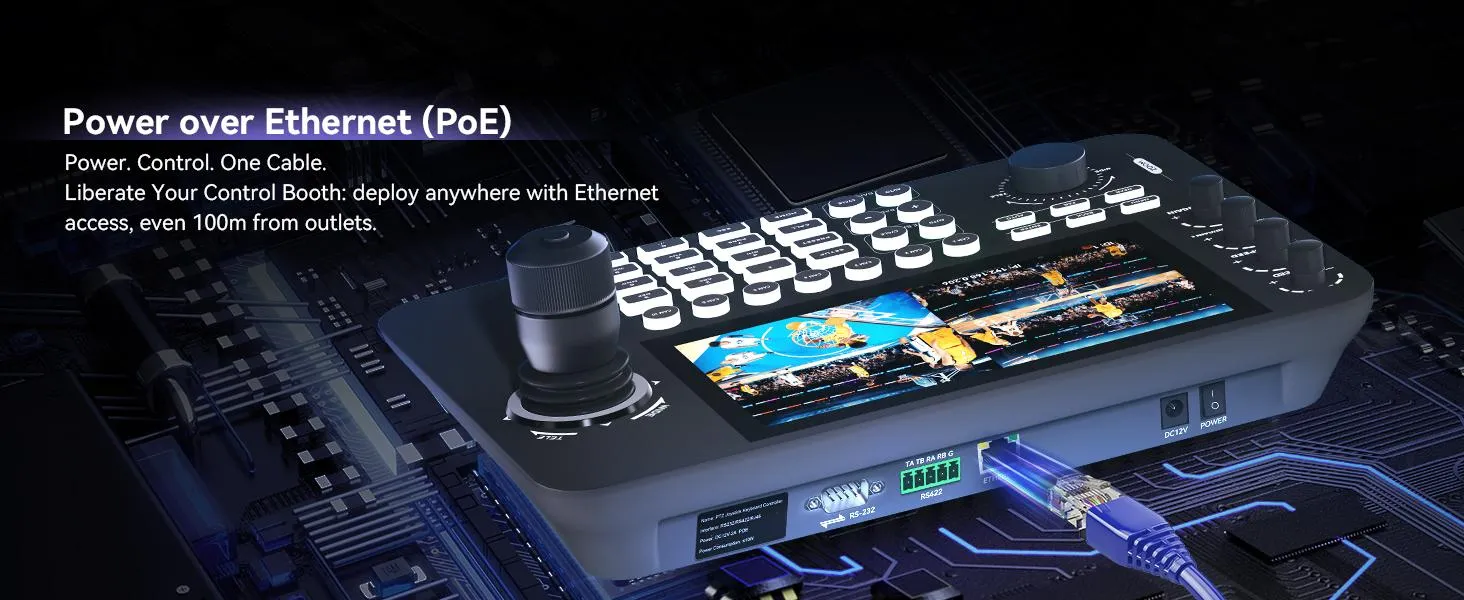

| Power | DC 12V-2A / PoE. An official sticker also shows DC12V/2A POE and power consumption under 5W. |
|---|---|
| Size and weight | 297 × 210 × 140 mm, 1.38 kg. Packed size 380 × 270 × 170 mm, gross weight 1.8 kg. |
Other details
| Model on the page | Tech table: VC52N. An official rear sticker also shows VC-7CH-NDI-POE. |
|---|---|

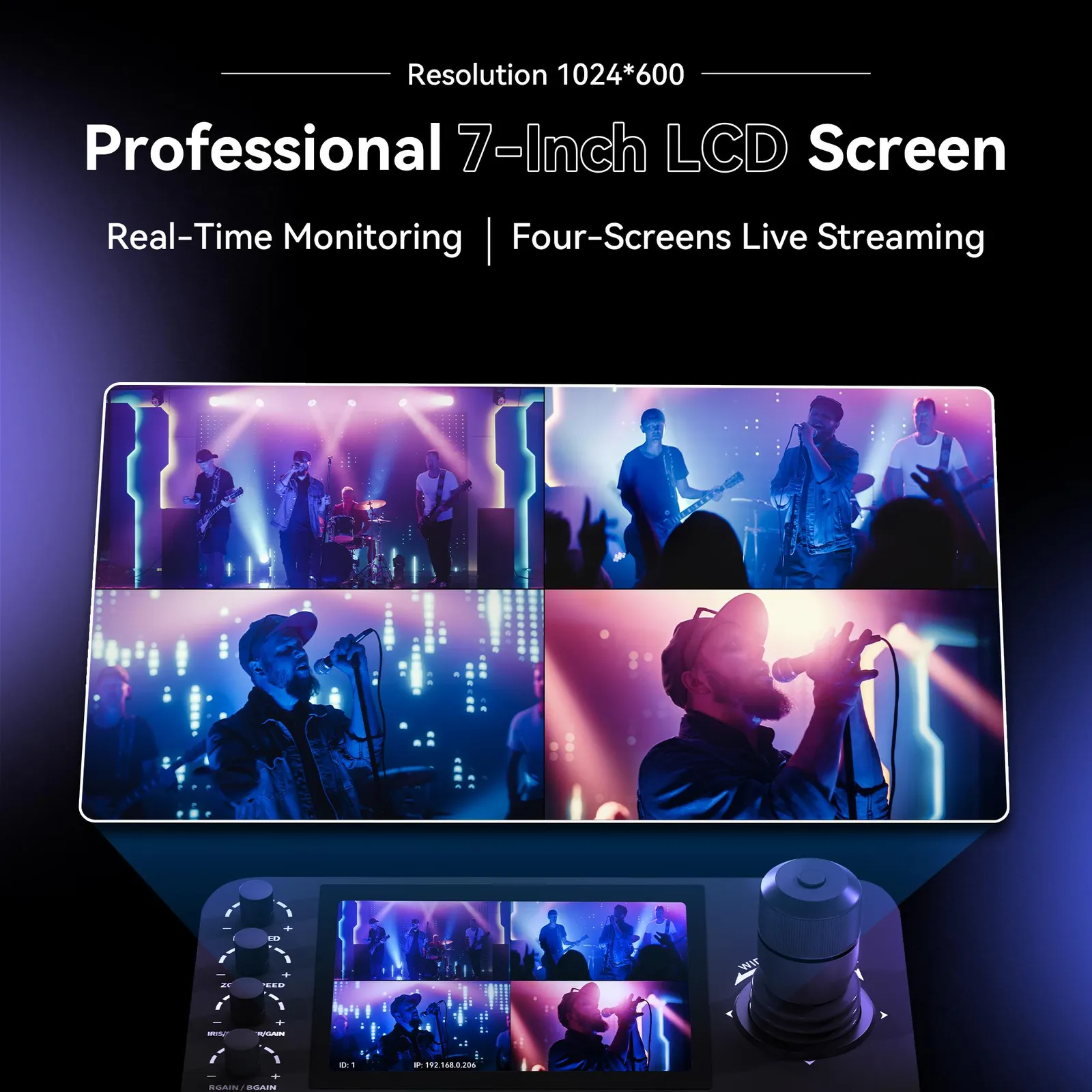

| Display | Best Features, Features and tech table: 7-inch TFT LCD, 600×1024, 1-split / 4-split. 1-channel resolution 1920×1080 @ 30fps. Manufacturer guidance says a 3-inch colour LCD, alongside the 7-inch lines. |

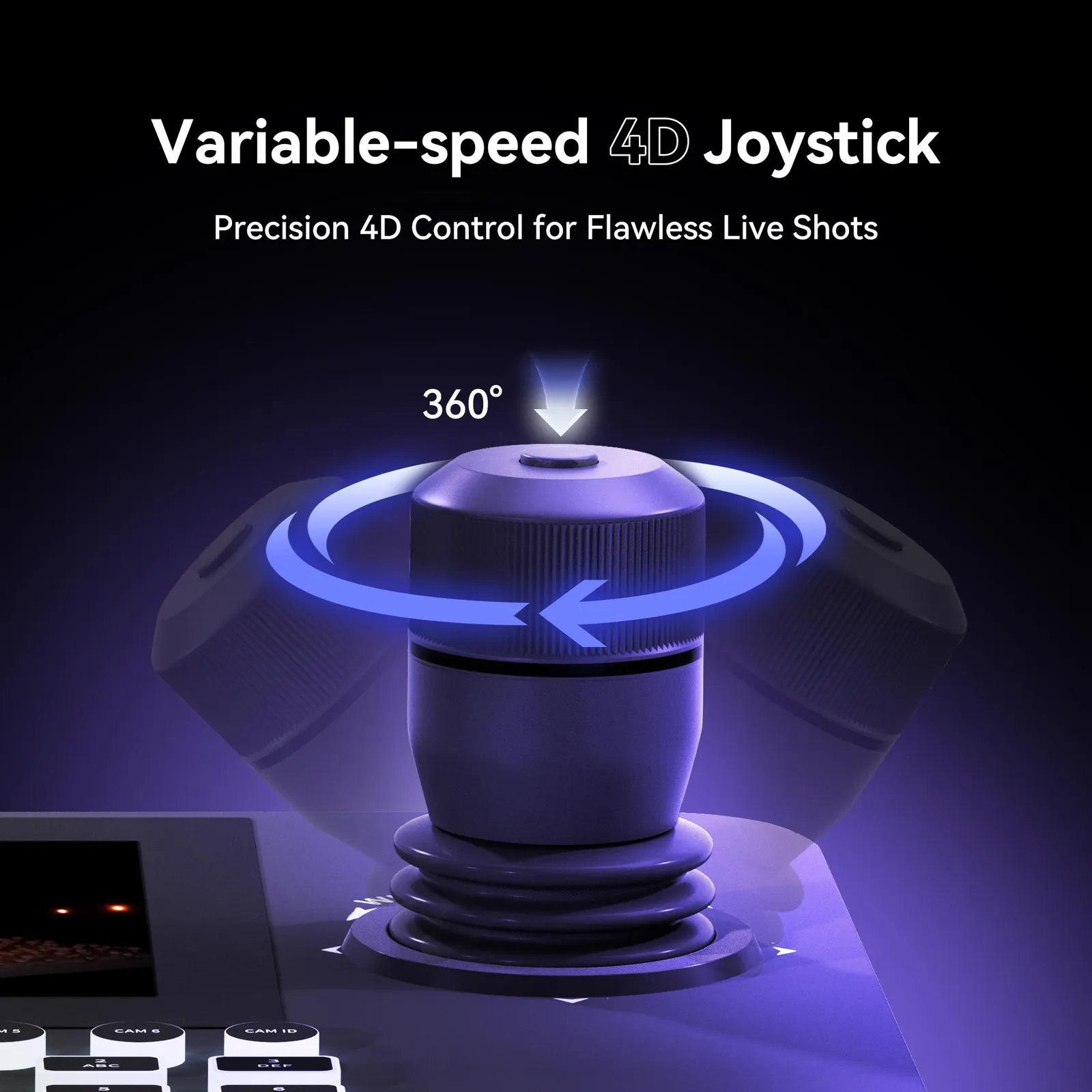

| Joystick | 4D precision joystick. Features also name a zoom rocker and joystick zoom ring. |
| Cameras controlled | Manufacturer guidance: shortcut control for up to 7 PTZ cameras. Features: up to 7 quick CamID switches. Tech table: maximum equipment 256, camera control up to 256. |

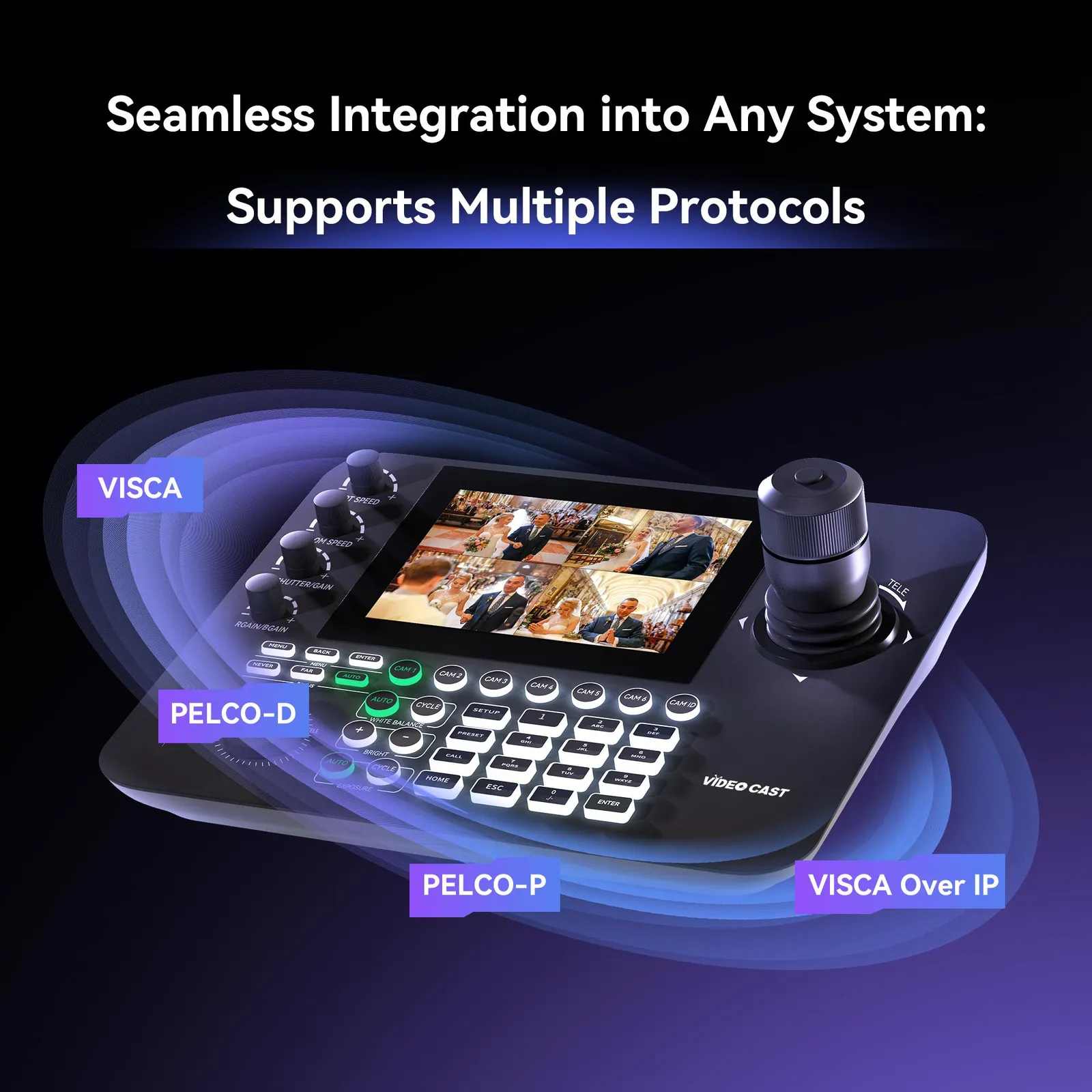

| Protocols | VISCA, VISCA over IP, PELCO-P, PELCO-D, ONVIF and NDI. Manufacturer guidance also names VISCA TCP. |
| Decoding | H.264 and H.265. Maximum resolution 1080P. |
| AI / framing shortcuts | Best Features and Features: shortcut control for AI tracking and auto framing. |
| Presets | Manufacturer guidance: up to 255 preset positions. |

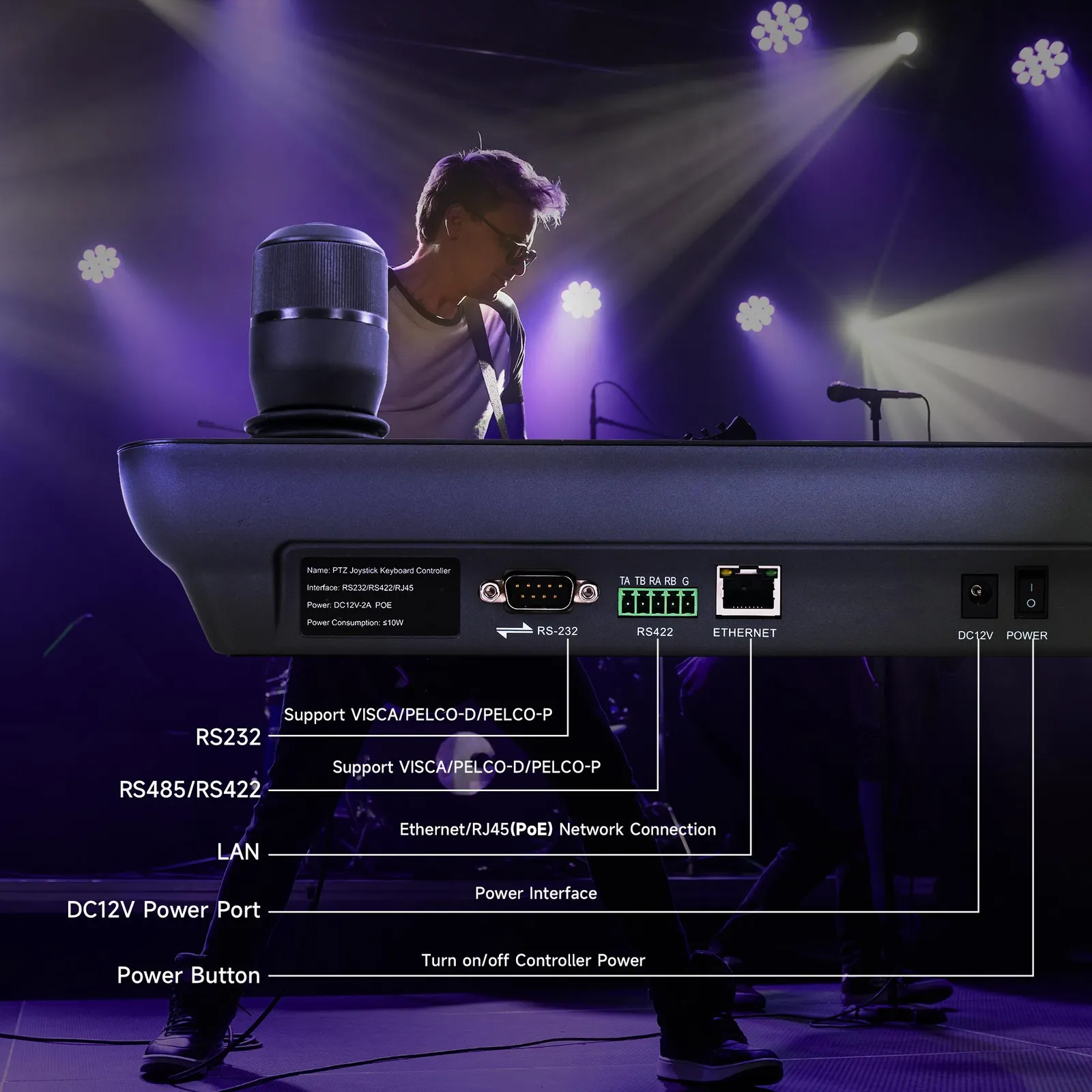

| Connectivity on the page | Ethernet RJ45 with PoE. Features: RS-232, RS-422 and RS-485. Tech table: RS-422 Reserved, RS-232 Development Port. The unit includes RS-232, RS-422, Ethernet, DC 12V and a power switch. |
| Tally | Manufacturer guidance: up to 8 channels of external tally. The tech table does not list tally. |
| Distinct from | Not the VC52 Pro PTZ controller and not the VC-C101 PTZ controller on other India pages. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is the screen 7-inch or 3-inch?
Best Features, Features and the tech table say a 7-inch TFT LCD. Manufacturer guidance says a 3-inch colour LCD. product imagery of this listing show a large built-in LCD with four-split monitoring. We will confirm the display on your quote.
How many cameras can the VC52N control?
Manufacturer guidance says shortcut control for up to 7 PTZ cameras. Features say up to 7 quick CamID switches. The tech table says maximum equipment 256 and camera control up to 256.
Is this the same as the VC52 Pro?
No. This listing is the VC52N NDI 7 Channel controller with a 7-inch display on The manufacturer listing. The VC52 Pro is a different manufacturer listing that names a 3-inch colour screen.
