Videocast VC-C101 PTZ Controller
PTZ camera controller from Videocast with a 4D joystick, a 3-inch preview screen and NDI, VISCA and ONVIF control.
| Joystick | 4D, for pan, tilt, zoom and focus |
|---|---|
| Display | 3-inch colour LCD. Preview is listed as NDI|HX2 and RTSP. |
| Protocols | VISCA, VISCA over IP, VISCA TCP, Pelco P/D, ONVIF and NDI. The panel photo is marked NDI|HX. |
| Presets | Up to 255 |
| Camera adjustments | Focus, exposure, white balance and zoom |
| Knobs | specifications may also list 3 programmable control knobs and 4 custom knobs, F1 to F4. The unit includes four knobs labelled F1, F2, F3 and F4. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

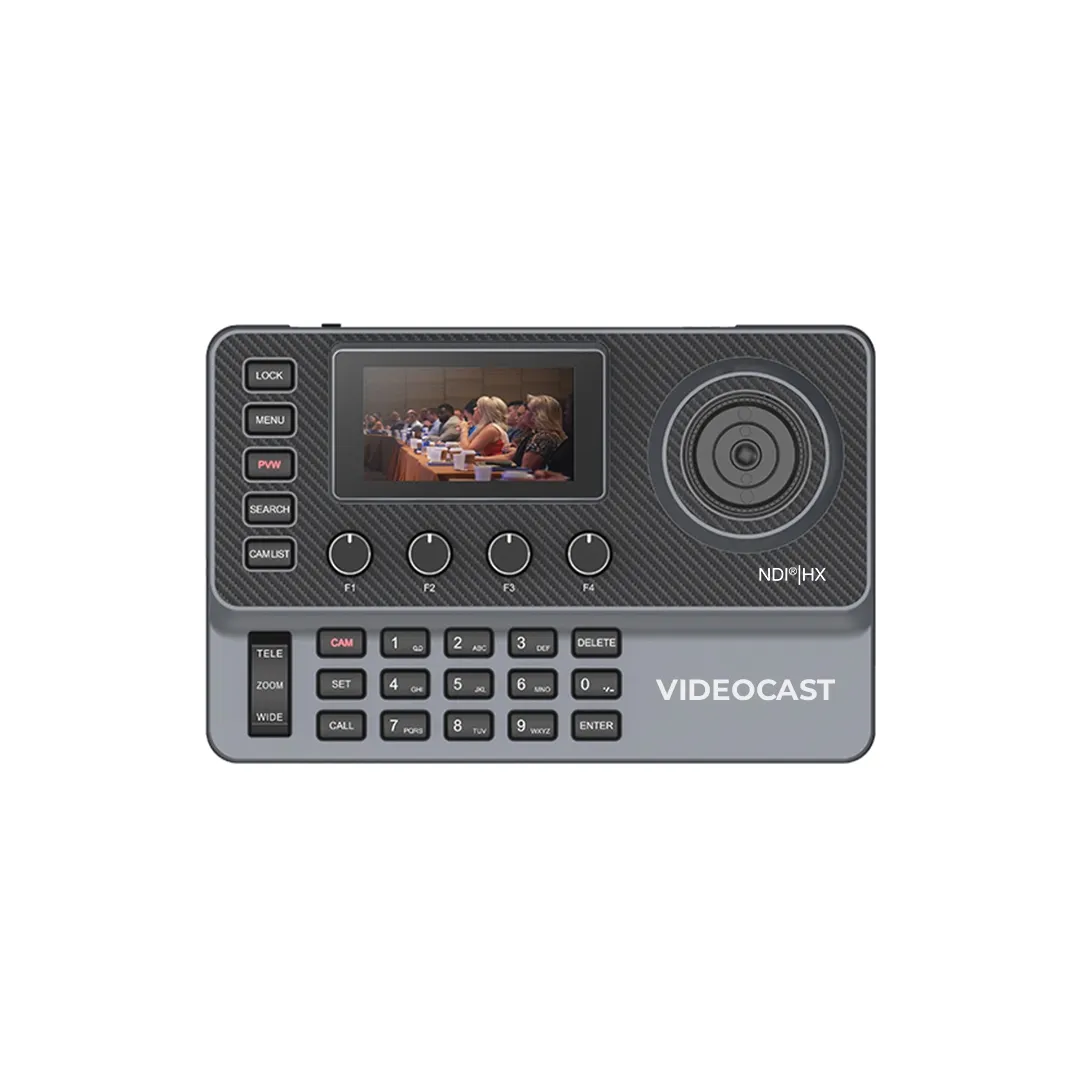

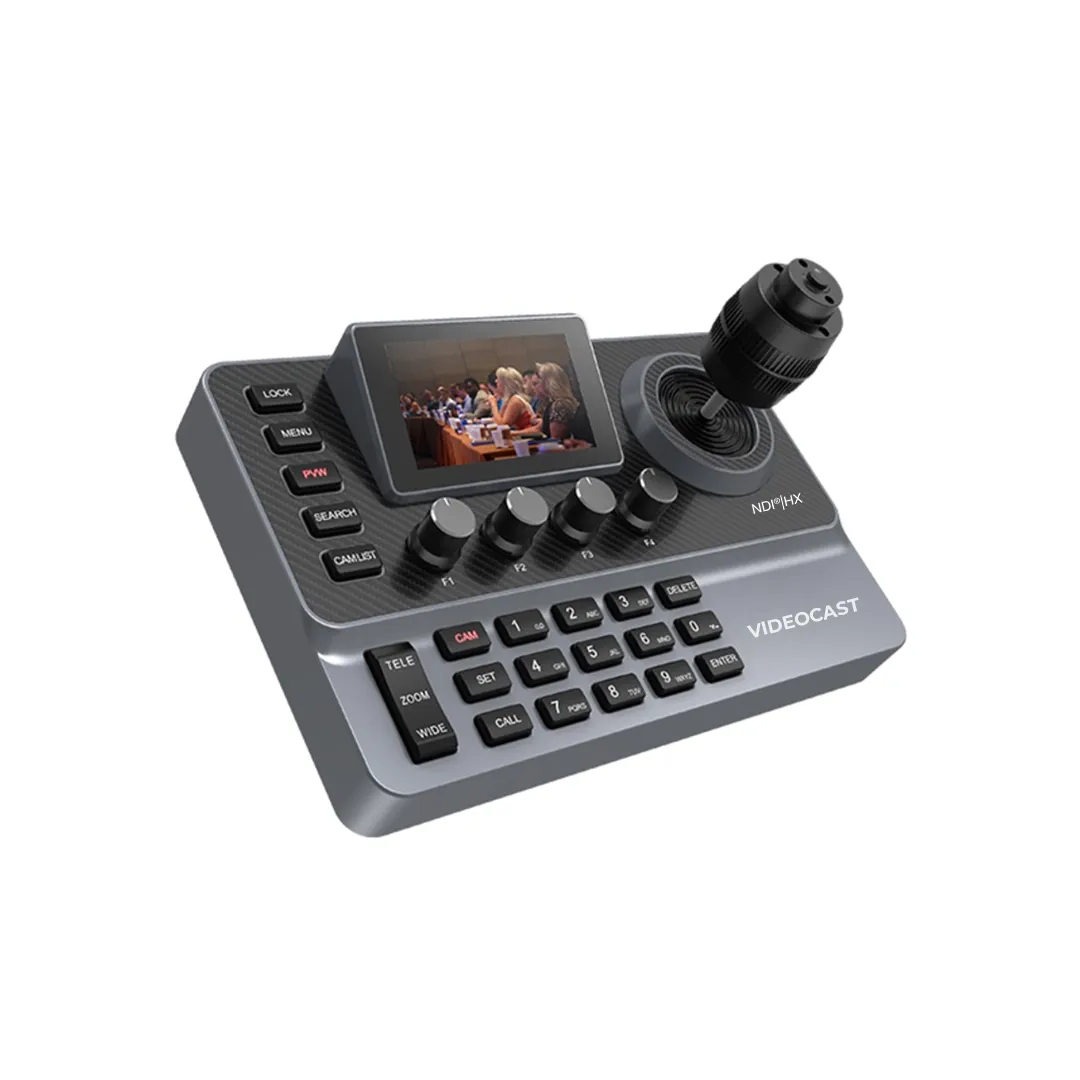

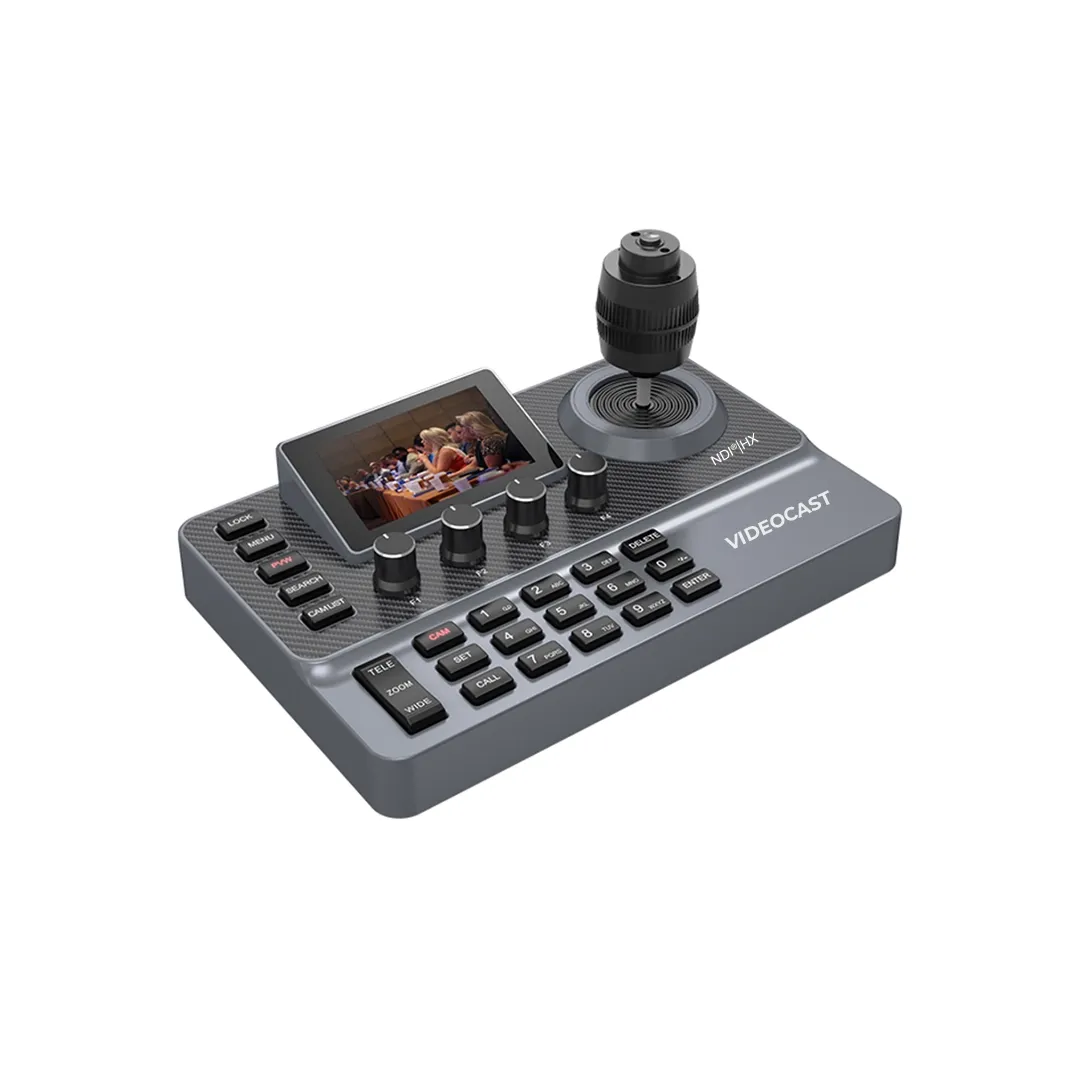

The Videocast VC-C101 is a PTZ camera controller for live production and streaming. The published features are a 4D joystick, a 3-inch colour screen with NDI|HX2 and RTSP preview, up to 255 presets, and VISCA, VISCA over IP, VISCA TCP, Pelco P/D, ONVIF and NDI. The page says it can address up to 1000 PTZ cameras, with RS422, RS485 and RJ45, and that power is PoE. The rear panel includes a DC 12V input and a power switch. Product information marks the body 210 mm, 138 mm and 30 mm. Crozsi quotes this controller against your requirement.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| Control ports | RS422, RS485 and RJ45. The rear panel includes the serial block RS-422/485. |
|---|
Dimensions & power

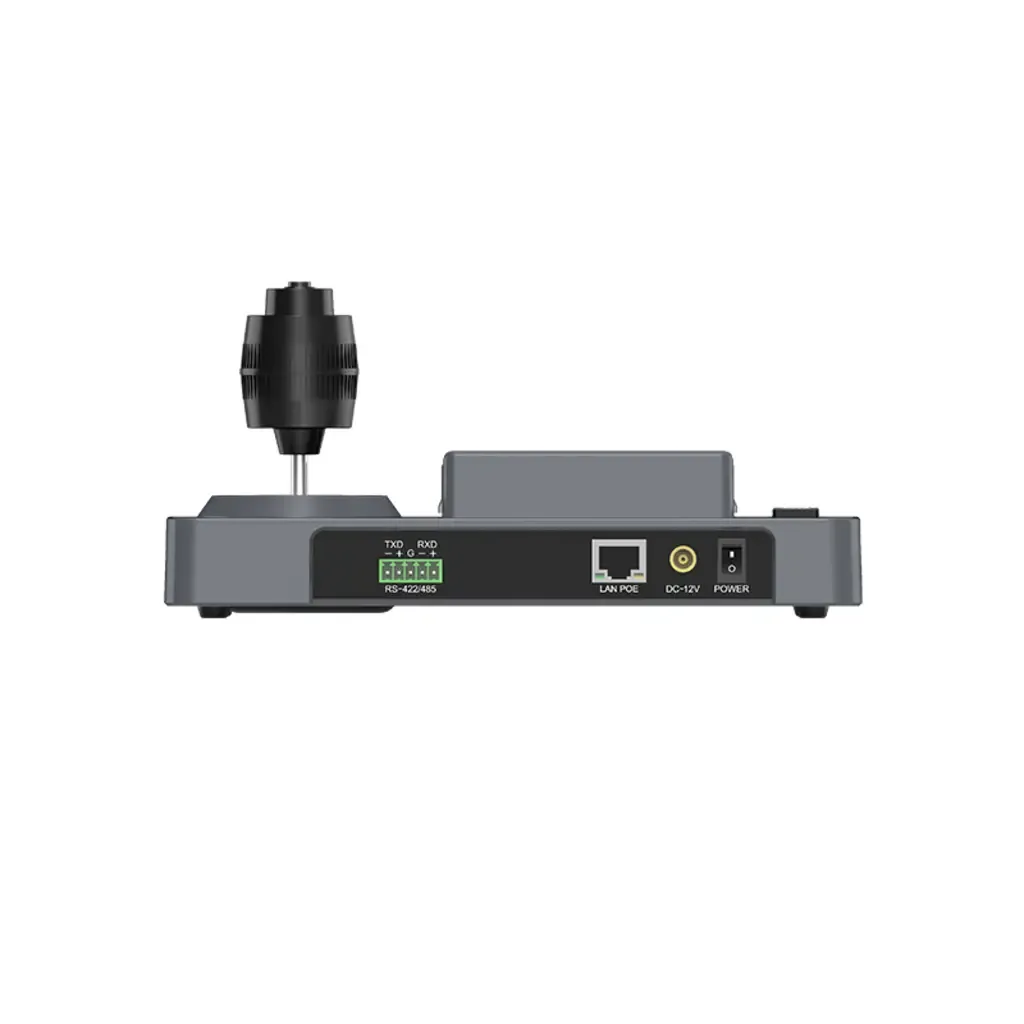

| Power | The key features list PoE. The rear panel includes LAN PoE, DC 12V in and a power switch. |
|---|
Other details
| Joystick | 4D, for pan, tilt, zoom and focus |
|---|---|
| Display | 3-inch colour LCD. Preview is listed as NDI|HX2 and RTSP. |
| Protocols | VISCA, VISCA over IP, VISCA TCP, Pelco P/D, ONVIF and NDI. The panel photo is marked NDI|HX. |
| Presets | Up to 255 |
| Camera adjustments | Focus, exposure, white balance and zoom |
| Knobs | specifications may also list 3 programmable control knobs and 4 custom knobs, F1 to F4. The unit includes four knobs labelled F1, F2, F3 and F4. |
| Cameras | The manufacturer listing says up to 1000 PTZ cameras. Confirm that figure for the installation. |
| Keyboard | Silicone, backlit white and red. The unit includes Lock, Menu, PVW, Search, Cam List, Tele, Wide, Cam, Set, Call, Delete and Enter. |
| Lock | One-key operation lock |

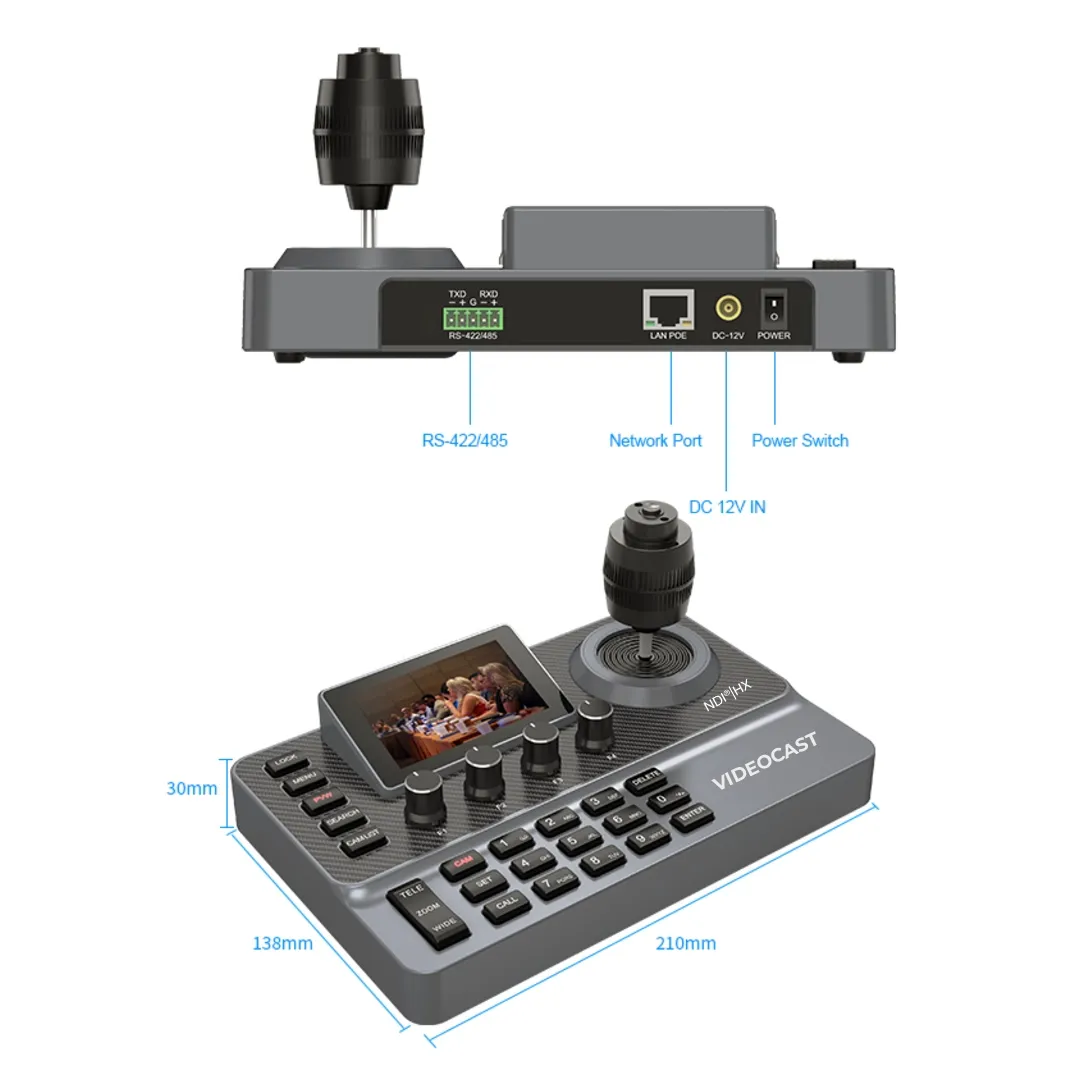

| Size on the product information | 210 mm, 138 mm and 30 mm |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Which camera protocols does The manufacturer listing name?
VISCA, VISCA over IP, VISCA TCP, Pelco P/D, ONVIF and NDI. The screen preview is listed as NDI|HX2 and RTSP.
How is the VC-C101 powered?
The key features list PoE. The rear panel includes a DC 12V input and a power switch. Confirm which supply the installation will use.
How many cameras can it control?
The manufacturer listing says up to 1000 PTZ cameras and up to 255 presets. We will confirm the camera count for your installation on your quote.
How do I get pricing and availability for the VC-C101?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
