Videocast · PTZ cameras
Videocast VC300 4K PTZ
4K PTZ camera with 25X optical zoom, HDMI, 3G-SDI, USB and IP, from Videocast. The key specifications say 4K at 30 fps. A front The unit includes HDMI 4KP60.
| Size, weight and mounting | Technical list: 160×160×180 mm and 1.5 kg. Key specifications: about 2 kg, black, and wall, ceiling or tripod mounting. |
|---|---|
| Name on the listing | The listing name includes VC300 4K PTZ Camera. The product heading says 4K VC300 PTZ Video Camera. |
| Sensor and zoom | Sony 1/2.8-inch CMOS, 8.29 megapixels, in the key specifications. Optical zoom is 25X in both the key specifications and the technical list. |
| Resolution | Key specifications: 4K, 3840×2160 at 30 fps. The technical list says 4K, 3840×2160, and does not state a frame rate. A front The unit includes HDMI:4KP60. An outputs graphic says HDMI, USB 3.0, SDI and IP can output 4K60 at the same time. |
| Lens | Technical list: f=4.5–90 mm, F1.6–F3.5. Field of view 60.7° wide to 3.36° tele. |
| Outputs | HDMI, 3G-SDI, USB 3.0 and IP. The rear panel includes a UVC port beside USB 3.0. Audio input is a 3.5 mm line input in the technical list, and The rear panel includes LINE IN. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

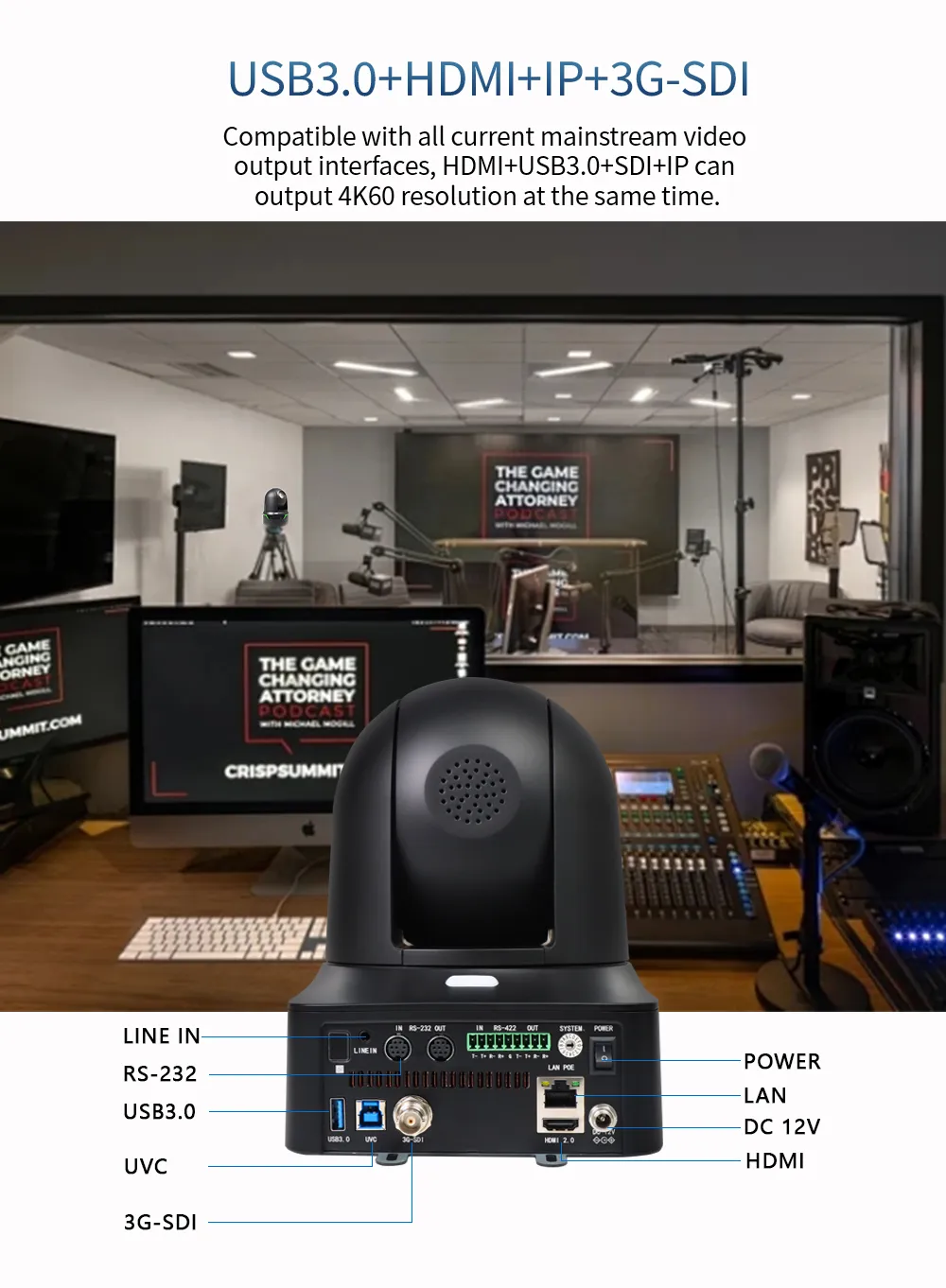

The Videocast VC300 is a 4K PTZ camera. The listing name includes VC300 4K PTZ Camera. The product heading says 4K VC300 PTZ Video Camera. The key specifications list a Sony 1/2.8-inch CMOS sensor, 8.29 megapixels, 4K at 3840×2160 and 30 fps, and 25X optical zoom. Outputs are HDMI, 3G-SDI, USB 3.0 and IP. Protocols are VISCA, Pelco P/D, ONVIF and NDI, with NDI marked optional. The technical list repeats 4K and 25X, and adds a lens of f=4.5–90 mm, F1.6–F3.5, a field of view from 60.7° to 3.36°, a 3.5 mm line input, DC 12V, 24W, 160×160×180 mm and 1.5 kg. The key specifications instead say pan ±168°, power DC 12V with PoE supported, and weight about 2 kg. The technical list says pan ±170° and does not mention PoE. Tilt is −30° to +90° in both lists. A front The unit includes HDMI:4KP60. An outputs graphic says HDMI, USB 3.0, SDI and IP can output 4K60 at the same time. The rear panel includes line in, RS-232, USB 3.0, UVC, 3G-SDI, HDMI, LAN and DC 12V, and does not include PoE or NDI. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power | Key specifications: DC 12V, with PoE supported. Technical list: DC 12V and 24W, with no PoE. The rear panel includes DC 12V and does not include PoE. |
|---|---|
| Size, weight and mounting | Technical list: 160×160×180 mm and 1.5 kg. Key specifications: about 2 kg, black, and wall, ceiling or tripod mounting. |
Other details
| Name on the listing | The listing name includes VC300 4K PTZ Camera. The product heading says 4K VC300 PTZ Video Camera. |
|---|---|
| Sensor and zoom | Sony 1/2.8-inch CMOS, 8.29 megapixels, in the key specifications. Optical zoom is 25X in both the key specifications and the technical list. |
| Resolution | Key specifications: 4K, 3840×2160 at 30 fps. The technical list says 4K, 3840×2160, and does not state a frame rate. A front The unit includes HDMI:4KP60. An outputs graphic says HDMI, USB 3.0, SDI and IP can output 4K60 at the same time. |
| Lens | Technical list: f=4.5–90 mm, F1.6–F3.5. Field of view 60.7° wide to 3.36° tele. |
| Outputs | HDMI, 3G-SDI, USB 3.0 and IP. The rear panel includes a UVC port beside USB 3.0. Audio input is a 3.5 mm line input in the technical list, and The rear panel includes LINE IN. |
| NDI and control | Key specifications: VISCA, Pelco P/D, ONVIF and NDI, with NDI optional. Control is RS232, RS485, IP and an IR remote. The rear panel includes RS-232 and a terminal block, and does not include NDI. |
| Pan and tilt | Key specifications: pan ±168°. Technical list: pan ±170°. Tilt is −30° to +90° in both lists. |
| Image | Key specifications: 0.1 lux, auto or manual focus, auto, manual or preset white balance, and wide dynamic range. The technical low-light line does not repeat 0.1 lux. |
| product information | One graphic names conferencing software, including Zoom, Cisco Webex, Skype and Microsoft Lync. Another graphic labels Tele-medicine. Published details do not list those software names, and Crozsi does not claim a medical-device certification. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is the VC300 4K at 30 fps or 60 fps?
The key specifications say 3840×2160 at 30 fps. The technical list does not state a frame rate. A front The unit includes HDMI:4KP60, and an outputs graphic says 4K60 on HDMI, USB, SDI and IP at the same time. We will confirm the output on your quote.
What pan and power figures does the page show?
Pan is ±168° in the key specifications and ±170° in the technical list. Power is DC 12V with PoE in the key specifications, and DC 12V at 24W with no PoE in the technical list. Weight is about 2 kg in the key specifications and 1.5 kg in the technical list.
Does Published details say NDI is included?
The key specifications mark NDI as optional. The technical output list does not mention NDI, and the rear photo does not include it.
How do I get pricing and availability for the VC300?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
