Videocast VC-50T TriCaster Control Panel
USB control panel from Videocast for TriCaster live production. The manufacturer listing lists TriCaster 1 Pro, Mini 4K and Mini S.
| Weight | 1.5 kg |
|---|---|
| Product type | TriCaster control panel |

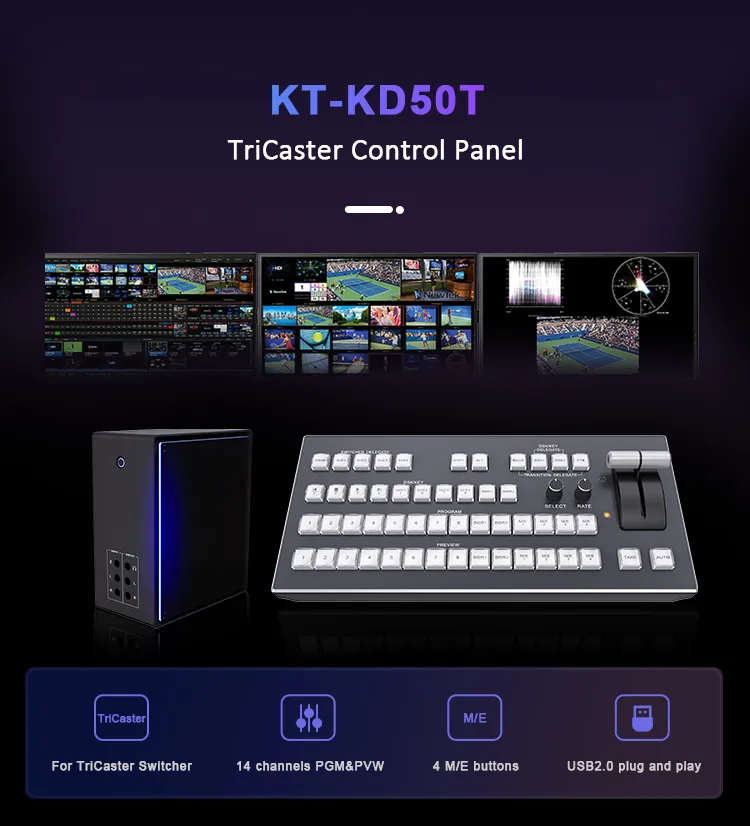

| Name | This listing is titled VC-50T. Product information also shows KT-KD50T. We will confirm marking on your quoted unit. |

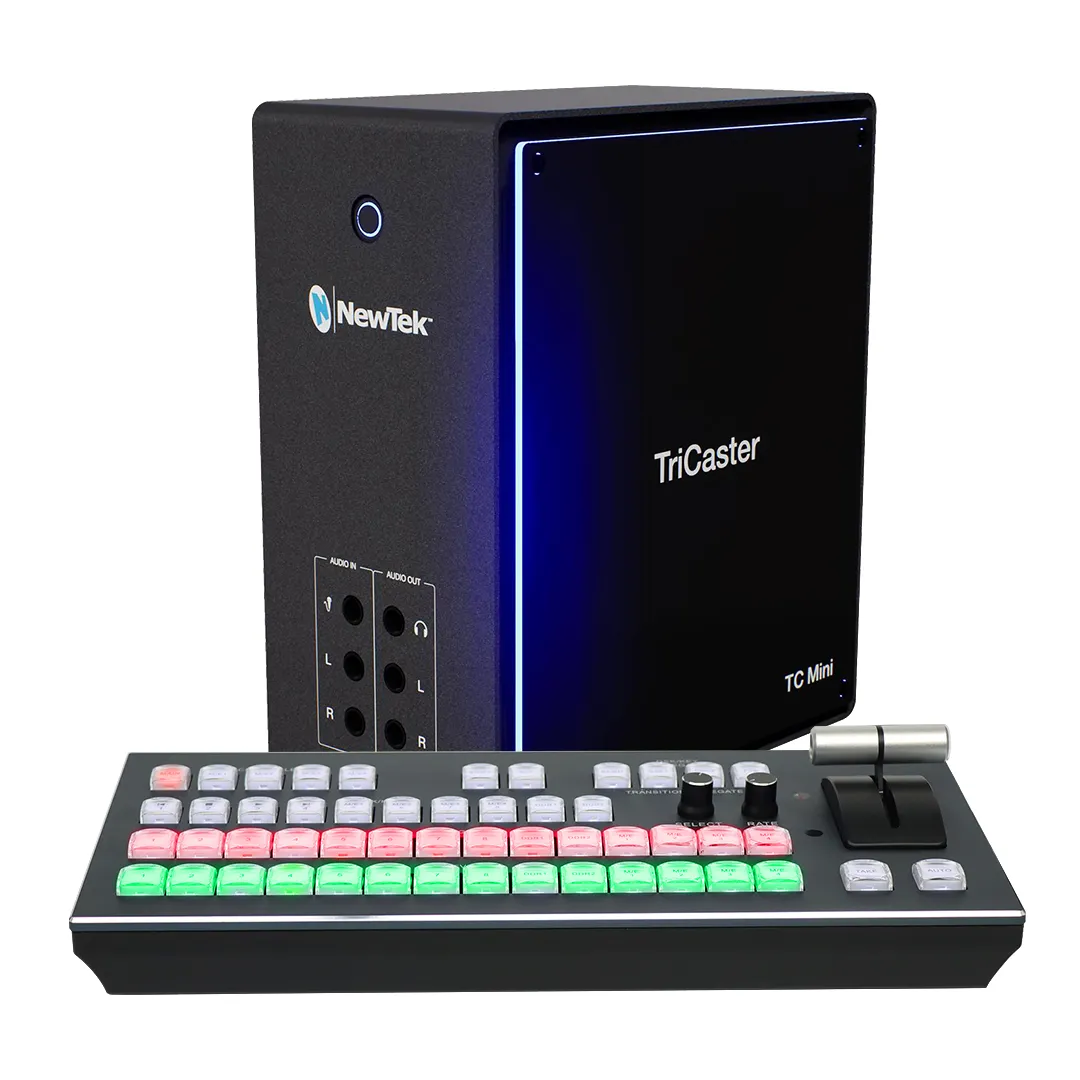

| Compatibility named on the page | TriCaster 1 Pro, Mini 4K and Mini S. Product imagery shows the panel beside a unit marked NewTek TriCaster TC Mini. The TriCaster is not included in this listing. |
| Video sources | Up to 8 |
| Program and preview | 14-channel PGM and 14-channel PVW. Product information also says 14 channels PGM and PVW, and 51 physical buttons. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
The Videocast VC-50T is a TriCaster control panel for live production and broadcast switching. The published specification is USB 2.0 plug-and-play with no drivers, up to 8 video sources, 14-channel program and 14-channel preview, up to 4 M/E, 2 DDR and 2 DSK, plus auto, cut and T-bar transitions. The page names compatibility with TriCaster 1 Pro, Mini 4K and Mini S. Product information also shows KT-KD50T on the same panel, so the quote confirms the marking. Product imagery places the panel beside a NewTek TriCaster TC Mini; that TriCaster is not part of this listing. the power notes on the listing do not all agree, and we will confirm the supply on your quote.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Performance & capacity

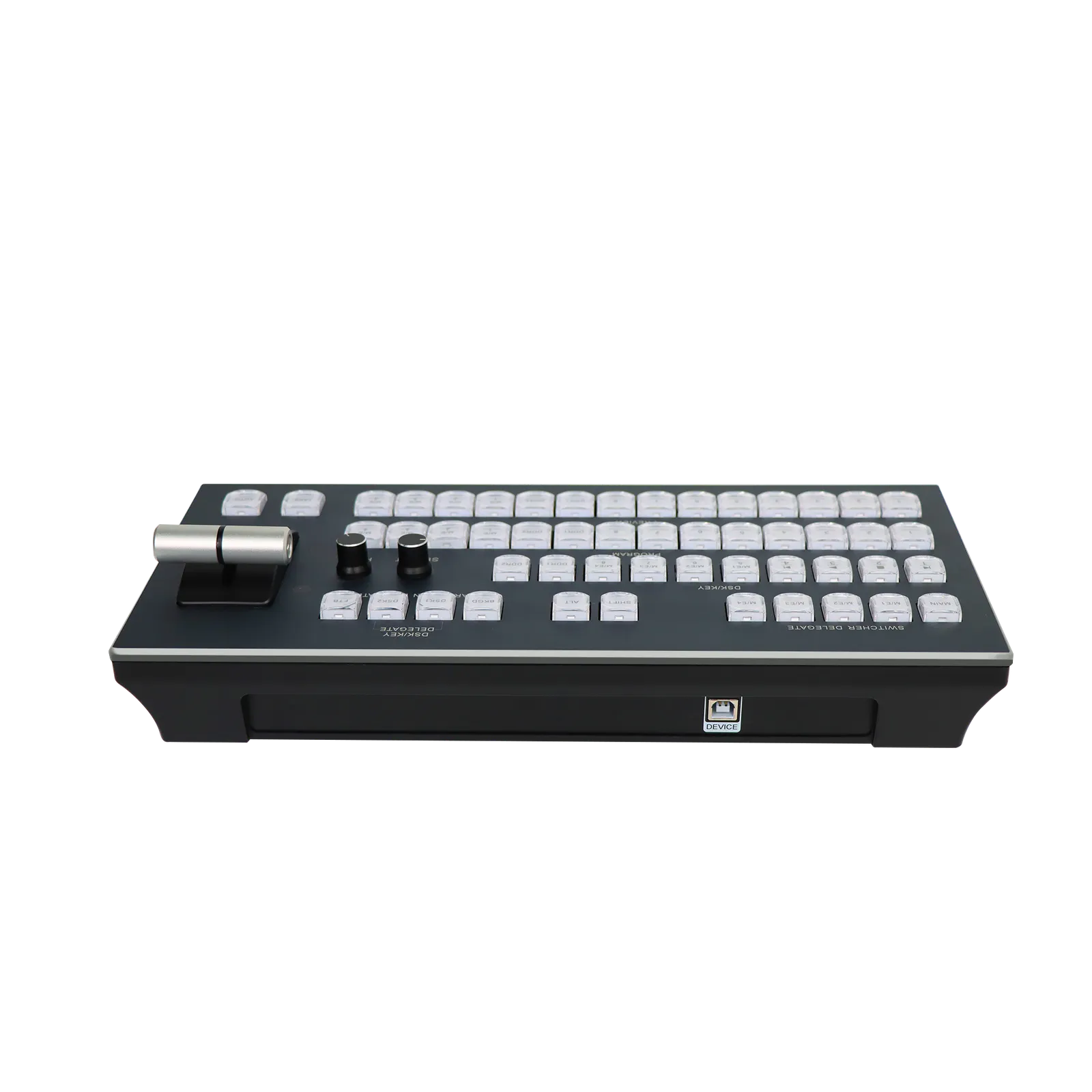

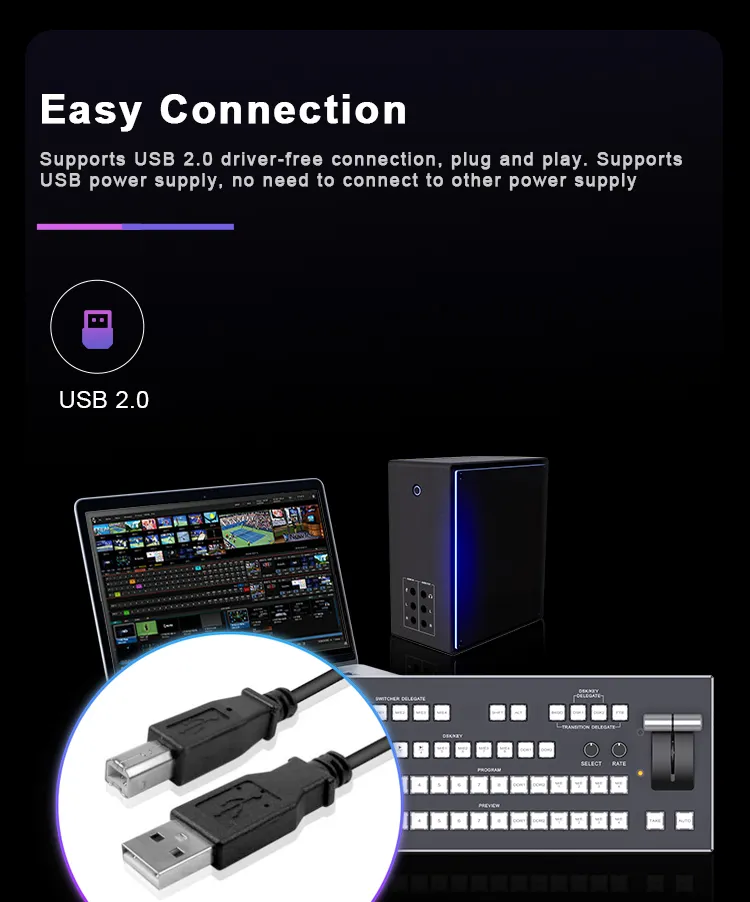

| Connection | USB 2.0, plug-and-play, no drivers. The front includes a DEVICE port. Product information also shows a USB-A to USB-B cable. |
|---|
Dimensions & power
| Power | specifications may also list DC 12V, 0.3 A and 4 W, and also says USB-powered depending on the computer USB output. Manufacturer guidance lists USB or DC 12V. Product information says USB power and no other supply. We will confirm method on your quote. |
|---|---|
| Dimensions | 354 × 165 × 67 mm |
| Weight | 1.5 kg |
Other details
| Product type | TriCaster control panel |
|---|---|
| Name | This listing is titled VC-50T. Product information also shows KT-KD50T. We will confirm marking on your quoted unit. |
| Compatibility named on the page | TriCaster 1 Pro, Mini 4K and Mini S. Product imagery shows the panel beside a unit marked NewTek TriCaster TC Mini. The TriCaster is not included in this listing. |
| Video sources | Up to 8 |

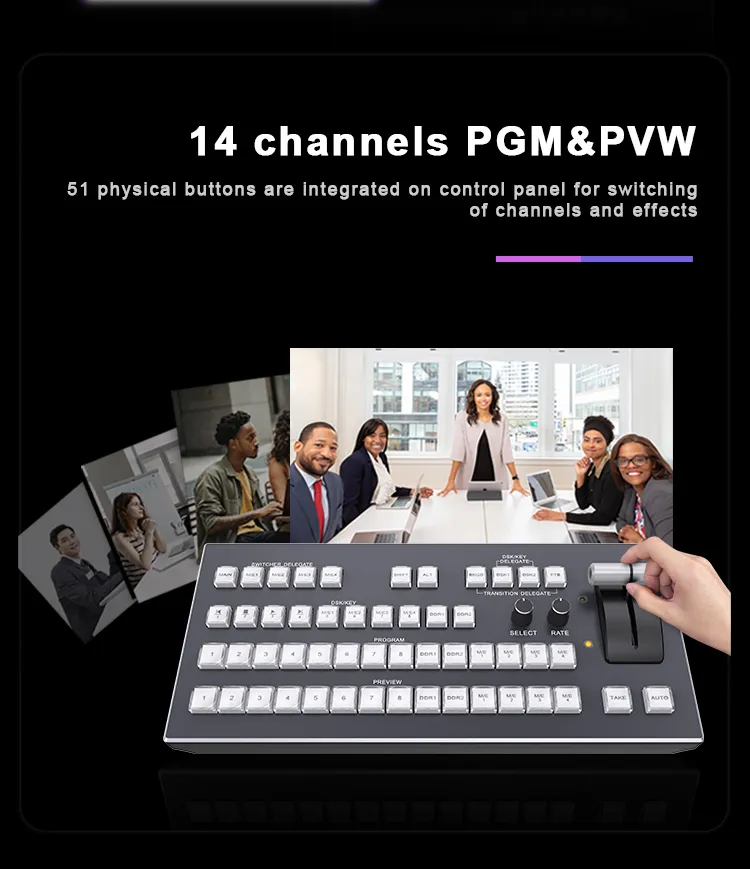

| Program and preview | 14-channel PGM and 14-channel PVW. Product information also says 14 channels PGM and PVW, and 51 physical buttons. |
| M/E | Up to 4 |
| DDR | 2 |
| DSK | 2 |
| Transitions | Auto, cut and T-bar. Effect selection knob and transition time knob. The unit includes the knobs Select and Rate. |
| Indicators | Red, green and orange LEDs. Aluminium T-bar with LED lighting. |
| Body | Anodized aluminium alloy |
| Environment | Indoor use. Operating 0°C to 40°C. Storage −20°C to 60°C. |

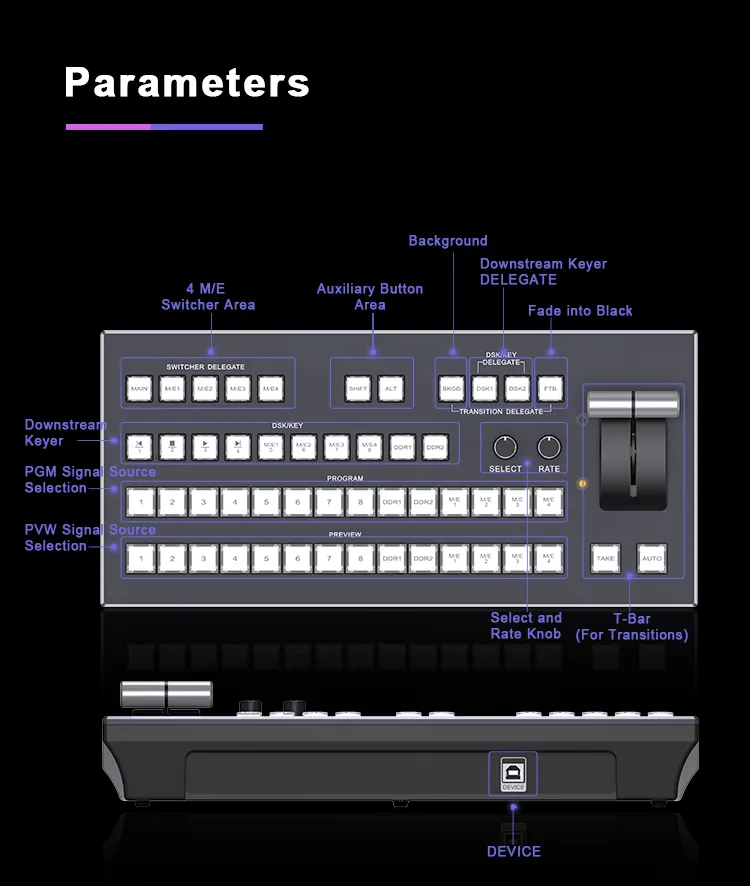

| Layout on the product information | Labels program, preview, 4 M/E, downstream keyer, DDR, background, fade to black, select, rate and the T-bar. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Which TriCaster systems does The manufacturer listing name?
TriCaster 1 Pro, Mini 4K and Mini S. The page does not say this panel includes a TriCaster. Product imagery shows a NewTek TriCaster TC Mini beside the panel.
Is the model marked VC-50T or KT-KD50T?
This listing is titled VC-50T. Product information also shows KT-KD50T. We will confirm the marking on your quote.
How is the VC-50T powered?
specifications may also list DC 12V, 0.3 A and 4 W, and also USB power that depends on the computer. Manufacturer guidance lists USB or DC 12V. Product information says USB power with no other supply. We will confirm which power method the quoted unit uses.
How do I get pricing and availability for the VC-50T?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
