Videocast AC10 ATEM OBS vMix Controller
Live production controller from Videocast as AC10 for ATEM switchers, OBS Studio and vMix. Tech specs list 12-channel control, LAN and USB 2.0, and DC 12V power. Distinct from the VC-50T TriCaster panel.
| Compatible software and switchers on the page | Tech specs: VIDEOCAST ATEM Switchers, OBS Studio and vMix. Manufacturer guidance: Blackmagic ATEM Switchers via LAN. |
|---|---|

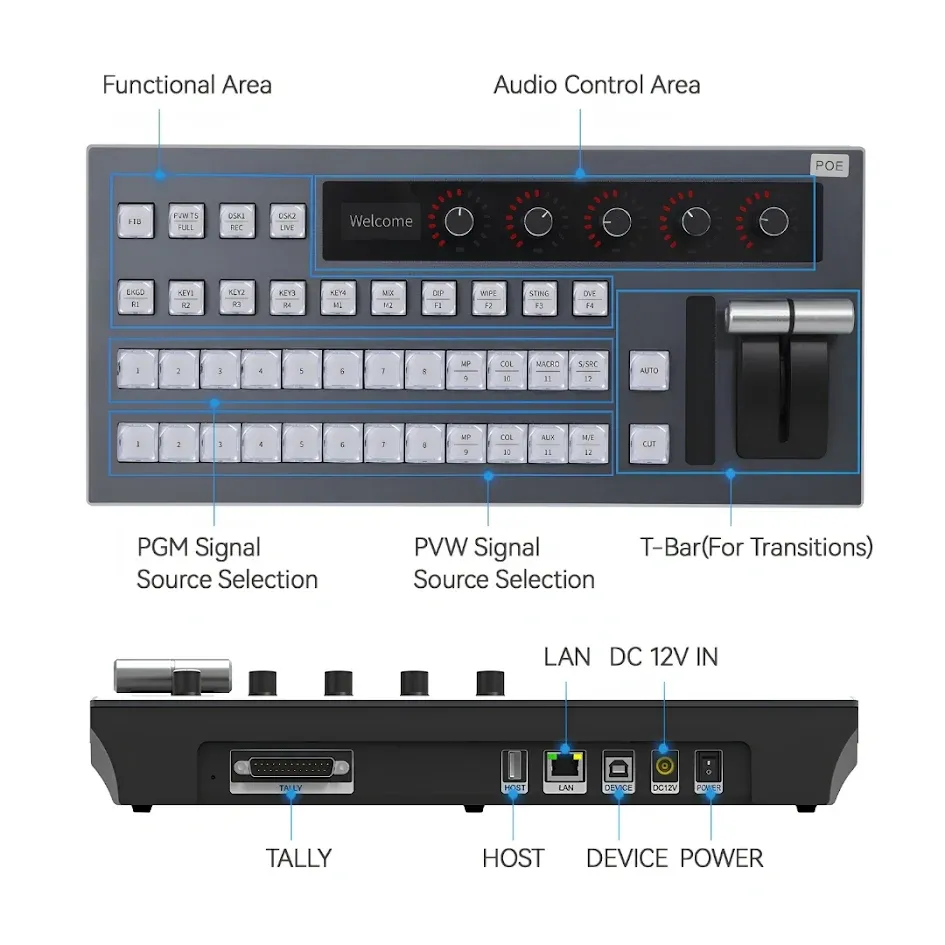

| Connection | Tech specs: LAN and USB 2.0 driver-free. Official rear graphic: TALLY, HOST, LAN, DEVICE, DC 12V IN and POWER. The unit includes PoE. |

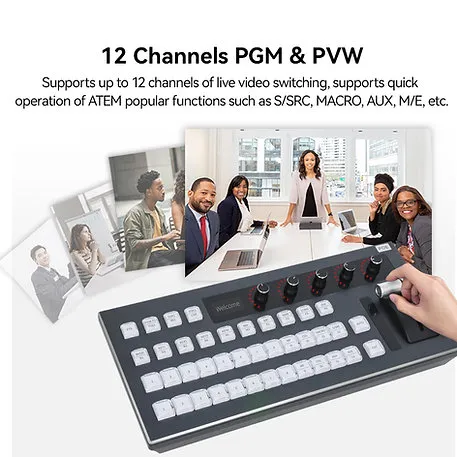

| Channels | Tech specs: 12-channel control inputs. Tally: 12-channel PGM and 12-channel PVW. The unit includes numbered 1–12 buses. |
| Transitions | MIX, DIP, WIPE, STING and DVE |

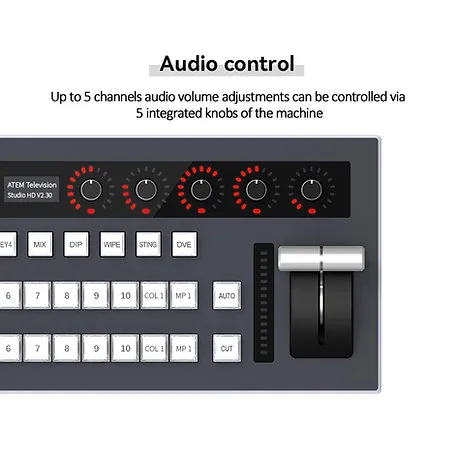

| Audio controls | Tech specs: 1 master volume and 4 independent audio input controls. Product information says up to 5 channels via five knobs. |
| Power | DC 12V, 0.3 A, rated 4 W. The unit includes PoE. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

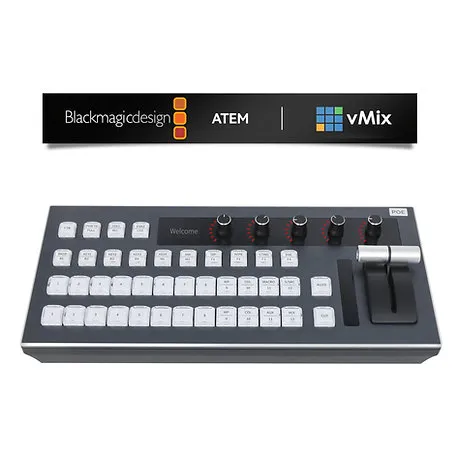

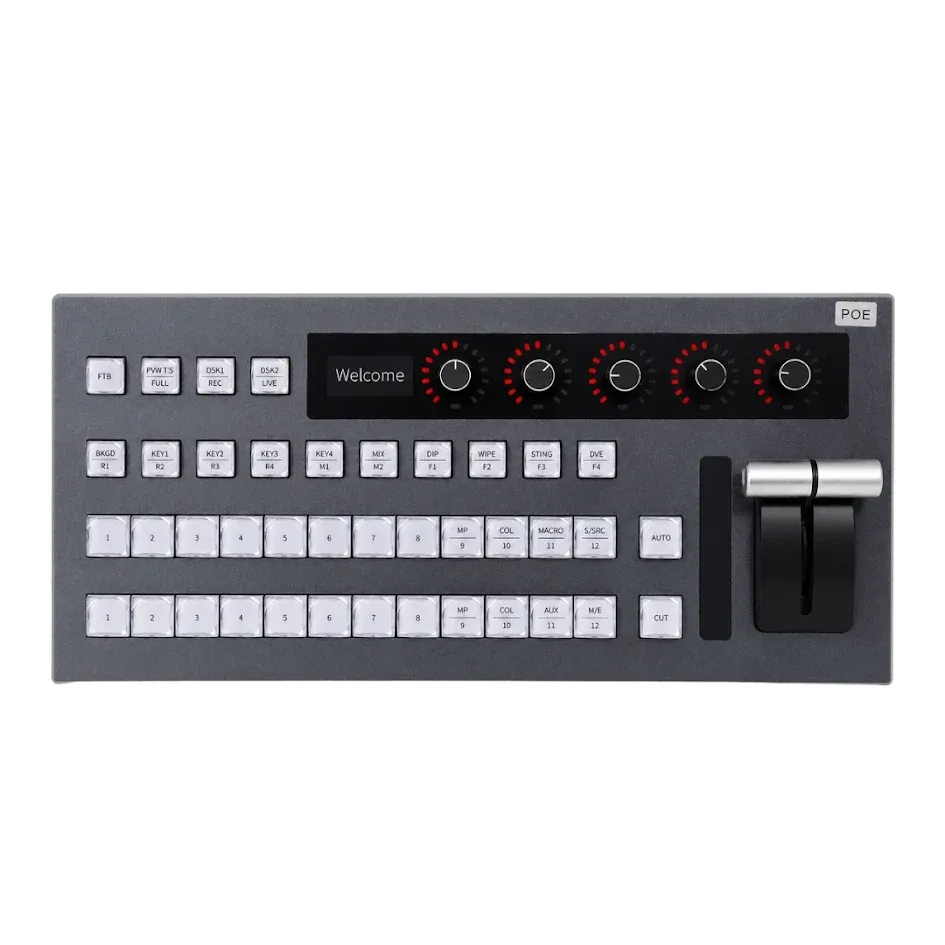

The Videocast AC10 is listed as the ATEM Switcher, OBS and vMix Controller. Published specifications name Brand VIDEOCAST and Model AC10. Compatible devices listed are VIDEOCAST ATEM Switchers, OBS Studio and vMix. Connection methods listed are LAN and USB 2.0 driver-free. Control features list 12-channel control inputs, 1 master volume control and 4 independent audio input controls, transition modes MIX, DIP, WIPE, STING and DVE, and a tally system with 12-channel PGM and 12-channel PVW. Power is DC 12V at 0.3 A, rated power 4 W, operating temperature 0°C to 40°C, and dimensions 420 × 257.52 × 121.2 mm. Manufacturer guidance says the AC10 supports Blackmagic ATEM Switchers via LAN. The unit includes a T-bar, AUTO and CUT, numbered PGM and PVW buses, transition keys, five rotary knobs beside a small display, and a PoE mark on the panel. A labelled rear graphic shows TALLY, HOST, LAN, DEVICE, DC 12V IN and POWER. An official audio graphic says up to 5 channels of audio volume on five knobs. This is a different model from the VC-50T TriCaster control panel. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Performance & capacity
| Connection | Tech specs: LAN and USB 2.0 driver-free. Official rear graphic: TALLY, HOST, LAN, DEVICE, DC 12V IN and POWER. The unit includes PoE. |
|---|
Dimensions & power
| Power | DC 12V, 0.3 A, rated 4 W. The unit includes PoE. |
|---|
Other details
| Compatible software and switchers on the page | Tech specs: VIDEOCAST ATEM Switchers, OBS Studio and vMix. Manufacturer guidance: Blackmagic ATEM Switchers via LAN. |
|---|---|
| Channels | Tech specs: 12-channel control inputs. Tally: 12-channel PGM and 12-channel PVW. The unit includes numbered 1–12 buses. |
| Transitions | MIX, DIP, WIPE, STING and DVE |
| Audio controls | Tech specs: 1 master volume and 4 independent audio input controls. Product information says up to 5 channels via five knobs. |
| Size | 420 × 257.52 × 121.2 mm |
| Operating temperature | 0°C to 40°C |
| Distinct from | Not the VC-50T TriCaster control panel on a different manufacturer listing. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
What does the AC10 control?
The tech specs list VIDEOCAST ATEM Switchers, OBS Studio and vMix. Manufacturer guidance says it supports Blackmagic ATEM Switchers via LAN.
How does it connect?
The tech specs list LAN and USB 2.0 driver-free. The unit includes LAN, USB ports, DC 12V and a PoE mark on the panel.
Is this the same as the VC-50T?
No. This listing is the AC10 for ATEM, OBS and vMix. The VC-50T is the listed TriCaster control panel on a different manufacturer listing.
How do I get pricing and availability for the AC10?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
