Videocast V1 Video Switcher
Four-input HDMI switcher from Videocast. The listing name includes V1, and the same page calls it the Live Mixer C1.
| Name on the listing | The title and web address say V1. The introduction and FAQ call it the Live Mixer C1. The panel marks Live Mixer. |
|---|---|

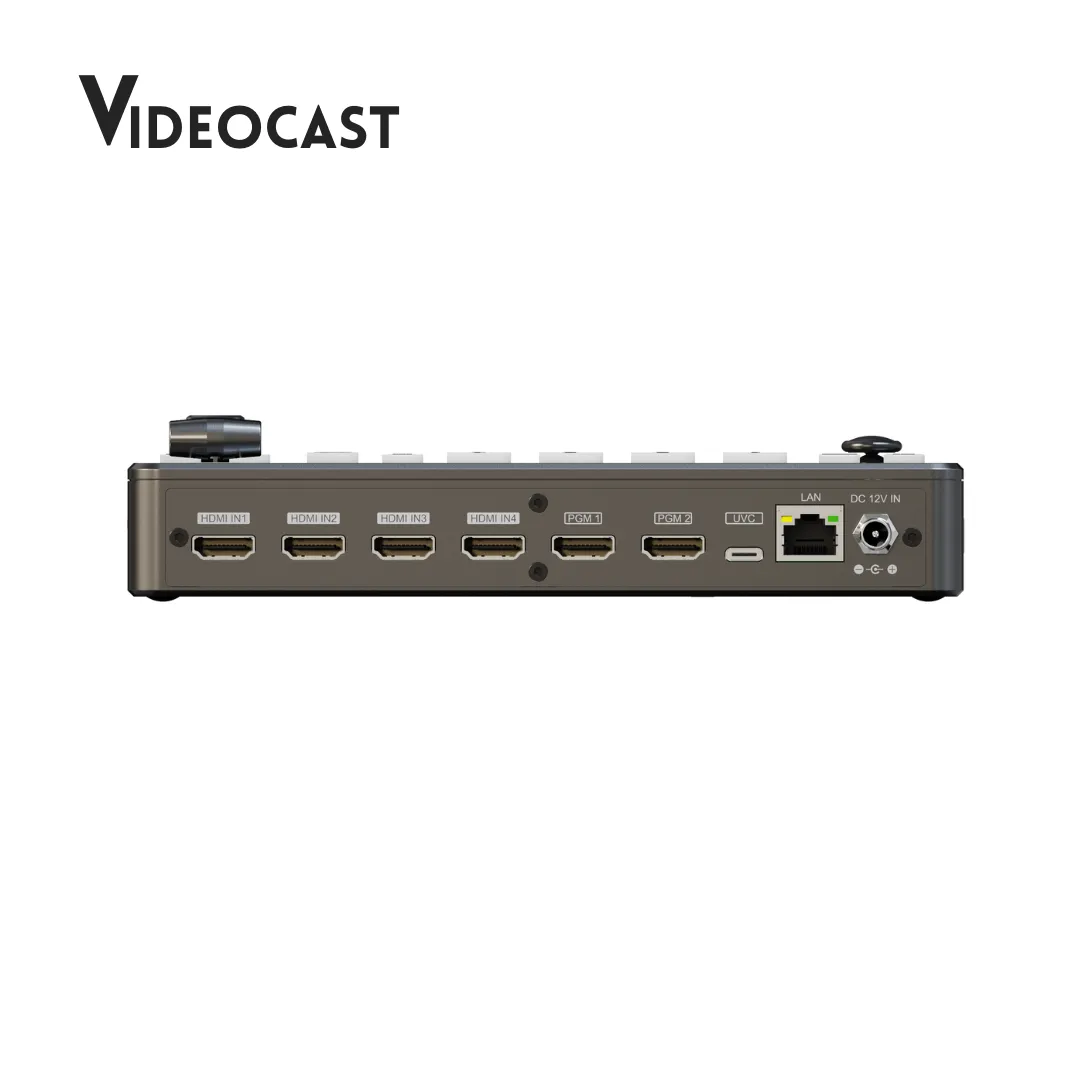

| Video input | Four HDMI inputs in Published details. The rear panel includes HDMI IN1, IN2, IN3 and IN4. |
| Video output | published details: two HDMI program outputs and one UVC output. The rear panel includes PGM1, PGM2 and UVC. |

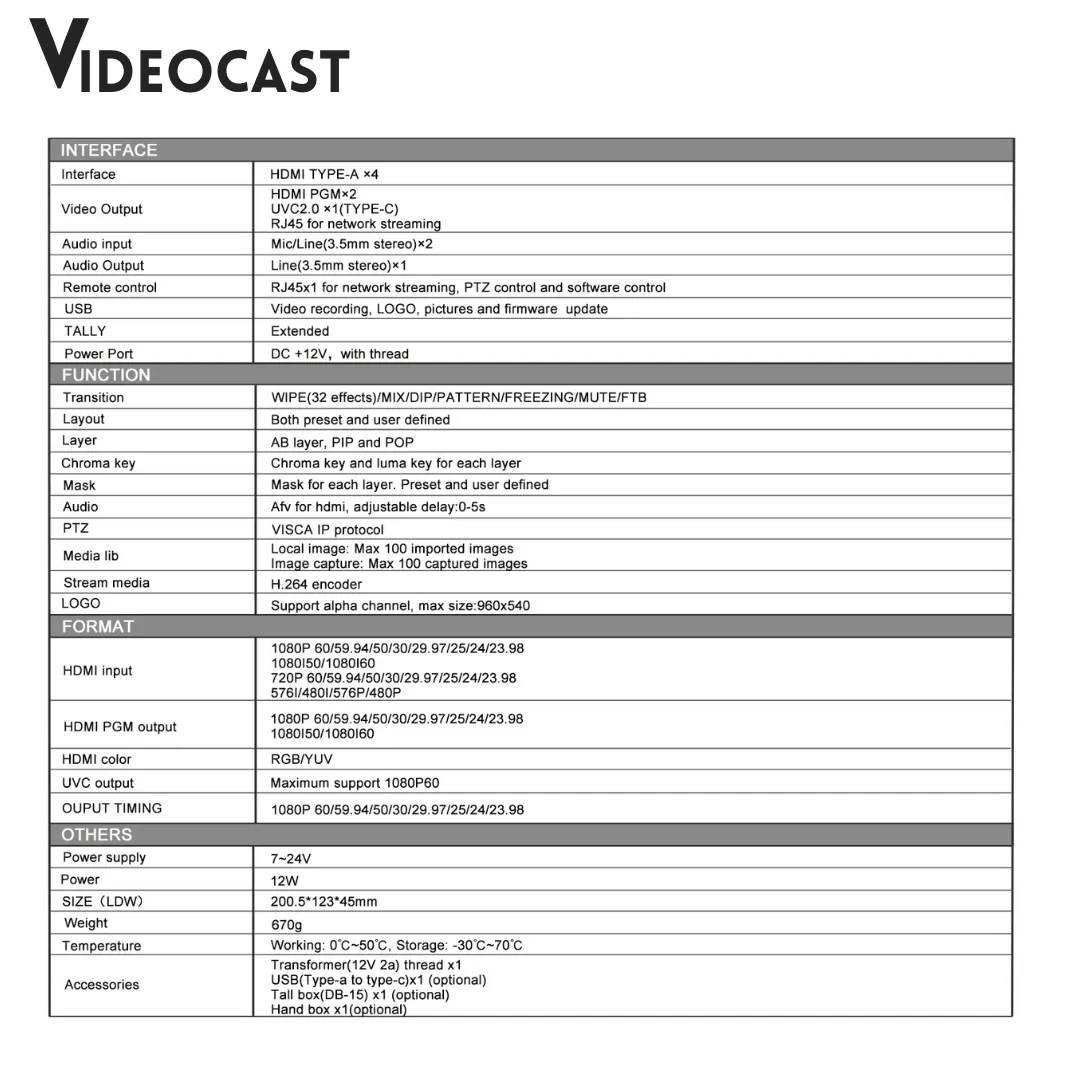

| Resolution | Manufacturer guidance lists 1080p at 60 fps. A specification graphic lists 1080p, 1080i, 720p and SD timings on the HDMI inputs, 1080p and 1080i on the program outputs, and 1080p60 as the UVC maximum. |
| Streaming | Features: direct RTMP streaming to two destinations, over the network or USB, including YouTube, Facebook and Twitch. Manufacturer guidance: USB output with streaming software. The specification graphic names an H.264 encoder and a network port. |
| Recording | published details: one-touch recording to USB storage or an SSD. The unit includes USB-A and a USB-C port labelled TALLY, and does not include an SSD slot. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model
the manufacturer listing titled V1 is a compact four-channel HDMI switcher. The introduction and the FAQ call the same unit the Live Mixer C1. The panel marks Live Mixer and does not include V1 or C1. Published details list four HDMI inputs, two HDMI program outputs, one UVC output and one RJ45 streaming port. The kit includes HDMI IN1 to IN4, PGM1, PGM2, UVC, LAN and DC 12V IN. The features say it streams directly to YouTube, Facebook, Twitch and other RTMP platforms, to two destinations at once, over the network or USB. Manufacturer guidance says streaming uses the USB output with streaming software. A specification graphic names an H.264 encoder and UVC 2.0 on USB Type-C. Manufacturer guidance lists 1080p at 60 fps. The same graphic lists 1080p, 1080i, 720p and SD timings on the HDMI inputs, and 1080p and 1080i on the program outputs. Recording is described as USB or SSD. The unit includes a USB-A port and a USB-C port labelled TALLY, and no SSD slot. The features name PTZ control. The graphic names VISCA over IP. Audio on Published details is four HDMI channels plus two 3.5 mm mic or line inputs. The unit includes a headphone jack. Power, size and weight appear on the specification graphic: DC 12V, a 7–24V supply, 12W, 200.5×123×45 mm and 670 g. Published details do not state those figures. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power and size on the specification graphic | DC 12V with a thread, a 7–24V supply and 12W. Size 200.5×123×45 mm. Weight 670 g. Published details do not state power, size or weight. The rear panel includes DC 12V IN. |
|---|
Other details
| Name on the listing | The title and web address say V1. The introduction and FAQ call it the Live Mixer C1. The panel marks Live Mixer. |
|---|---|
| Video input | Four HDMI inputs in Published details. The rear panel includes HDMI IN1, IN2, IN3 and IN4. |
| Video output | published details: two HDMI program outputs and one UVC output. The rear panel includes PGM1, PGM2 and UVC. |
| Resolution | Manufacturer guidance lists 1080p at 60 fps. A specification graphic lists 1080p, 1080i, 720p and SD timings on the HDMI inputs, 1080p and 1080i on the program outputs, and 1080p60 as the UVC maximum. |
| Streaming | Features: direct RTMP streaming to two destinations, over the network or USB, including YouTube, Facebook and Twitch. Manufacturer guidance: USB output with streaming software. The specification graphic names an H.264 encoder and a network port. |
| Recording | published details: one-touch recording to USB storage or an SSD. The unit includes USB-A and a USB-C port labelled TALLY, and does not include an SSD slot. |

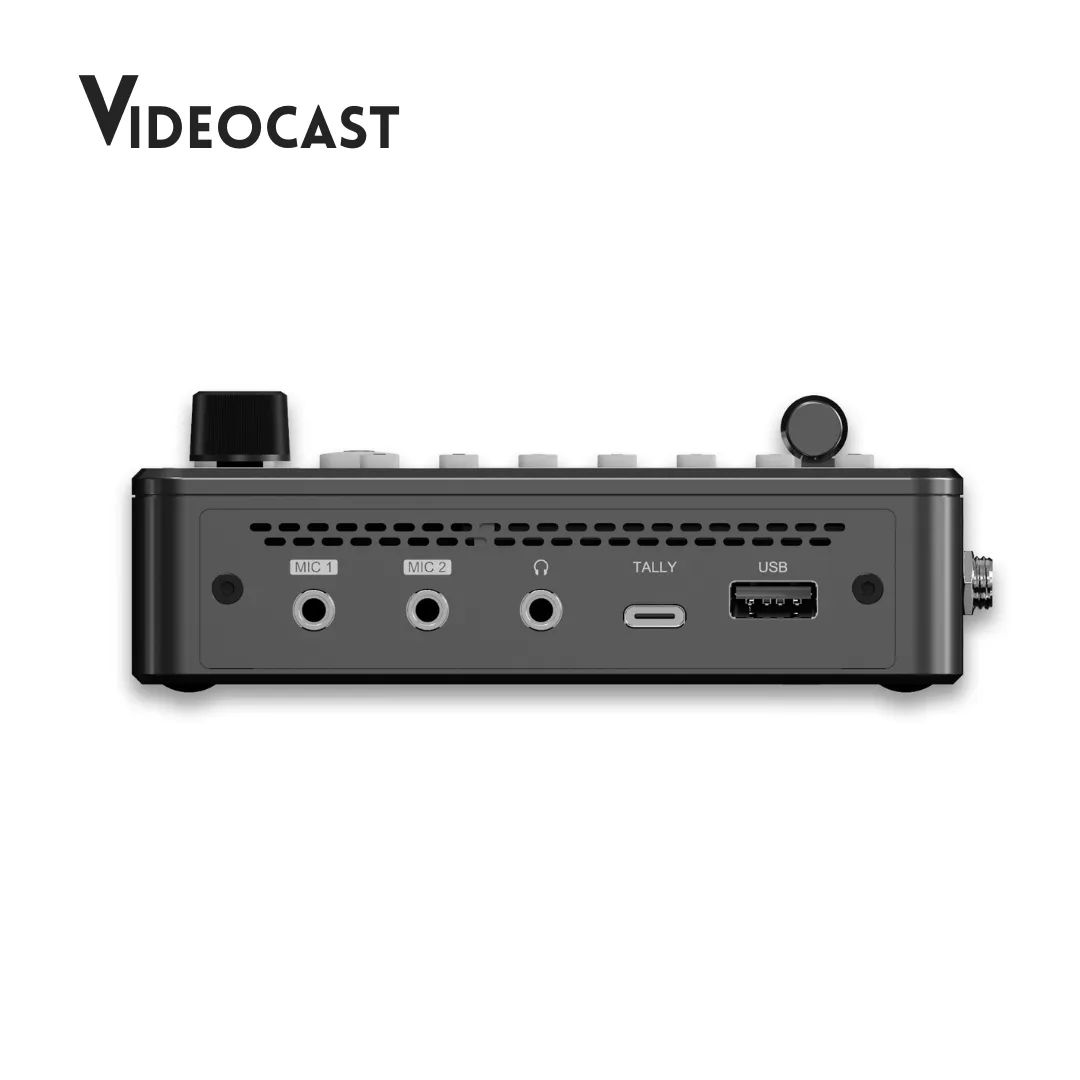

| Audio | published details: four HDMI audio channels and two 3.5 mm mic or line inputs, with level control, delay and audio-follow-video. The unit includes MIC 1, MIC 2 and a headphone jack. The specification graphic also lists one 3.5 mm line output. |

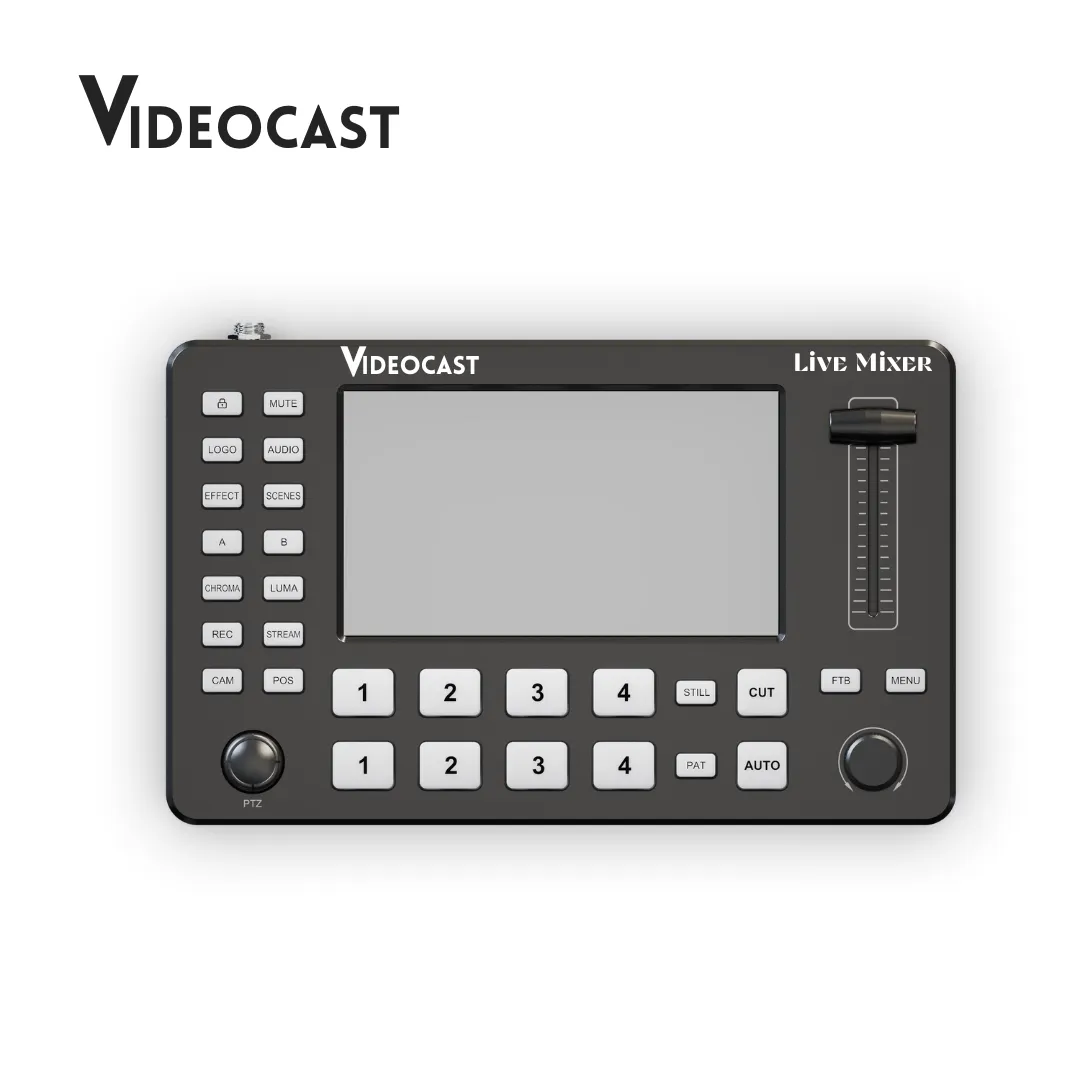

| Control | Front panel, T-bar, web browser and a phone. PTZ control is in the features. The specification graphic names VISCA over IP. The panel photo has a PTZ knob. |
| Effects | Picture-in-picture, picture-on-picture, chroma key, luma key, logo overlay and transitions. The specification graphic lists wipe, mix, dip, pattern, freeze, mute and fade to black. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is this the V1 or the Live Mixer C1?
The listing name includes V1. The introduction and FAQ call the same switcher the Live Mixer C1. The panel marks Live Mixer. We will confirm the name on the unit on your quote.
Does the V1 page say it streams without extra software?
The features say it streams directly to RTMP platforms without an extra encoder. Manufacturer guidance says streaming uses the USB output with streaming software. We will confirm the streaming path on your quote.
What resolution does the page publish?
Manufacturer guidance lists 1080p at 60 fps. A specification graphic lists more HDMI input timings, including 1080i, 720p and SD, and lists 1080p and 1080i on the program outputs.
How do I get pricing and availability for the V1?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
