Videocast 2 Channel V2 Video Switcher
Two-input HDMI video switcher from Videocast, with HDMI program and preview outputs and a USB capture output.
| Size and weight | 136×98×29 mm, 185 g |
|---|---|
| Name on the listing | The title is 2 Channel V2. The description also says 2 Way. The panel photo is printed HDMI Video Switcher For Live Stream&TV. |
| HDMI inputs | 2. The unit includes HDMI In1 and HDMI In2. |
| HDMI outputs | The features list 2 HDMI outputs: one PVW multi-view and one PGM. The title and FAQ call one of these an HDMI loop-out. The unit includes HDMI Out1 and HDMI Out2, without printing PVW, PGM or loop-out on the ports. |
| USB capture | One Type-C UVC output. The features list Type-C 3.0, YUY2 and UVC 1.0. specifications may also list YUY2 and MJPEG. The unit includes the port UVC Out. |
| Resolution | HDMI input and output 1920×1080 at 60 Hz. Manufacturer guidance also lists Full HD 1080p at 60 fps. HDCP 1.4. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

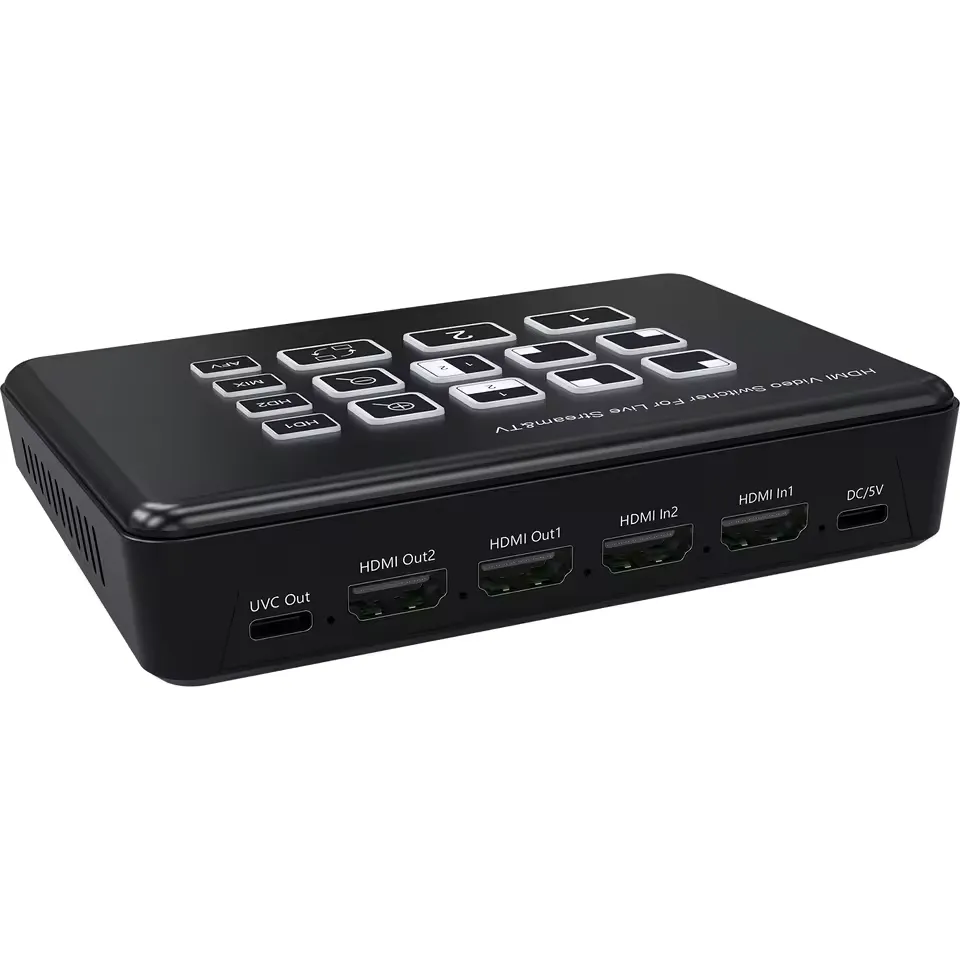

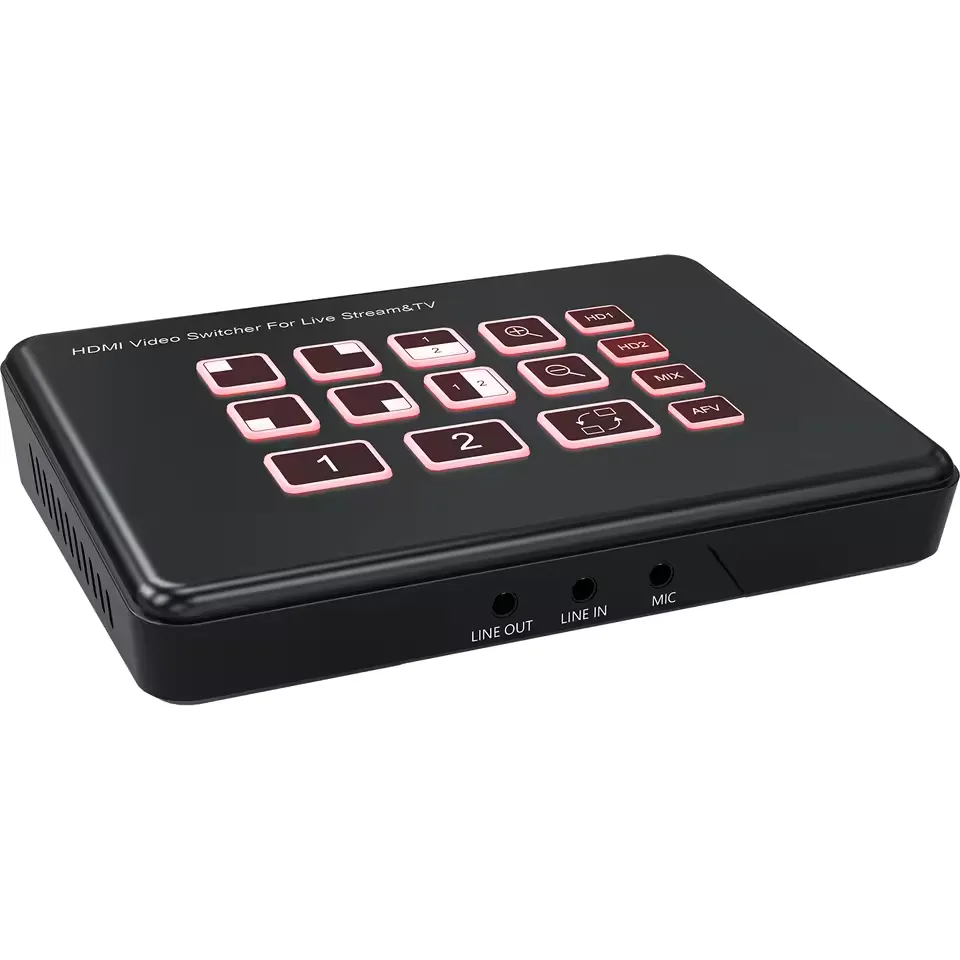

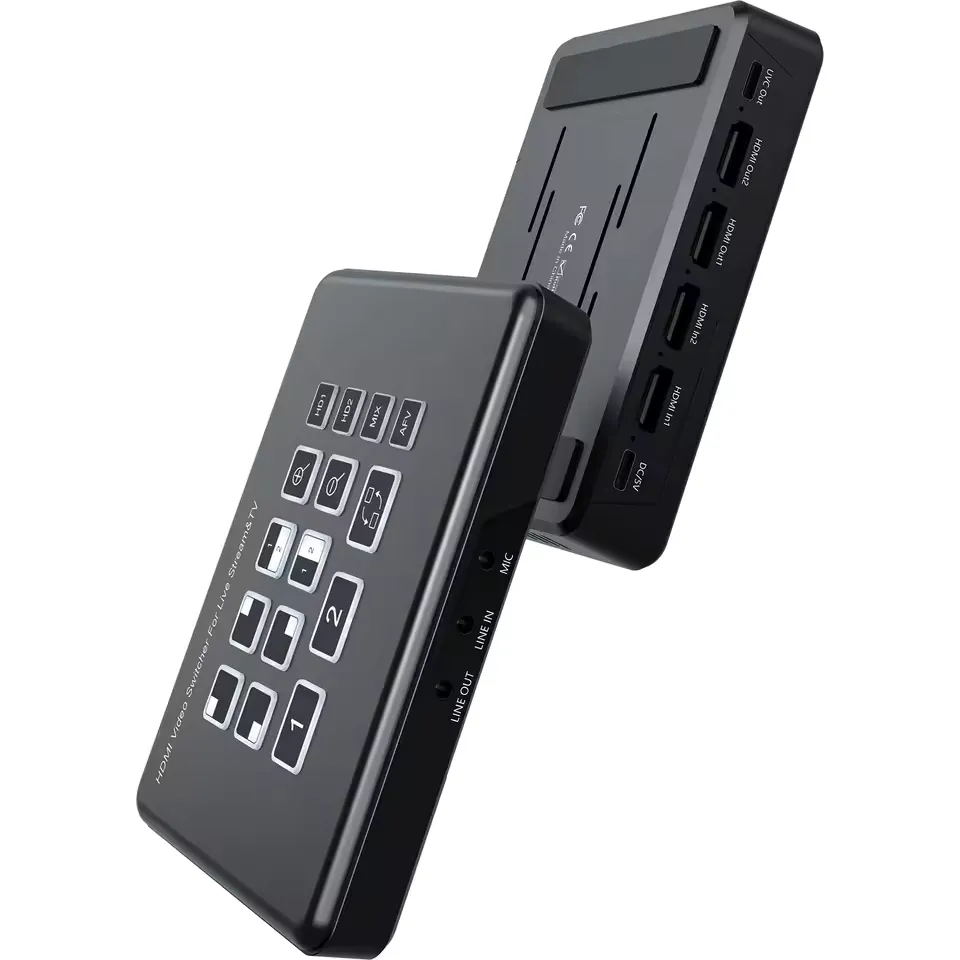

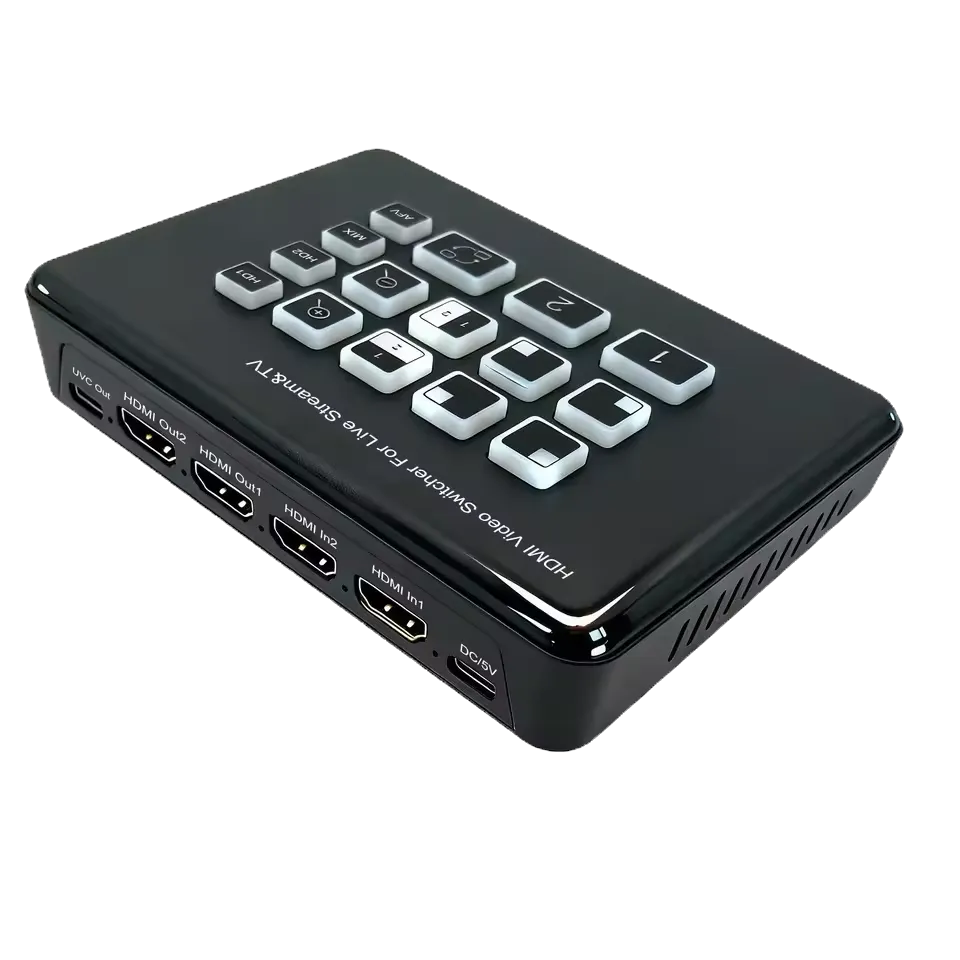

The Videocast 2 Channel V2 is a two-input HDMI video switcher. The page also calls it a 2 Way switcher, and the panel is printed HDMI Video Switcher For Live Stream&TV. The features list two HDMI inputs and two HDMI outputs, one for PVW multi-view and one for PGM, plus a Type-C UVC capture output. The unit includes the ports HDMI In1, HDMI In2, HDMI Out1, HDMI Out2, UVC Out and DC/5V, and the front jacks LINE OUT, LINE IN and MIC. Resolution is 1920×1080 at 60 Hz, with HDCP 1.4. specifications may also list a size of 136×98×29 mm and a weight of 185 g. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| USB capture | One Type-C UVC output. The features list Type-C 3.0, YUY2 and UVC 1.0. specifications may also list YUY2 and MJPEG. The unit includes the port UVC Out. |
|---|
Dimensions & power
| Power | Type-C 5V 1A adapter in the package. specifications may also list AC 100–240V, 50/60 Hz in, DC 5V 1A out, and a maximum working current of 0.8 A. The unit includes DC/5V. The unit includes a two-pin US-style plug. |
|---|---|
| Size and weight | 136×98×29 mm, 185 g |
Other details
| Name on the listing | The title is 2 Channel V2. The description also says 2 Way. The panel photo is printed HDMI Video Switcher For Live Stream&TV. |
|---|---|
| HDMI inputs | 2. The unit includes HDMI In1 and HDMI In2. |
| HDMI outputs | The features list 2 HDMI outputs: one PVW multi-view and one PGM. The title and FAQ call one of these an HDMI loop-out. The unit includes HDMI Out1 and HDMI Out2, without printing PVW, PGM or loop-out on the ports. |
| Resolution | HDMI input and output 1920×1080 at 60 Hz. Manufacturer guidance also lists Full HD 1080p at 60 fps. HDCP 1.4. |
| Layouts | Four picture-in-picture modes, with the PIP image enlarged or reduced, plus left-and-right and upper-and-lower images. The unit includes keys 1 and 2, two split layouts, and zoom icons. |
| On-screen display | Input channel, resolution and volume |
| Audio | HDMI embedded audio or external analog audio, mixed into the HDMI output or the analog port. Mix mode uses a fixed HDMI source plus Mic or LINE IN. HD audio follows PGM. specifications may also list PCM. The unit includes LINE OUT, LINE IN and MIC, and keys labelled MIX and AFV. |
| Software named on the page | The features list OBS Studio, PotPlayer and VLC. The FAQ also names Zoom and Teams, and says USB capture is plug-and-play. |
| Settings | Power-off save |
| Cable length | Input and output up to 15 m of AWG26 HDMI cable at 1080p/60 Hz |
| Bandwidth as printed | specifications may also list a maximum bandwidth of 48.GHz and a maximum transmission rate of 1.65 x3Gbps. |
| Temperature | 0°C to 45°C |
| Package | The written list names the switcher, a Type-C to USB 3.2 Gen1 cable, a Type-C 5V 1A adapter and a user manual. The unit includes an HDMI cable and a USB-A lead. |
| Keys on the product imagery | 1, 2, split-screen icons, zoom icons, a swap icon, HD1, HD2, MIX and AFV. The features describe colour backlit keys. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
How many outputs does The manufacturer listing list?
The features list two HDMI outputs, one for PVW multi-view and one for PGM, plus a Type-C UVC capture output. The title and FAQ describe a USB output and an HDMI loop-out. The unit includes HDMI Out1, HDMI Out2 and UVC Out.
Which USB video formats are printed?
The features list YUY2 and UVC 1.0 on the Type-C 3.0 port. specifications may also list YUY2 and MJPEG. We will confirm the format your software needs on your quote.
What comes in the package?
The written list names the switcher, a Type-C to USB 3.2 Gen1 cable, a Type-C 5V 1A adapter and a user manual. The unit includes an HDMI cable, a USB-A lead and a two-pin US-style plug. We will confirm the plug and cables for your site on your quote.
How do I get pricing and availability for the 2 Channel V2?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
