Videocast · Video switchers
Videocast Mini HD HDMI Mixer
Mini HD HDMI multi-camera video mixer switcher from Videocast. Manufacturer guidance lists up to four HDMI cameras. Distinct from the 2 Channel V2, V5 and V1 switchers and from the HDMI quad multiviewers.
| Name on the listing | VIDEOCAST Mini HD HDMI Multi-Camera Video Mixer Switcher |
|---|---|
| Inputs | Intro and FAQ: up to four HDMI cameras or video sources. Tech specs: multiple HDMI sources. Graphics: four HDMI video signal inputs. |
| Outputs | Tech specs: 1 × HDMI. product information: HDMI PVW, HDMI PGM and TYPE-C OUT for video capture. We will confirm the I/O on your quote. |
| Resolution | Tech specs and FAQ: up to 1080P Full HD. |
| Audio | Tech specs: HDMI embedded audio. Control graphics also show MIC1, MIC2 and AUDIO controls, and a connection graphic shows microphone and analog audio jacks. |

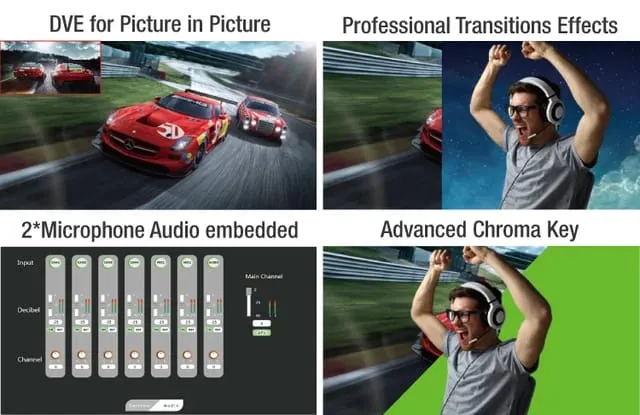

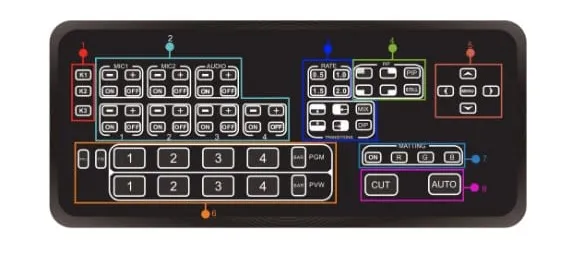

| Controls on product information | PGM and PVW selection for inputs 1–4, CUT and AUTO, PIP layouts, transition effects, RGB matting and a menu pad. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

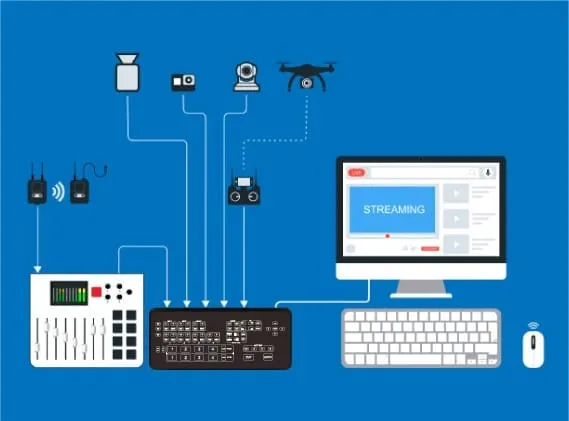

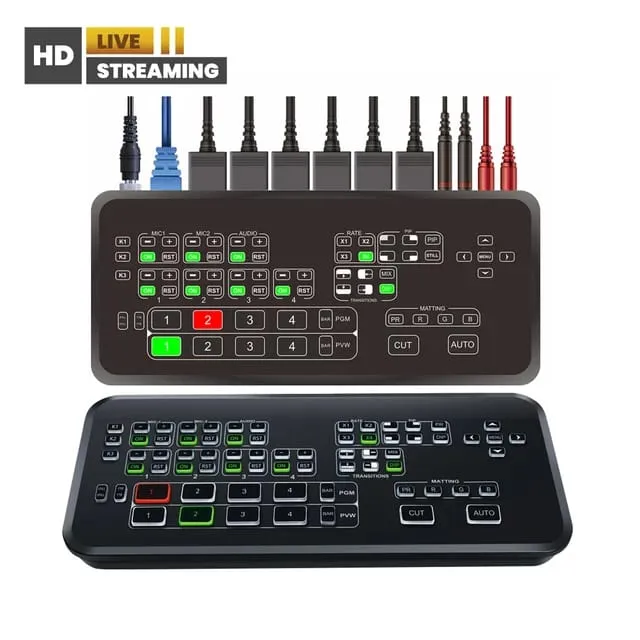

The Videocast Mini HD HDMI Mixer is listed as the Mini HD HDMI Multi-Camera Video Mixer Switcher. The intro and FAQ say you can connect up to four cameras or HDMI sources. published specifications are multiple HDMI sources, 1 × HDMI video output, maximum resolution up to 1080P Full HD, HDMI embedded audio, real-time source switching, a physical control panel, plug-and-play operation, DC 12V power and colour black. Key Features also name Full HD 1080P video output, ultra-low latency, and embedded HDMI audio. Official connection graphics show four HDMI inputs, an HDMI PVW output, an HDMI PGM output, a TYPE-C OUT labelled for video capture to a laptop, microphone and analog audio jacks, an RJ45 control port and DC 12V. The tech table line of 1 × HDMI output conflicts with the graphics that show separate PVW and PGM HDMI outs plus USB-C capture. Control-panel graphics show PGM and PVW rows for inputs 1–4, CUT and AUTO, PIP layouts, transitions, MIC1 and MIC2 audio controls and RGB matting. This is a different model from the 2 Channel V2, not the V5, not the V1 or Live Mixer C1, and not the 4K or HD HDMI Quad Multiviewers. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Dimensions & power
| Power | DC 12V |
|---|
Other details
| Name on the listing | VIDEOCAST Mini HD HDMI Multi-Camera Video Mixer Switcher |
|---|---|
| Inputs | Intro and FAQ: up to four HDMI cameras or video sources. Tech specs: multiple HDMI sources. Graphics: four HDMI video signal inputs. |
| Outputs | Tech specs: 1 × HDMI. product information: HDMI PVW, HDMI PGM and TYPE-C OUT for video capture. We will confirm the I/O on your quote. |
| Resolution | Tech specs and FAQ: up to 1080P Full HD. |
| Audio | Tech specs: HDMI embedded audio. Control graphics also show MIC1, MIC2 and AUDIO controls, and a connection graphic shows microphone and analog audio jacks. |
| Controls on product information | PGM and PVW selection for inputs 1–4, CUT and AUTO, PIP layouts, transition effects, RGB matting and a menu pad. |
| Colour | Black |
| Distinct from | Not the 2 Channel V2, not the V5, not the V1 or Live Mixer C1, and not the 4K or HD HDMI Quad Multiviewers. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
How many HDMI inputs does it have?
The intro and FAQ say up to four HDMI cameras or video sources. product information shows four HDMI inputs.
How many HDMI outputs does the page publish?
The tech specs say 1 × HDMI. product information shows separate HDMI PVW and HDMI PGM outputs, plus a TYPE-C capture output. We will confirm the I/O on your quote.
Is this the same as the V1 or the HDMI Quad Multiviewer?
No. This listing is the Mini HD HDMI Multi-Camera Video Mixer Switcher. The V1, V5, 2 Channel V2 and the HDMI Quad Multiviewers are different India pages.
How do I get pricing and availability for this mixer?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
