Barco · Room systems

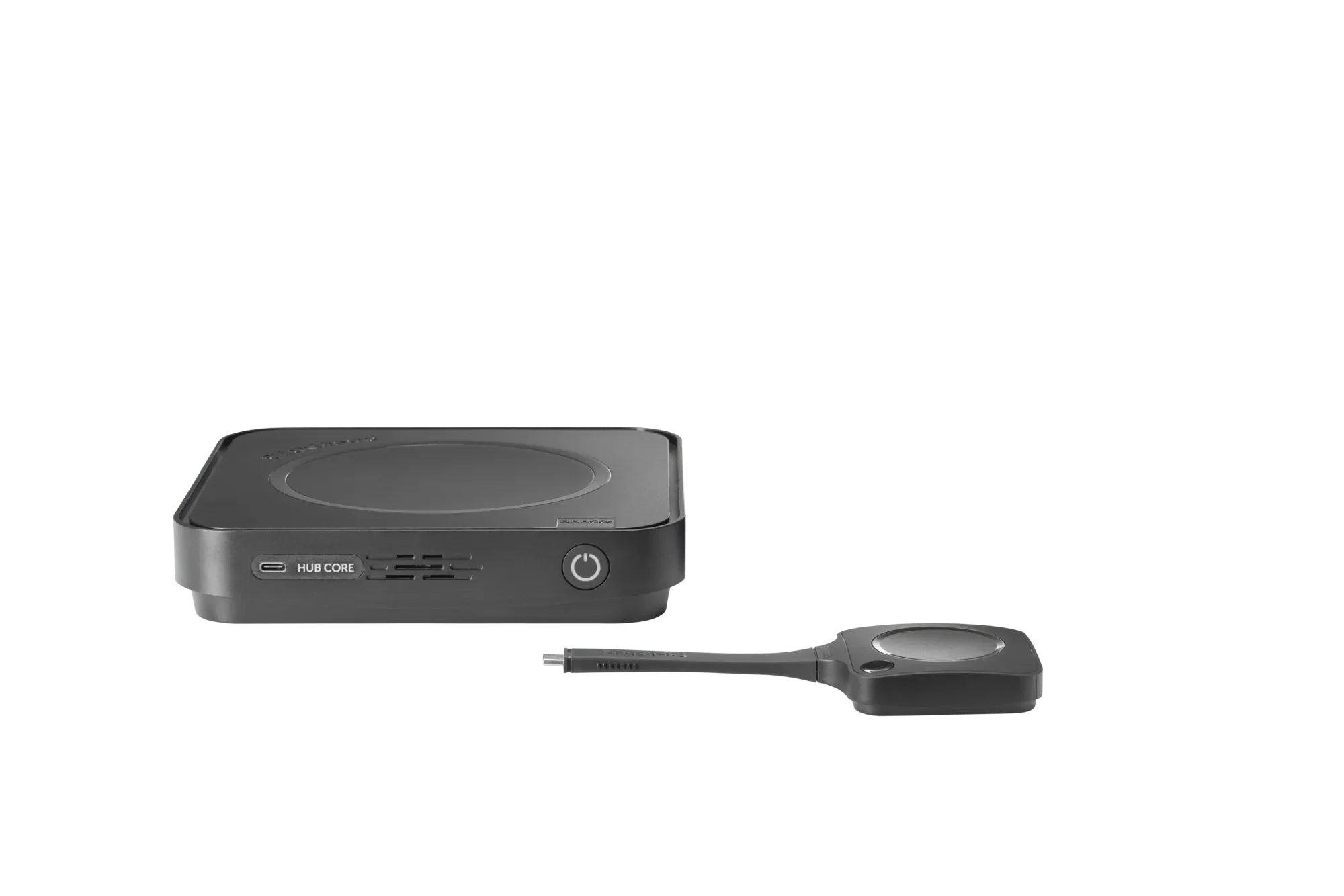

ClickShare Hub Core
Modular ClickShare room system for small meeting spaces, with one display and one next-gen Button.
| Weight | 720 g |
|---|---|
| Operating system | Android (Microsoft Device Ecosystem Platform) |
| Microsoft Teams Rooms licence | Required |
| Displays | Single display. HDMI: 5120×2160 at 30 Hz. |
| Video input | 4K UHD (3840×2160) at 30 Hz, HDMI 2.0 |

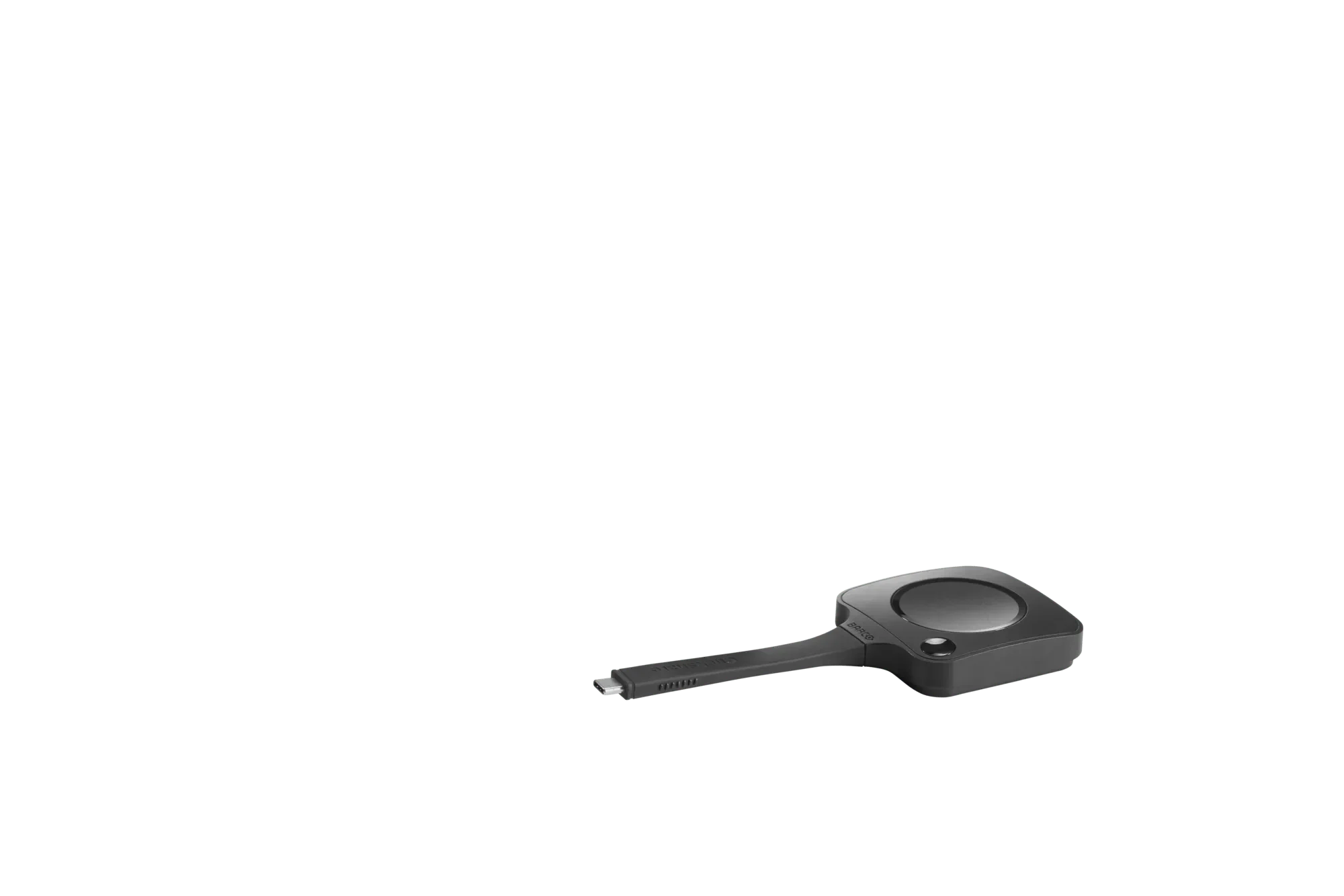

| ClickShare Buttons | 1 × ClickShare Button, 5th generation (Wi-Fi 6E, USB-C DisplayPort) |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
Check the fit before you choose
ClickShare Hub Core is a modular wireless video conferencing system for hybrid meetings. It shares 4K content from one next-gen ClickShare Button and can run other meeting platforms from a Microsoft Teams Room. It is built on the Microsoft Device Ecosystem Platform (MDEP) and is certified for Microsoft Teams when bundled with specific AV devices. The ClickShare Control Panel, power cable and power cord are not included in this package.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
Equipping more than one room with ClickShare? Post the rollout as a requirement. Meeting rooms →
Hardware and licensing, clearly scoped.
Product
The model, quantity and what is included.
Subscription

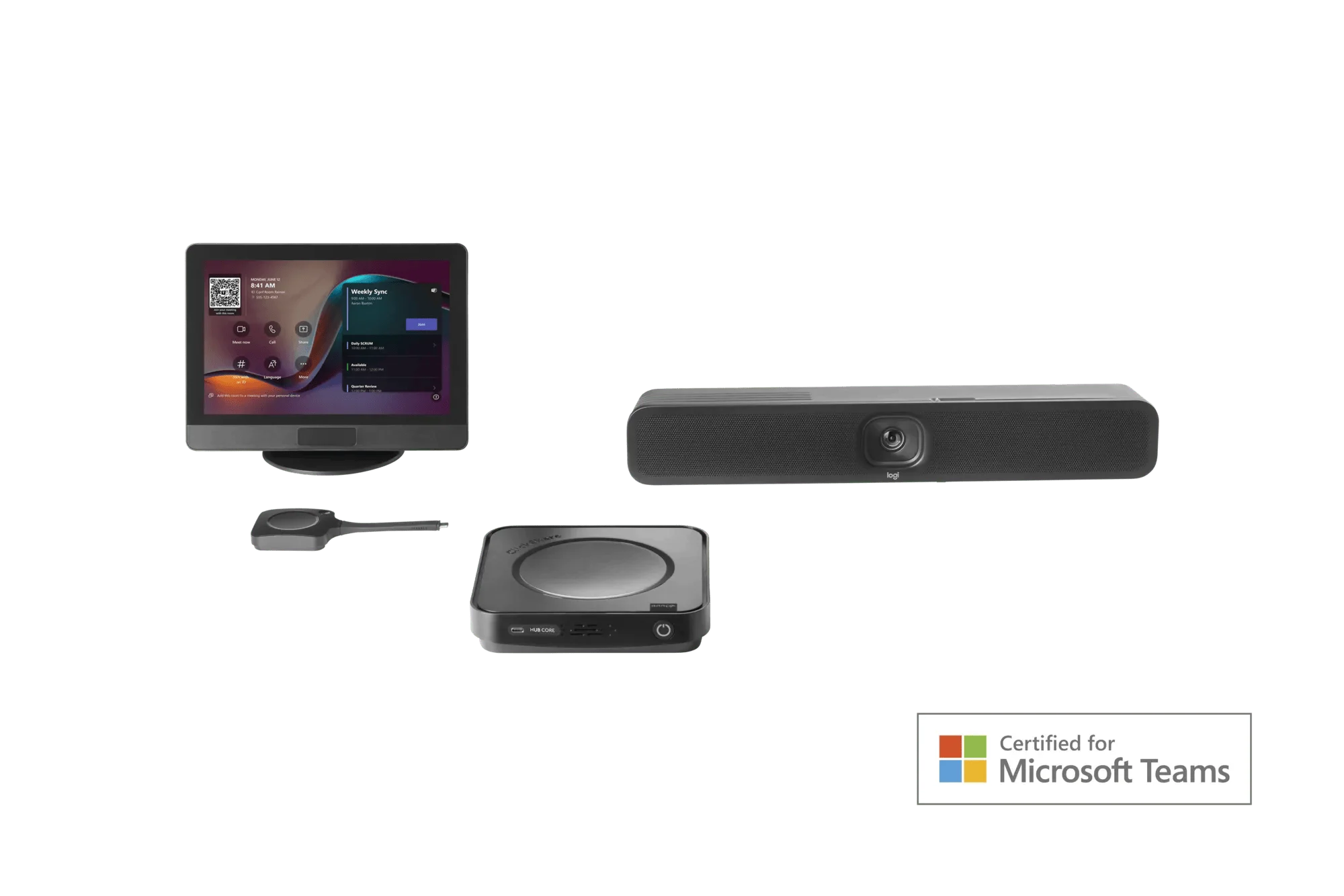

Barco lists a Microsoft Teams Rooms licence as required. The room is certified for Microsoft Teams when Hub Core is bundled with specific AV devices.
Price, tax and any term are confirmed on the quote.
Deployment & support
3-year standard manufacturer warranty. Usually ships in 5-7 business days · confirmed on your quote
Technical specifications
Published specifications for this model.
Performance & capacity

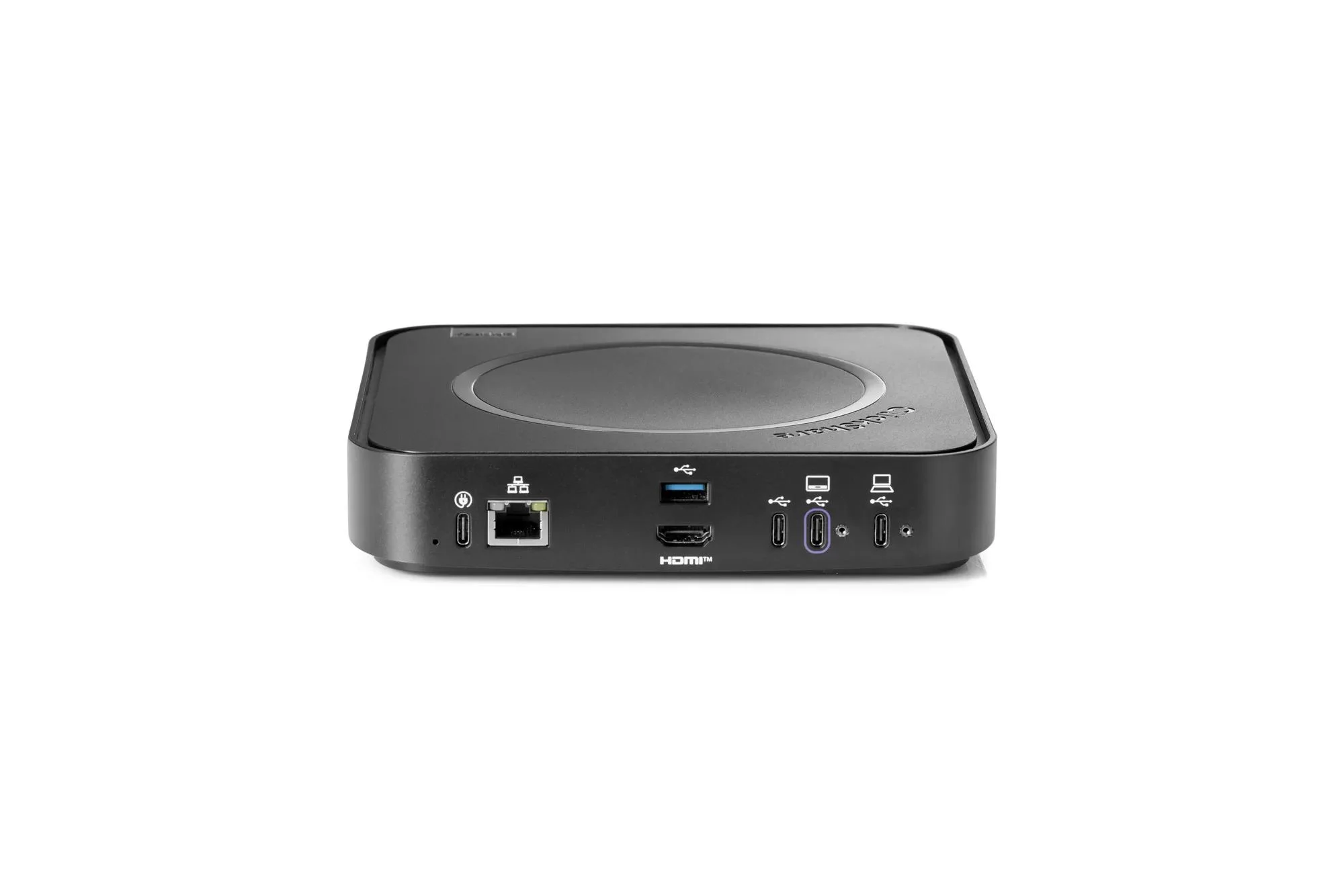

| Connections | Back: 1× USB-C power (PD 3.1 EPR), 1× HDMI 2.0 out, 1× USB-A 2.0/3.0, 1× USB-C 2.0/3.0, 1× USB-C device with DisplayPort out, 1× USB-C with DisplayPort out. Front: 1× USB-C 2.0/3.0. |
|---|
Interfaces & connectivity
| Wireless | IEEE 802.11 a/b/g/n/ac/ax/be and Bluetooth 5.3. 2.4, 5 and 6 GHz. |
|---|
Dimensions & power
| Power | Up to 140 W in use. Standby under 7 W (ECO) or under 0.5 W (deep sleep). External USB-C supply, 100 W (PD 3.0) or 180 W (PD 3.1). |
|---|---|
| Dimensions | 37 × 180 × 180 mm (H × W × D) |
| Weight | 720 g |
Other details
| Operating system | Android (Microsoft Device Ecosystem Platform) |
|---|---|
| Microsoft Teams Rooms licence | Required |
| Displays | Single display. HDMI: 5120×2160 at 30 Hz. |
| Video input | 4K UHD (3840×2160) at 30 Hz, HDMI 2.0 |
| ClickShare Buttons | 1 × ClickShare Button, 5th generation (Wi-Fi 6E, USB-C DisplayPort) |
| Sources on screen | 1 |
| Range | Up to 30 m (100 ft) between Button and base unit |
| ClickShare App | Desktop. Minimum: Intel Core i3 or AMD Ryzen 5, 8 GB RAM, Windows 10 20H2, or Intel Core i3 or Apple M1, 8 GB RAM, macOS 11. Recommended: Intel Core i5 or Ultra 5 or AMD Ryzen 7, 8 GB RAM, Windows 11, or Apple M3, 8 GB RAM, current macOS. |
| Network | 1× Ethernet LAN, 1 Gbit |
| Audio output | USB-A 2.0/3.0, USB-C 2.0/3.0, HDMI 2.0 |
| Management | XMS Cloud |
| Noise | Max 25 dBA below 30°C; max 30 dBA above 30°C |
| Operating conditions | 0°C to 40°C (max 35°C at 3,000 m). Humidity 0–85% non-condensing. |
| Security | Kensington lock. FCC/CE. |
| In the box | Hub Core base unit, 1 ClickShare Hub Button (5th gen), mounting disc, safety manual, quick setup guide |
| Not included | ClickShare Control Panel, power cable and power cord |
| Warranty | 3 years standard |
Warranty & support
3-year standard manufacturer warranty.
Delivery & fulfilment
Usually ships in 5-7 business days · confirmed on your quote Delivery charges, when they apply, are on the quote.
Downloads
Frequently asked questions
Is the ClickShare Control Panel in the box?

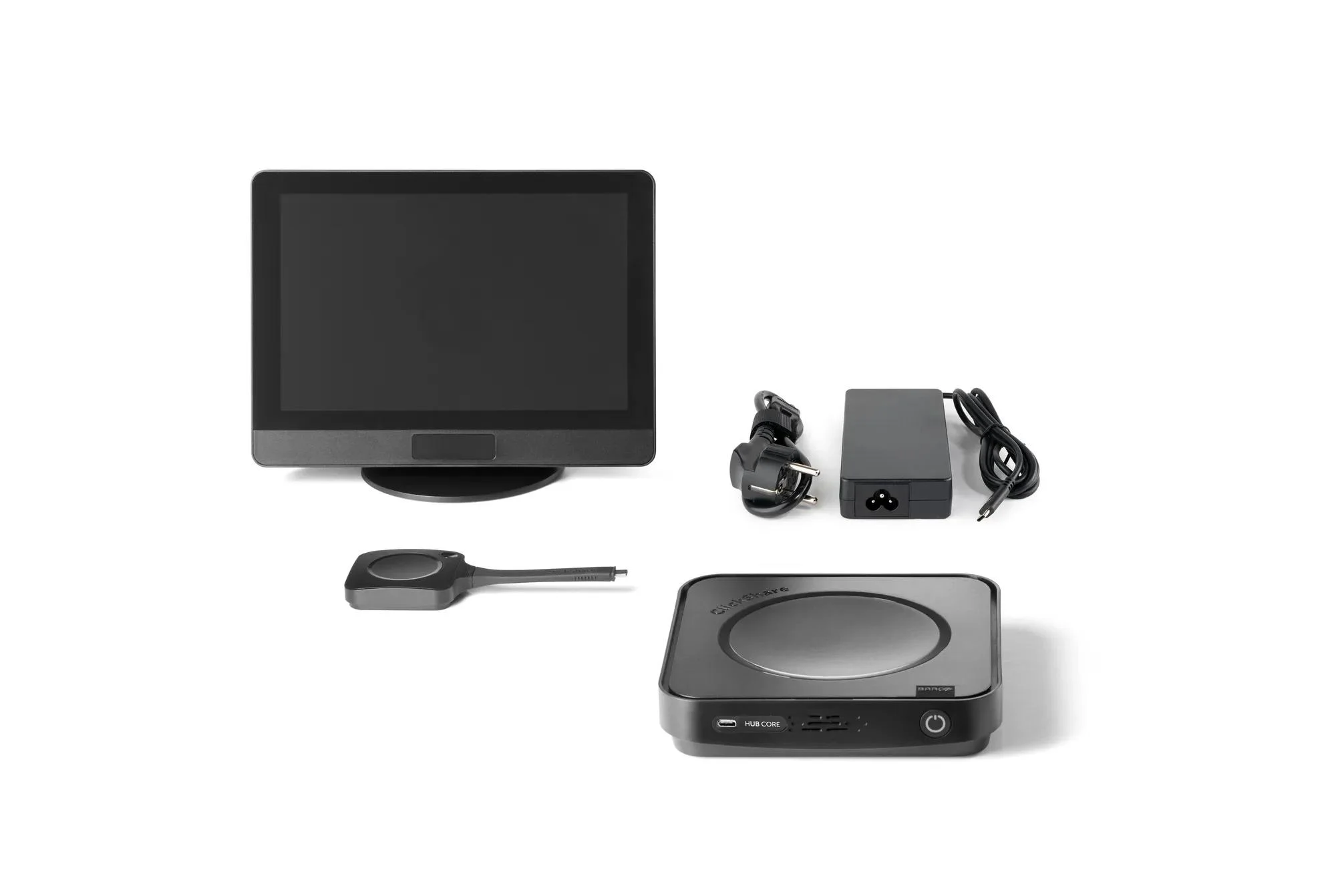

No. Barco states that the Control Panel, power cable and power cord are not included in this package. The box has the Hub Core base unit, one 5th-generation Button, a mounting disc and the setup guides. The Control Panel, tray and power supply are included with the Hub Core and Control Panel Kit.
How is Hub Core different from Hub Pro?
Hub Core is for small meeting rooms: one display and one ClickShare Button. Hub Pro adds a second display and a second Button.
Does Hub Core need a Microsoft Teams Rooms licence?
Yes. Barco lists a Microsoft Teams Rooms licence as required. It is certified for Microsoft Teams when bundled with specific AV devices, and it can also run other meeting platforms from the room.
