Barco · Video bars

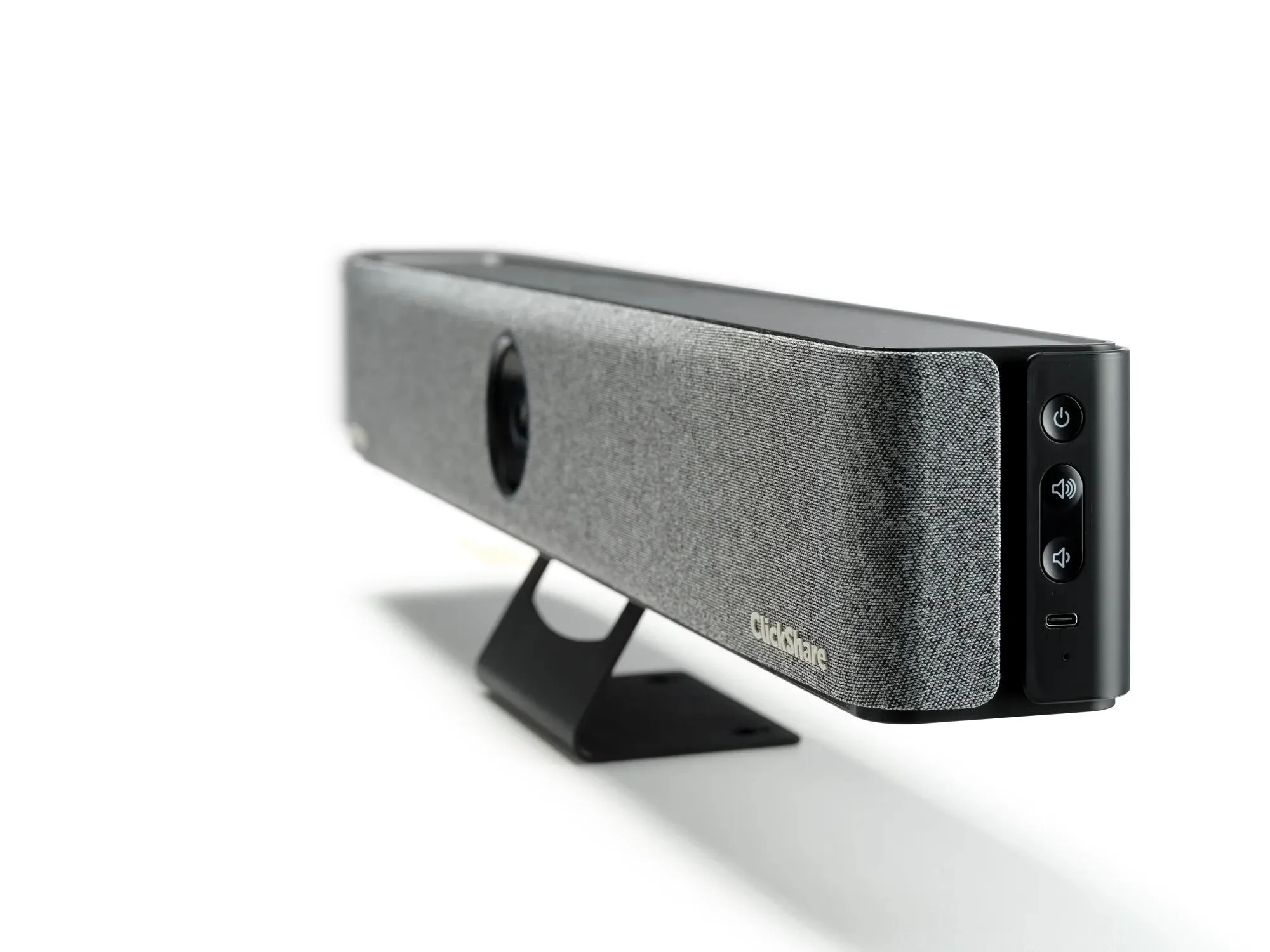

ClickShare Bar Pro

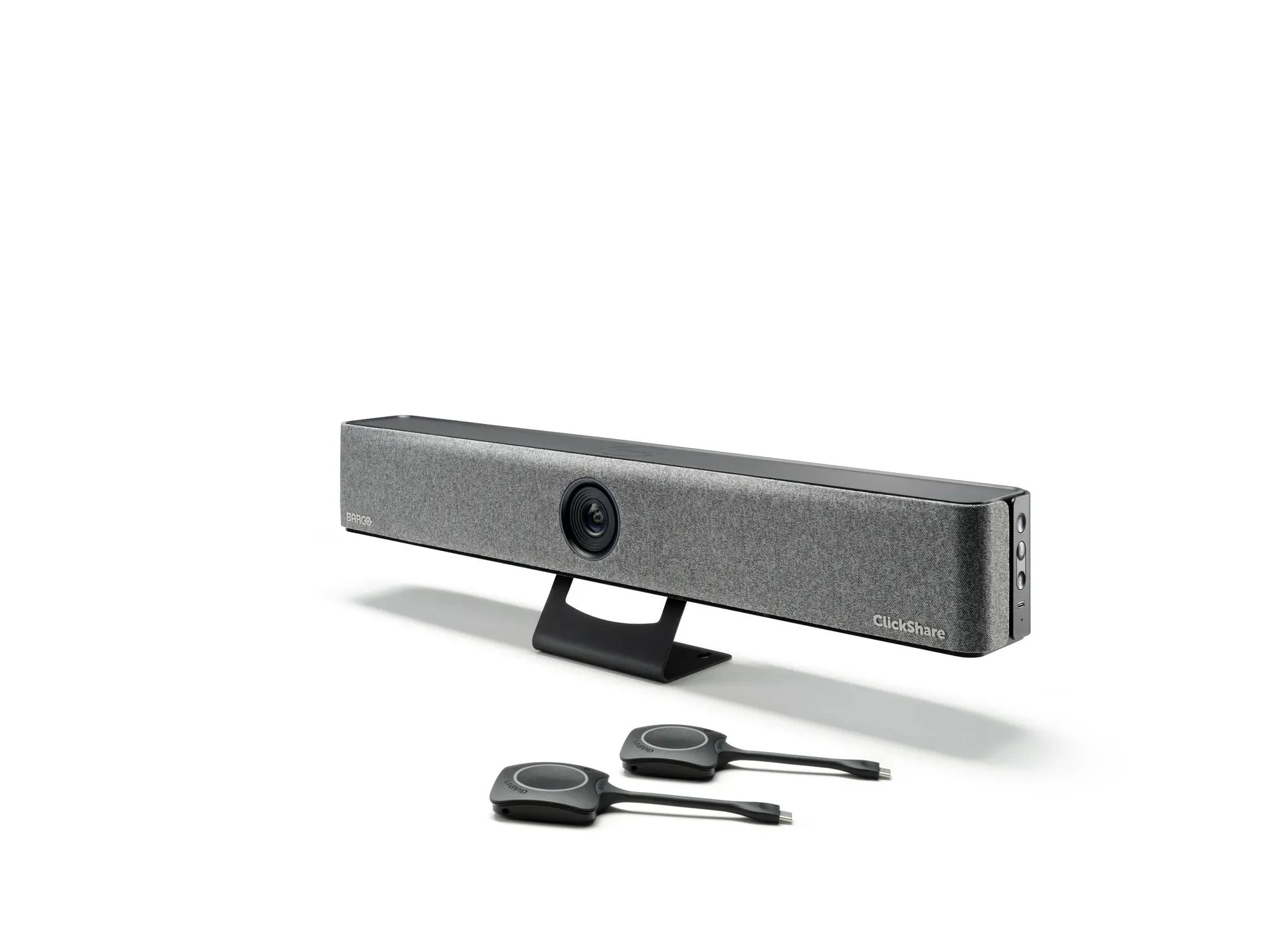

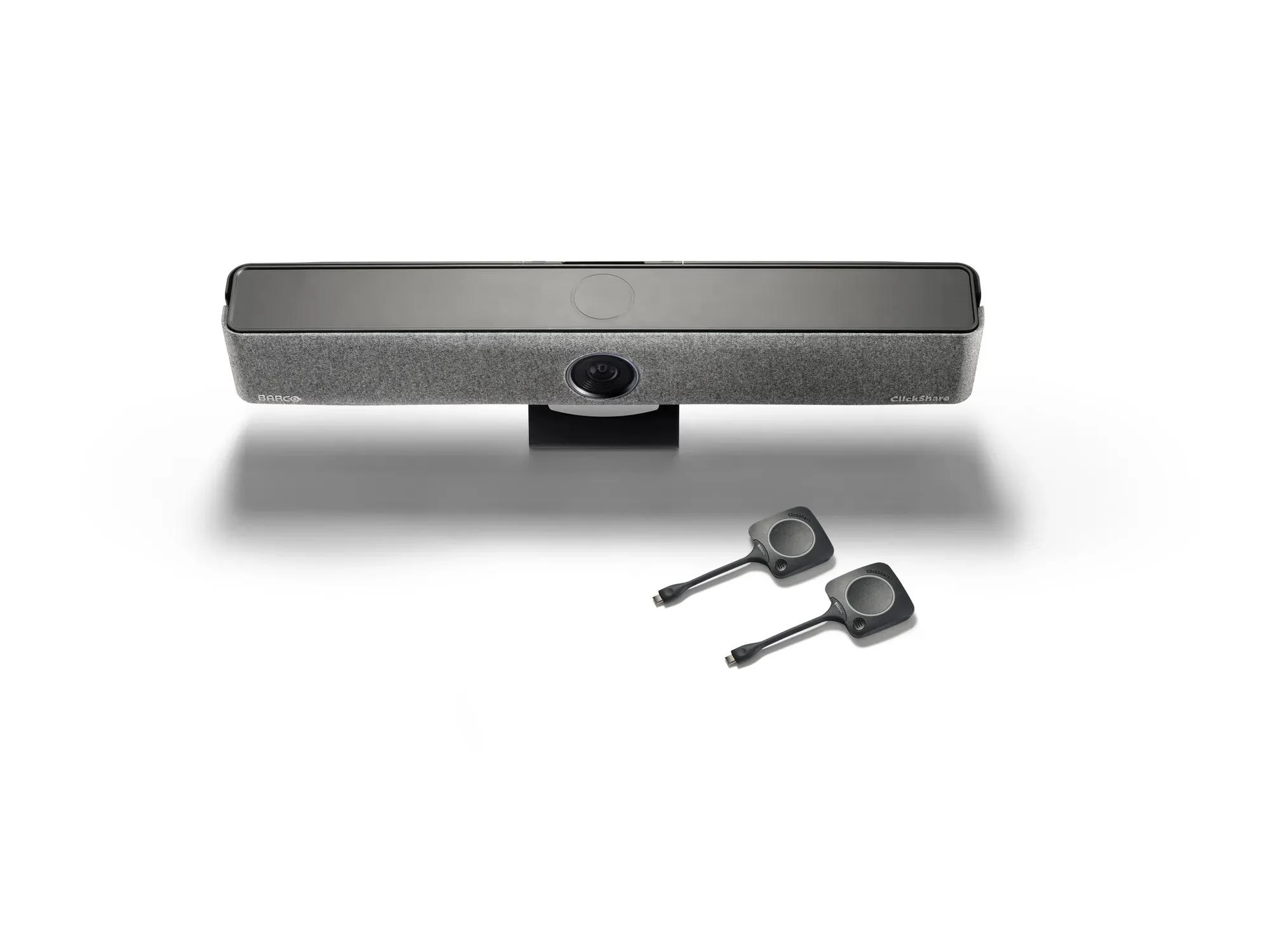

All-in-one ClickShare video bar for small rooms, with a 4K camera, two Buttons and dual-screen support.
| Weight | 2.5 kg |
|---|---|
| Meeting room | Small rooms and huddle spaces |
| Video output | 4K UHD (3840×2160) at 30 Hz, or two 1080p screens at 30 Hz. HDMI 1.4b or USB-C DisplayPort 1.2. |
| Video input | 4K UHD (3840×2160) at 30 Hz, USB-C DisplayPort 1.2 |

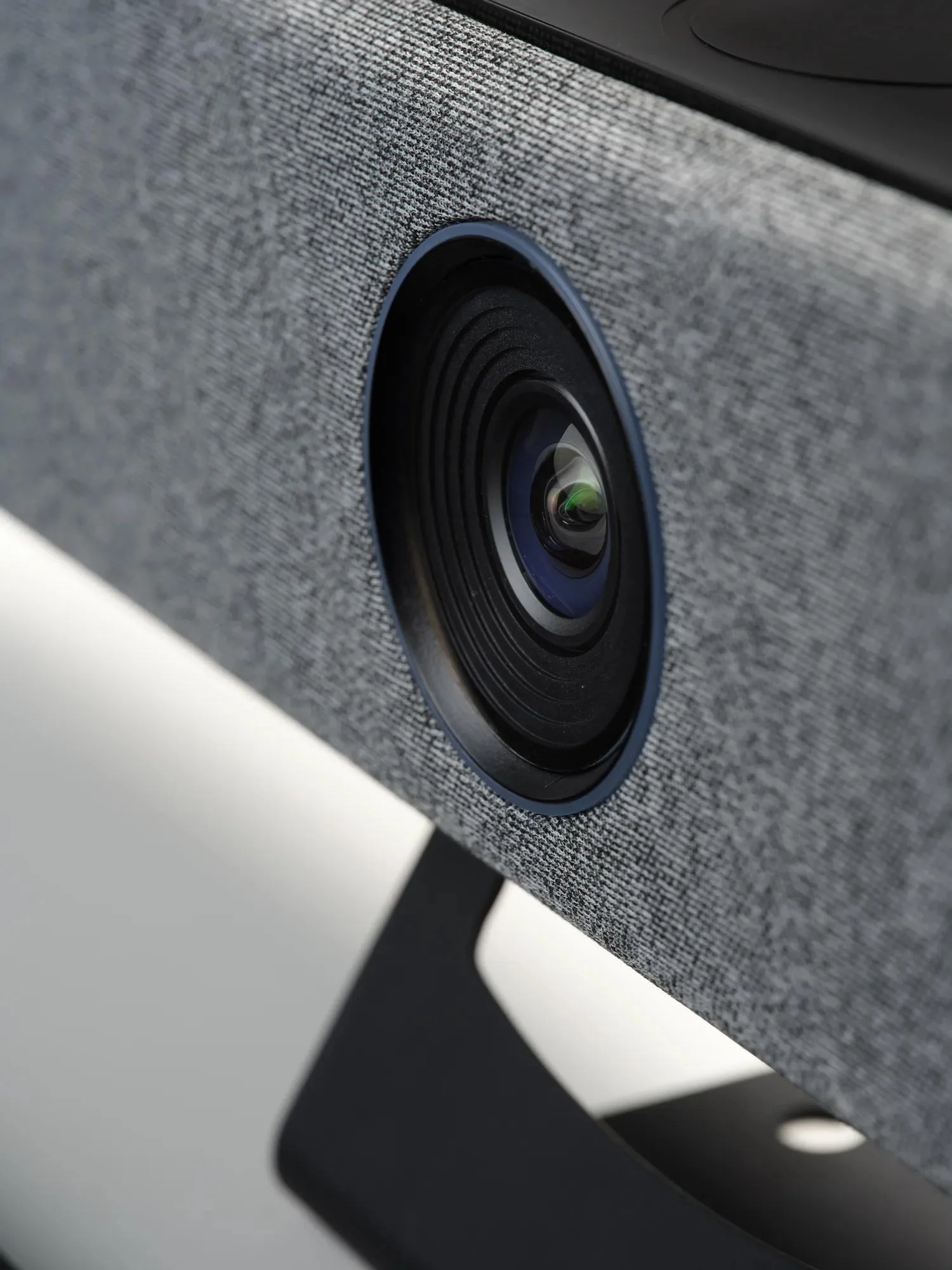

| Camera | 4K, 1080p or 720p at 30 fps. 3× zoom. 120° field of view. |
| Camera framing | Group framing, speaker framing and tracking, and a composition view for up to 4 people |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
Check the fit before you choose
ClickShare Bar Pro is an all-in-one video bar for small meeting rooms and huddle spaces. It combines a 4K camera, stereo speakers and beamforming microphones, and it works with the meeting platform on the laptop. Two people can share at once. The display output is 4K, or two 1080p screens, with touchback, annotation and blackboarding.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
Equipping more than one room with ClickShare? Post the rollout as a requirement. Meeting rooms →
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
1-year standard manufacturer warranty. Barco lists 5 years of coverage after the unit is registered with SmartCare. Usually ships in 5-7 business days · confirmed on your quote
Technical specifications
Published specifications for this model.
Performance & capacity
| Connections | 1× USB-C 3.1 DisplayPort to the screen, 1× USB-C 3.1 DisplayPort video input, 1× USB-A 2.0, 1× USB-C 2.0 on the side. |
|---|
Interfaces & connectivity
| Wireless conferencing | Via the ClickShare App or Button |
|---|---|
| Wireless | IEEE 802.11 a/g/n/ac and Bluetooth. 2.4 GHz and 5 GHz. |
Dimensions & power
| Power | 5–20 W in typical use, 65 W maximum. Mains power, or USB-C at the back. |
|---|---|
| Dimensions | 98 × 640 × 101 mm (H × W × D) |
| Weight | 2.5 kg |
Other details
| Meeting room | Small rooms and huddle spaces |
|---|---|
| Video output | 4K UHD (3840×2160) at 30 Hz, or two 1080p screens at 30 Hz. HDMI 1.4b or USB-C DisplayPort 1.2. |
| Video input | 4K UHD (3840×2160) at 30 Hz, USB-C DisplayPort 1.2 |
| Camera | 4K, 1080p or 720p at 30 fps. 3× zoom. 120° field of view. |
| Camera framing | Group framing, speaker framing and tracking, and a composition view for up to 4 people |
| Speakers | 2 × 10 W, full duplex, stereo |
| Microphones | 6 beamforming MEMS microphones, with echo and noise cancellation. Pickup to about 4 m. |
| ClickShare Buttons | 2 |
| ClickShare App | Desktop and mobile |
| Sources on screen | 2 |
| Interactivity | Touchback, annotation and blackboarding |
| Native sharing | AirPlay, Google Cast, Miracast |
| Laptop requirements | Windows 10 and later, or macOS 11 and later. ClickShare App: Android 13 and later, or iOS 16 and later. For Teams or Zoom, Barco lists 8 GB RAM. Minimum: Intel Core i3 or AMD Ryzen 7, Windows 10 or macOS Mojave. Recommended: Intel Core i5 or AMD Ryzen 9, Windows 11 or current macOS. |
| Range | Up to 30 m (100 ft) between Button and bar |
| Network | LAN and Wi-Fi. 1× Ethernet, 1 Gbit. |
| Noise | Fanless |
| Operating conditions | 0°C to 40°C (max 35°C at 3,000 m). Humidity 0–85% non-condensing. |
| Security | Kensington lock on the back and the bottom. WPA2-PSK. FCC/CE. |
| Management | Yes, including XMS Cloud |
| Eco label | Barco A++ |
| Warranty | 1 year standard. 5 years of coverage after SmartCare registration. |
Warranty & support
1-year standard manufacturer warranty. Barco lists 5 years of coverage after the unit is registered with SmartCare.
Delivery & fulfilment
Usually ships in 5-7 business days · confirmed on your quote Delivery charges, when they apply, are on the quote.
Downloads
Frequently asked questions
Does the meeting run on the bar?
The laptop runs the video meeting. Bar Pro is the room camera, speakers, microphones and wireless display, and it works with the platform the laptop is using.
Can it drive two screens?
Yes. Barco lists one 4K output at 30 Hz, or two 1080p outputs at 30 Hz.
