Videocast · Video capture
Videocast 2 Channel HDMI USB Capture
Two-input HDMI USB capture box from Videocast. Published specifications list dual HDMI inputs, HDMI loop-out, USB 3.0 capture up to 1080p60, and mixing features. Distinct from the single-input capture listings and from the 2 Channel V2 switcher.
| Name on the listing | VIDEOCAST 2 Channel HDMI USB 3.0 Video Capture Card Device. The page also says Loop Out Mixer. |
|---|---|
| Video inputs | Published specifications: 2× HDMI inputs. Photos: HD IN 1 and HD IN 2. |
| HDMI loop-out | Published specifications: 2× HDMI loop-out outputs. Photos and a connection graphic show one HD OUT labelled HDMI LOOP OUT. We will confirm the loop-out count on your quote. |
| Capture | Published specifications: up to 1080p at 60 fps over USB 3.0. Formats: MJPEG / YUY2. Intro: two 4K HDMI inputs simultaneously. Manufacturer guidance: up to 4K HDMI input and Full HD 1080p60 capture. |
| USB | Published specifications: USB 3.0. Photos and a graphic label TYPE-C. |
| Audio | Published specifications: HDMI embedded audio. The unit includes MIC, OUT and IN 3.5 mm jacks. |
Request business pricing
Your quote confirms the model, quantity and total cost. No account is needed.
WhatsApp about this model · No account needed to enquire.
About this model

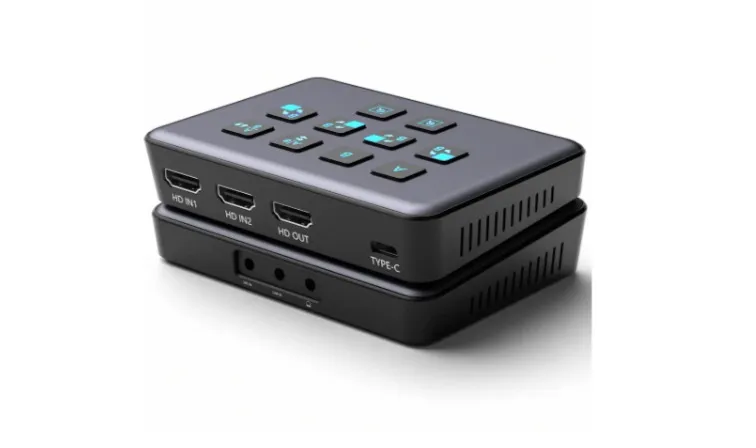

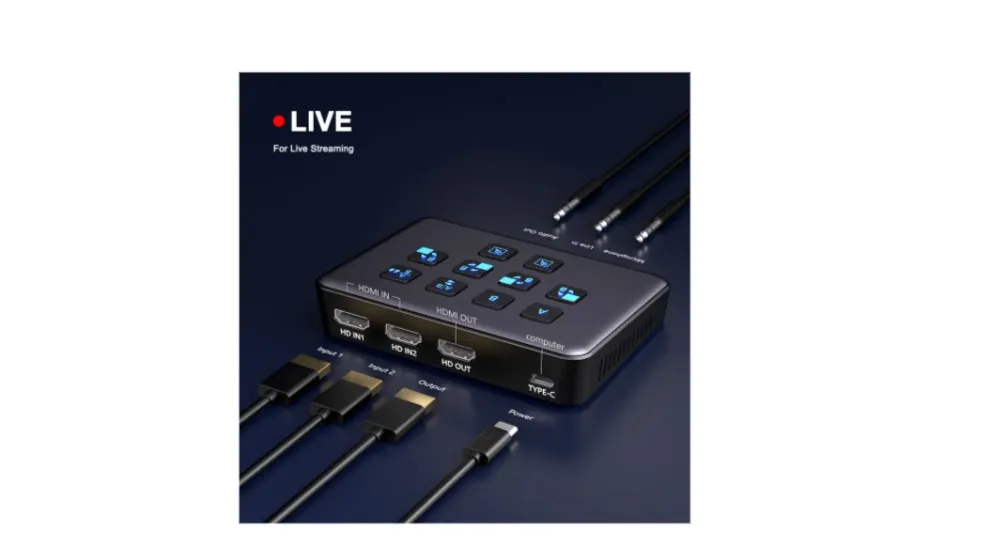

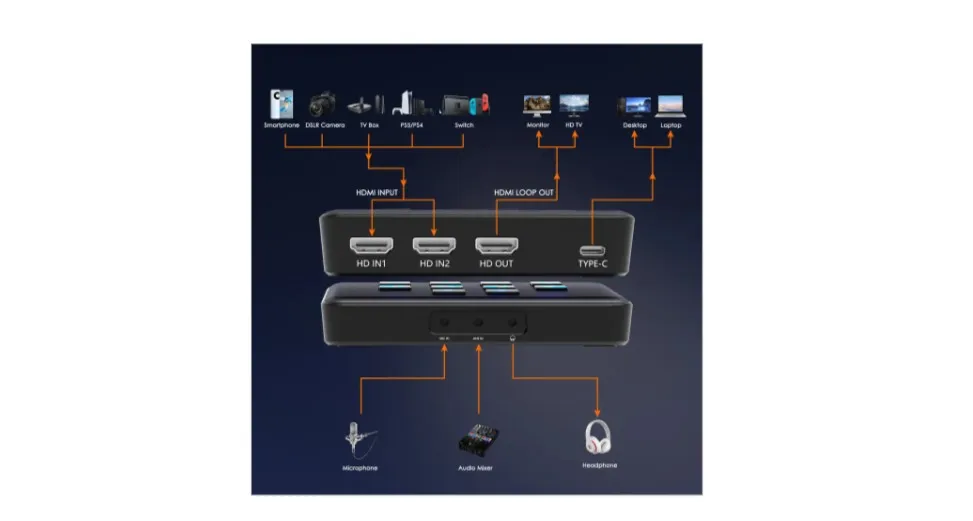

The Videocast 2 Channel HDMI USB Capture is listed as the 2 Channel HDMI USB 3.0 Video Capture Card Device. The page also calls it a Loop Out Mixer. published specifications are 2× HDMI inputs, 2× HDMI loop-out outputs, capture resolution up to 1080p at 60 fps, USB 3.0, MJPEG and YUY2, HDMI embedded audio, and Windows, macOS and Linux. Performance text says Full HD 1080p60 capture, synchronised audio and video, plug and play with no driver required, and names OBS Studio, XSplit, VLC, vMix, Zoom and Teams. Video mixing features name dual HDMI source switching, picture-in-picture, built-in transition effects and real-time HDMI loop-out monitoring. Power is listed as USB powered. Colour is black. The intro says the device can capture two 4K HDMI input video signals simultaneously. Manufacturer guidance says it supports up to 4K HDMI input and captures at Full HD 1080p60. The unit includes a compact black box with top layout buttons, HD IN 1, HD IN 2, one HD OUT, a TYPE-C port, and three 3.5 mm jacks labelled MIC, OUT and IN. A connection graphic labels TYPE-C to a PC or laptop and HDMI LOOP OUT to a monitor or TV. Published specifications line of 2× HDMI loop-out outputs conflicts with the photos and graphic, which show one HD OUT. This is a different model from the HDMI HD capture dongle, not the 4K 60Hz HDMI Video Capture dongle, not the single-input HDMI Video Capture With Loop box, and not the 2 Channel V2 video switcher. Share your use case and quantity for a GST quote with availability and delivery timing.
The job
Who uses it, and what it needs to do.
The environment
Sites, compatibility and how it connects.
What you have now
The system it replaces or joins.
Send us these details
- Where it will be used
- What it needs to work with
- New setup or replacement
- Quantity and any accessories
What the quote covers
Product
The model, quantity and what is included.
Commercials
Price, tax and any term are confirmed on the quote.
Deployment & support
Warranty for the selected model is confirmed on the quote. We will confirm availability and delivery timing on your quote.
Technical specifications
Published specifications for this model.
Interfaces & connectivity
| USB | Published specifications: USB 3.0. Photos and a graphic label TYPE-C. |
|---|
Dimensions & power
| Power | USB powered. A cable graphic labels TYPE-C as Power. |
|---|
Other details
| Name on the listing | VIDEOCAST 2 Channel HDMI USB 3.0 Video Capture Card Device. The page also says Loop Out Mixer. |
|---|---|
| Video inputs | Published specifications: 2× HDMI inputs. Photos: HD IN 1 and HD IN 2. |
| HDMI loop-out | Published specifications: 2× HDMI loop-out outputs. Photos and a connection graphic show one HD OUT labelled HDMI LOOP OUT. We will confirm the loop-out count on your quote. |
| Capture | Published specifications: up to 1080p at 60 fps over USB 3.0. Formats: MJPEG / YUY2. Intro: two 4K HDMI inputs simultaneously. Manufacturer guidance: up to 4K HDMI input and Full HD 1080p60 capture. |
| Audio | Published specifications: HDMI embedded audio. The unit includes MIC, OUT and IN 3.5 mm jacks. |

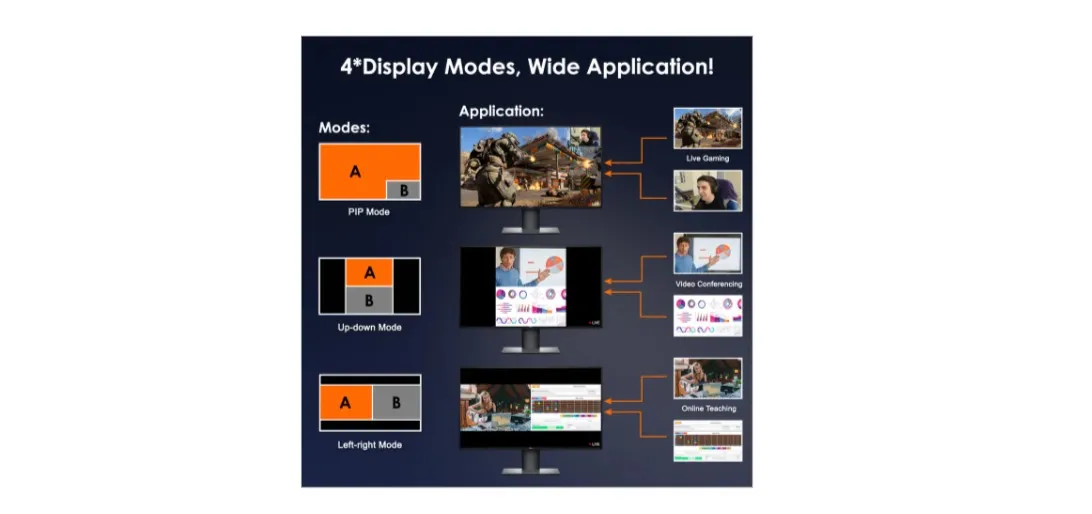

| Mixing features on the page | Dual HDMI source switching, picture-in-picture, built-in transition effects and real-time HDMI loop-out monitoring. Product information also shows PiP, up-down and left-right layouts under a 4 display modes heading. |
| Software named on the page | OBS Studio, XSplit, VLC, vMix, Zoom and Teams. |
| Systems named on the page | Windows, macOS and Linux. |
| Colour | Black |
| Distinct from | Not the HDMI HD capture dongle, not the 4K 60Hz HDMI Video Capture dongle, not the single-input HDMI Video Capture With Loop box, and not the 2 Channel V2 video switcher. |
Warranty & support
Manufacturer coverage for the selected model is confirmed on your quote.
Delivery & fulfilment
We will confirm availability and delivery timing on your quote. Delivery charges, when they apply, are on the quote.
Frequently asked questions
Is capture 4K or 1080p?
Published specifications say capture up to 1080p at 60 fps. The intro says two 4K HDMI inputs. Manufacturer guidance says up to 4K HDMI input and Full HD 1080p60 capture. We will confirm the formats on your quote.
How many HDMI loop-outs does it have?
Published specifications say 2× HDMI loop-out outputs. The product imagery and a connection graphic show one HD OUT. We will confirm the I/O on your quote.
Is this the same as the 2 Channel V2 switcher?
No. This listing is the 2 Channel HDMI USB 3.0 Video Capture Card Device. The 2 Channel V2 is a listed video switcher on a different manufacturer listing.
How do I get pricing and availability for this capture device?
Post a requirement with the quantity and your setup details. We will confirm the configuration, availability, delivery estimate and price with GST on your quote.
